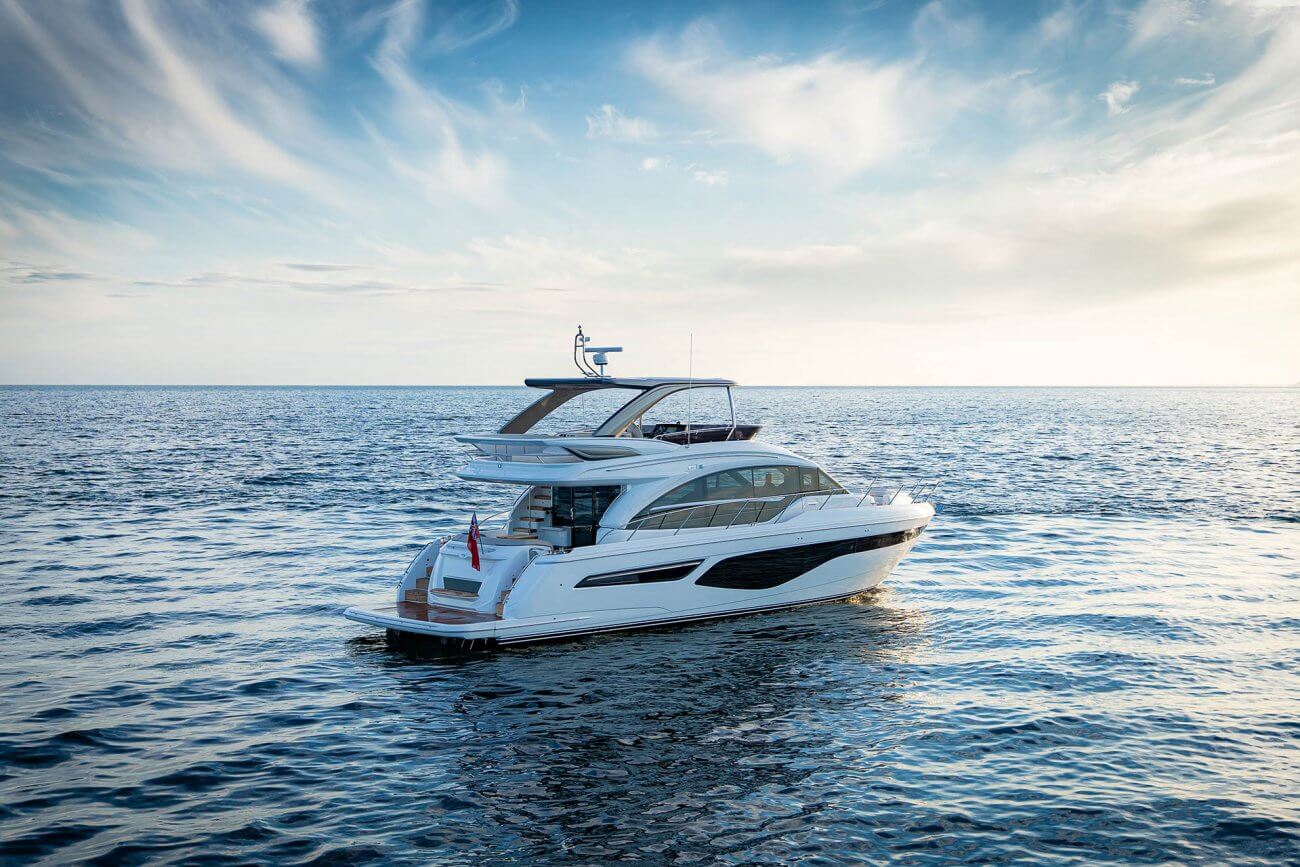

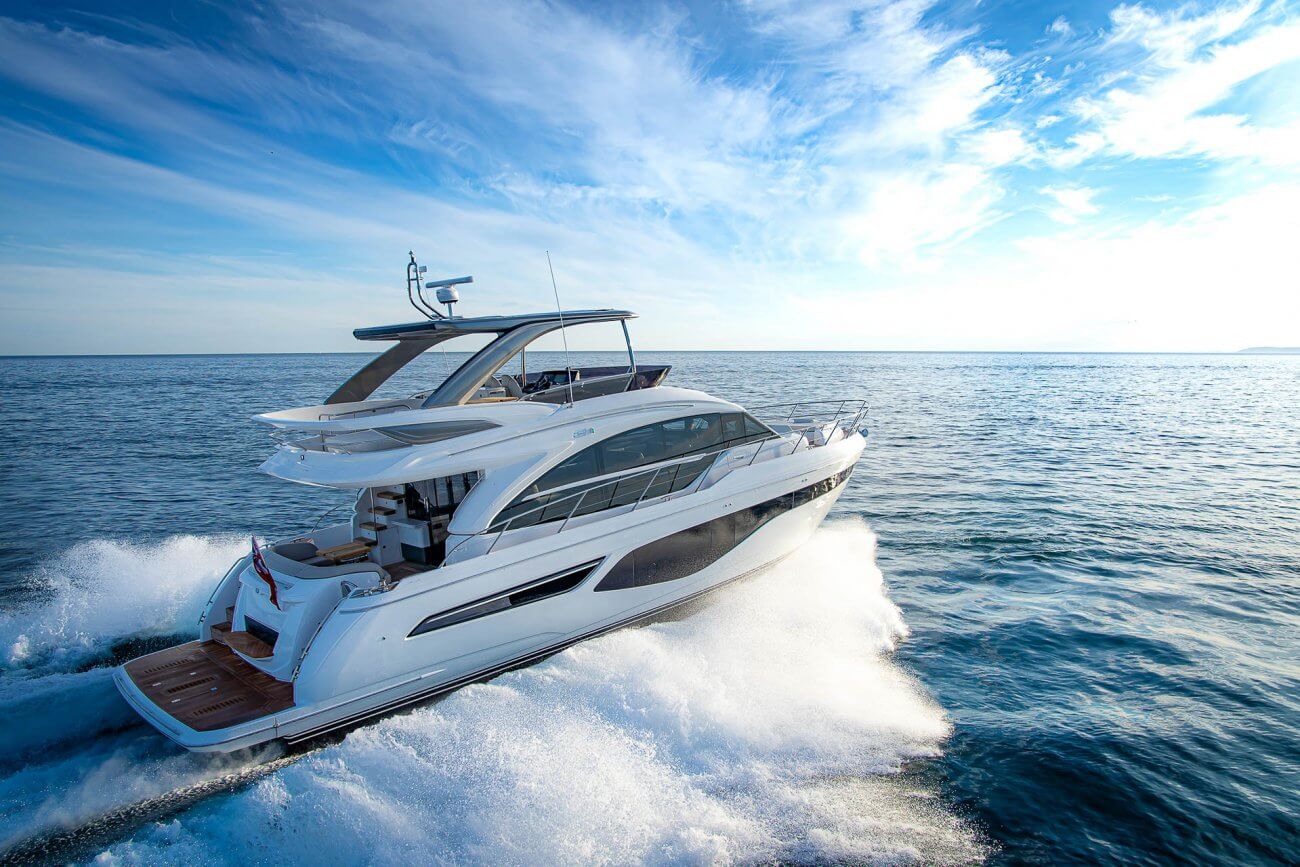

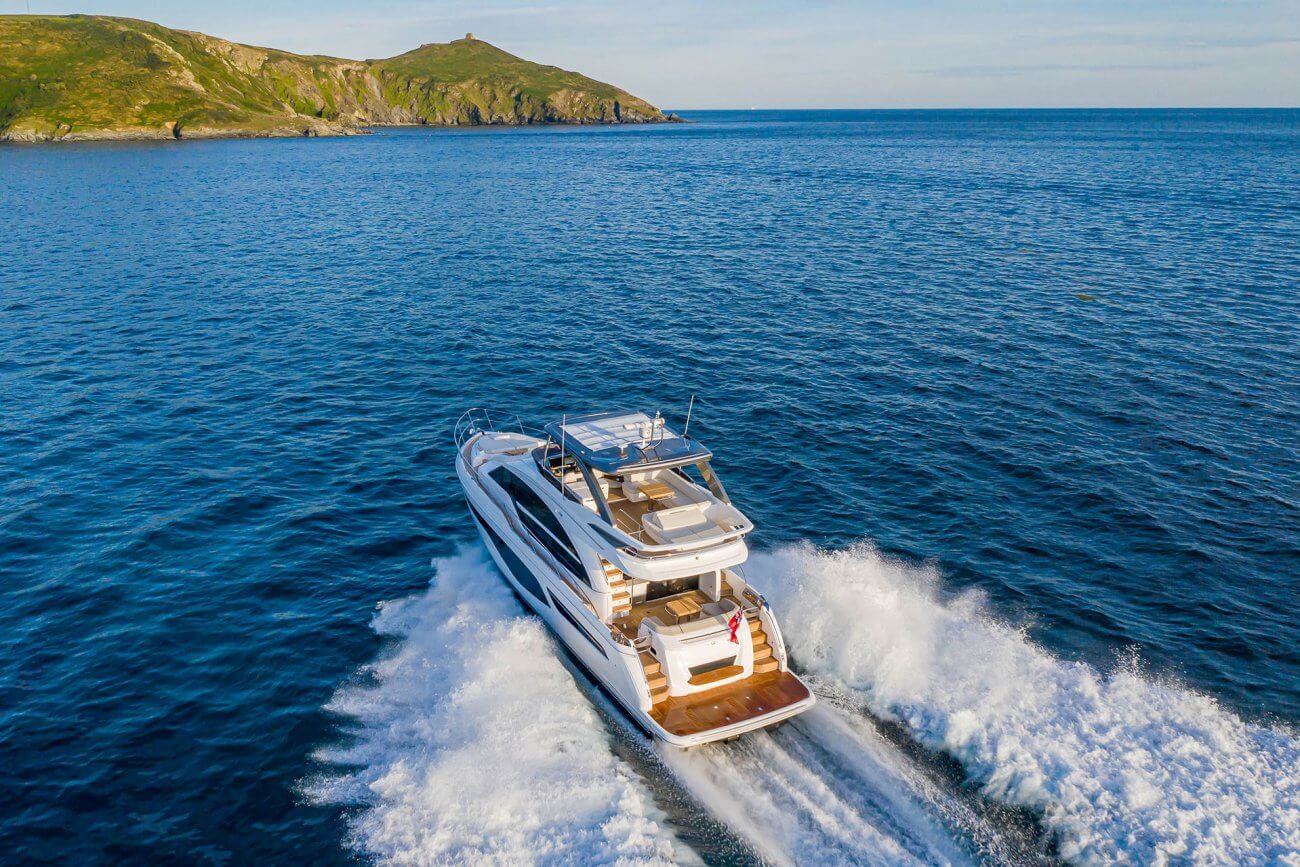

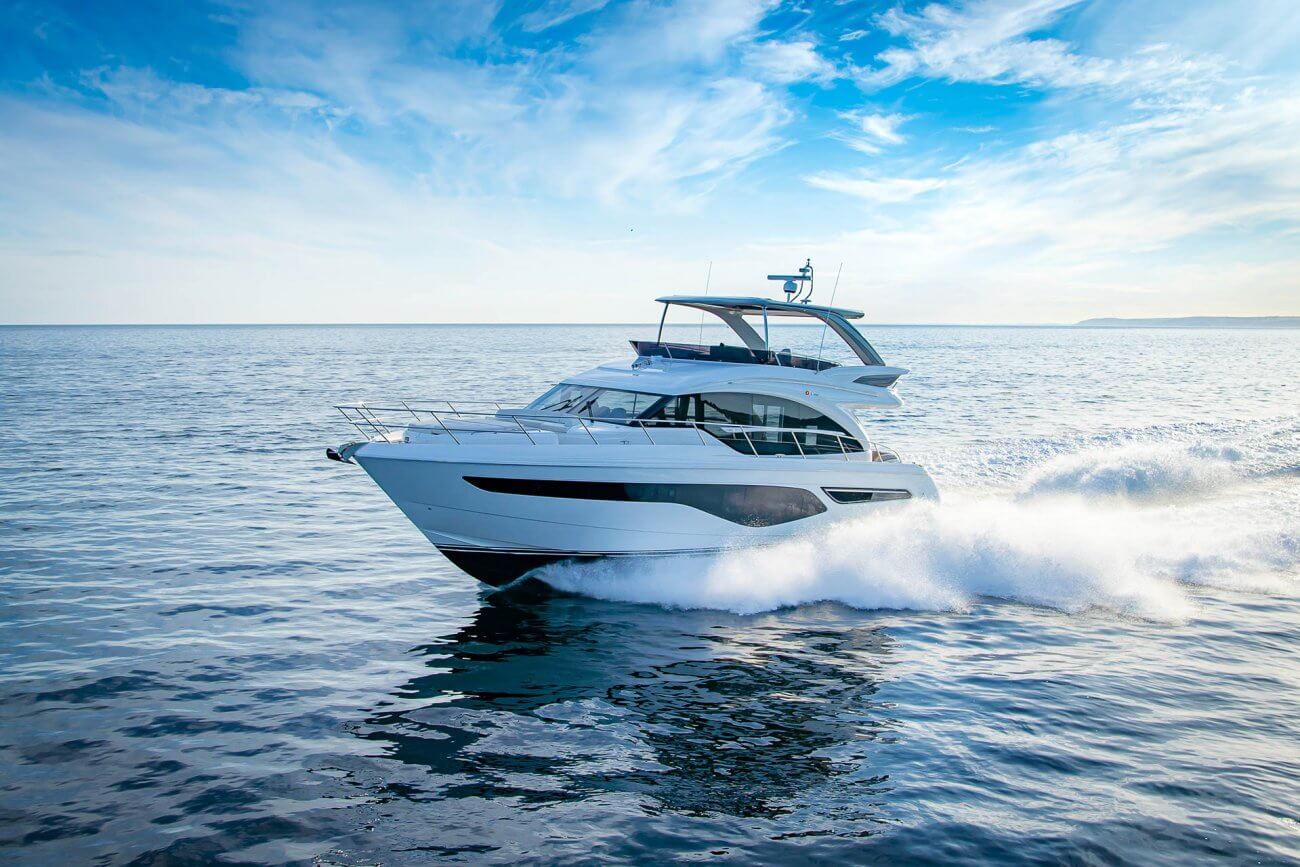

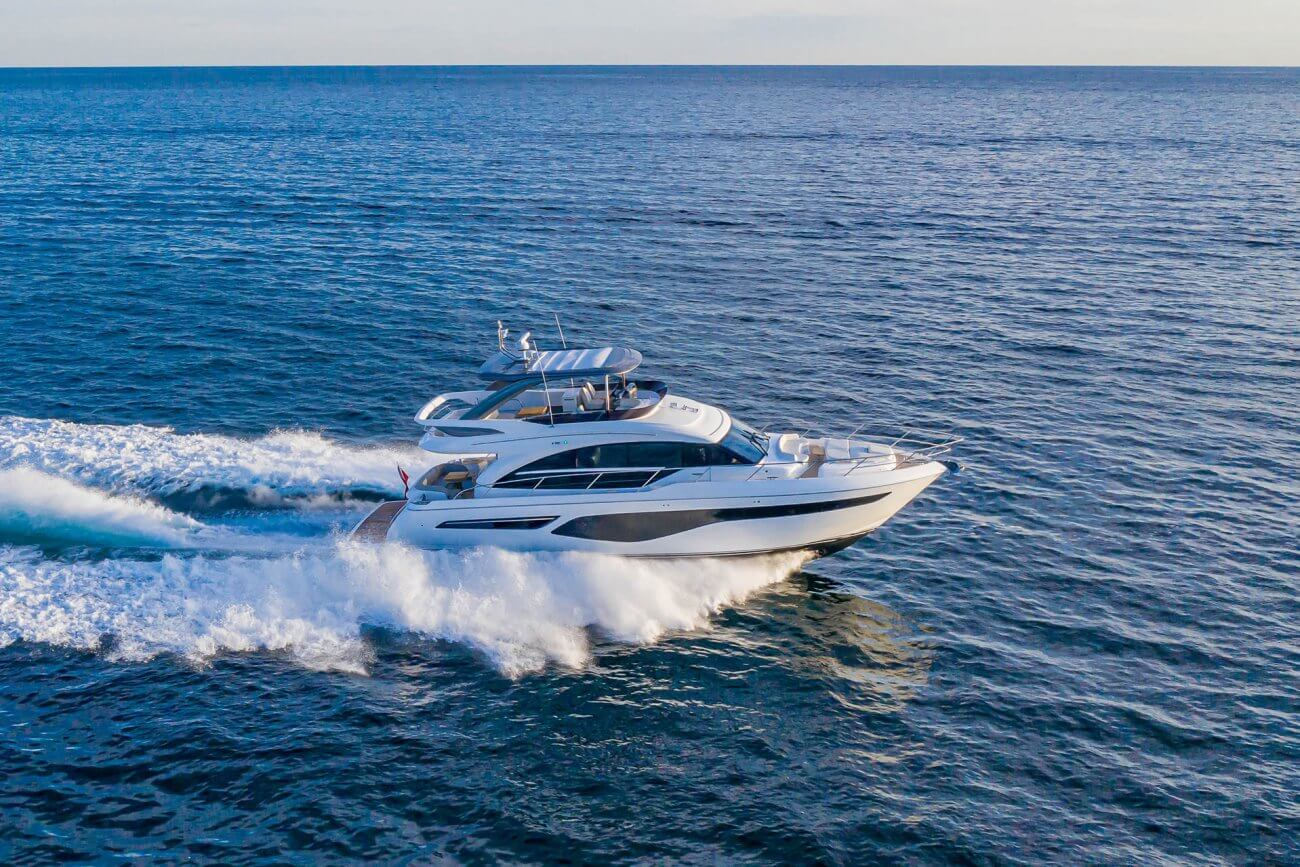

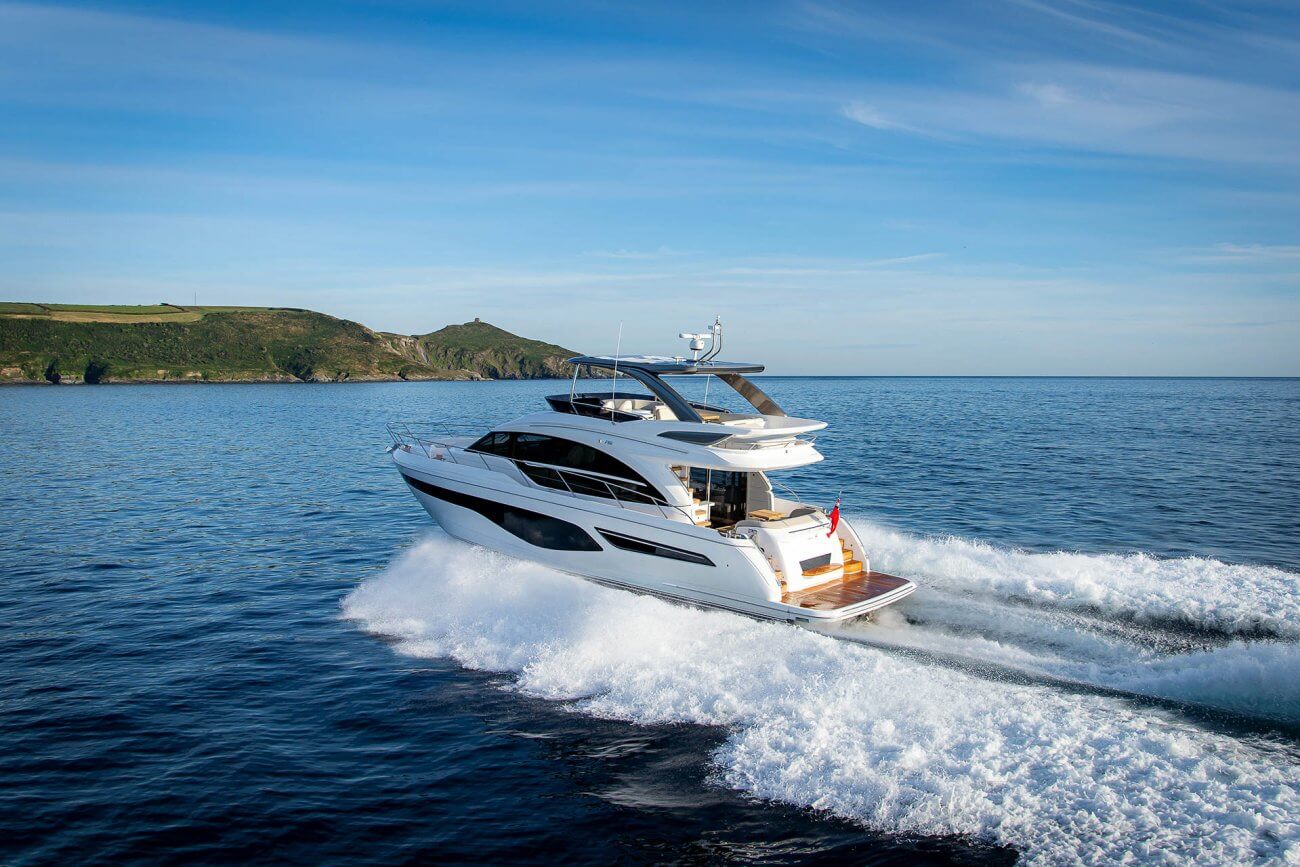

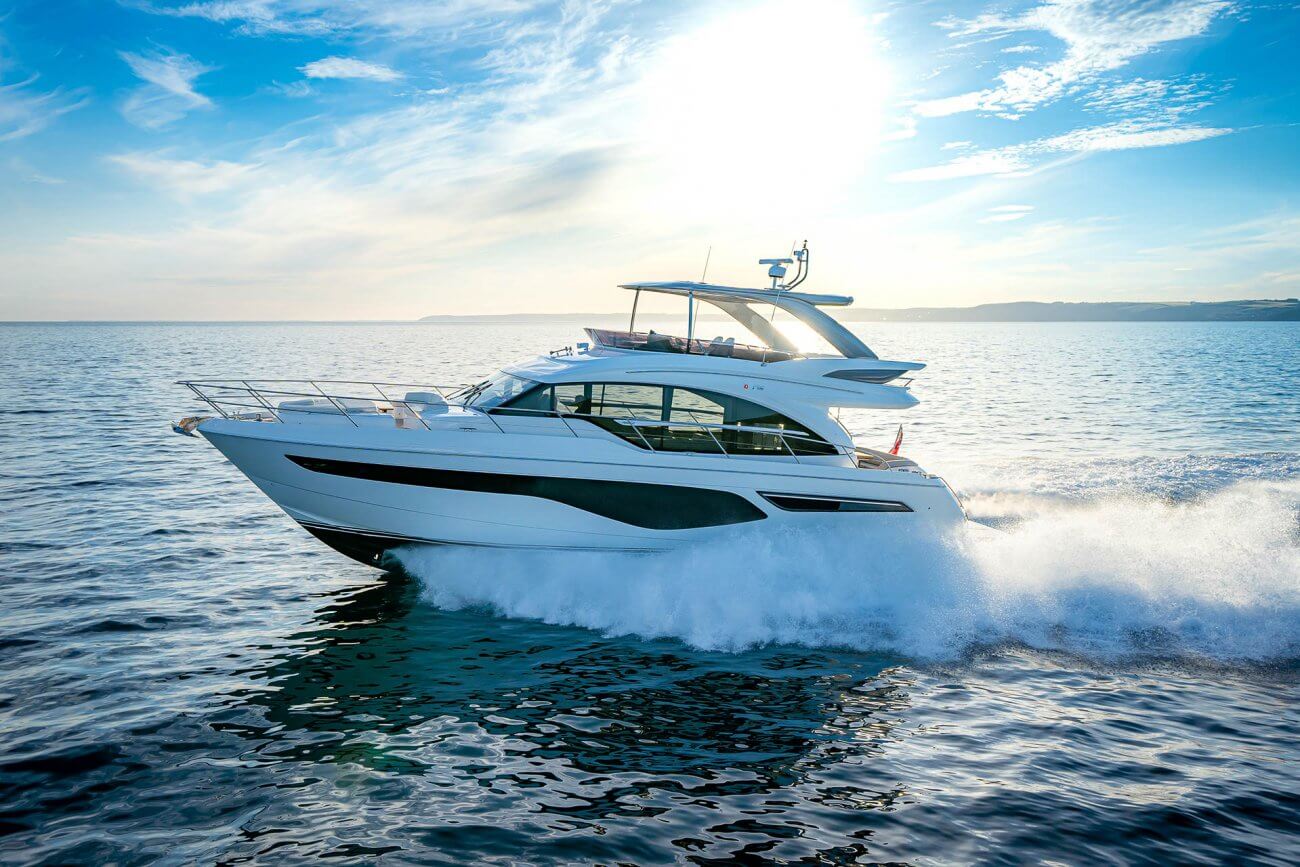

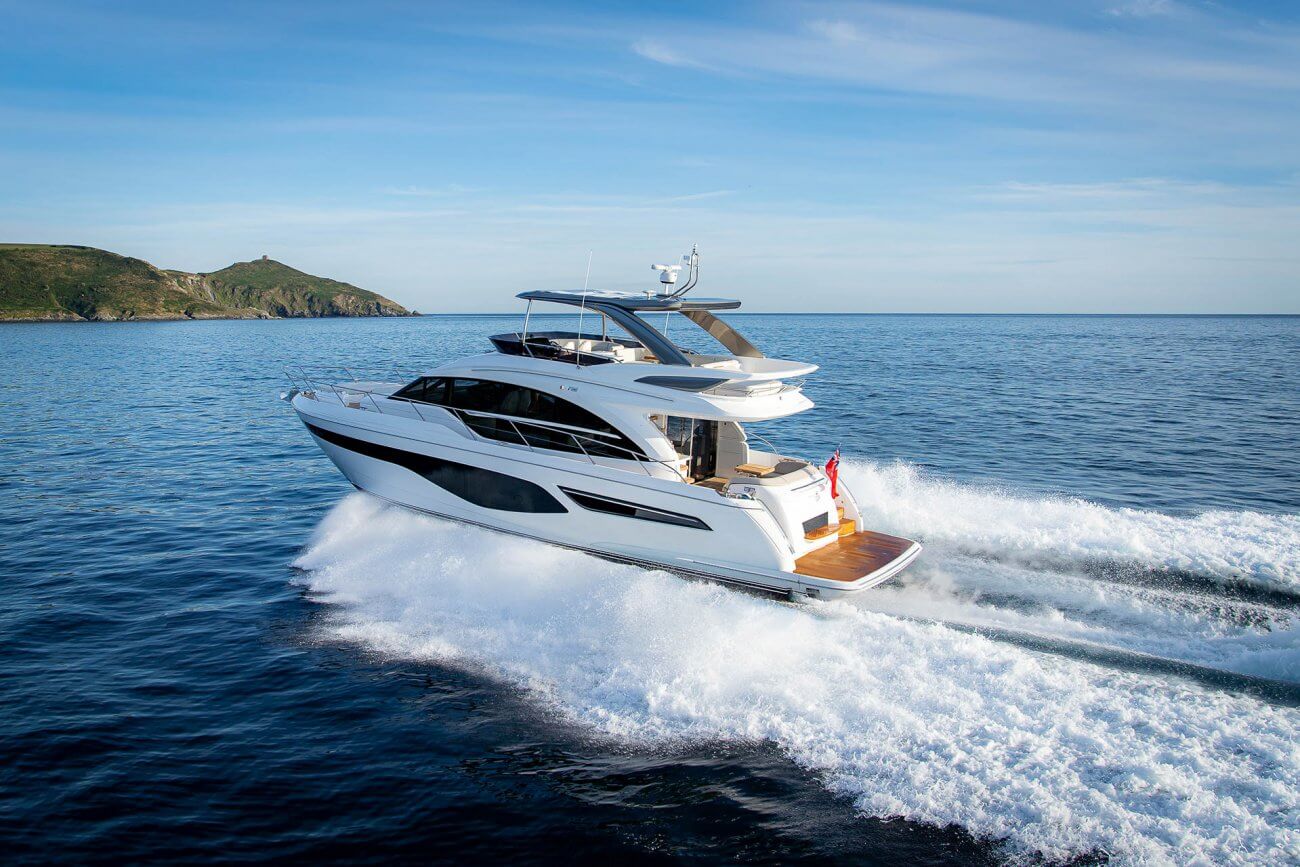

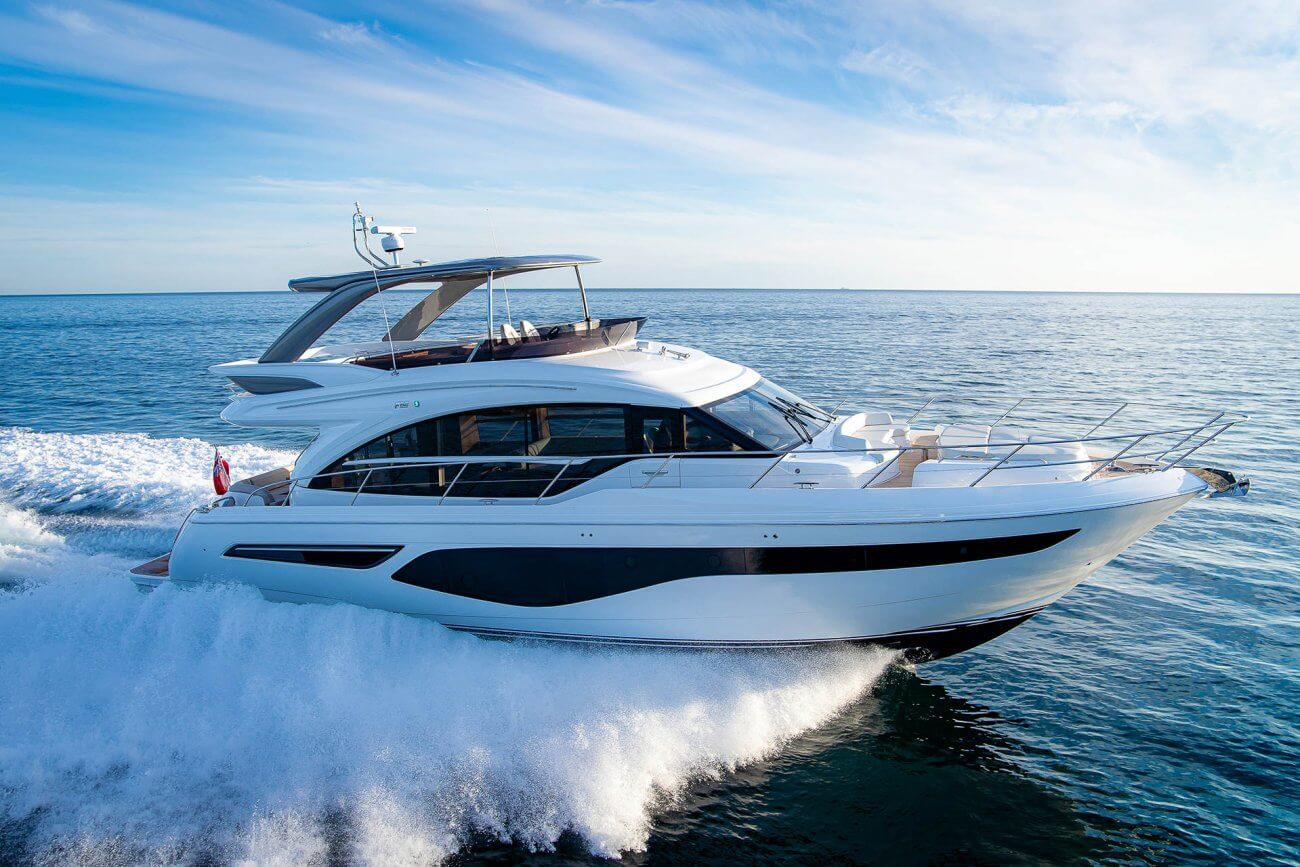

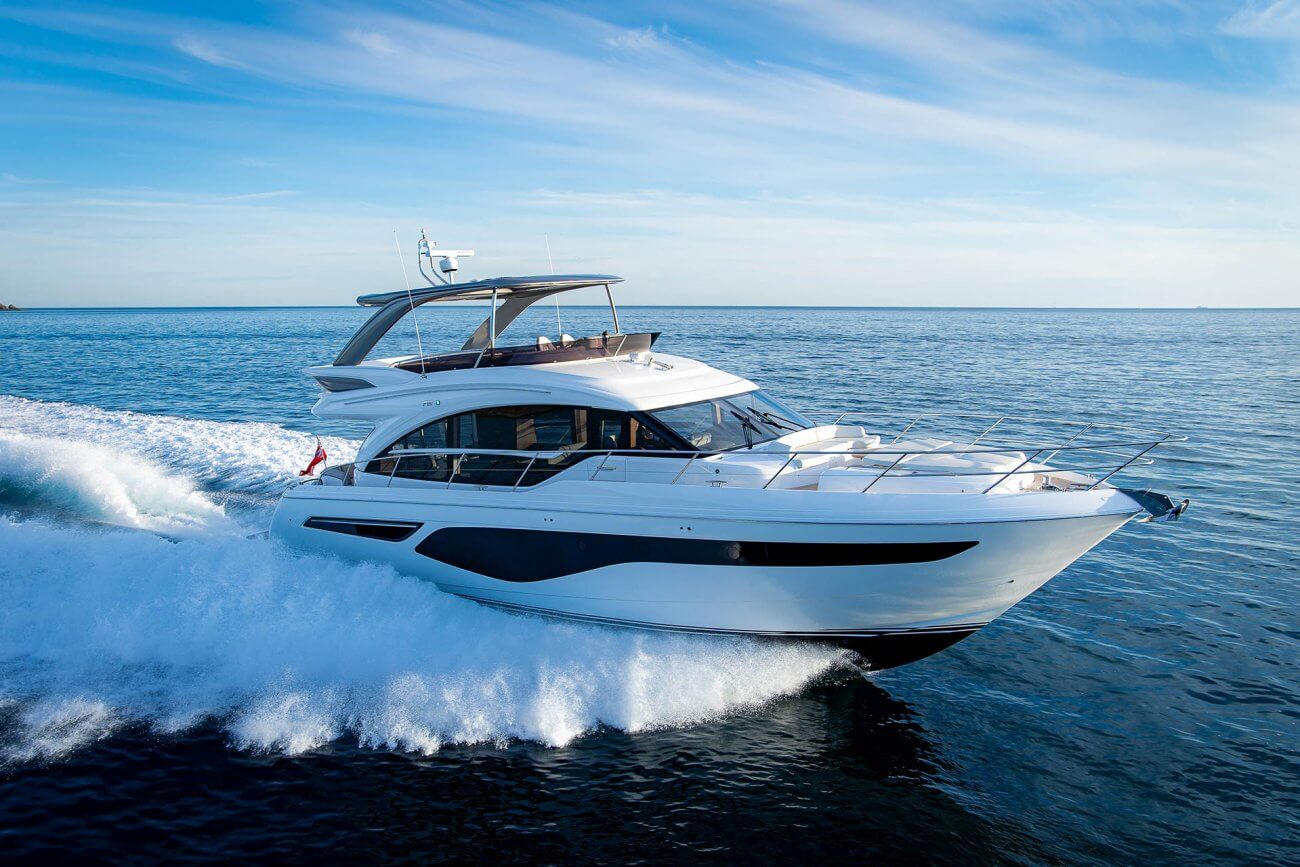

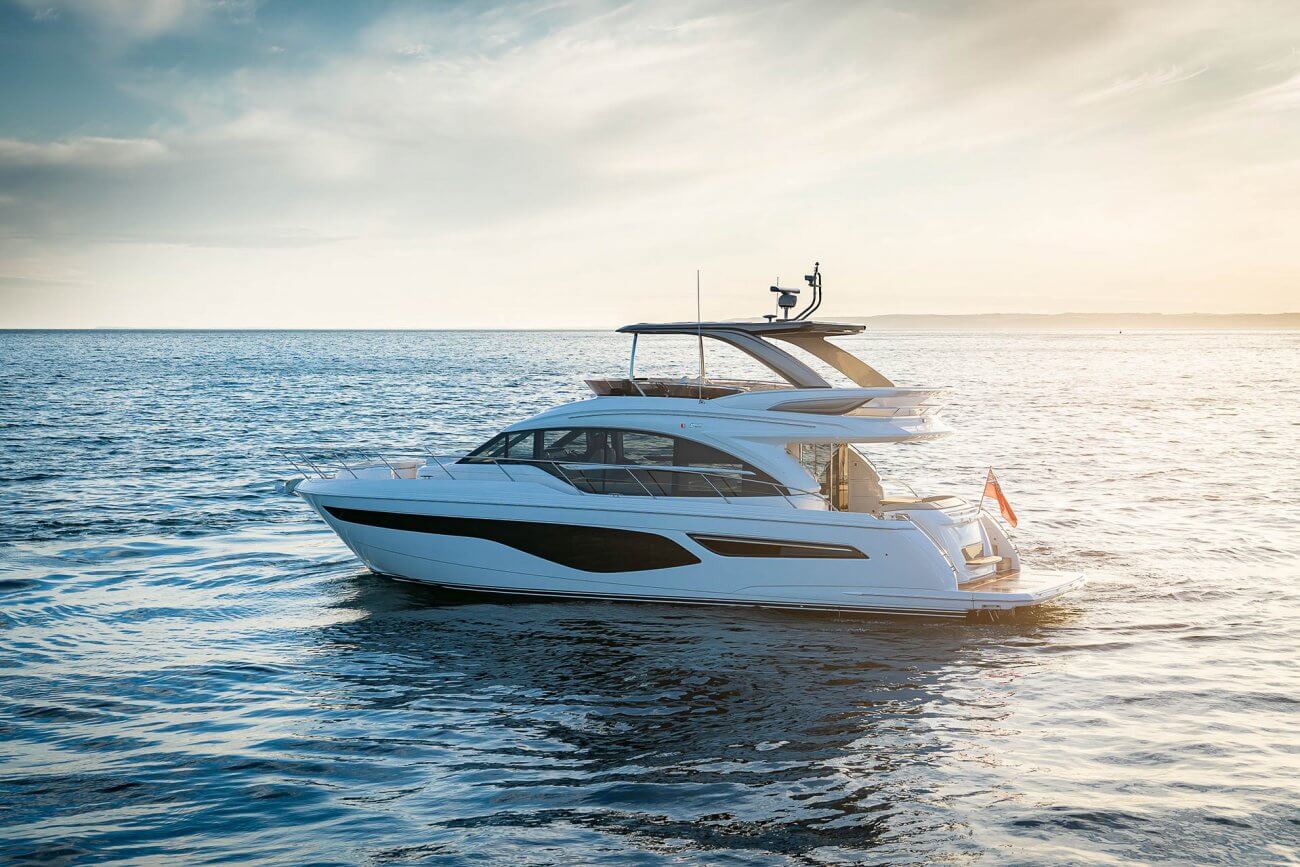

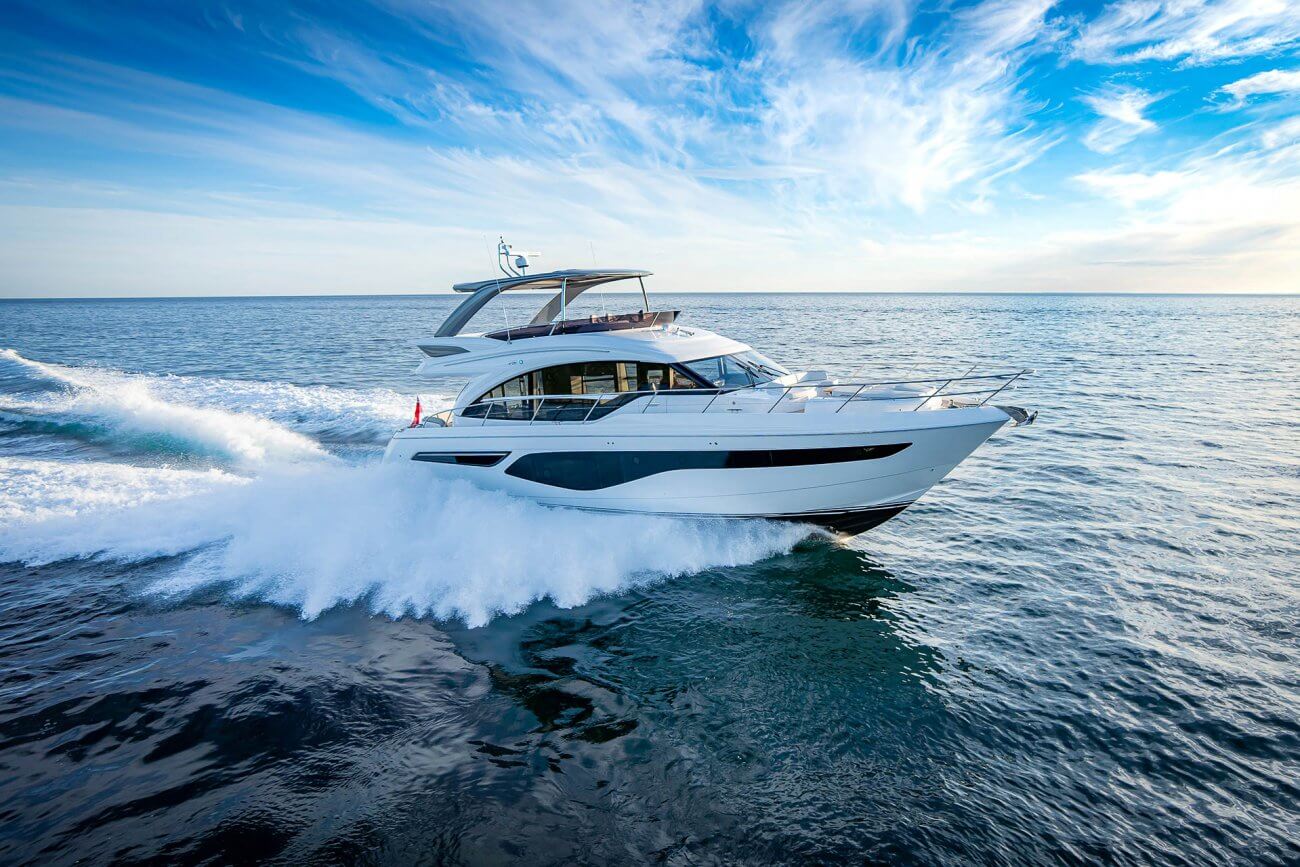

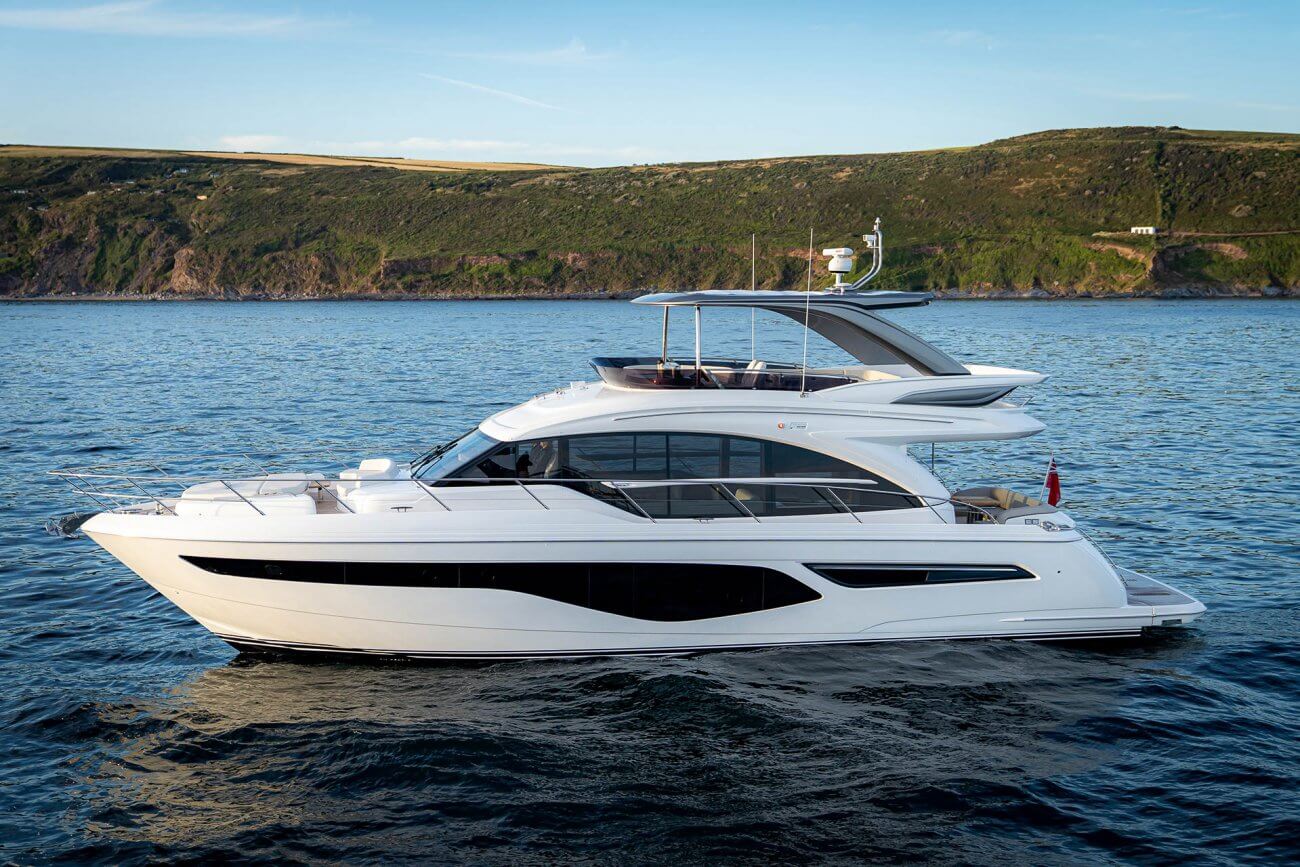

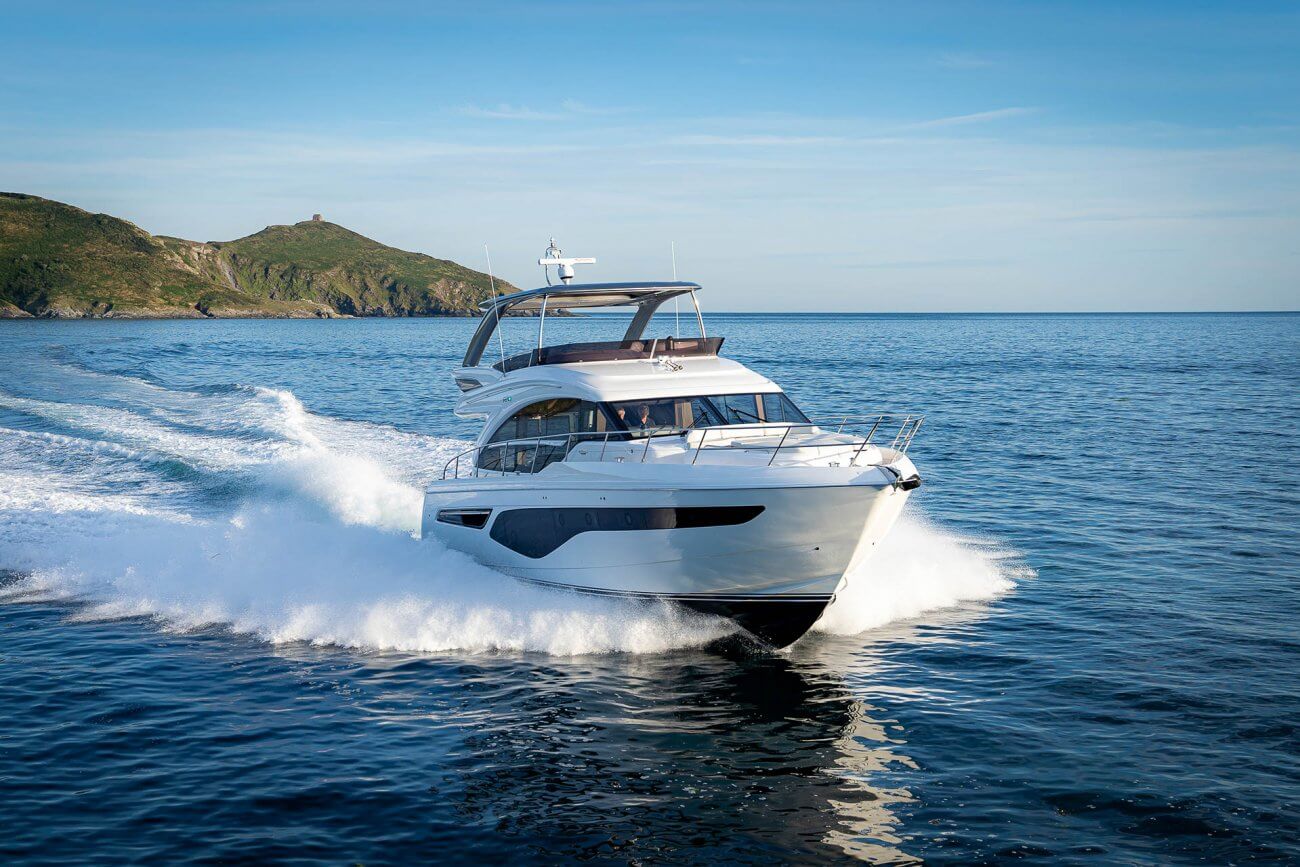

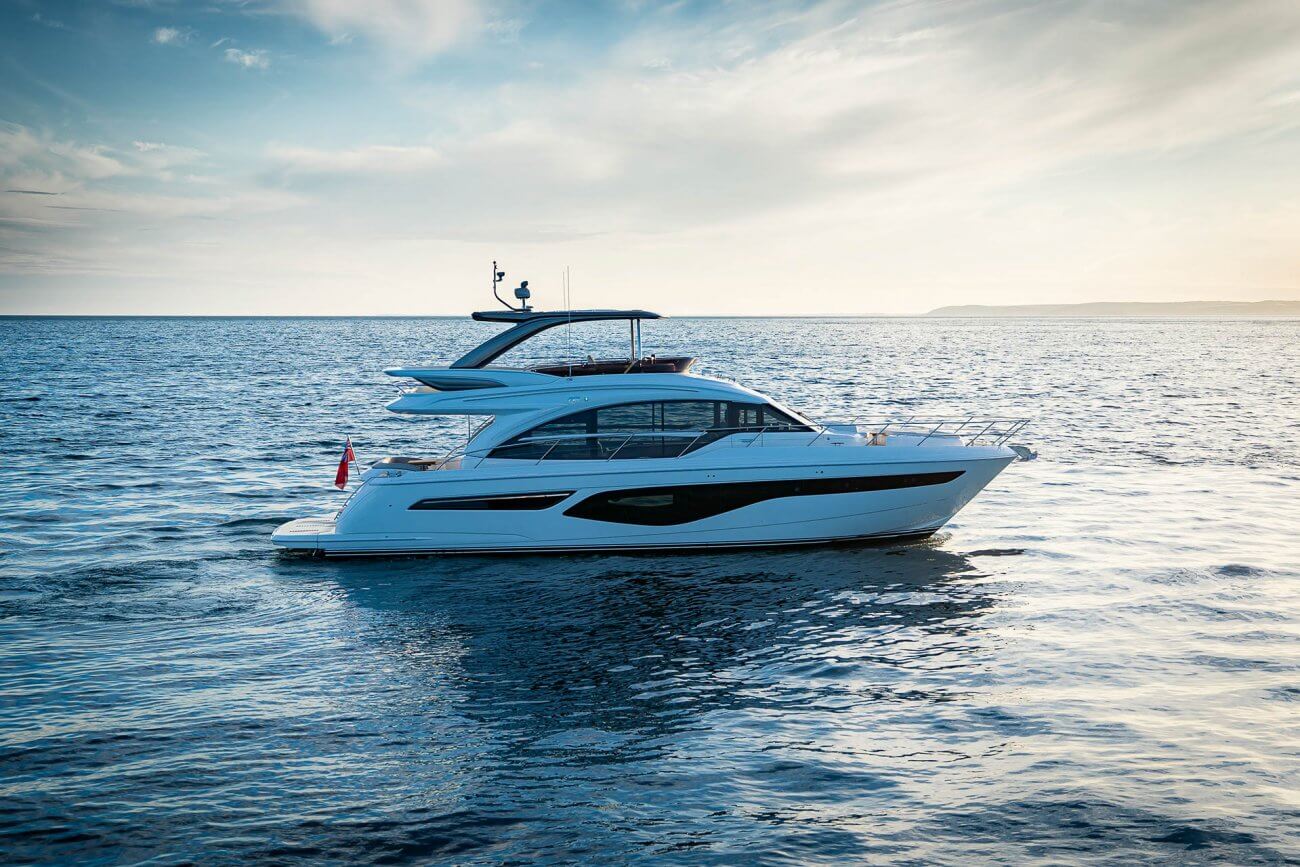

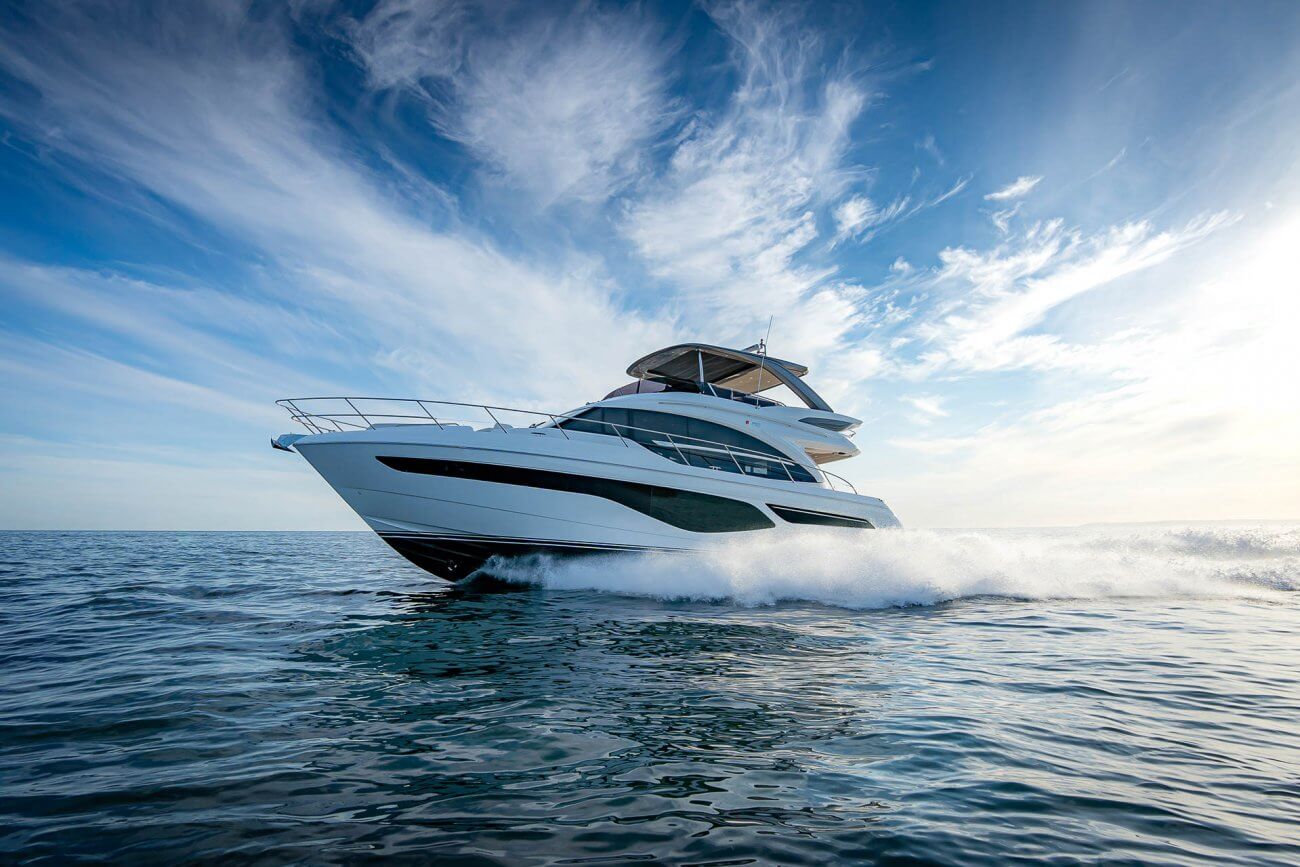

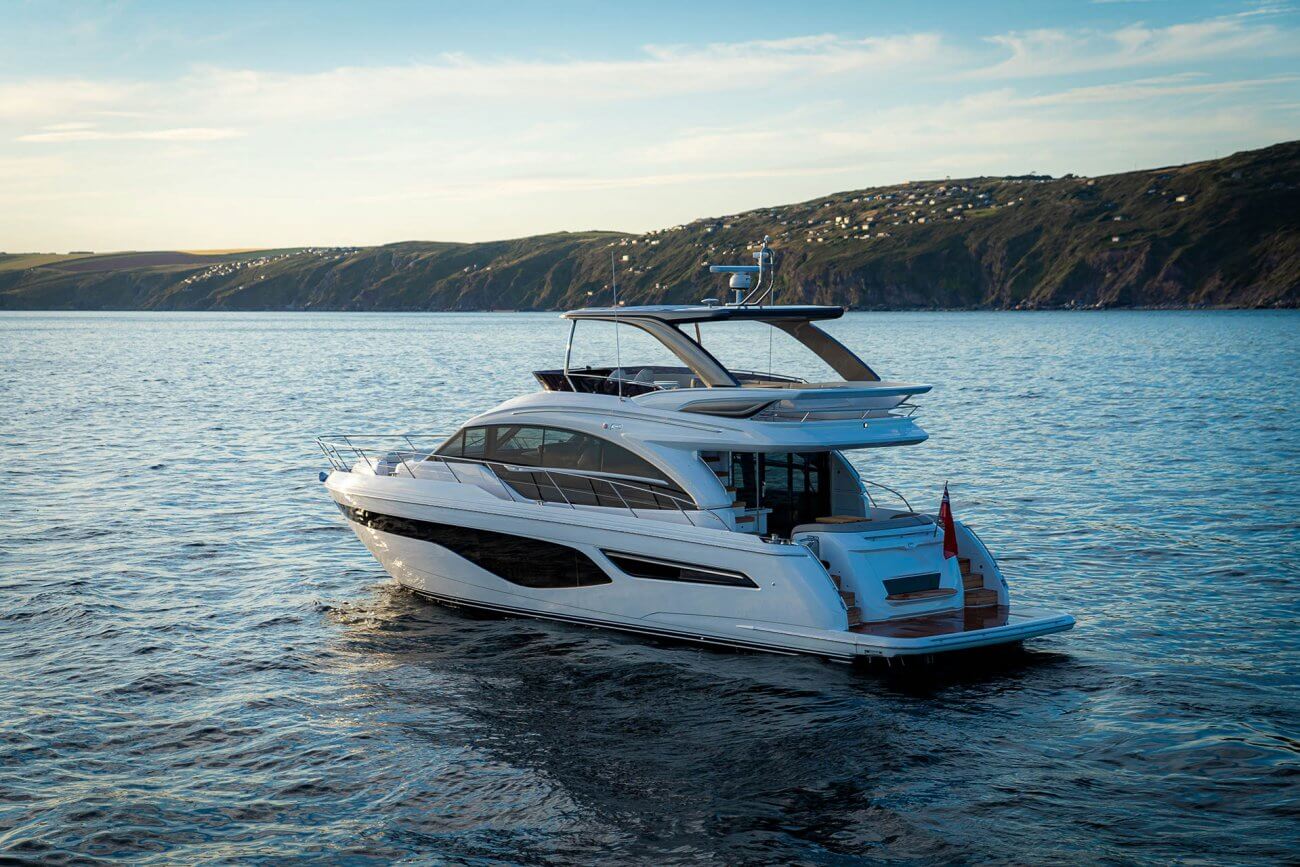

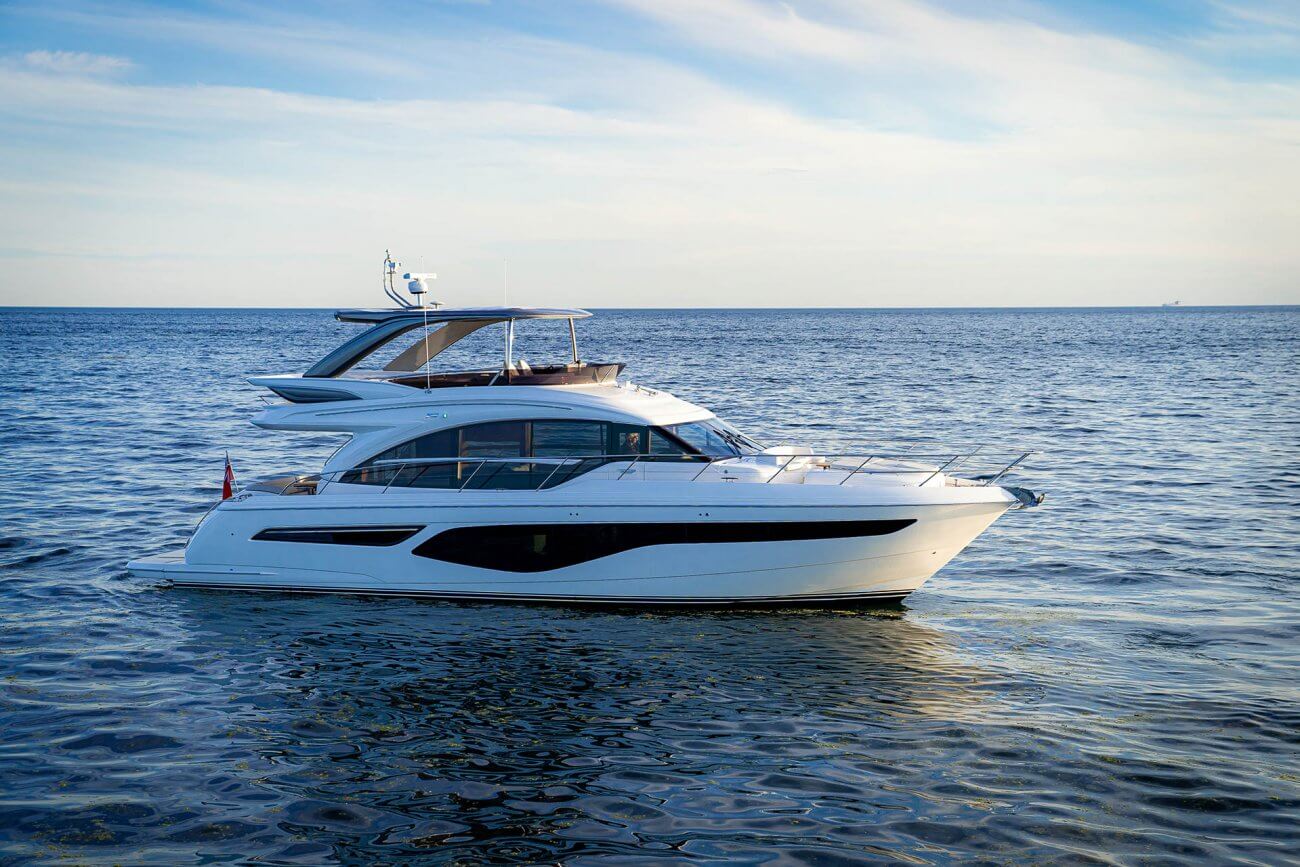

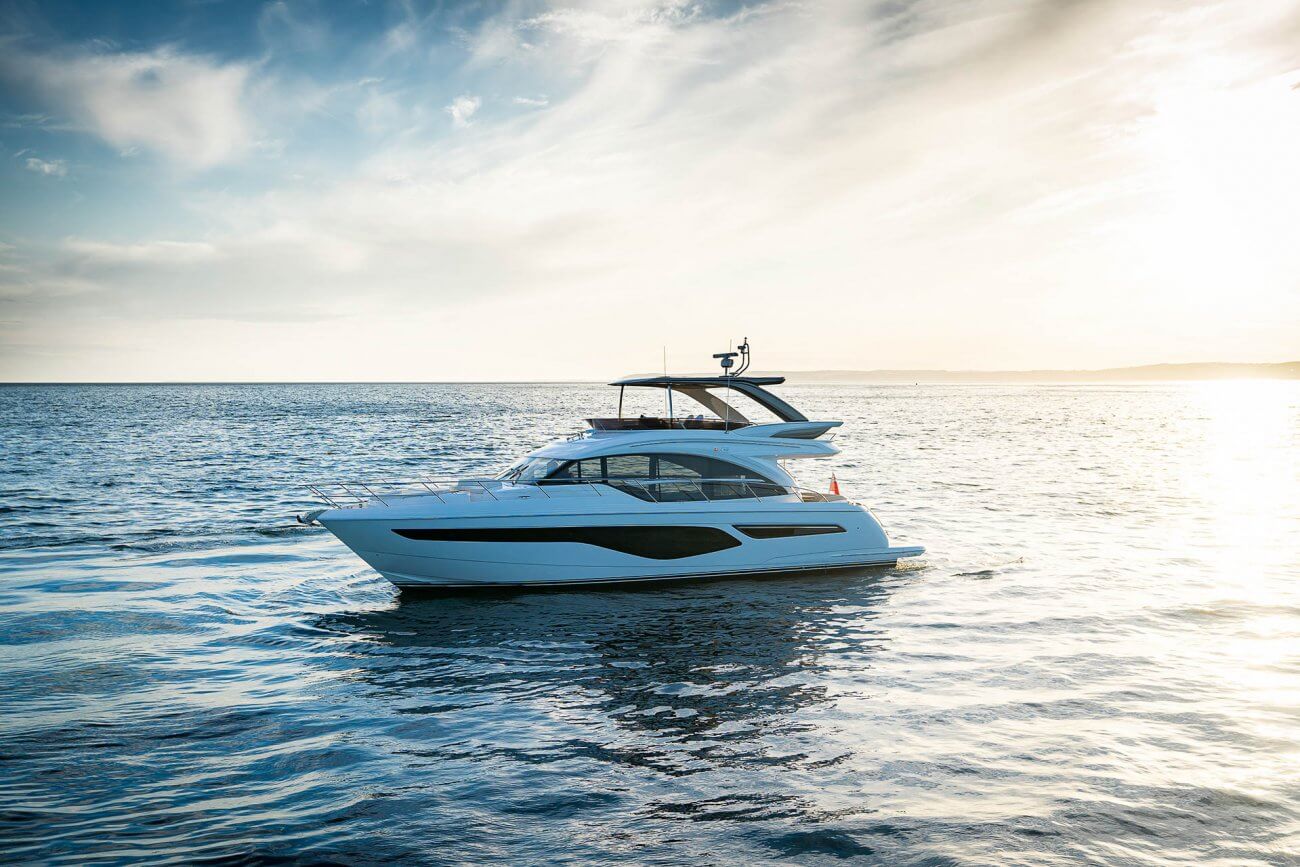

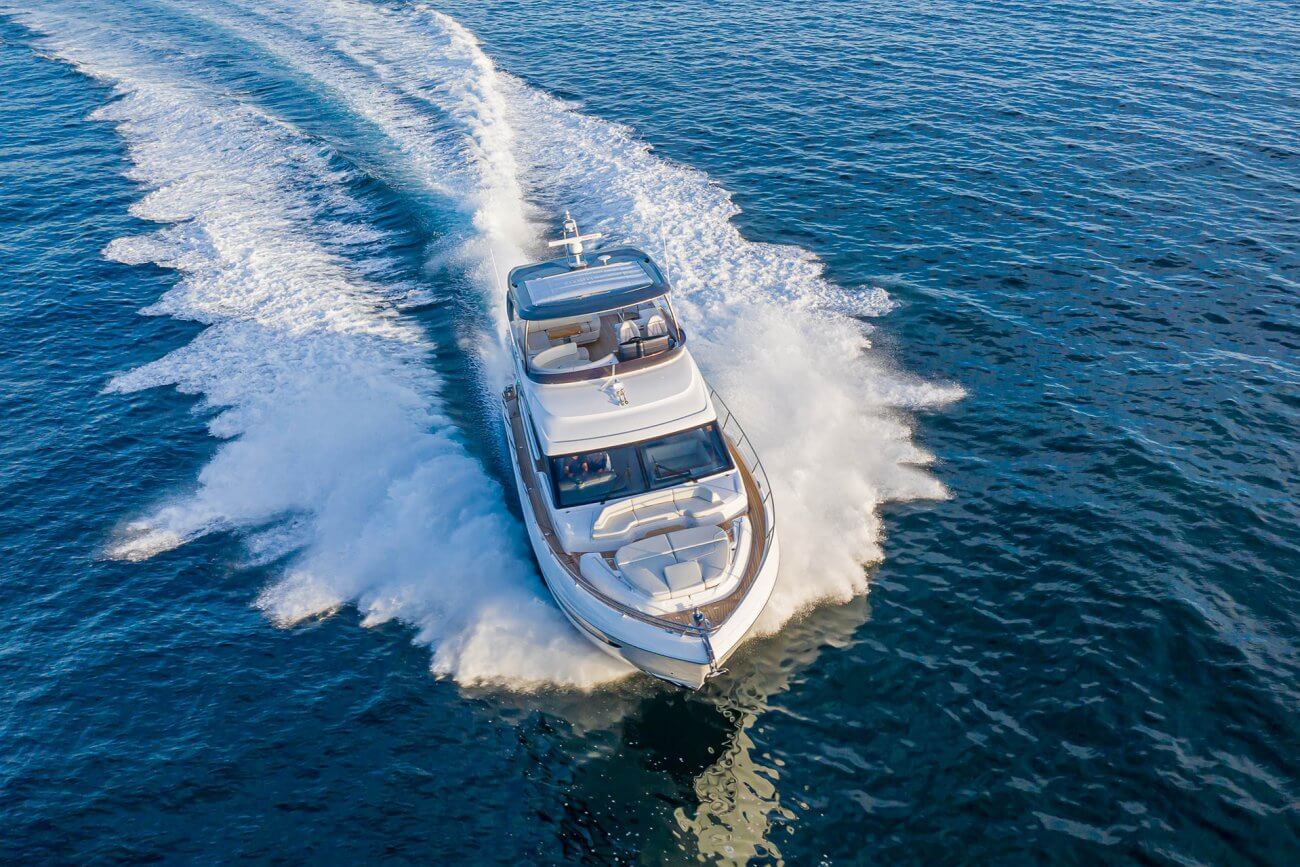

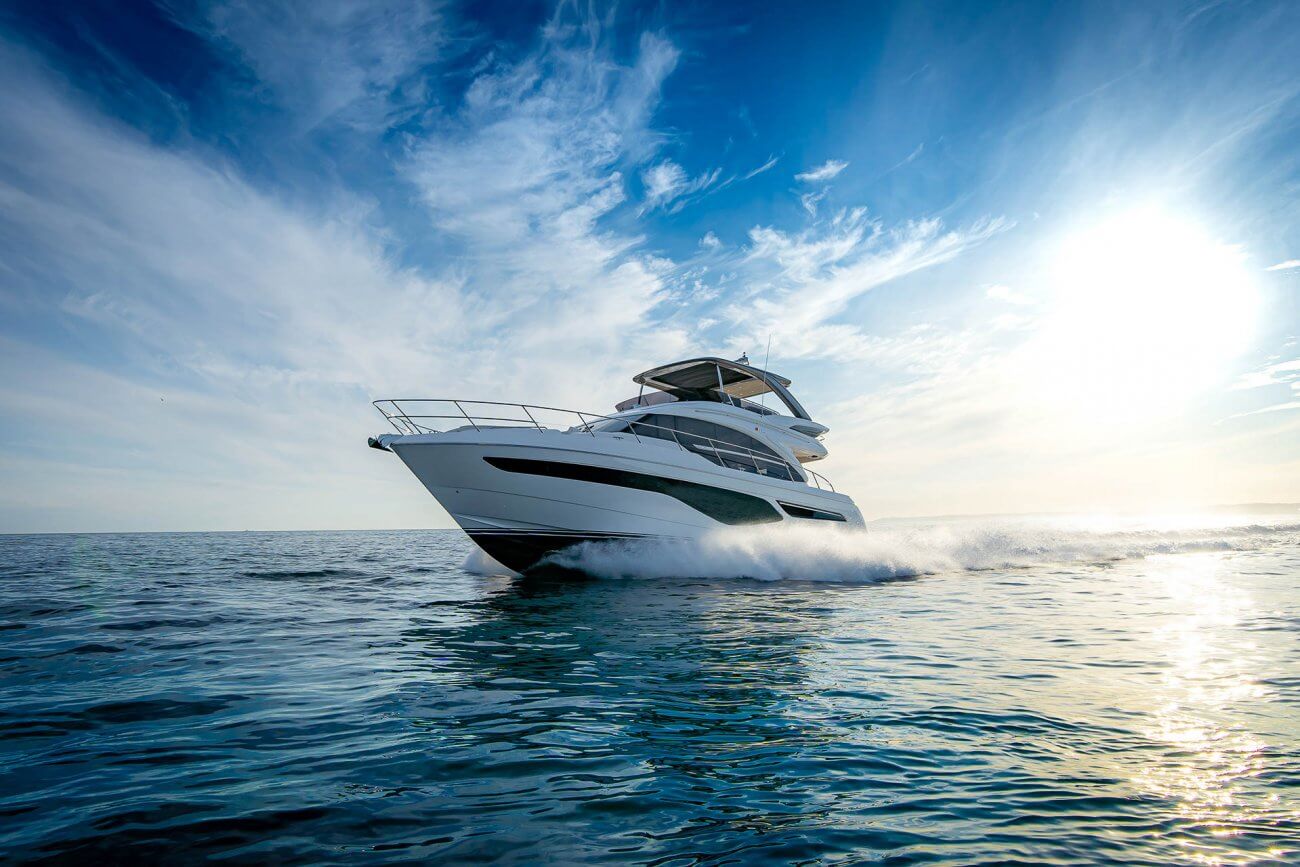

PRINCESS F62
The all-new Princess F62 encapsulates our meticulous design ethos and all the benefits of the latest infusion technology, enabling the inclusion of features normally possible only on much larger craft. Her flybridge inspires relaxation with a large dining area, a sunpad aft and a unique circular forward seating area that can be converted into an additional sunpad. Boasting a walkthrough foredeck entertaining space and a hydraulic bathing platform as standard she is an ingenious and compelling addition to our Flybridge range.
Her cavernous main deck saloon connects to the world outside through full length side windows, while her sociable galley is positioned aft and opens to the cockpit. The helm position is located to starboard with additional forward facing guest seating opposite. Below deck six guests enjoy three beautifully appointed en suite cabins all bathed in natural light from elegant hull glazing, with the option of a further twin cabin aft for occasional guests or crew.
L.O.A. (incl pulpits) | 19.34 m (63′ 5″) |
L.O.A. (excl pulpits) | 19.09 m (62′ 7″) |
Beam | 5.03 m (16′ 6″) |
Depth | 1.49 m (4′ 11″) |
Displacement* | 29.3 T |
Fuel capacity | 3400 L |
Water capacity (incl calorifier) |
793 L |
Holdingtank | Yes |
Year of manufacturing | 2017 – … |
ACCOMMODATION
GUESTS
6 berths in 3 double cabins ensuit
CREW
2 berths in an aft cabin ensuit
ENGINE OPTIONS
2x Volvo Penta D13 (2 x 1000 hp)
† Maximum speed 30-32 kn
2x MAN V8 (2 x 1200 hp)
† Maximum speed 31-32.5 kn
NOTES
* Displacements are calculated with half full fuel and water but with no optional equipment fitted or other gear or crew aboard.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of us or Princess Yachts International plc.
Crafts illustrated on this website may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability.
EQUIPMENT
DECK FITTINGS
• Teak-laid transom platform, cockpit deck, flybridge stairway and steps to side deck
• Reversible electric anchor winch with foredeck and helm position controls
• Stemhead roller with automatic anchor launch and retrieve
• Self-stowing (32kg/70lb) Delta anchor with 40m of 10mm chain
• Bow rope storage locker
• Freshwater deck/anchor wash
• Walk through coachroof seating area
• Foredeck sunbathing area
• Deck storage locker for fenders and ropes
• Stainless steel bow, stern and spring cleats (8)
• Stainless steel pulpit and guardrails
• Stainless steel coachroof handrails
• Foredeck hatch
• PVC rubbing band with stainless steel insert
• LED deck level lighting
• Full set of IMCO navigation lights
• Riding light
• Searchlight with remote control
• Twin electric horns
• Fuel and water fillers
AFT COCKPIT AND BATHING PLATFORM
• Self draining
• U-shaped seating/dining area with folding teak table
• LED overhead and deck level lighting
• Stainless steel handrails
• Rope stowage locker
• Lockable gas strut assisted hatch to lazarette/engine room
• Lockable gas strut assisted hatch to lazarette/optional crew cabin
• Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
• Twin transom doors leading to bathing platform
• Transom seat in teak
• Electro-hydraulic raise/lower teak laid bathing platform (450Kg SWL)
• Retractable bathing ladder (manual) in side of hydraulic platform
• Transom steps to access stern from bathing platform when in lowered position
• Hot and cold transom shower
• 220/240v shore support inlet in locker
• Cockpit cover
FLYBRIDGE
• Dual station instrumentation and controls with 9” colour mfd screen incorporating engine instruments and fuel gauges (see Lower Helm Position)
• 16” colour mfd screen incorporating GPS/chartplotter, log and echo sounder
• Adjustable steering wheel
• Audible and visual alarm for bilge pumps
• Twin helm seats with fore and aft adjustment for helmsman
• Forward U-shaped upholstered seating area and teak table
• U-shaped upholstered seating area
• Teak folding dining table
• Sunpad aft with storage below
• Radio/iPod/MP3 with waterproof speakers
• Wetbar including sink with electric barbecue and top loading coolbox
• Clear view hatch to aft cockpit
• Wind deflector screens
• Stainless steel handrails
• LED deck level lighting
• GRP radar arch
• Matched whip aerials for VHF R/T and radio
• Liferaft stowage
• Console and seat covers
• Optional GRP hardtop with/without electric opening section (or optional folding bimini with electro-hydraulic operation

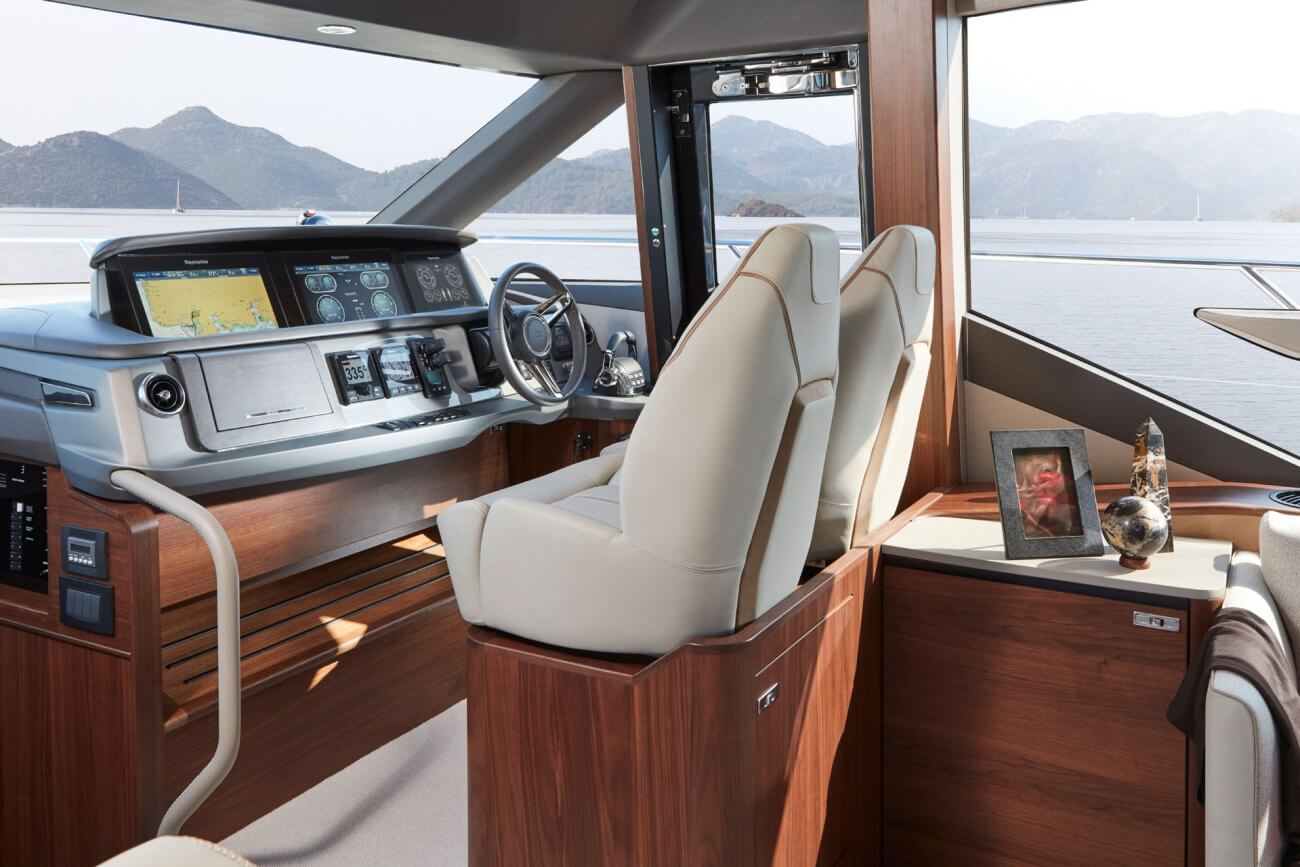

LOWER HELM POSITION
• Twin helm seats with fore and aft adjustment for helmsman

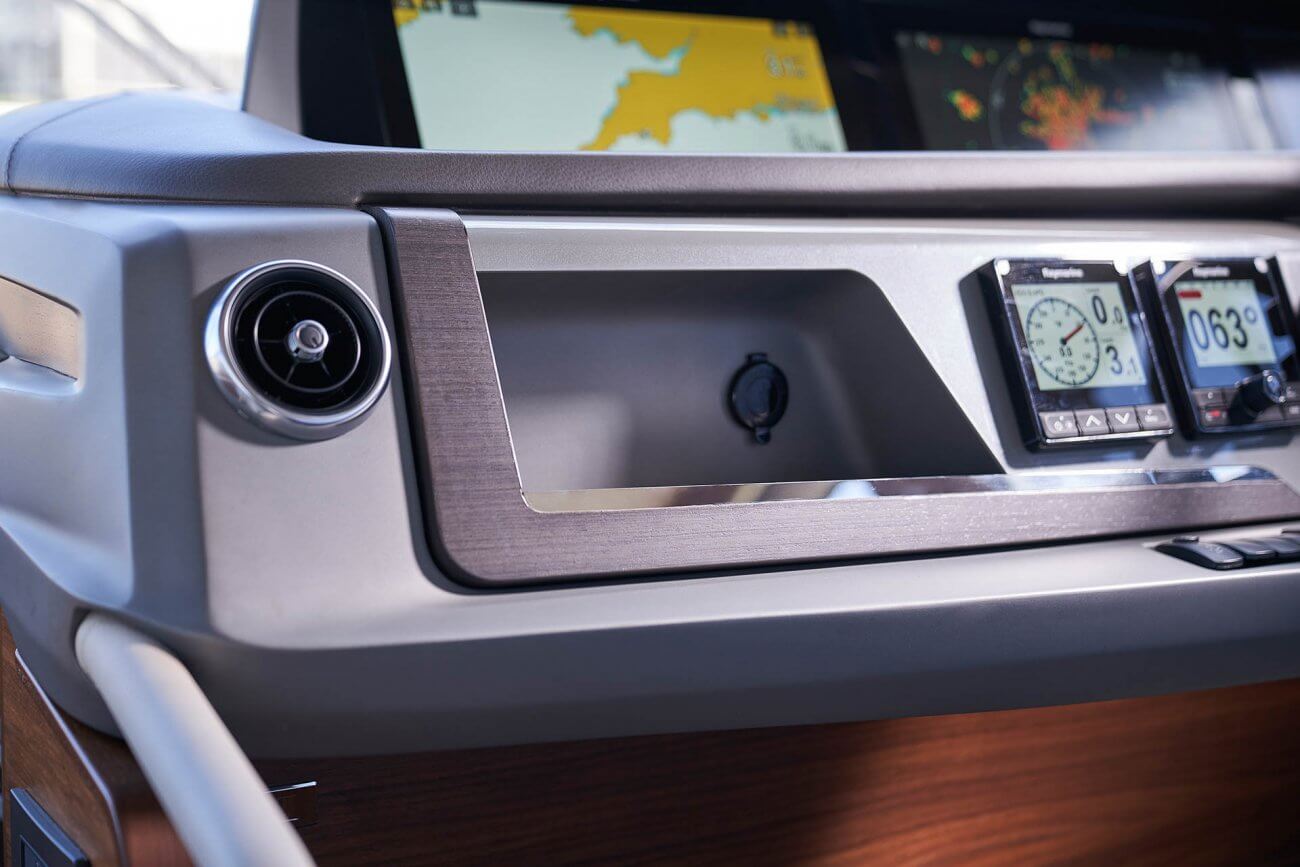

• Instrument console with 9” colour mfd incorporating engine instrumentation and fuel gauges
• 16” brilliant colour mfd incorporating GPS/chartplotter, log and echosounder
• Dual station instruments and controls at Flybridge and Lower Helm Positions:
• power-assisted electro-hydraulic steering
• adjustable steering wheel
• rudder position indicator
• high-speed magnetic compass
• electronic engine controls
• trim tab controls with indicators
• bow thruster control
• electric anchor winch remote control
• autopilot
• speed and distance log
• echo sounder with alarm
• VHF with DSC R/T with intercom
• remote control searchlight
• horn button
• Drinks holders
• Toughened glass screen (clear for night vision)
• Windscreen wipers with freshwater windscreen wash
• Black mesh sunscreens
• Bilge pump controls with visual pump running warnings
• 24v and 240v electrical control panel
• Riding light, helm and navigation light control switches
• USB connection point
• LED overhead lighting (24V) and night lighting
• Helmsman door
• Fitted carpet

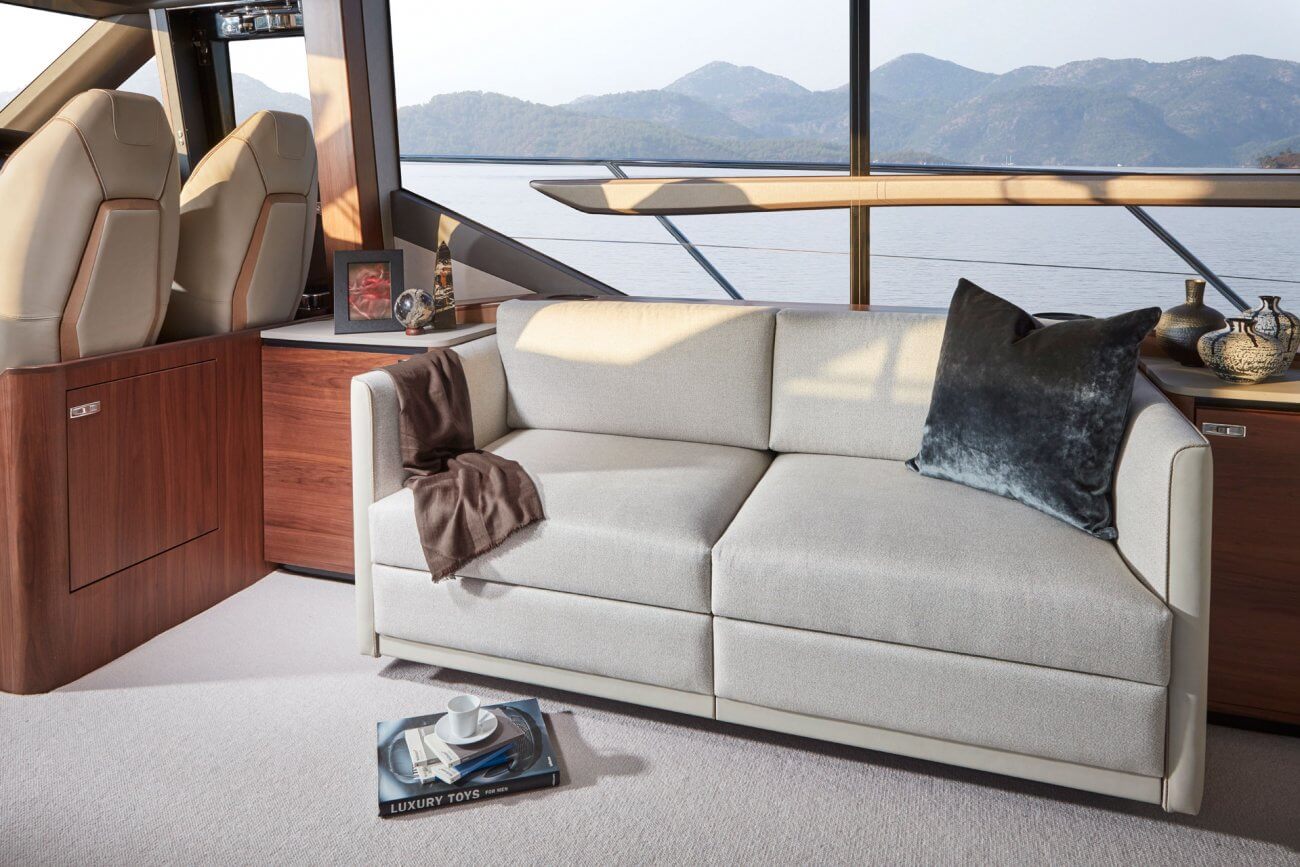

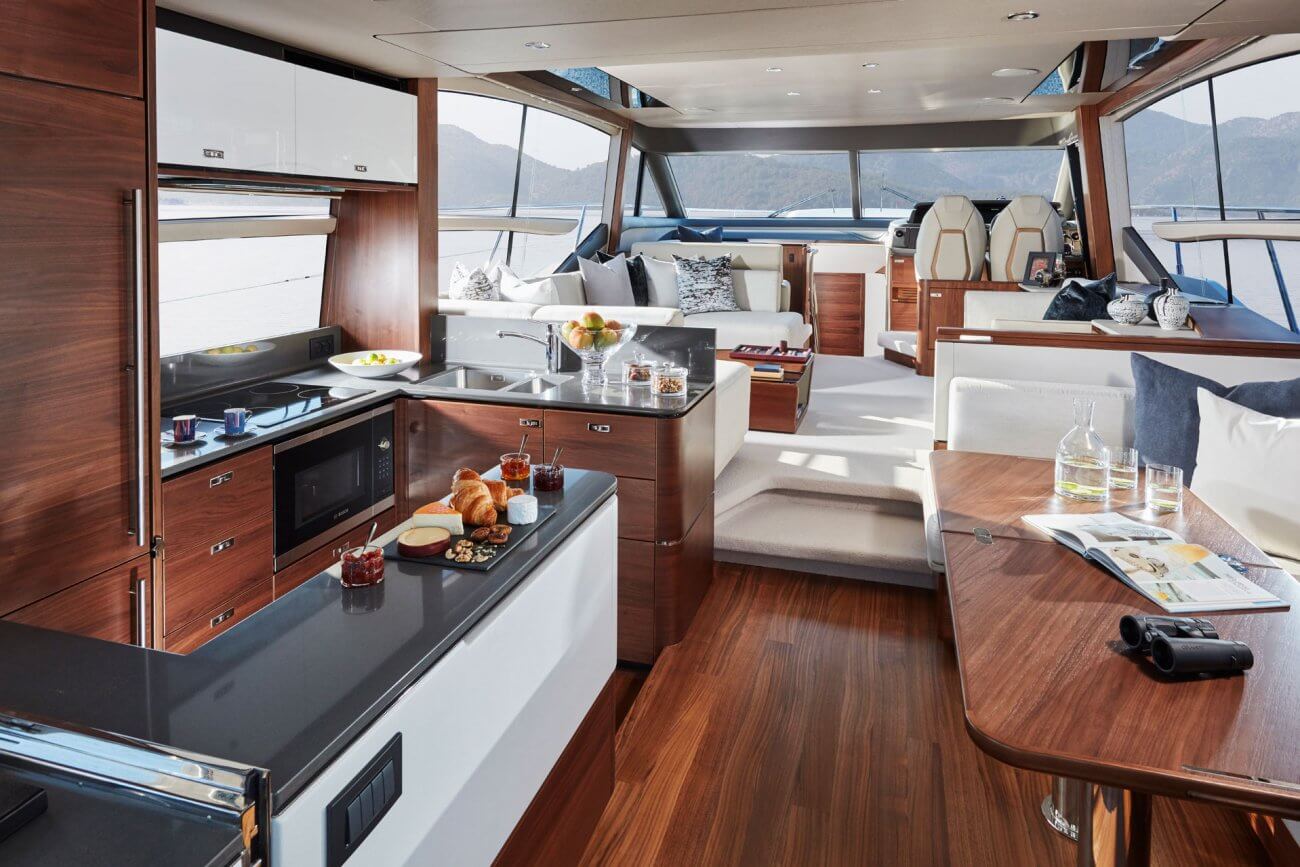

DECK SALOON

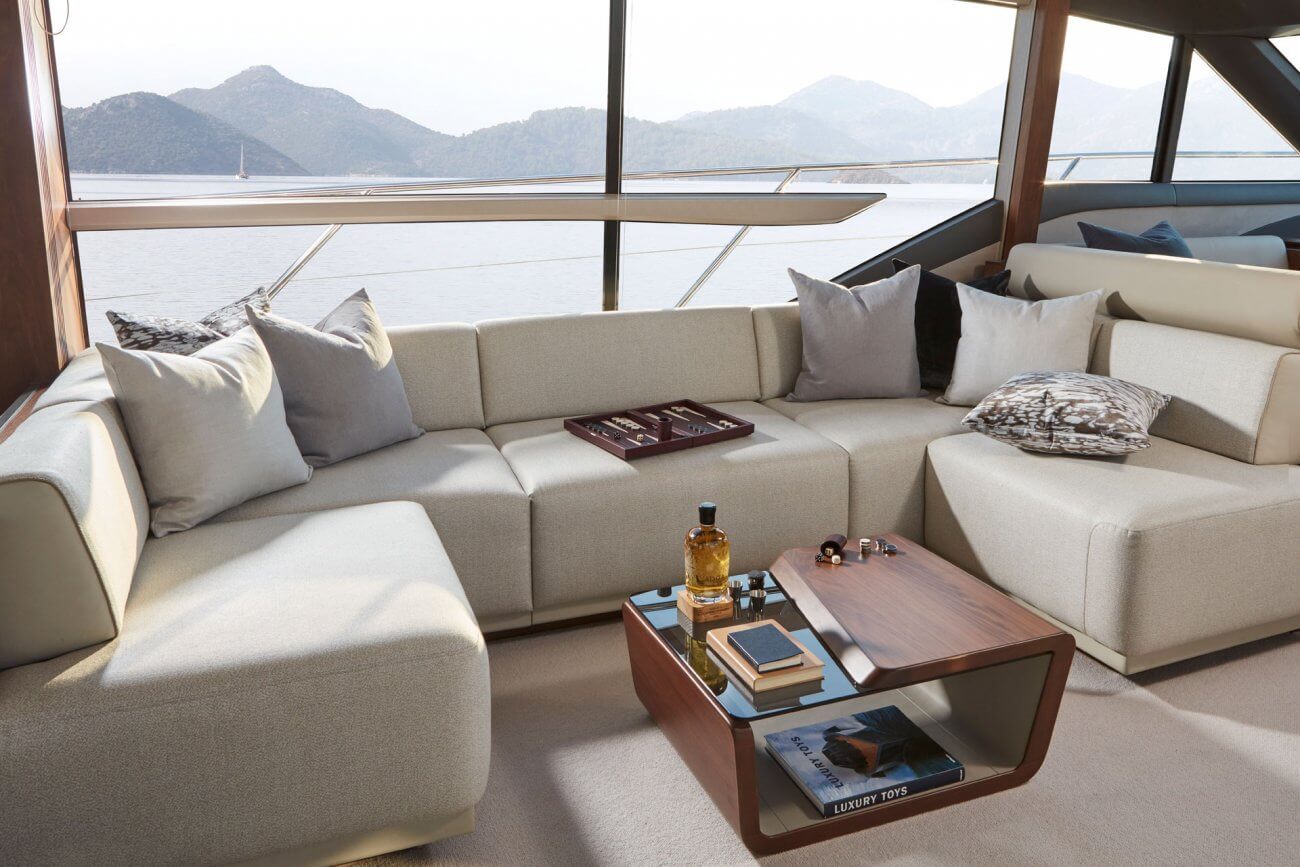

• U-shaped sofa
• Coffee table

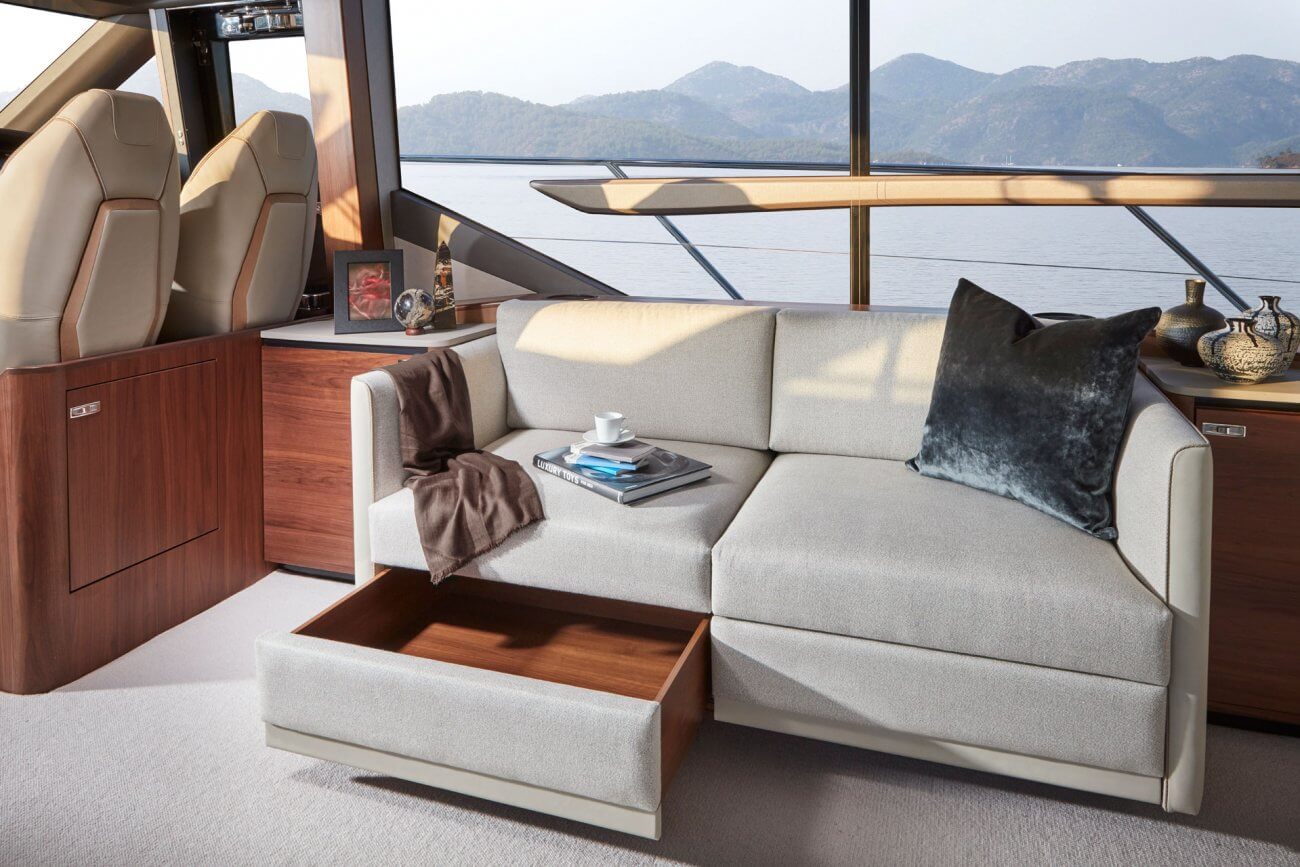

• Two seater sofa
• L-shaped seat opposite helm area with electric opening window to port
• Sideboard units with bottle and glass storage
• Refrigerator
• Icemaker
• HD LED TV (49”) (with 3D capability) on rise and fall
• Radio/DVD Blu-ray system and 2.1 A/V surround sound system
• Blinds or sunscreens to all windows and doors
• LED overhead and concealed lighting (24V)
• Access stairway to lower accommodation
• Fitted carpet

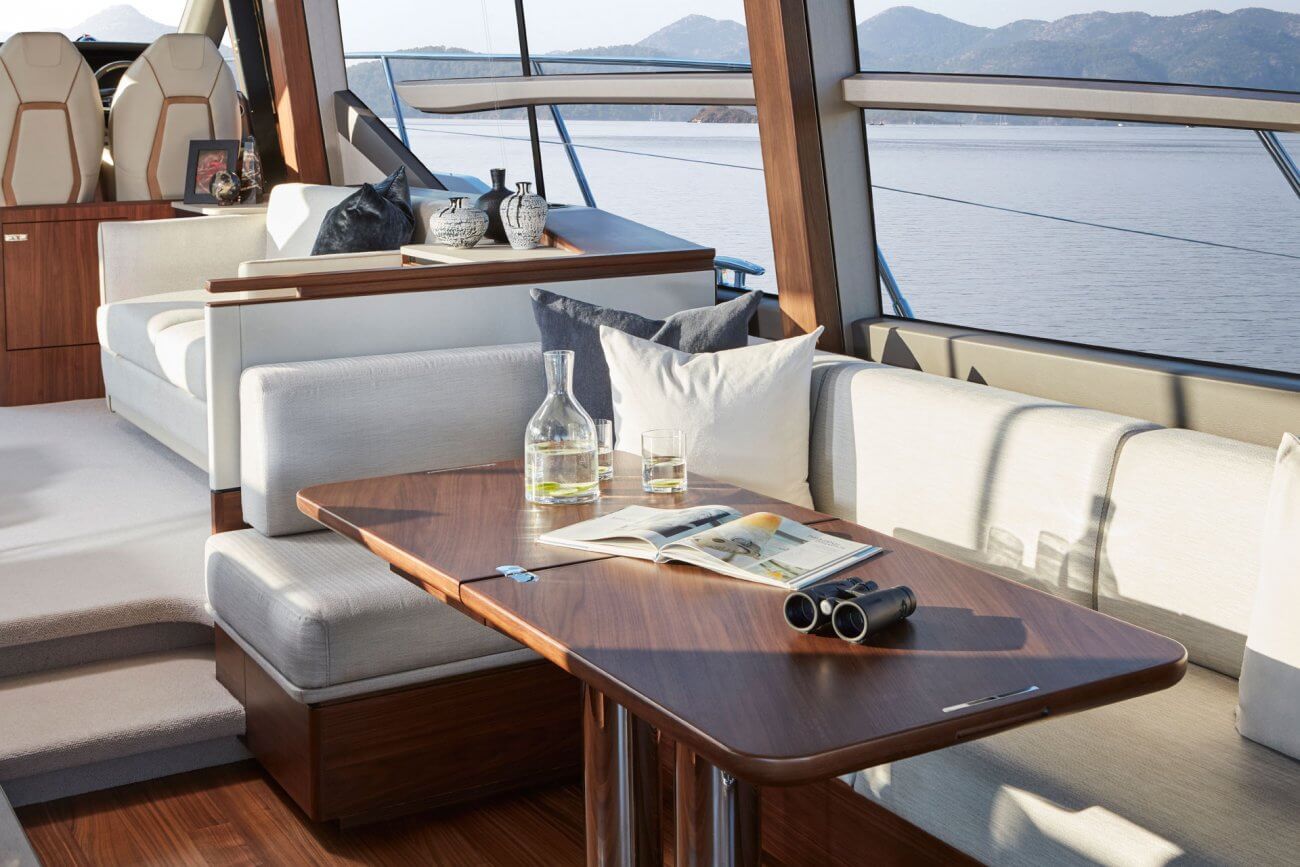

DINING AREA
• L-shaped sofa
• Folding dining table
• Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
• Blinds or sunscreens to all windows and doors
• LED overhead and concealed lighting (24V)
• Fitted carpet

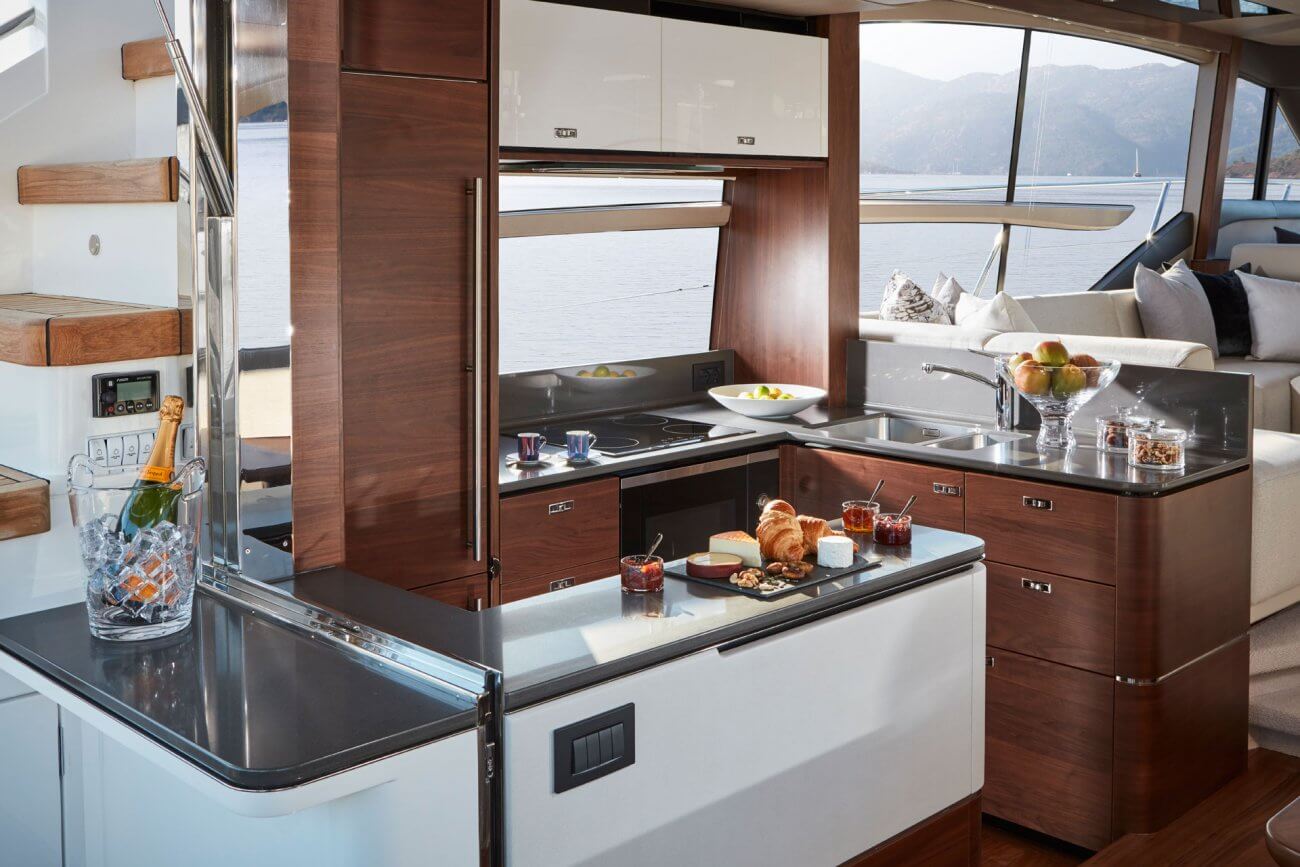

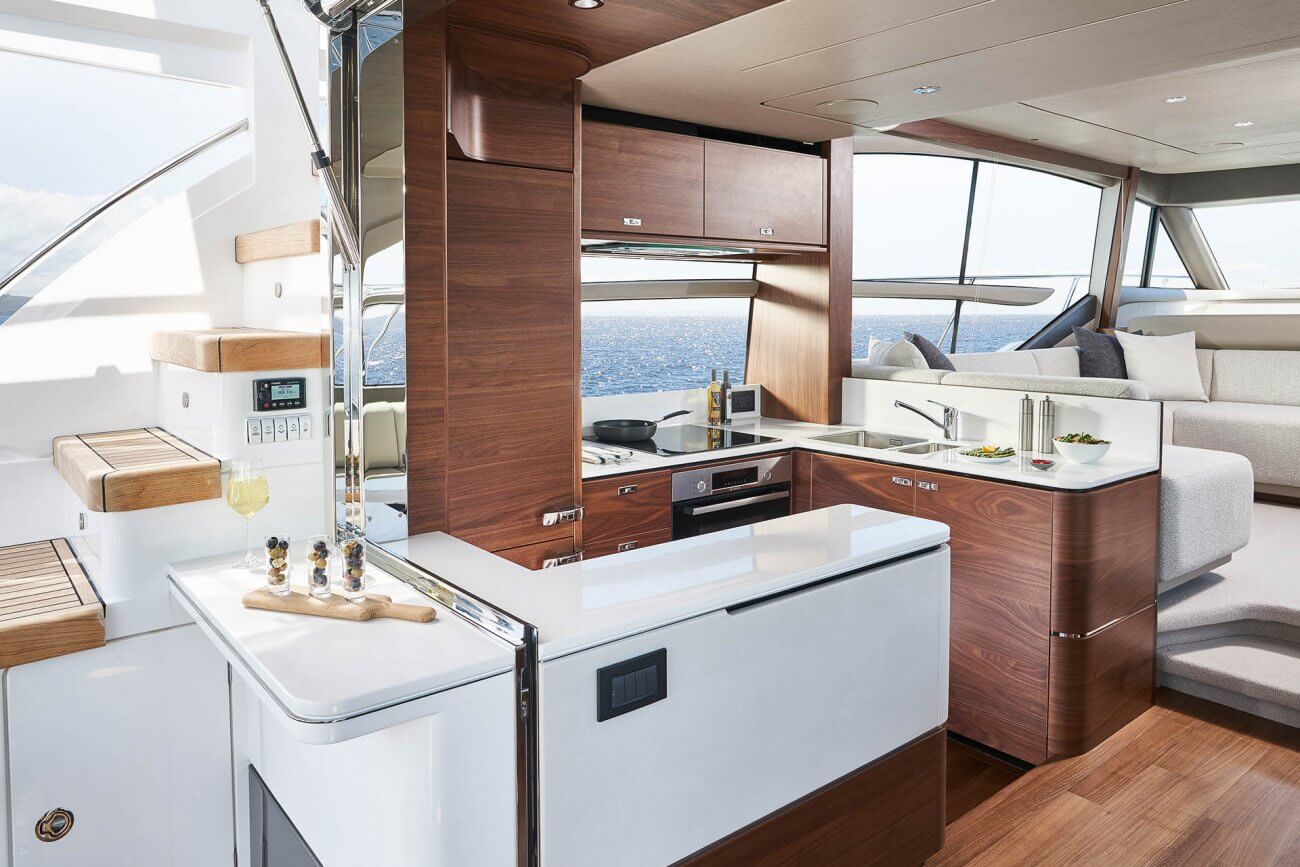

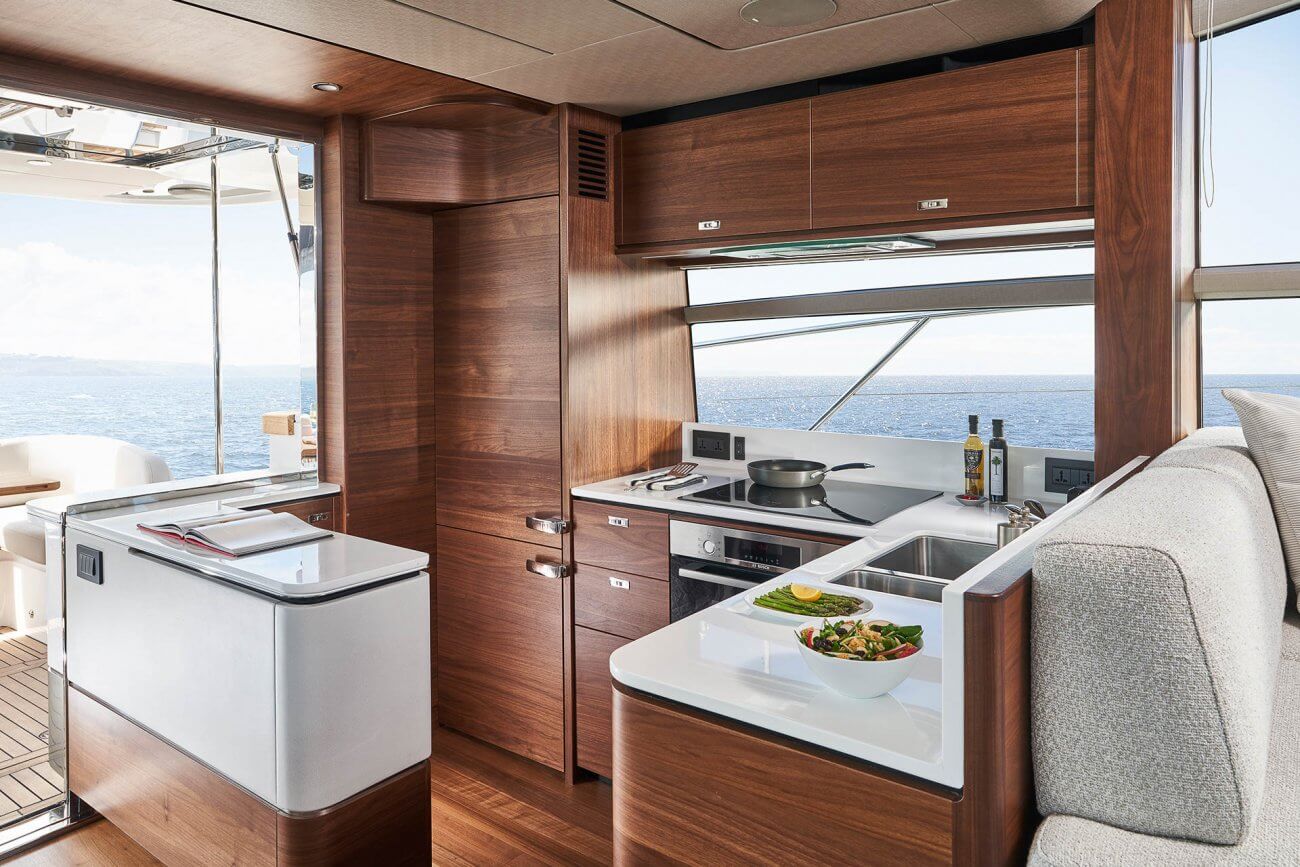

GALLEY
• Solid surface worktop
• Ceramic 4-zone hob
• Hob extractor
• Combination microwave/conventional oven with grill
• Stainless-steel sink with mixer tap
• Full height fridge/freezer (270L)
• Waste bin
• Drawers and storage cupboards
• Blinds or sunscreens to all windows and doors
• LED overhead and task lighting (24v)
• 220/240v outlets (4)
• Timber flooring
ACCOMMODATION
• All cabins and bathrooms feature opening portholes
• All cabins feature 220/240v power points
• All bathrooms feature electric freshwater toilets and 240v shaver points

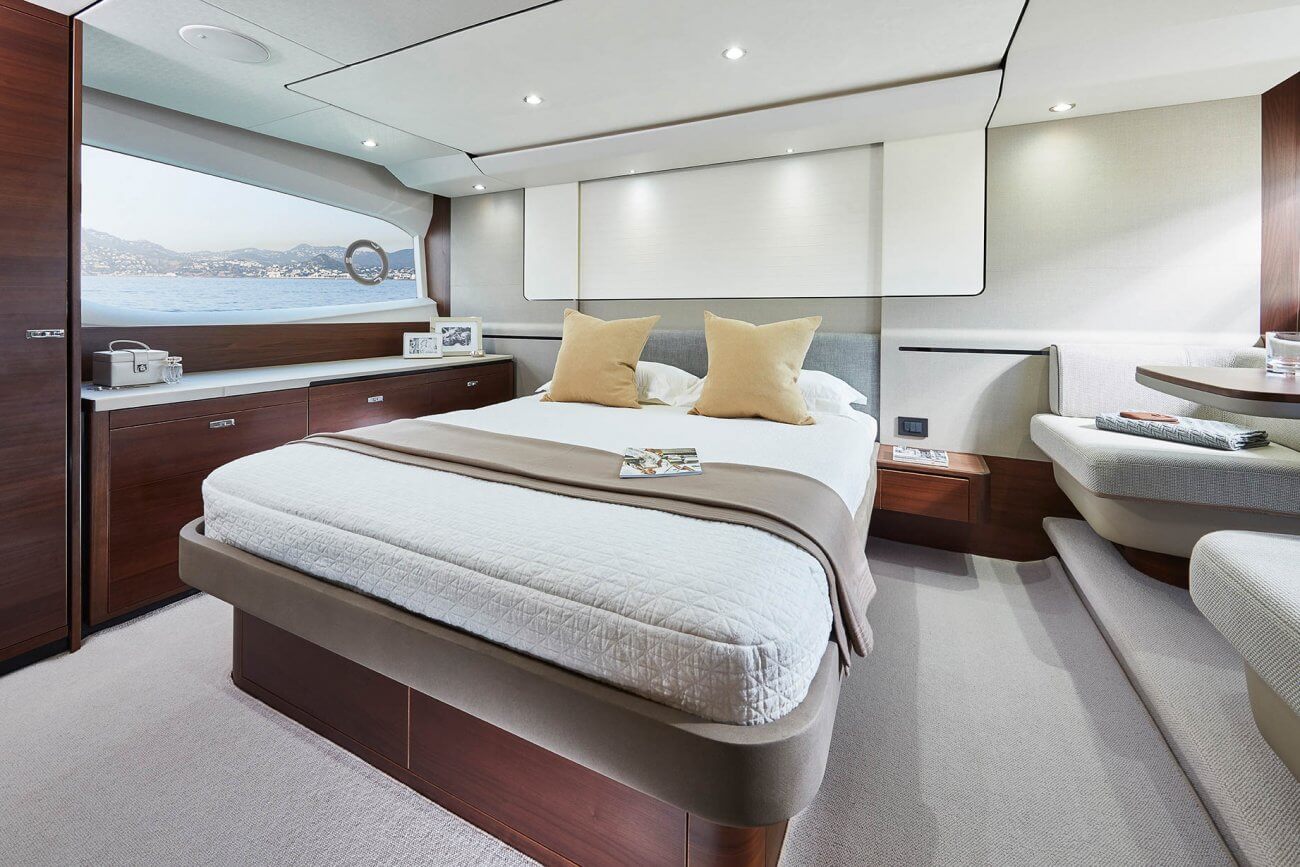

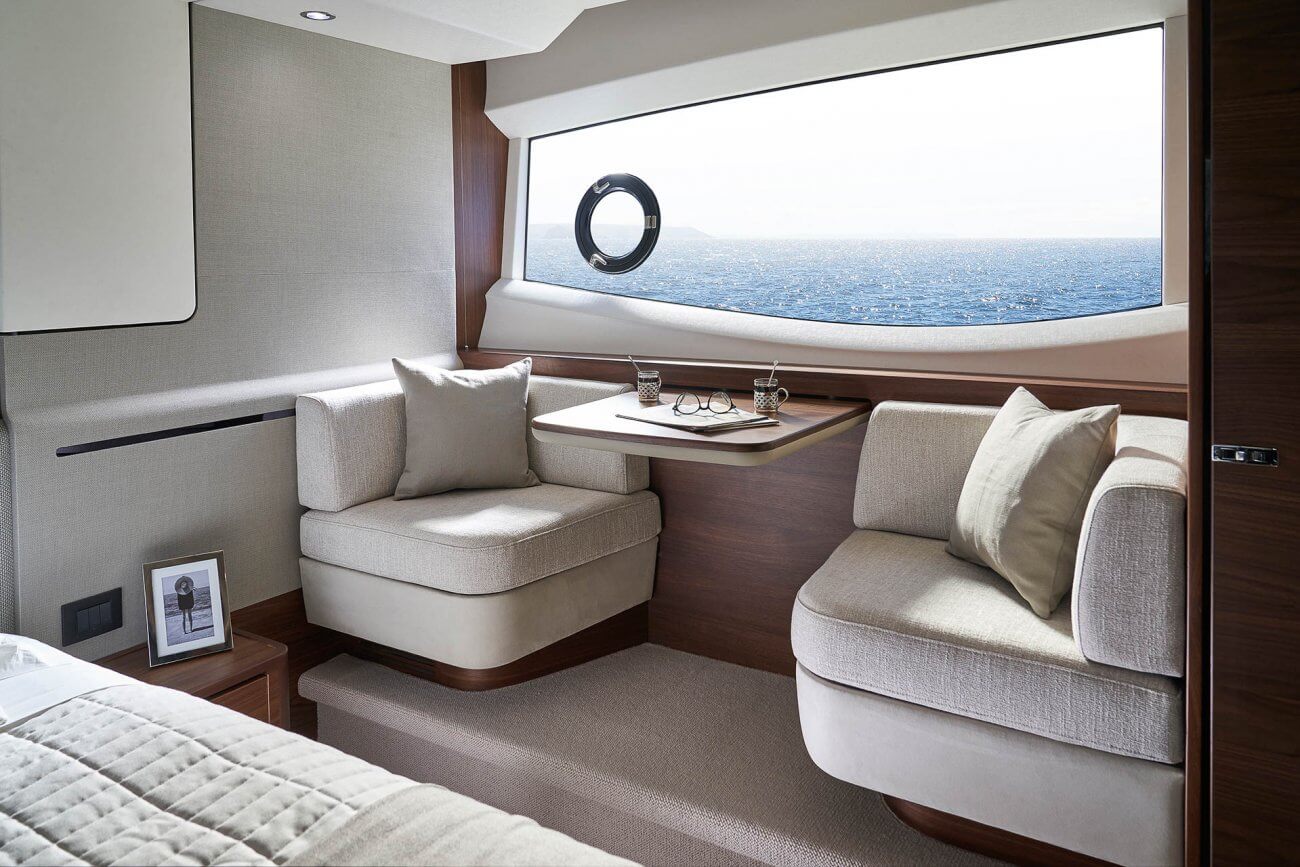

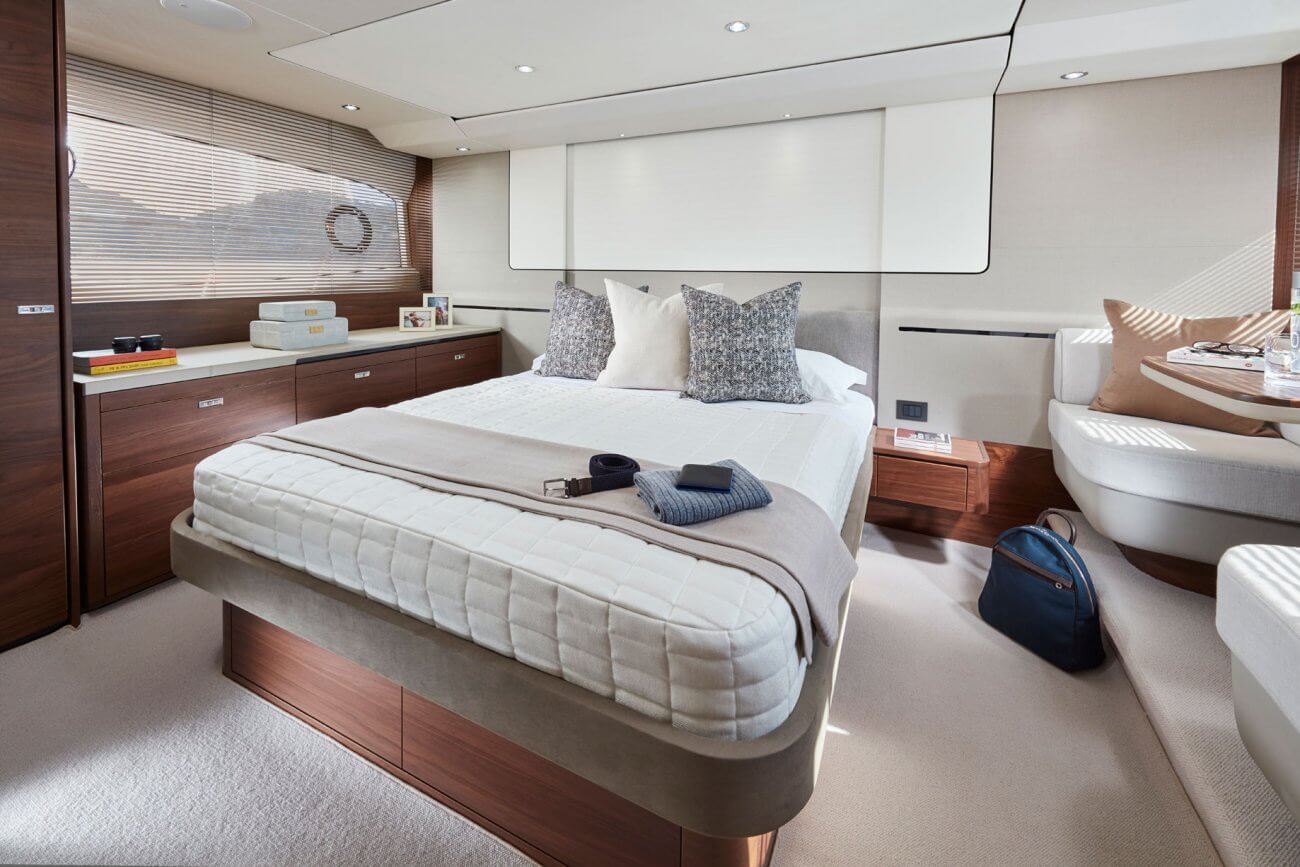

MASTER STATEROOM
• Large double bed with drawers below
• Twin bedside tables
• Twin wardrobes with shelves
• Dressing table
• Mirror
• Occasional table with seats fore and aft
• Storage lockers and drawers
• 40” HD LED TV (with 3D capability)
• Radio/DVD/MP3 player
• Panoramic windows including opening porthole with curtains or blinds
• LED overhead and concealed lighting (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

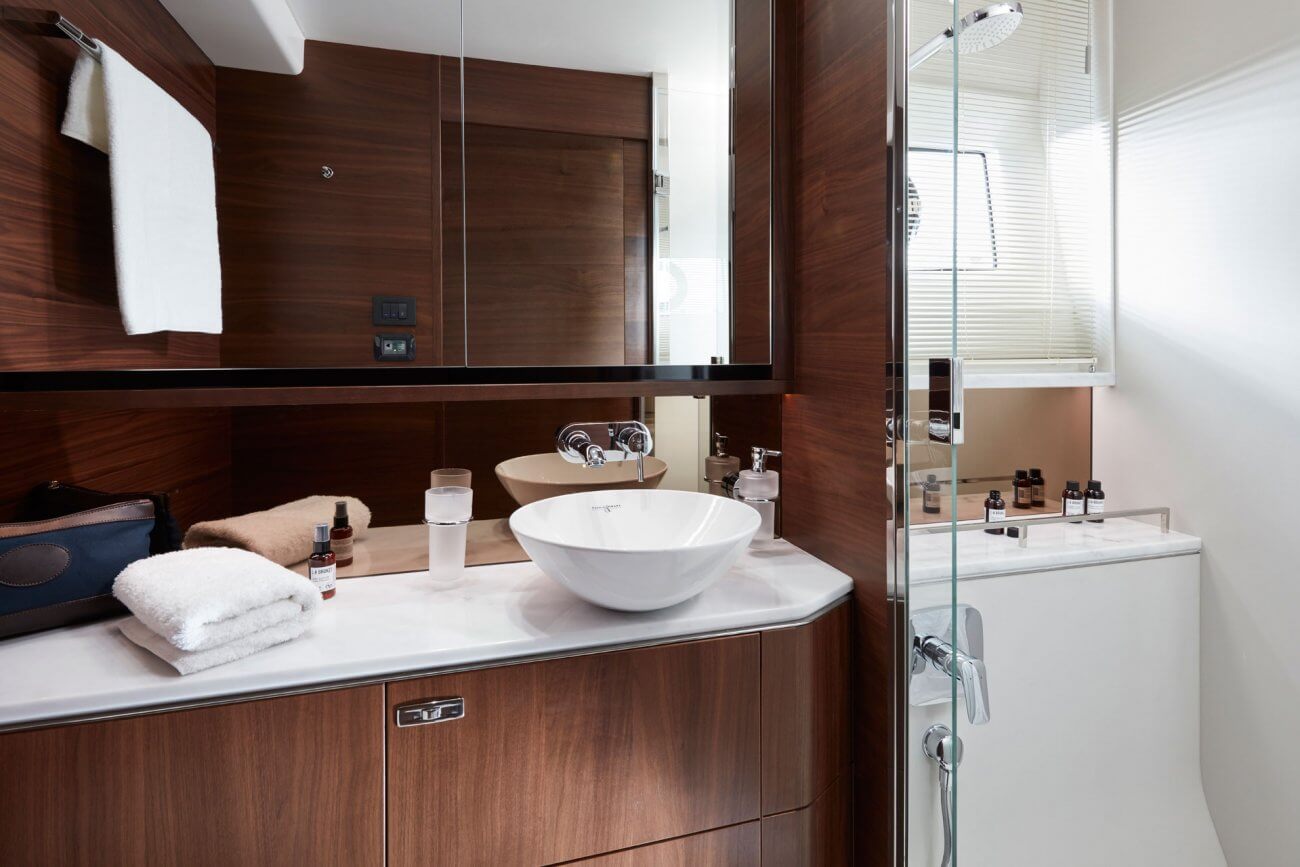

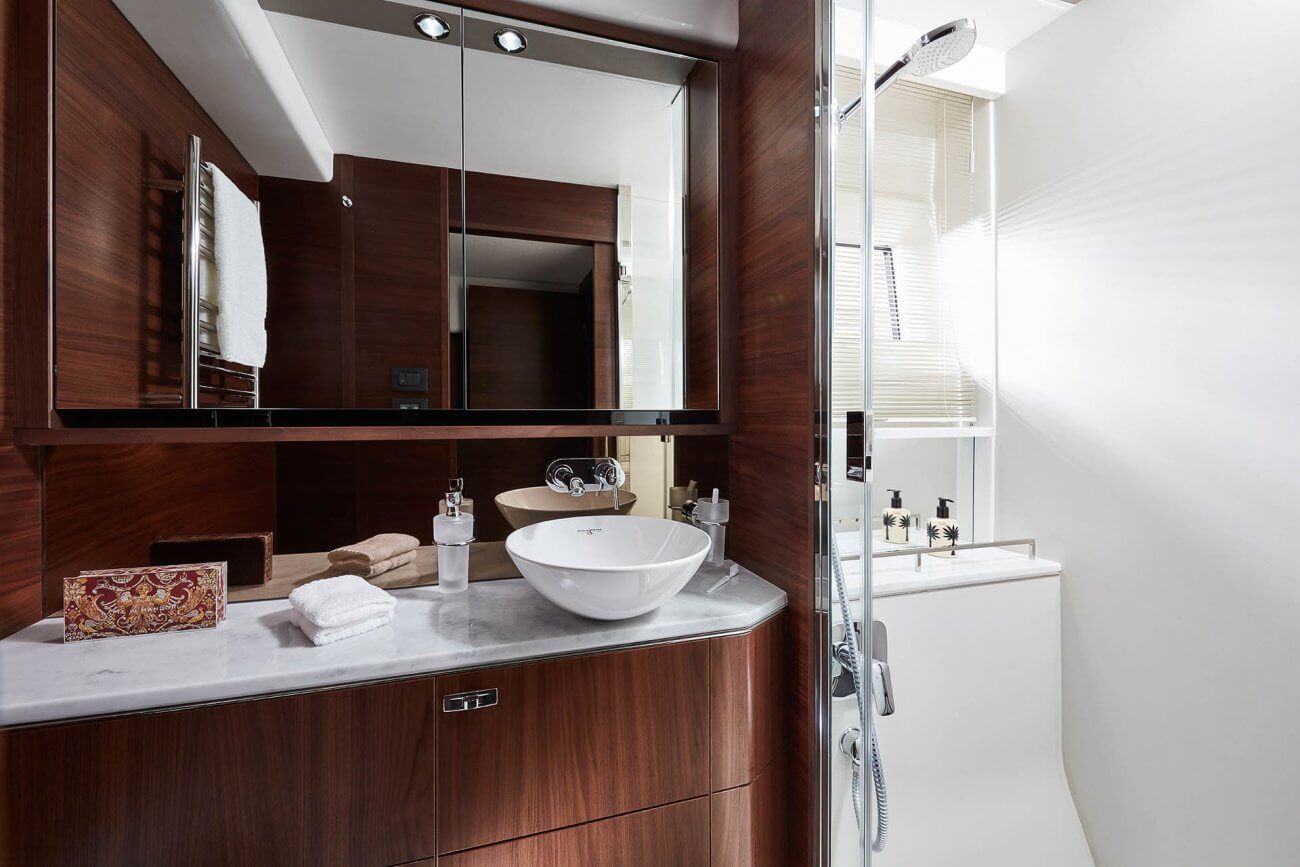

EN SUITE BATHROOM
• Washbasin with Solid surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Window with opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring

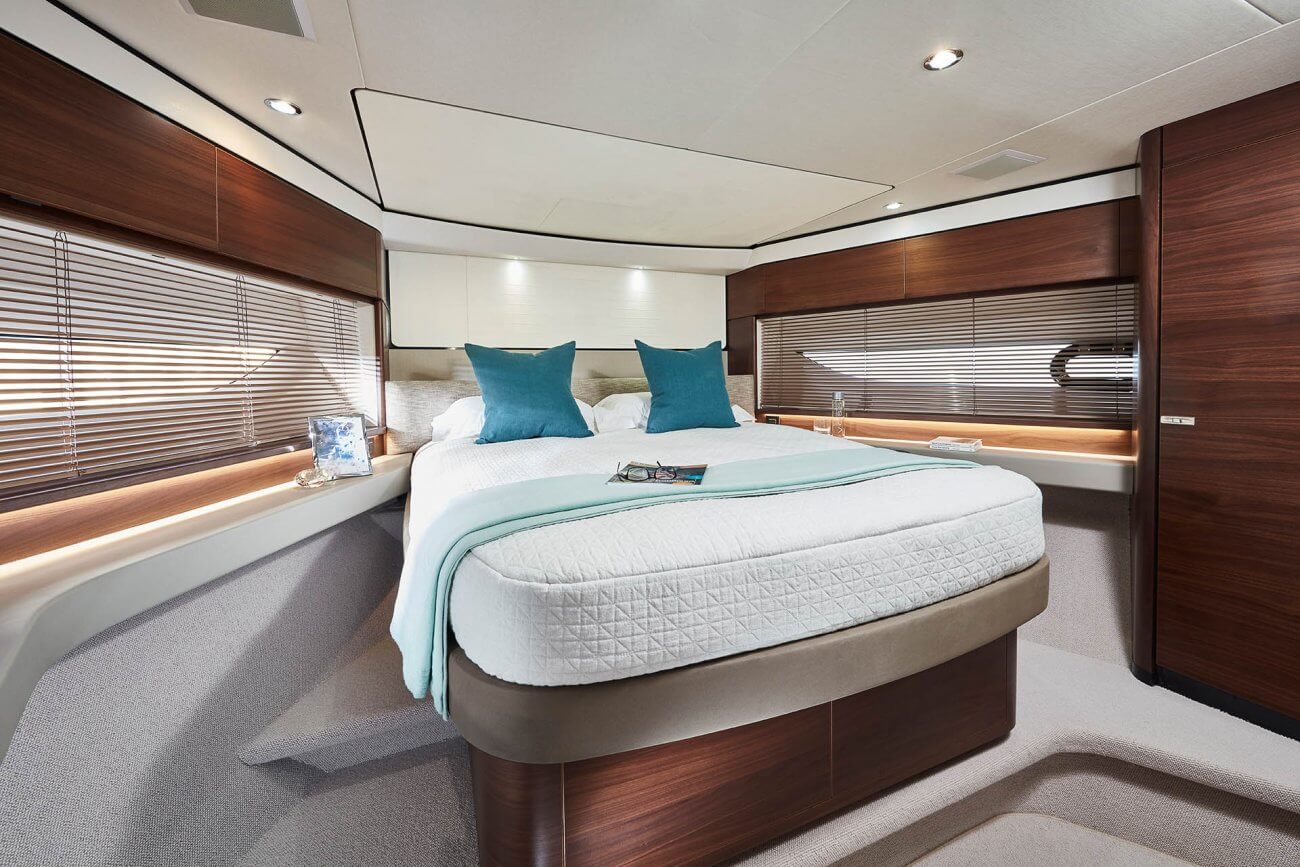

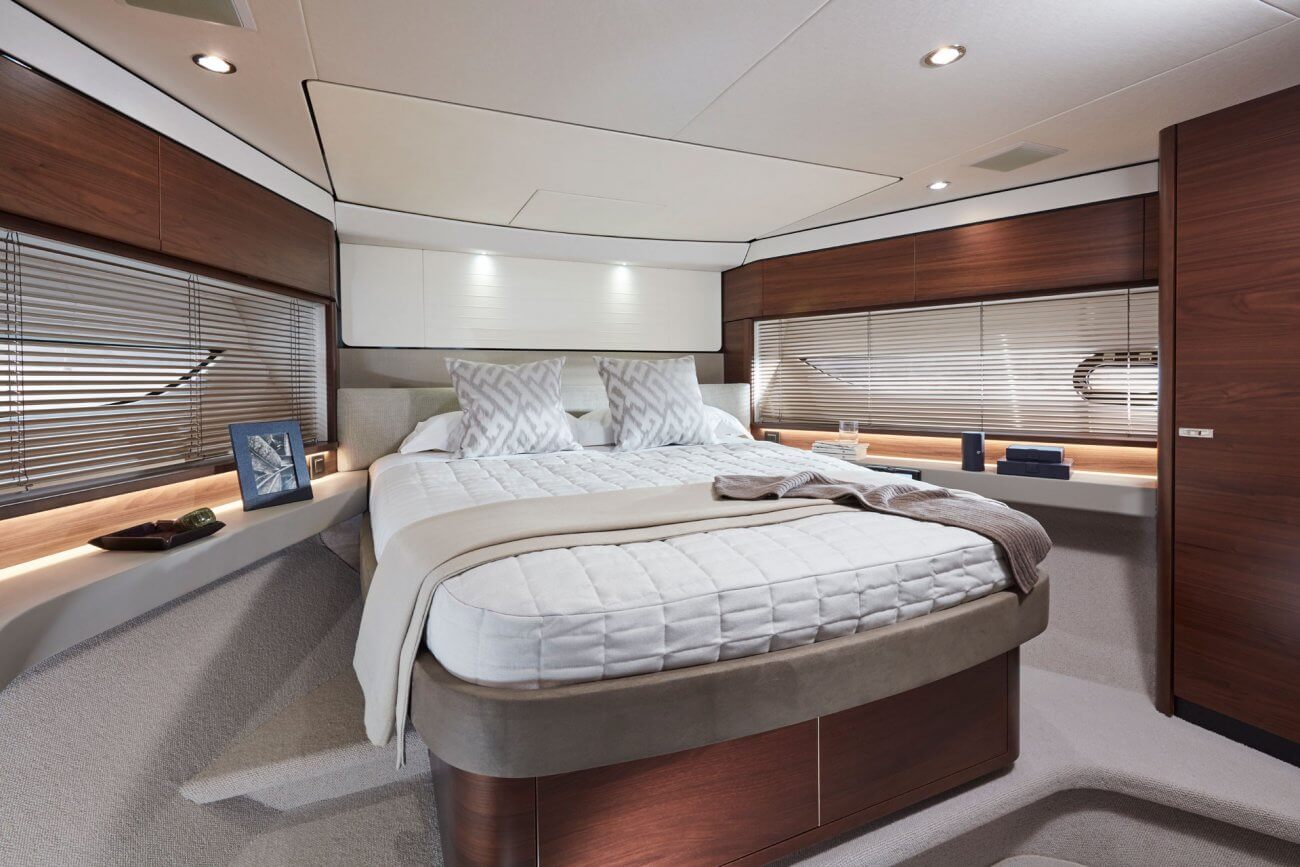

FORWARD STATEROOM
• Large double bed with drawers below
• Wardrobe with shelves
• Dressing table
• Mirror
• Storage lockers
• Window with opening porthole and venetian blind
• Deck hatch
• LED overhead and concealed lighting (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point

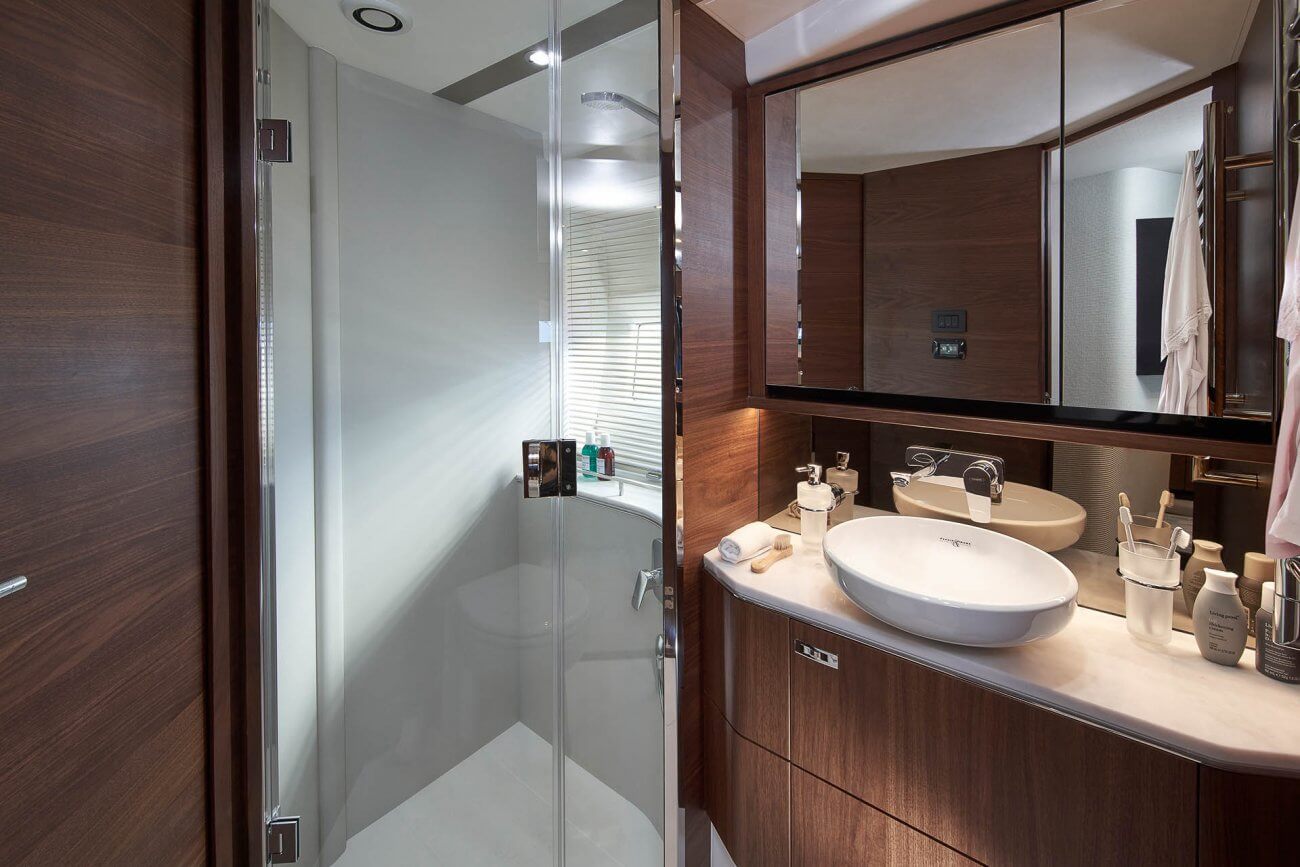

EN SUITE BATHROOM
• Washbasin with Solid surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Window with opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring

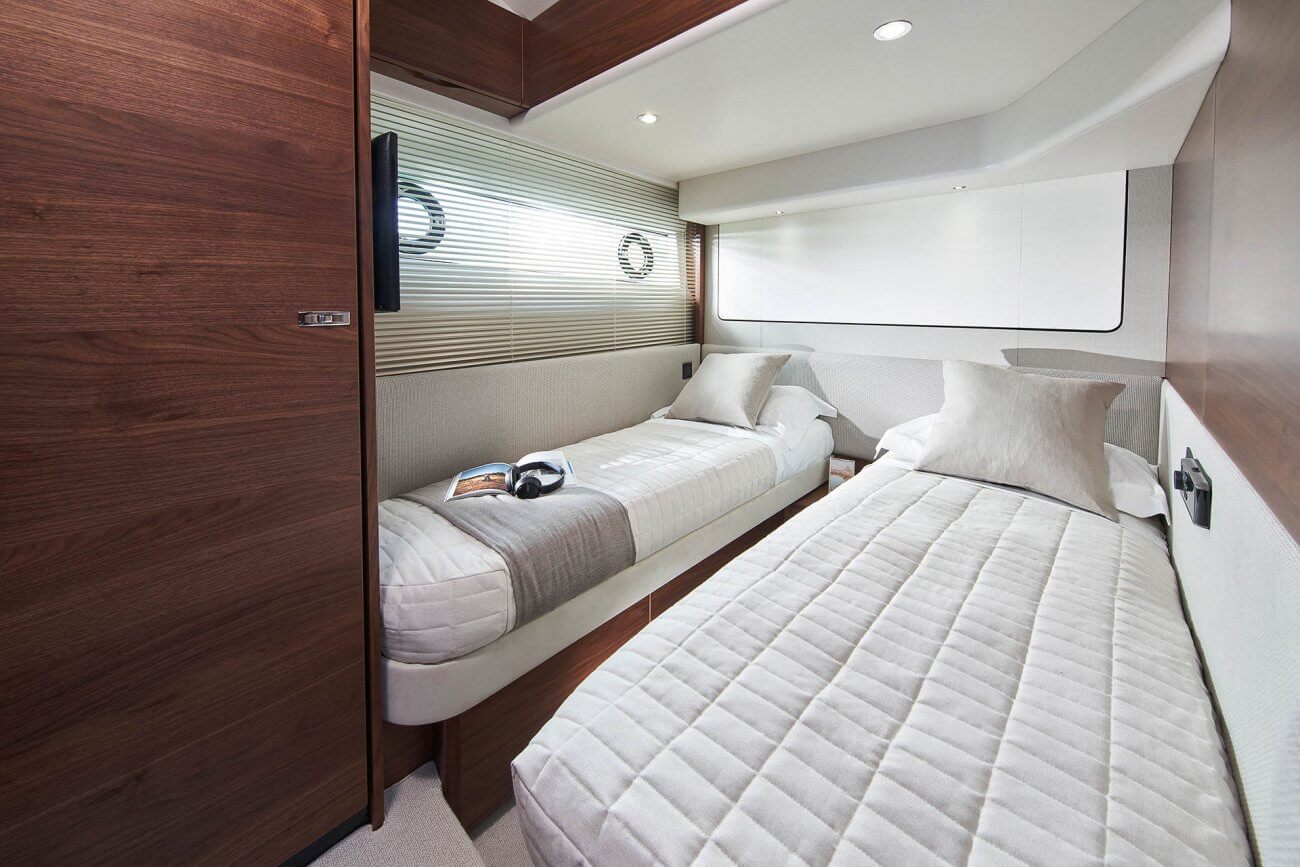

STARBOARD GUEST CABIN
• Two single beds with drawers below (with option of double bed conversion)
• Bedside table
• Wardrobe with shelves
• Mirror
• Storage lockers and drawers
• Window with opening portholes and venetian blind
• LED overhead and concealed lighting (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

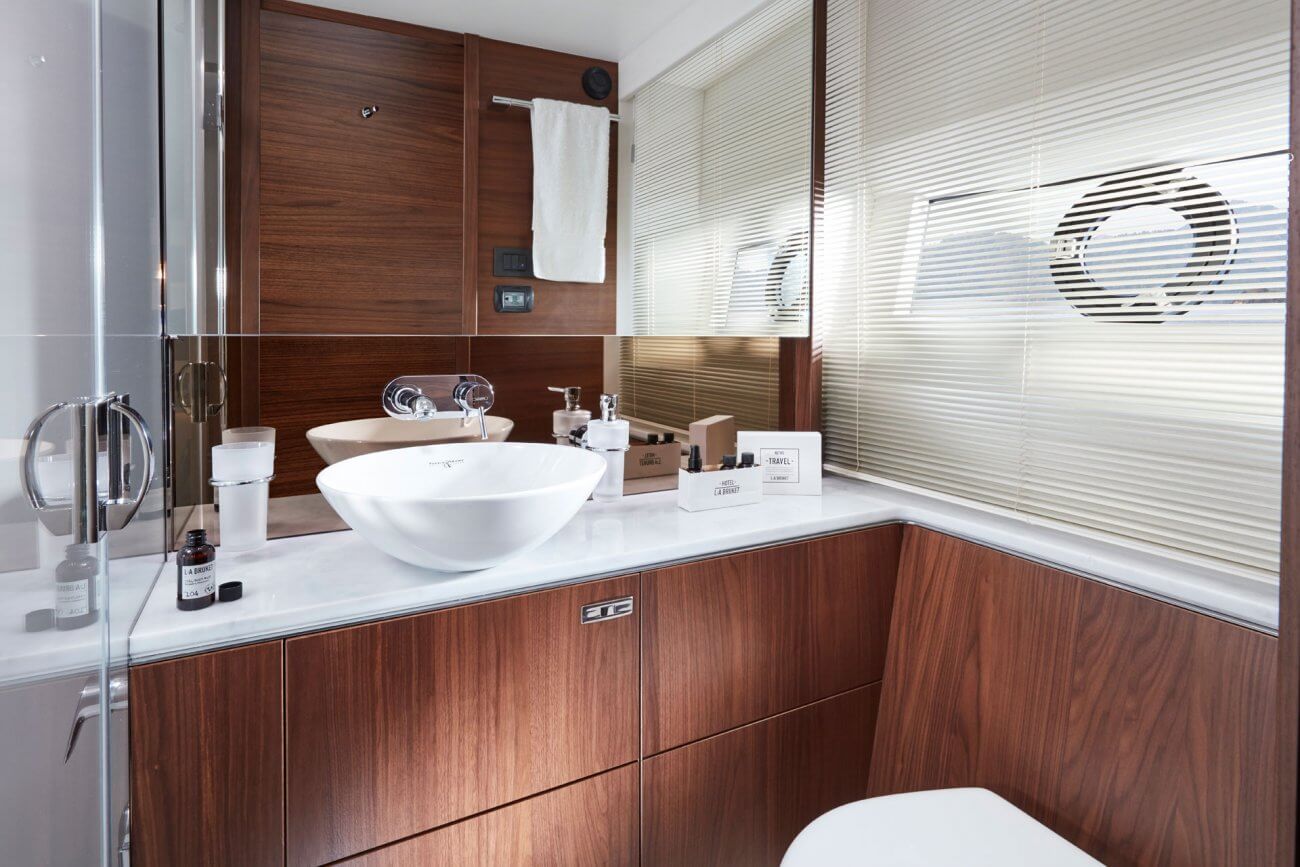

EN SUITE BATHROOM
• Washbasin with Solid surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Window with opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring
OPTIONAL CREW CABIN (IN PLACE OF AFT LAZARETTE)
• Two single beds with storage below
• Wardrobe with shelf
• Mirror
• Opening porthole
• Transom window
• LED overhead lighting (24V)
• Individual berth lights
• 220/240v outlet (2)
• Altro non slip safety flooring
EN SUITE BATHROOM
• Washbasin with Solid surface worktop
• Storage lockers
• Opening porthole
• Shower with automatic pump out
• Extractor fan
• LED overhead lighting (24V)
• Bathroom accessories

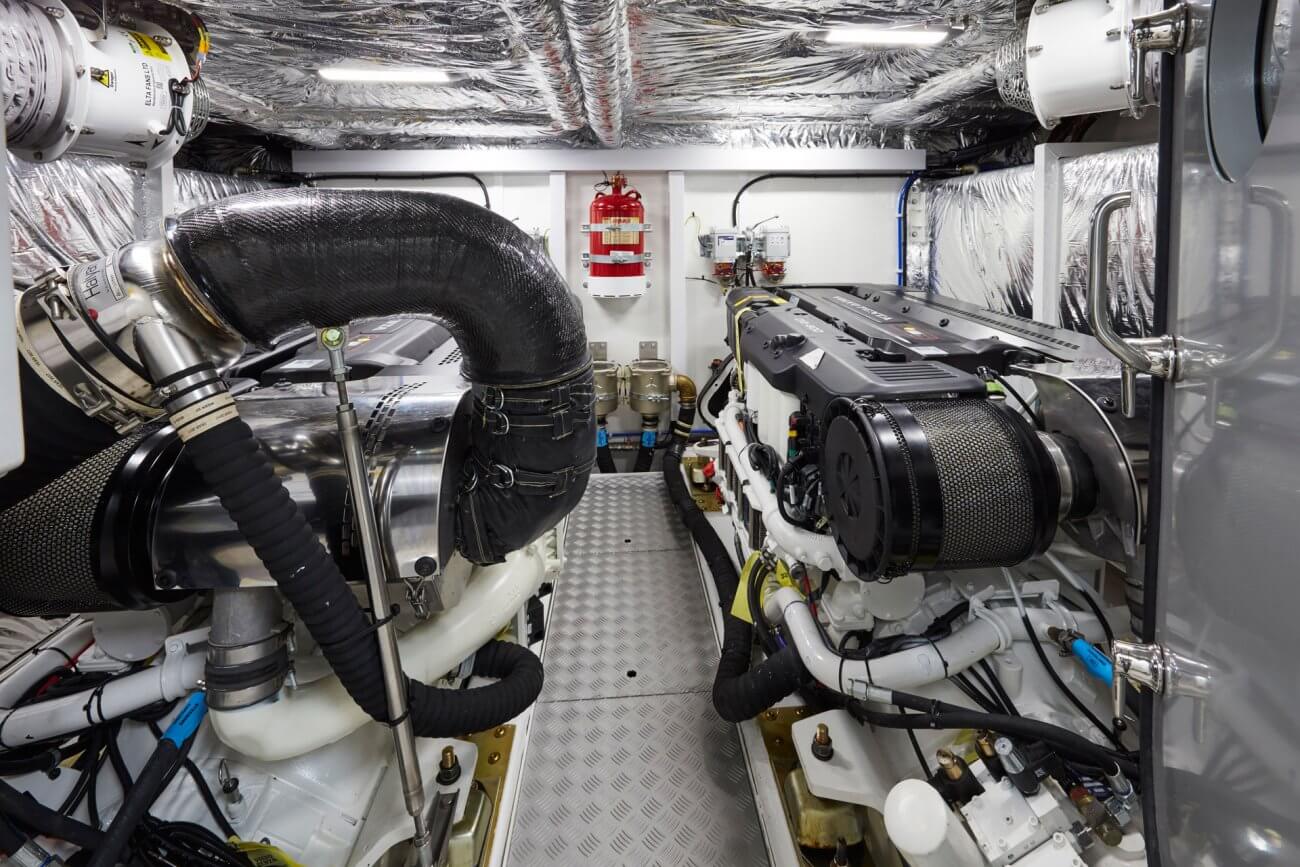

POWER AND DRIVE SYSTEM
• 5-bladed propellers in nickel aluminum bronze
• Bow thruster (130kgf/287lbf) with dual-station controls
• Engine room lighting
• Engine room access hatch and ladder
• Power-assisted electro-hydraulic steering system
• Trim tabs with indicators
• Electronic engine and gear shift controls
• Engine room extractor fan with electronic time delay
• Fresh water supply point in engine room
• Dripless self aligning shaft seals
ELECTRICAL SYSTEMS
24 VOLT:
• 4 x heavy duty batteries for engine starting
• 4 x heavy duty auxiliary batteries
• Battery link facility with remote control at helm position
• Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
• 60 amp battery charger charges both banks of batteries via an automatic switch charging system
• Remote battery master switches with control switch at main switch panel
• Circuit breakers on all circuits
• 12v voltage dropper for certain navigation and radio circuits
220/240 VOLT:
• 11Kw diesel generator in own sound shield with water cooled specially silenced exhaust
• Automatic fire extinguisher situated by generator
• 50 amp shore support inlet
• Generator/shore support change-over switch
• Polarity check system
• Earth leakage safety trip
• Circuit breakers on all circuits
• Power points in: Owner’s stateroom, guest cabins, galley and saloon area
• Shaver points in all bathrooms
FUEL SYSTEM
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 3400 litres /748gal / 898 USG capacity
• Fuel fillers on port and starboard side decks
• High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm
• Remote fuel cocks in cockpit locker
• Fuel gauges at main helm console
WATER SYSTEM
• Water tanks totalling 793 litres / 174 gal / 209 USG plus 73 litres/ 16 gallons/19 US gallons hot water calorifier
• Water heated by engines and 240v immersion heater
• Automatic water pump with filter
• Main circuit breaker at switch panel
• Water level gauge
• Deck filler
• Electric WC system with 75 gallons/90 US gallons/340 litres holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge system
FIRE EXTINGUISHERS
• Automatic/manual override fire extinguishers in engine room with warning system at helm position
• Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabins, galley and helm position
• Additional extinguisher fitted when optional aft cabin is specified
BILGE PUMPS
• Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
• High-capacity manual bilge pump with valve system and suction points in same areas
• Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
0THER STANDARD EQUIPMENT
• Ensign staff
• Fenders (6)
• Mooring warps (4)
• Boat hook
• First Aid kit
• Tool kit
• Owner’s manual and engine manual
• Quilted bedspreads supplied to all cabins (except optional crew cabin)
• Ship’s document case
• Anchor winch back up handle
FINISHES
• Teak-laid decks to transom platform, steps to side decks, cockpit deck and steps to flybridge
• Timber-laid floor to galley area
• Furniture in choice of American walnut, Alba oak or Rovere oak wood with satin or gloss lacquer finishes
• Tiled floors in all bathroom suites in guest accommodation
• Solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
• Galley worktop in Solid surface finish
• Choice of high quality carpet and upholstery fabric from extensive range
• Blinds or sunscreens to all windows and portholes
• Optional crew cabin has Altro non slip safety flooring and crew bathroom has white Solid surface countertops
