SEABOB

A SEABOB offers all-round high-performance. Its hydrodynamic shape provides for an astounding degree of agility in the water. Steering and diving could not be easier – all it requires for the pilot is to shift his bodyweight.

Whether you are cruising, zipping through the water or diving. The SEABOB will glide along powerfully with you aboard. Feel the awe-inspiring manoeuvrability. And the new-found desire for water will never relinquish its hold on you again.

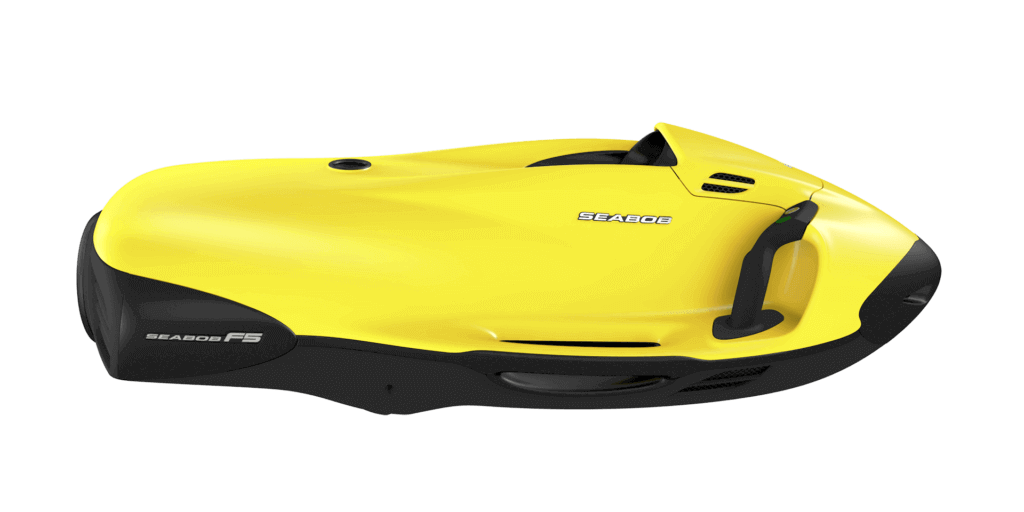

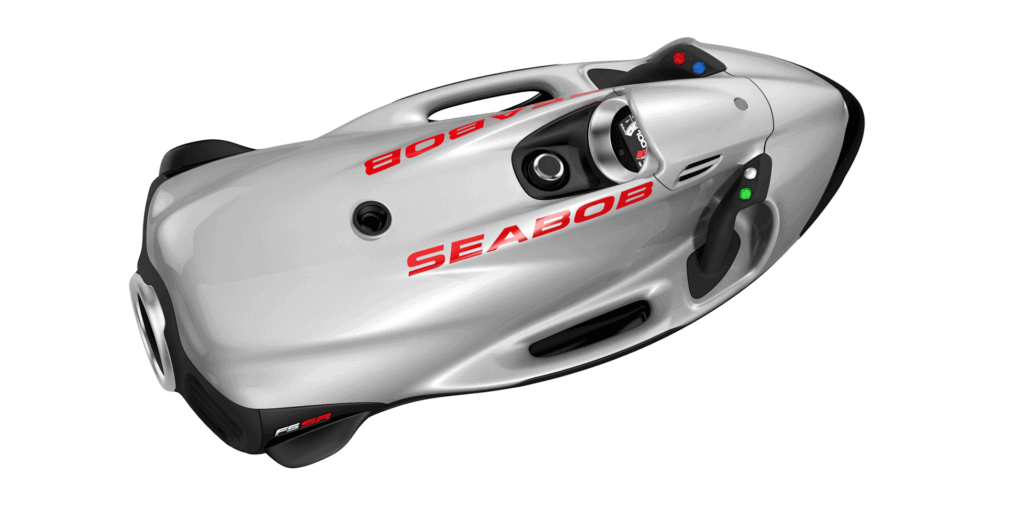

SEABOB F5

Optimal handling with powerful thrust

One particular distinguishing feature of the SEABOB F5 is its low weight. The E-Jet Power System in the SEABOB F5 is controlled in 4 power levels. These increments guarantee absolute fun and pleasure. Its special degree of dynamism in the water results from the high performance of the craft coupled with the low power-to-weight ratio.

The outstanding properties of the SEABOB F5 in terms of handling make it suitable for use in any water surroundings. It is at home in the sea. It demonstrates outstanding performance on the water surface and when diving. Owing to its high degree of manoeuvrability, the SEABOB F5 can be used in both small and large pool complexes.

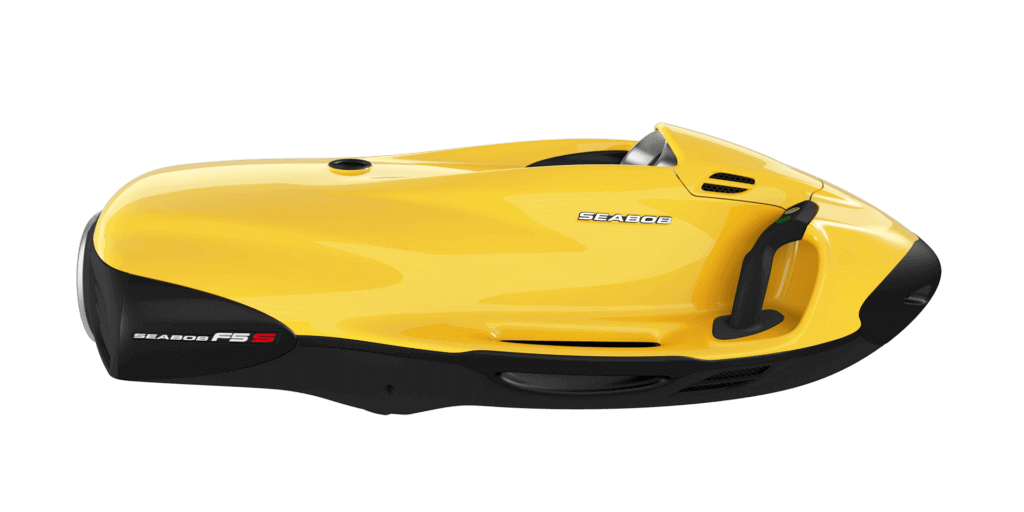

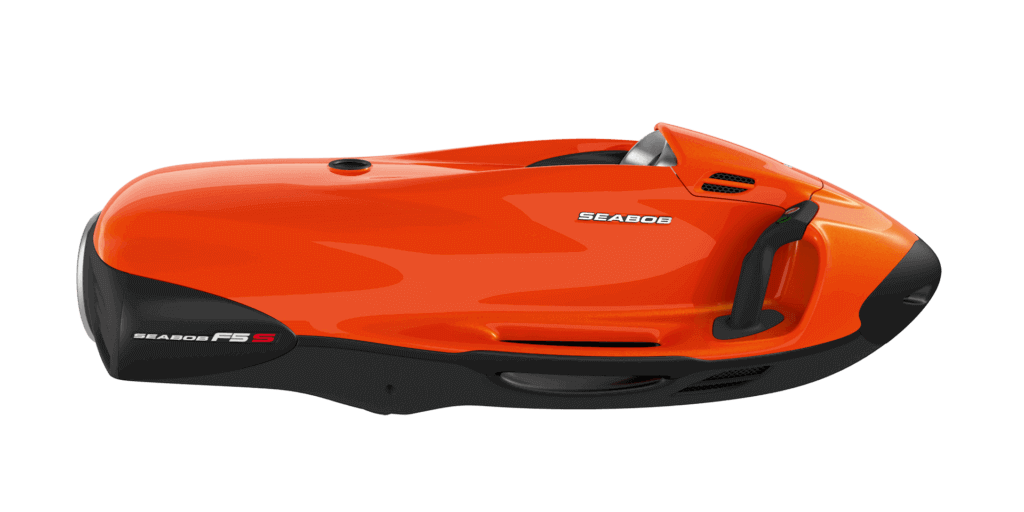

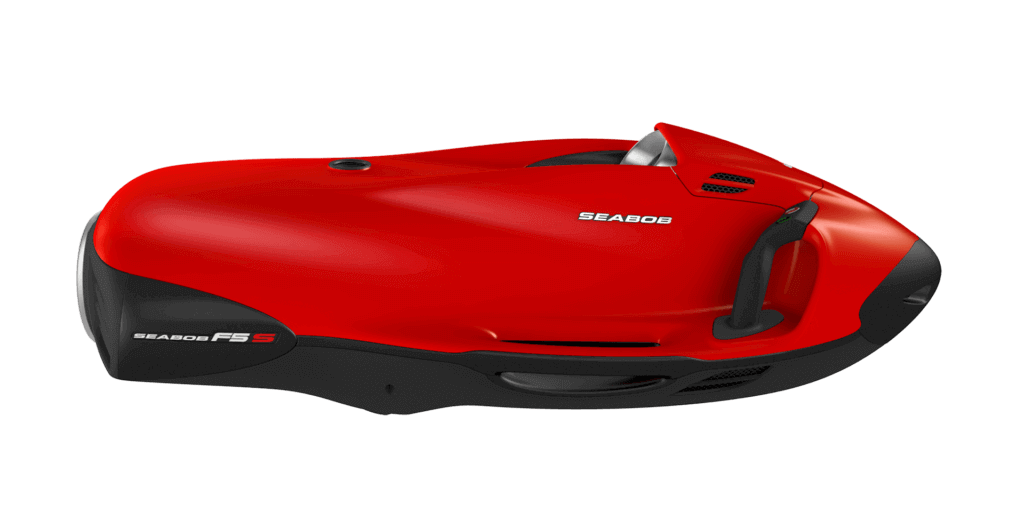

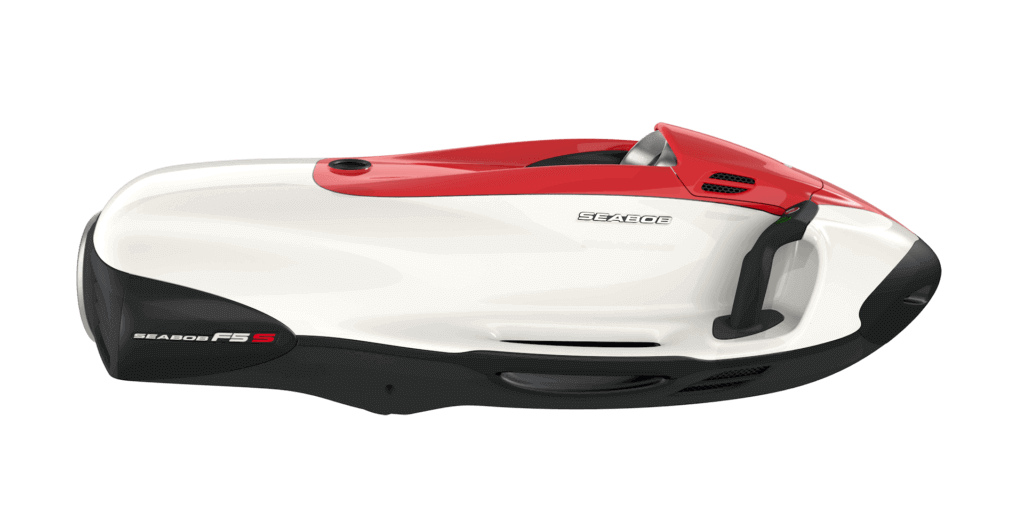

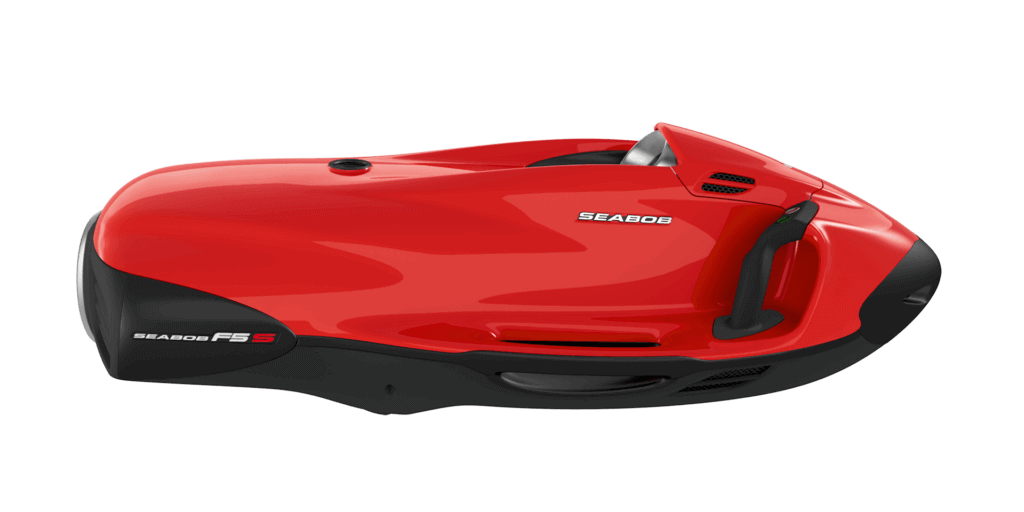

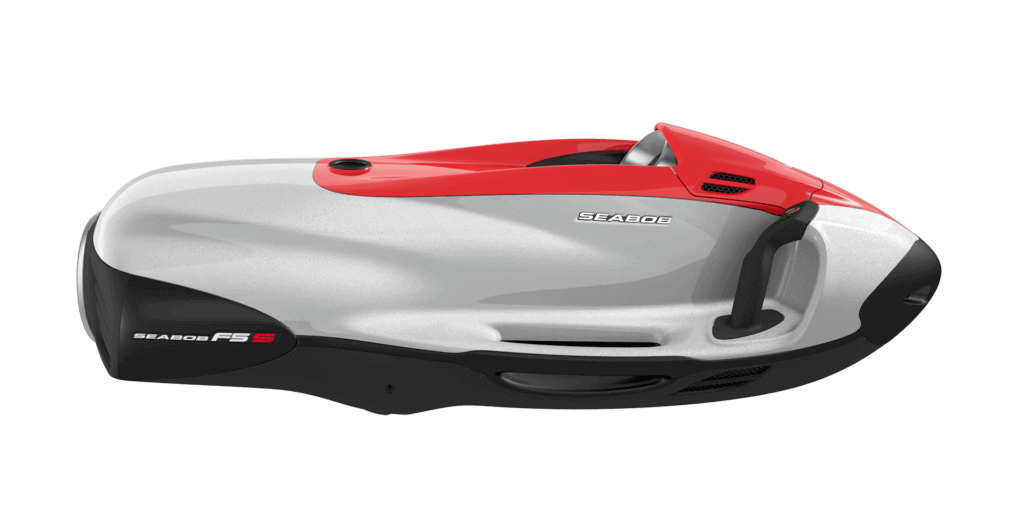

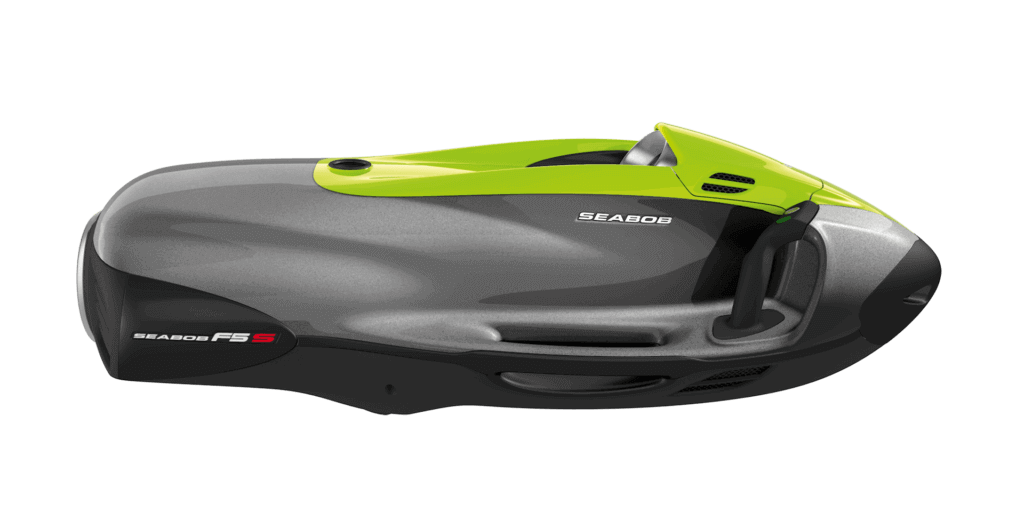

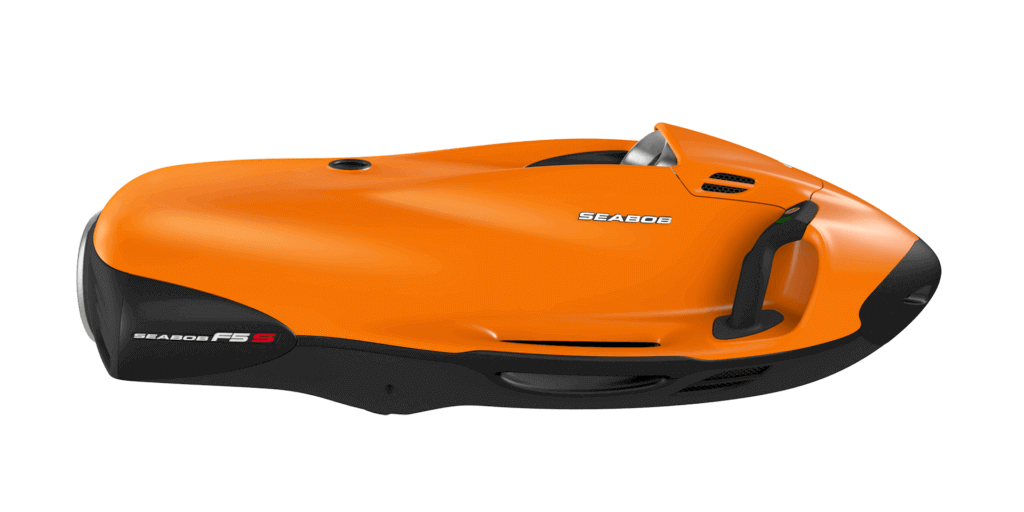

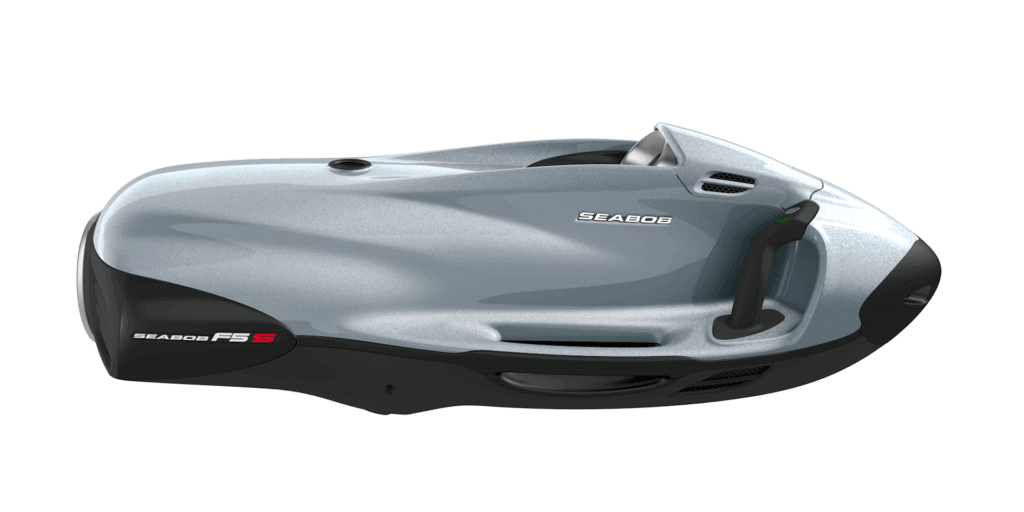

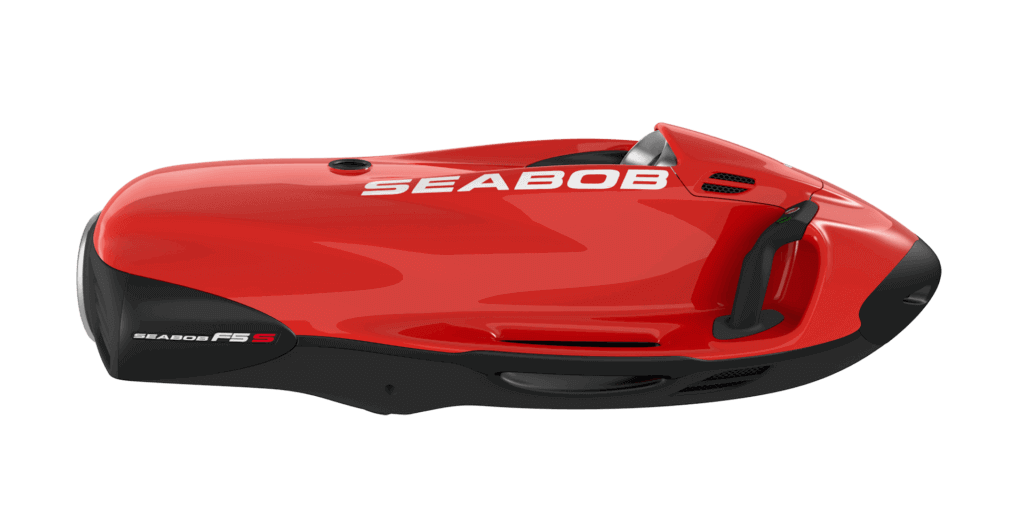

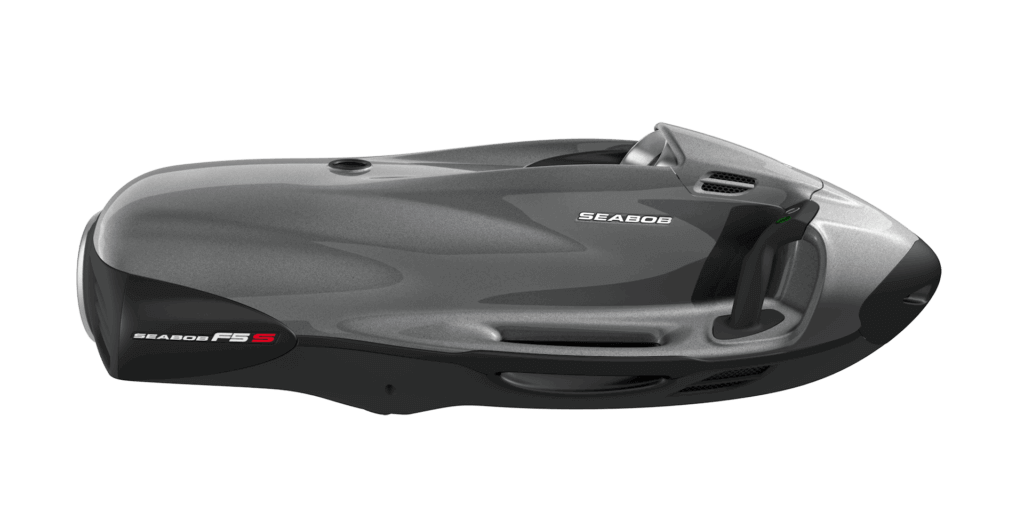

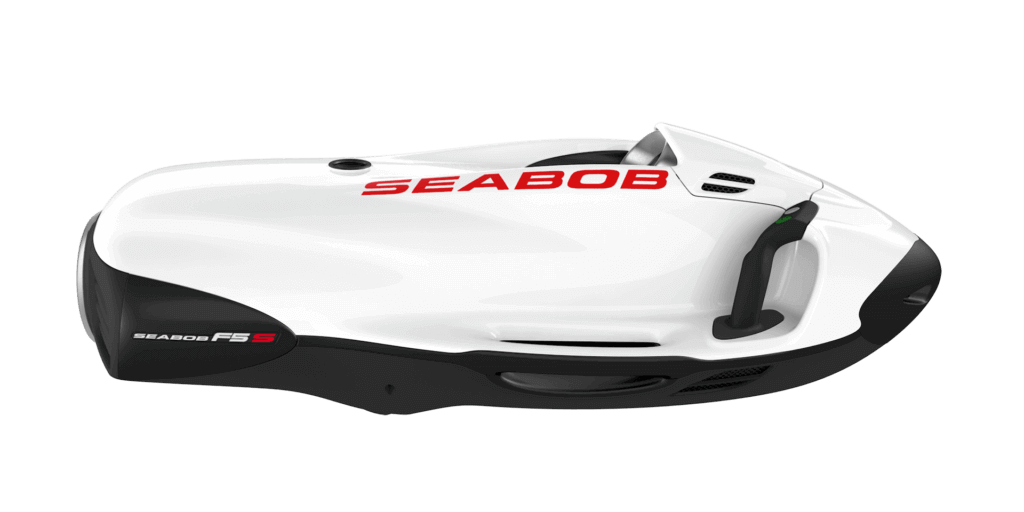

SEABOB F5 S

Irrepressible and intense

The SEABOB F5 S is the ultimate high-performance craft. Weighing just 35 kg, the vehicle possesses extremely good handling properties out of the water. Its driving performance is second to none. The SEABOB F5 S boasts an impressive propulsive force of 680 newtons. The E-Jet Power System is controlled in 6 power levels. These gears of the SEABOB F5 S allow you to glide along at a relaxed pace in a low gear or, for more ambitious high-speed driving, switch up to 6th gear. The craft has a highly sporty character and stands out in terms of its extraordinary dynamism. Its sporty appearance is emphasised by elements in a matt chrome design. The SEABOB F5 S is at home in the sea. Its high degree of manoeuvrability also makes it ideally suited for use in larger pool complexes.

Technical data SEABOB F5

Performance up to	2.5 kW / 3.4 hp
Maximum thrust up to	480 N
Speed over water up to	15 km/h / 9.3 mph
Speed under water up to	13 km/h / 8.1 mph
Speed control	4 power levels between 0 % and 100 % via piezo buttons
Energy	High-Energy Lithium-Manganese accumulators
Total capacity approx.	1.1 kWh; 48 V; 23 Ah
Operating time average	60 min
Charging time (standard charging) approx.	8 h
Charging time (quick charging) approx.	1.5 h
Diving depth	40 m / 131 ft
Dimensions (L x W x H)	1,152 x 507 x 372 mm
Weight approx.	29 kg / 63.93 lbs
Buoyancy in water approx.	14 kg / 30.86 lbs

Technical data SEABOB F5 S

Performance up to	4.0 kW / 5.36 hp
Maximum thrust up to	680 N
Speed over water up to	20 km/h / 12.43 mph
Speed under water up to	18 km/h / 11.18 mph
Speed control	6 power levels between 0 % and 100 % via piezo buttons
Energy	High-Energy Lithium-Manganese accumulators
Total capacity approx.	1.8 kWh; 48 V; 38 Ah
Operating time average	60 min
Charging time (standard charging) approx.	8 h
Charging time (quick charging) approx.	1.5 h
Diving depth	40 m / 131 ft
Dimensions (L x W x H)	1.152 x 507 x 372 mm
Weight approx.	35 kg / 77.16 lbs
Buoyancy in water approx.	10 kg / 22.05 lbs
Special equipment	Securing device for Pilot belt system

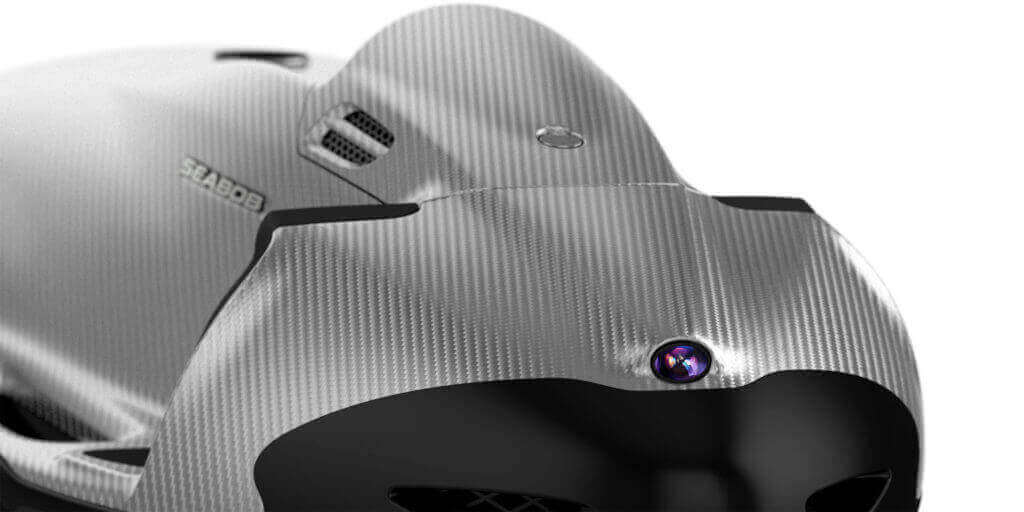

Extras	Elements in a matt chrome design

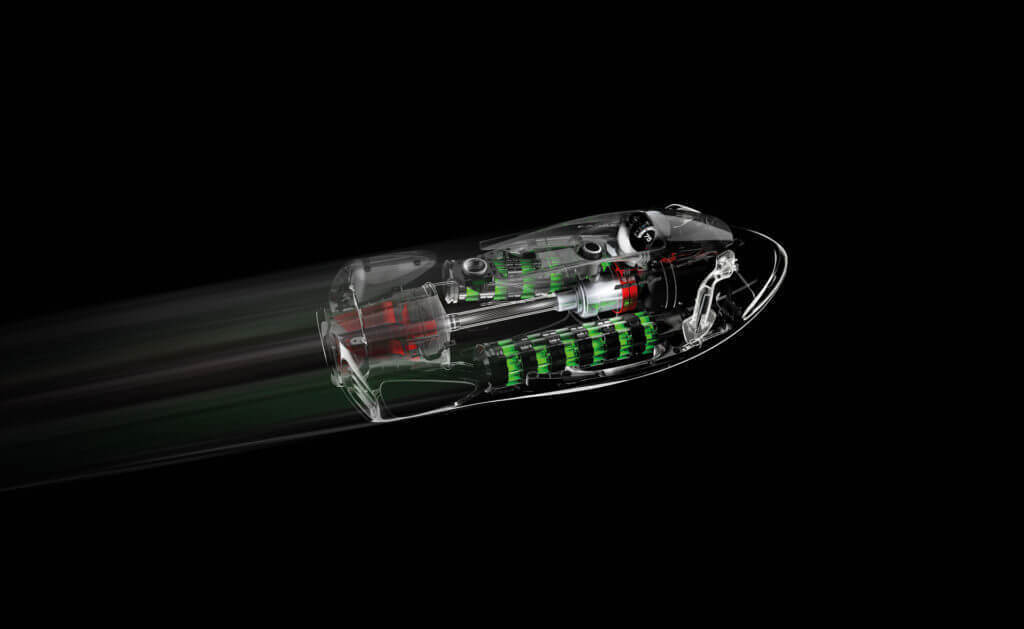

E-Jet Power System - Emission-free drive technology

The worldwide patented E-Jet Power System works according to the principle of water displacement. The water is sucked in by the powerfully rotating impeller and forced out in the jet channel under high pressure. The thrust developed in this way propels the SEABOB forward in superior fashion.

Maximum thrust requiring little energy makes the E-Jet Power System a unique drive mechanism for powerful watercraft. Thanks to its electro-technology, the system is absolutely environmentally friendly and offers extremely low operating costs.

Are you ready? Turn up the power and away you go

If you are looking for the ultimate driving pleasure, simply head for the water. No boundaries, no limits. Experience vast open spaces and pure freedom with the SEABOB. Whatever gear you have selected.

Speed is regulated via the Controlgrip. The enormous thrust generated between the power levels lends the SEABOB a dynamism and fascination beyond compare.

Experience a unique agility under water

The dynamism of the SEABOB jet develops its special appeal under the water. The watercraft can be steered down into the depths simply by applying light pressure. Man and machine in unison, darting around nimbly.

Diving depths of up to 40 metres can be programmed to suit individual requirements via the on-board electronics. A safety cut-off feature reliably ensures that the selected diving depth is not exceeded.

Discover the fascinating underwater world in a new dimension.

Interaction with the element

Special moments of pleasure
Leisurely gliding. Sporty driving. Safe diving under water. All this is possible with a SEABOB. Now you can actually move through the water like a dolphin. Freely, both on the surface and at depth.

At the same time, the SEABOB is completely environmentally friendly when in its element. It zooms powerfully and almost silently through the water. Darting about with such ease and agility really makes a dream come true for mankind.

Active relaxation

The enjoyment of driving starts when you are cruising

Whether you are cruising, zipping through the water or diving. The SEABOB will glide along powerfully with you aboard. Feel the awe-inspiring manoeuvrability. The new-found desire for water will never relinquish its hold on you again.

Optimal handling - Low weight with powerful thrust

Easy handling was the uncompromising objective set when developing the new SEABOB. For this reason, the challenge in terms of development was clearly defined. Low overall weight. Extremely stable housing. Powerful drive. These properties make the SEABOB F5 a unique water sports craft. The vehicle can be used anywhere and offers optimal handling.

A development with responsibility for the environment

The specially developed, high-performance electric-drive mechanism with its environmentally friendly technology is an exemplary innovation.

The motor is a high-torque synchronised drive unit featuring a microprocessor-controlled 3-phase sinus power management system. The application of cutting-edge technology enables this motor to achieve the ideal amount of torque with outstanding efficiency. All this, and yet the overall design remains very compact.

The power for the drive mechanism is provided by highly efficient lithium-manganese accumulators. These high-performance special accumulators are a top-class quality component in the propulsion concept of the SEABOB.

Rediscover the element - Intense and irrepressible

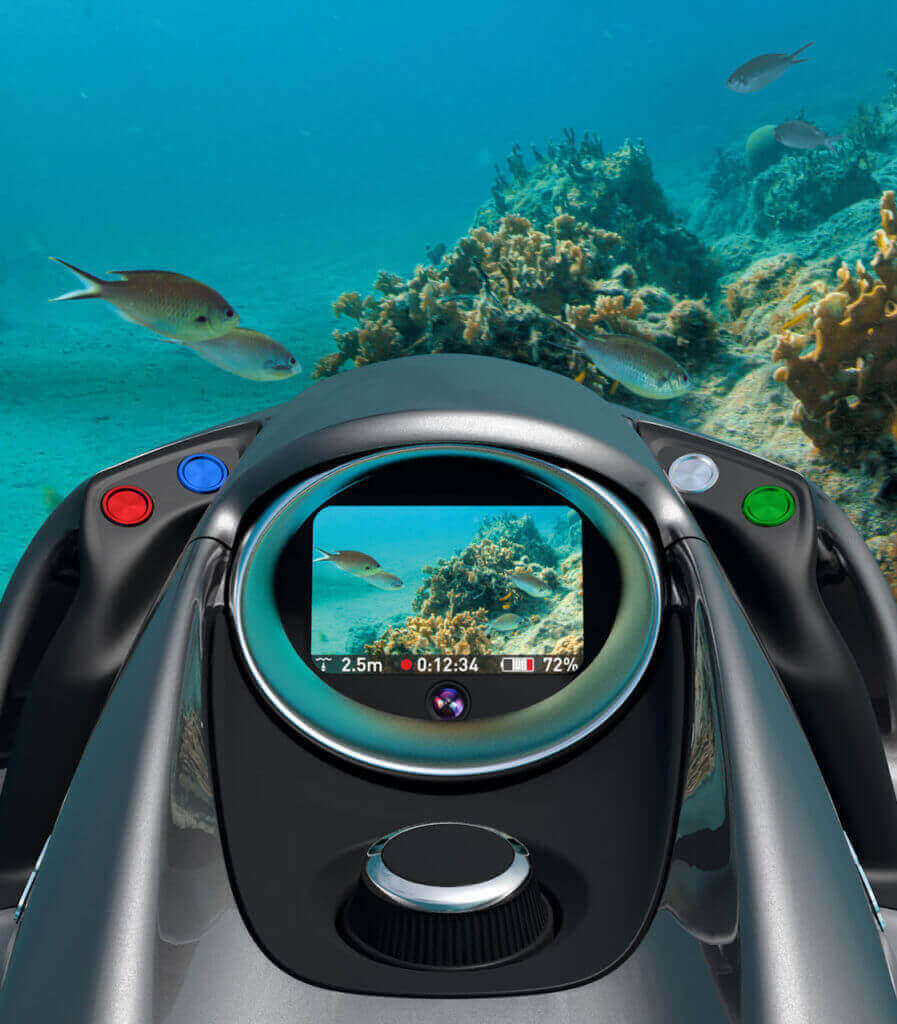

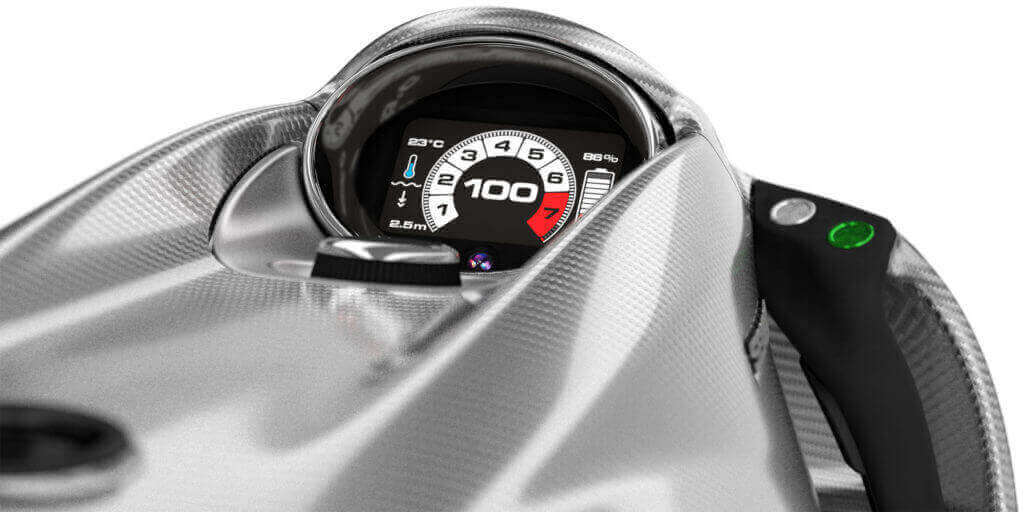

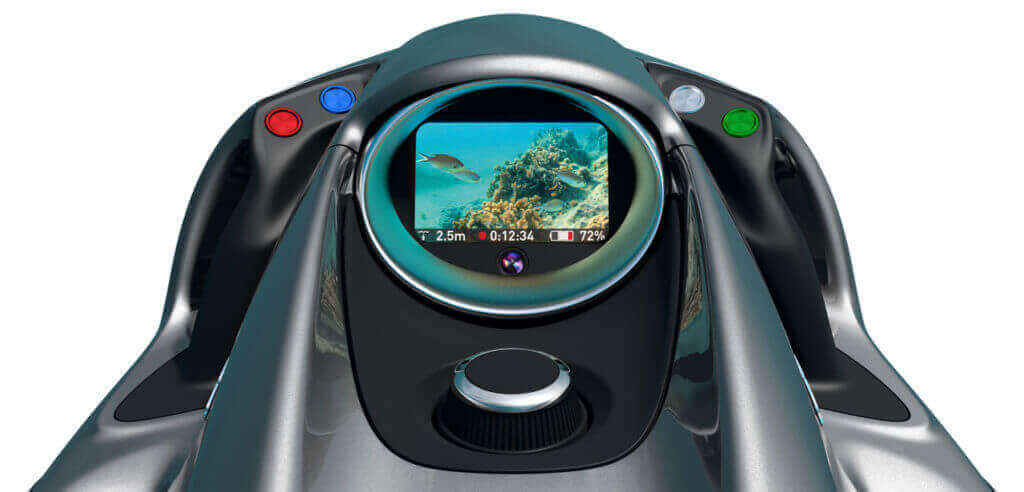

Clear view. Perfect control.

The central cockpit is located exactly in the driver’s field of vision. All important technical data from the engine electronics is shown accurately via the TFT colour display.

It provides the pilot with information on the current driving performance and the selected power level. The accumulator charge state and the remaining operating time indicated allow you to reliably keep track of the residual capacity.

Furthermore, the driver receives up-to-date information regarding his diving depth and water temperature. The programming functions of the menu can also be conveniently controlled via the TFT display.

High-performance toys - For intense pleasure driving in the water

For people looking for intense fun and enjoyment in their lives, we build water sleds with the greatest thrill factor in the world. The SEABOB F5 and the SEABOB F5 S.

The outstanding features of the SEABOB F5 are its unanticipated agility in the water and the extremely low vehicle weight of only approximately 29 kg. The low weight of the SEABOB F5 makes for optimal handling properties.

The SEABOB F5 S is also a lightweight device tipping the scales at approximately 35 kg. It distinguishes itself by means of its strong driving performance and its irrepressible propulsion in the water.

Neither vehicle requires a driving licence and their electrical drive make them completely ecologically sound. High performance toys for intense fun in the water and emission free for zero impact on the environment.

Unlimited riding pleasure - Relaxed or intensive

Leisurely gliding. Sporty driving in the water. Safe diving under water. All this is possible with a SEABOB. Now you can actually move through the water like a dolphin. Freely, both on the surface and at depth.

At the same time, the SEABOB is completely environmentally friendly when in its element. It zooms powerfully and almost silently through the water. Man and machine in perfect harmony.

The Controlgrips. Switch gears for power. Determine the direction.

A SEABOB is the absolute embodiment of state-of-the-art technology. The pilot steers his water sports craft via two intelligent Controlgrips with Piezo technology.

The drive mechanism is activated by squeezing the trigger. Applying light pressure to the green sensor accelerates the device in continuous powerful thrusts until the desired speed is reached. Propulsion is reduced by pressing the red sensor, thereby slowing down the SEABOB. If required, the craft can be brought to an immediate stop simply by releasing the trigger.

Two further Piezo buttons enable the pilot to program an individual data menu. This includes the electronically-controlled setting of diving depth, operation time and additional parameters.

Customer service & Technical support

The SEABOB is a first-class quality product, easy to handle and completely maintenance free. Should you have any technical questions, simply contact our technical advisers.
