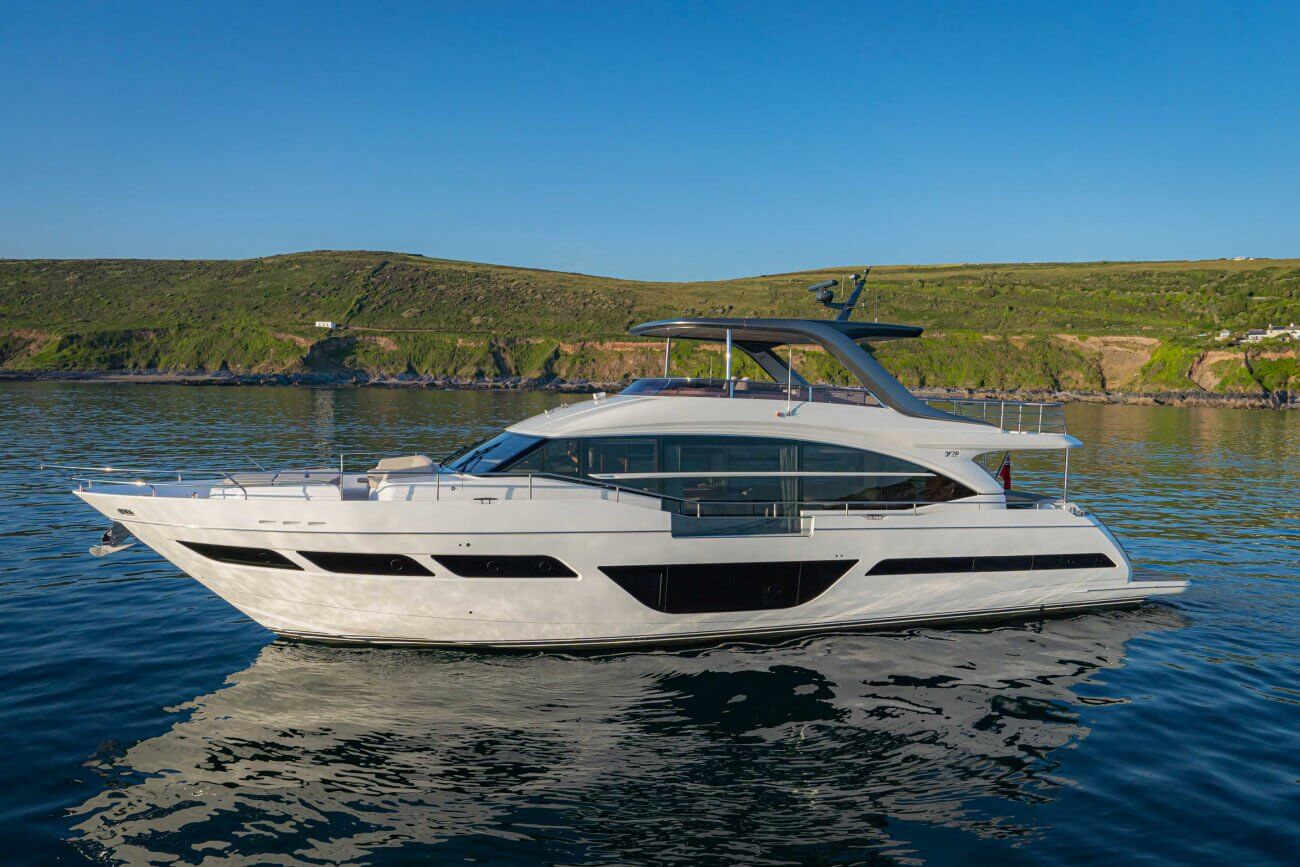

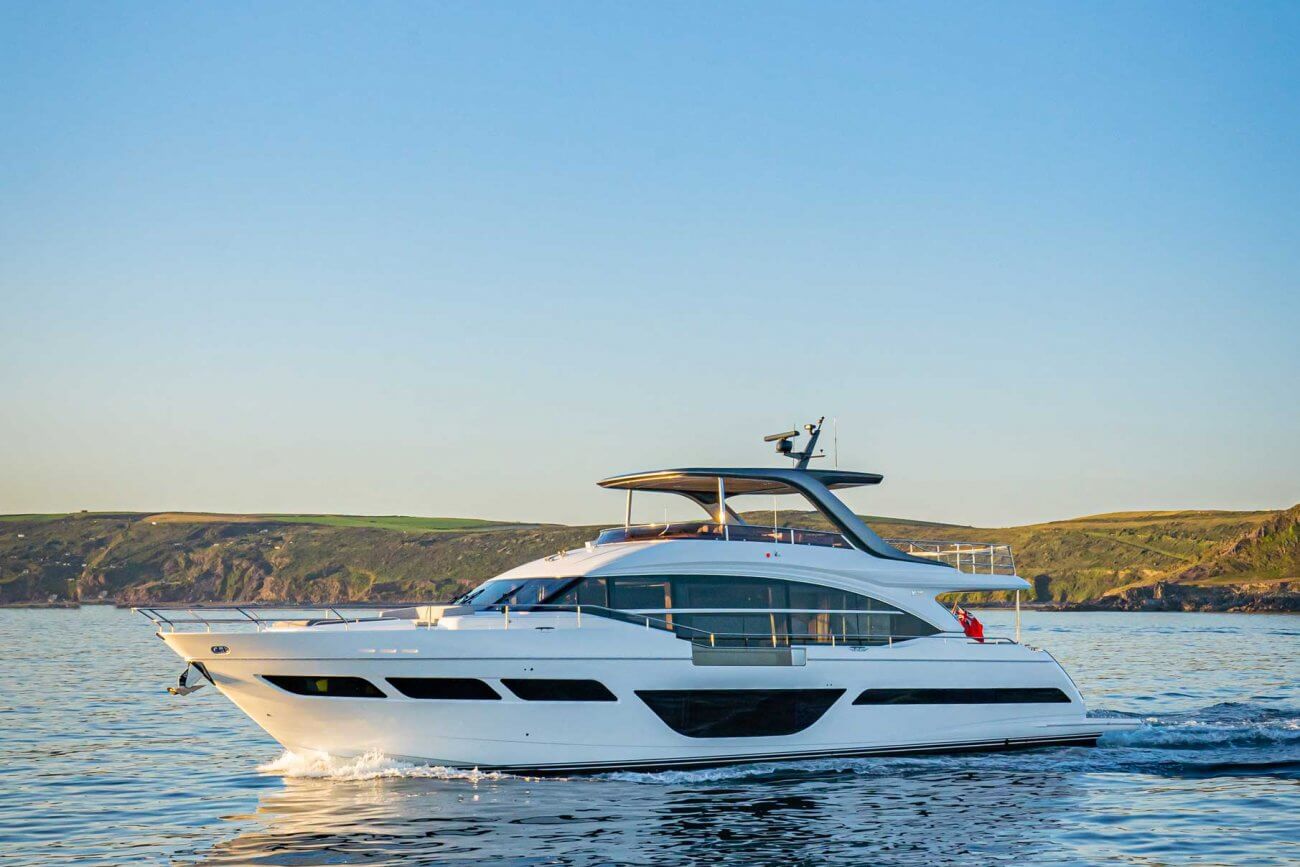

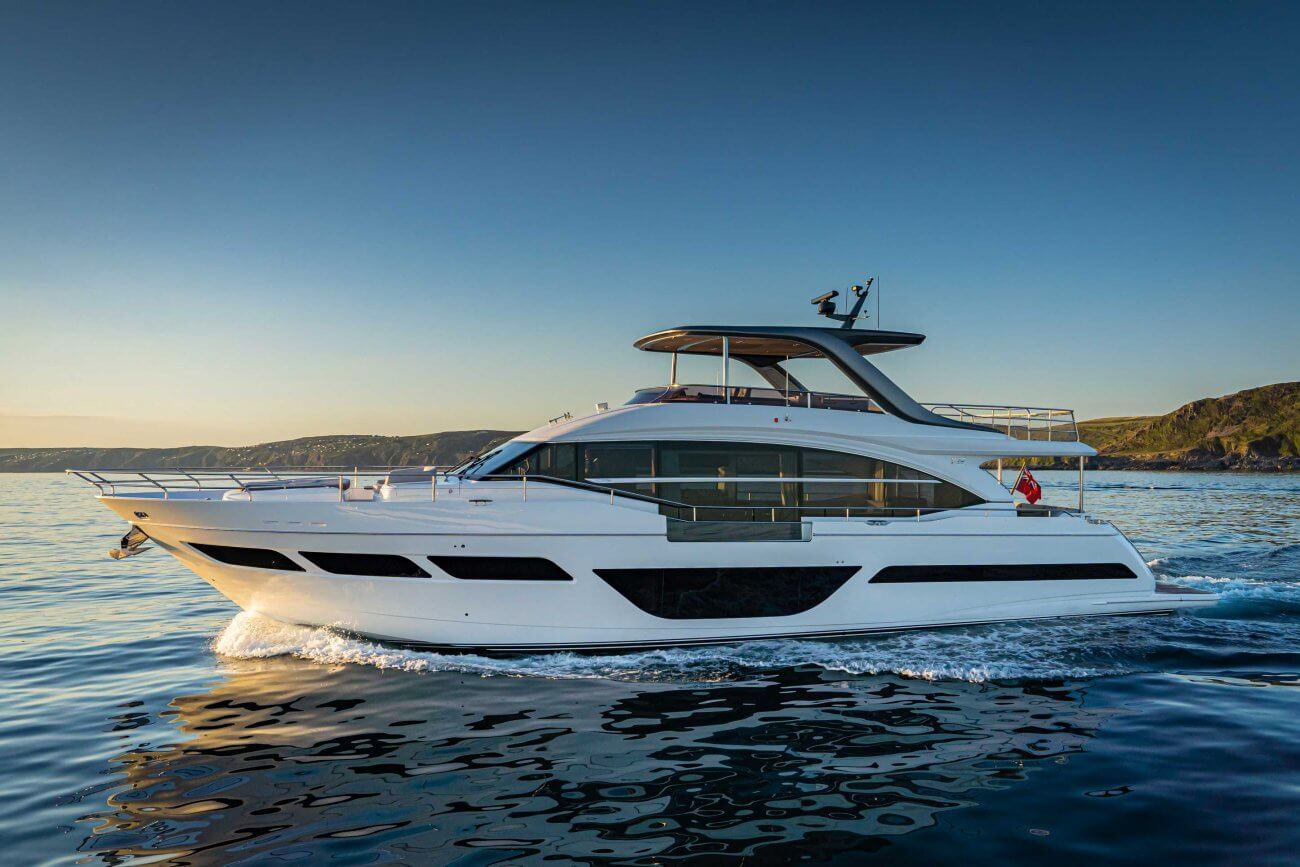

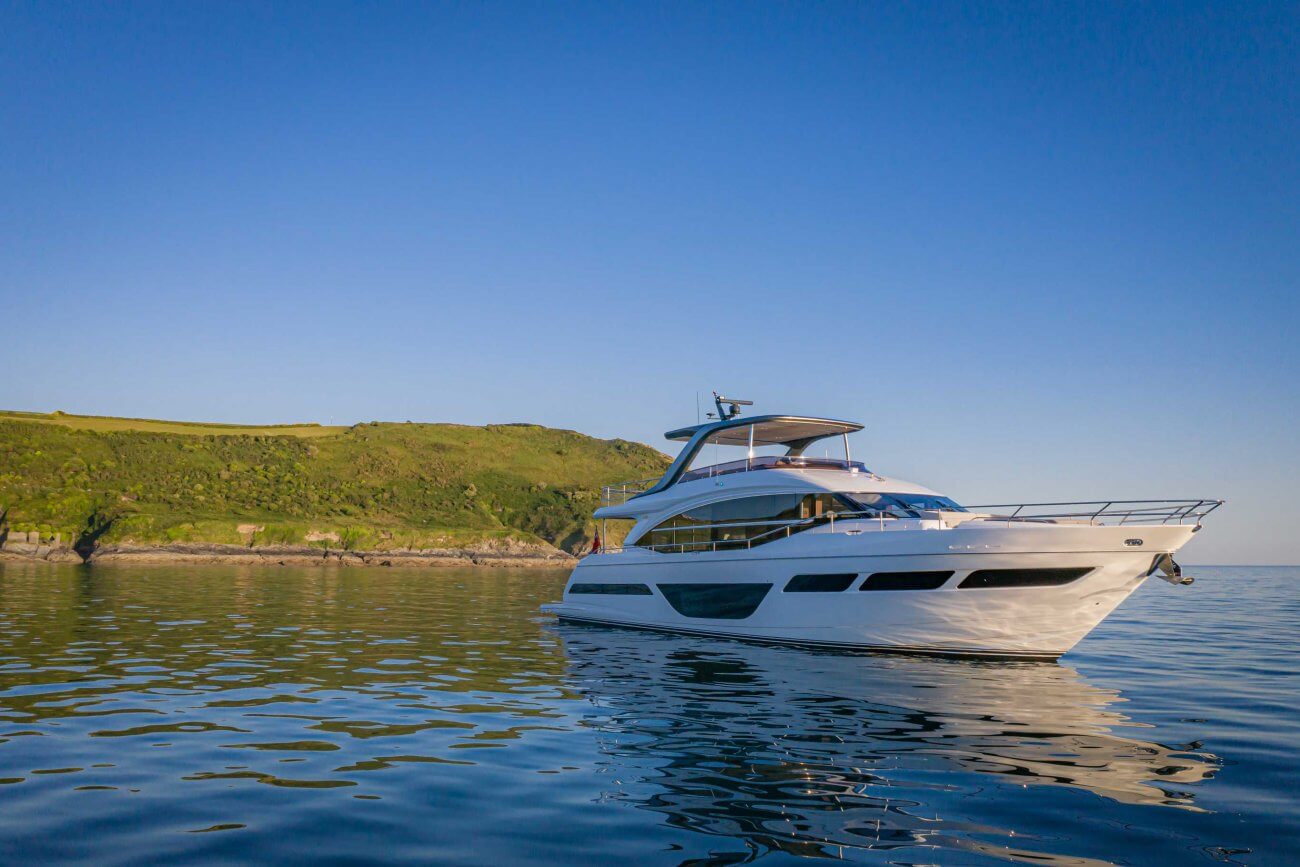

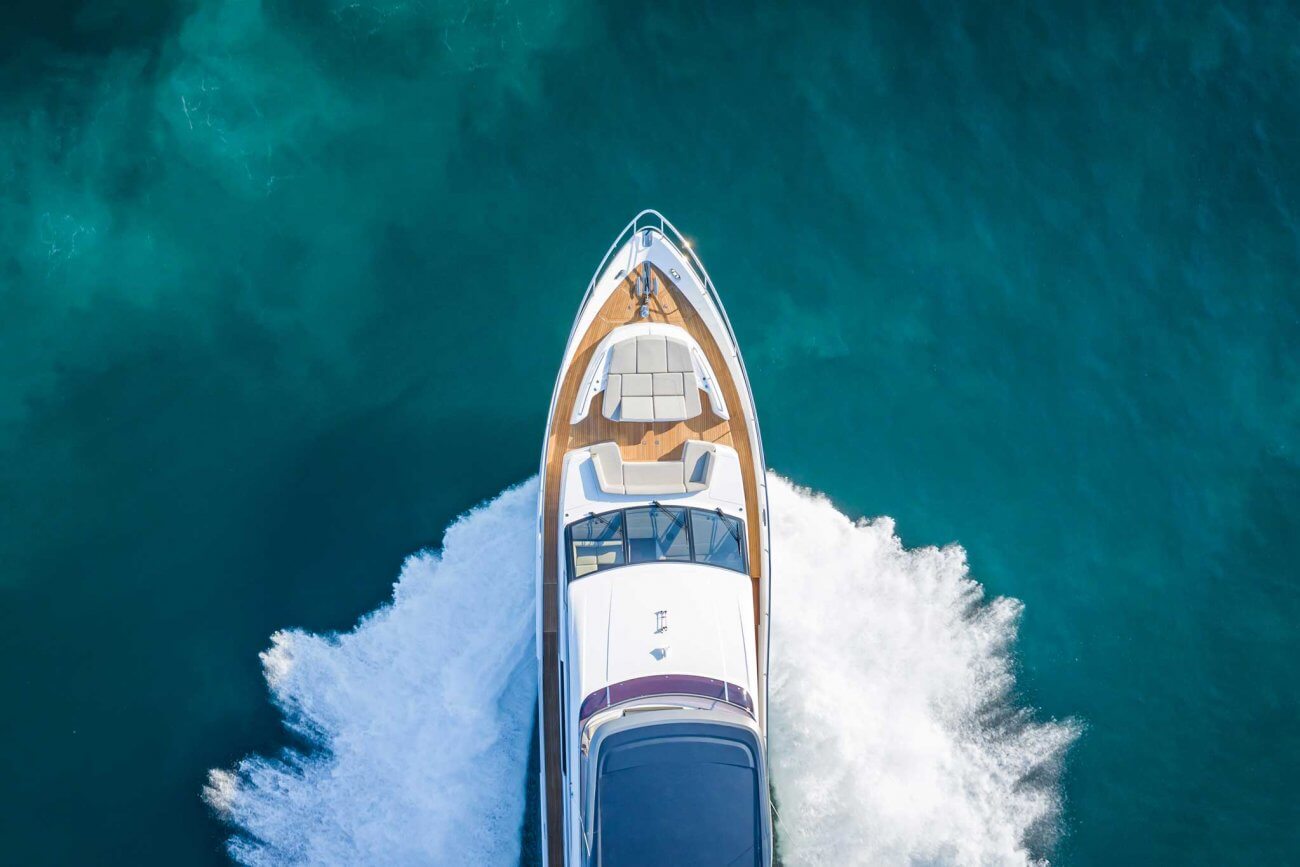

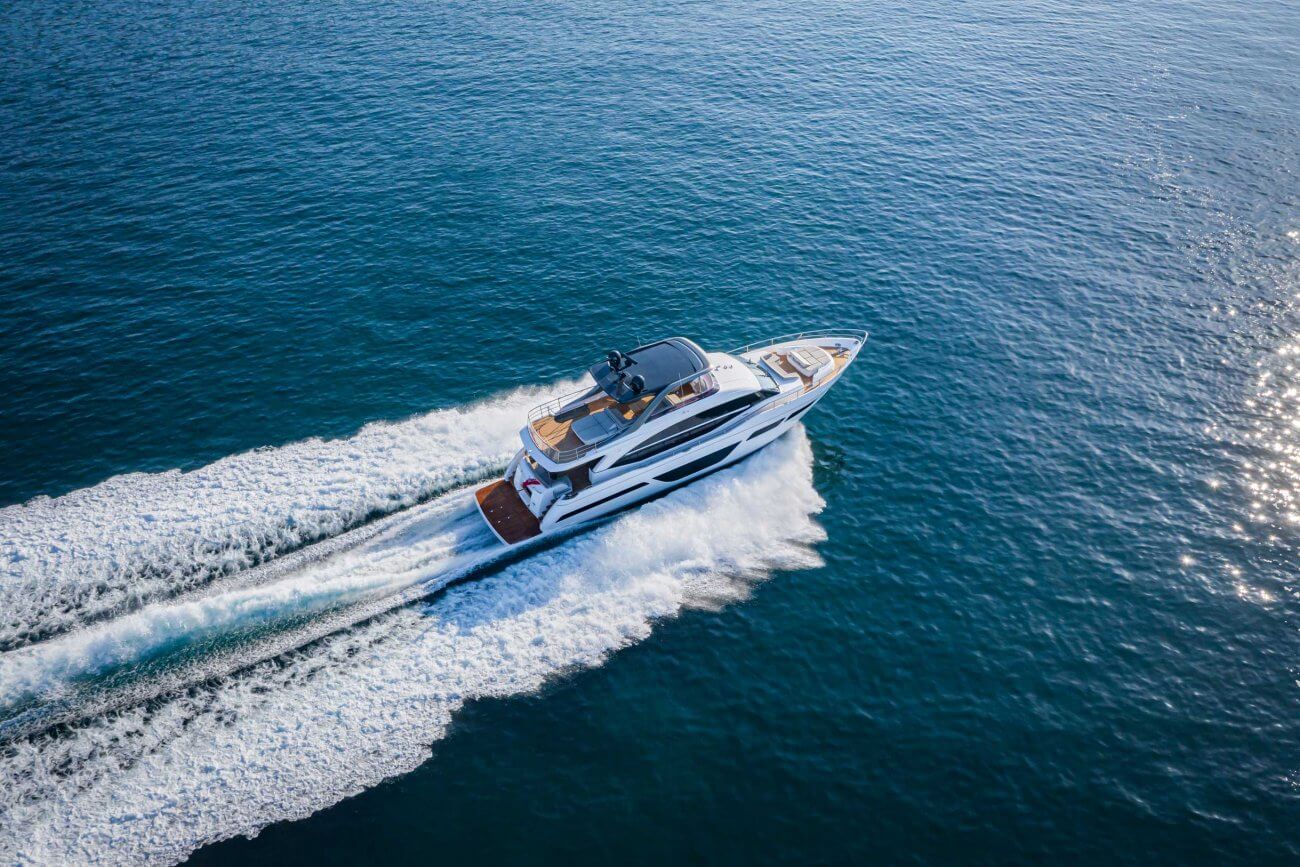

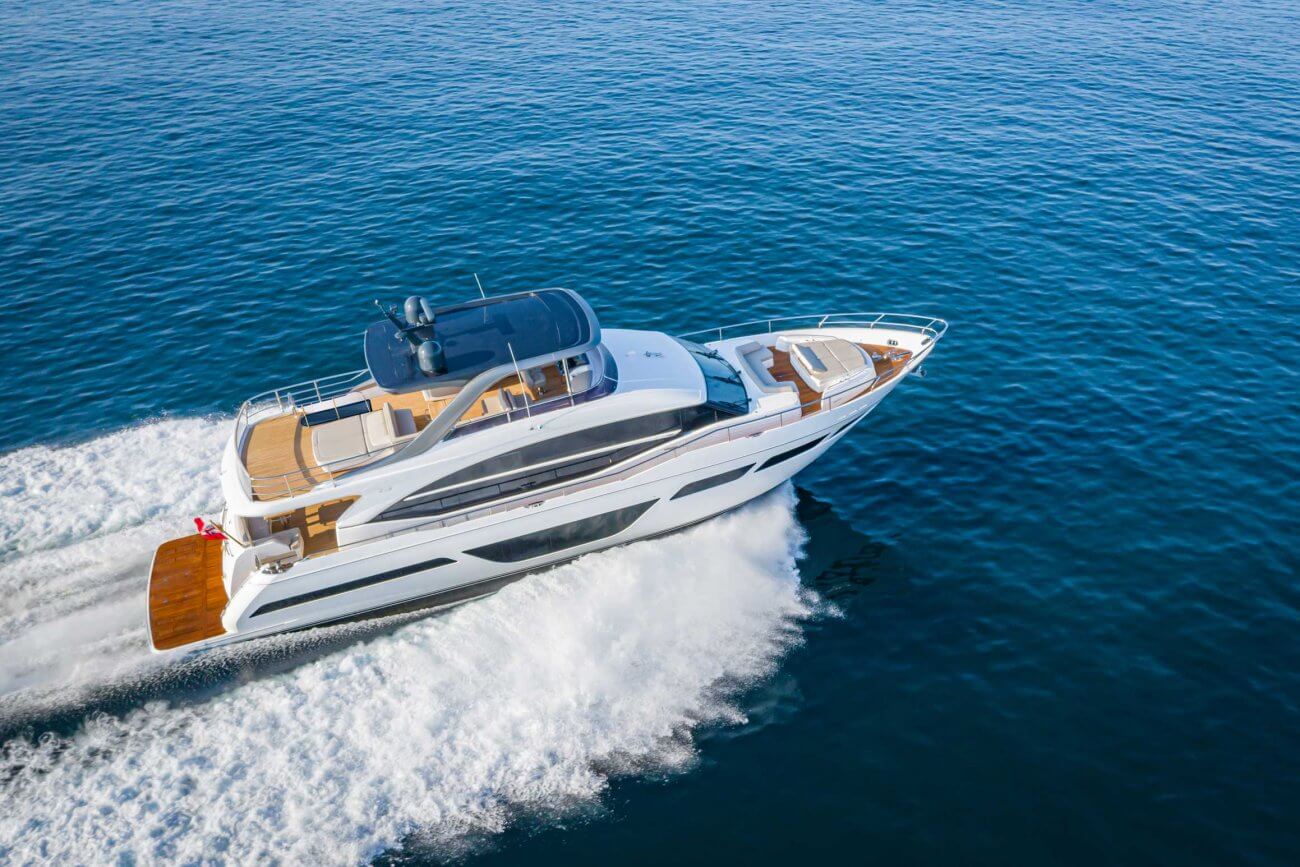

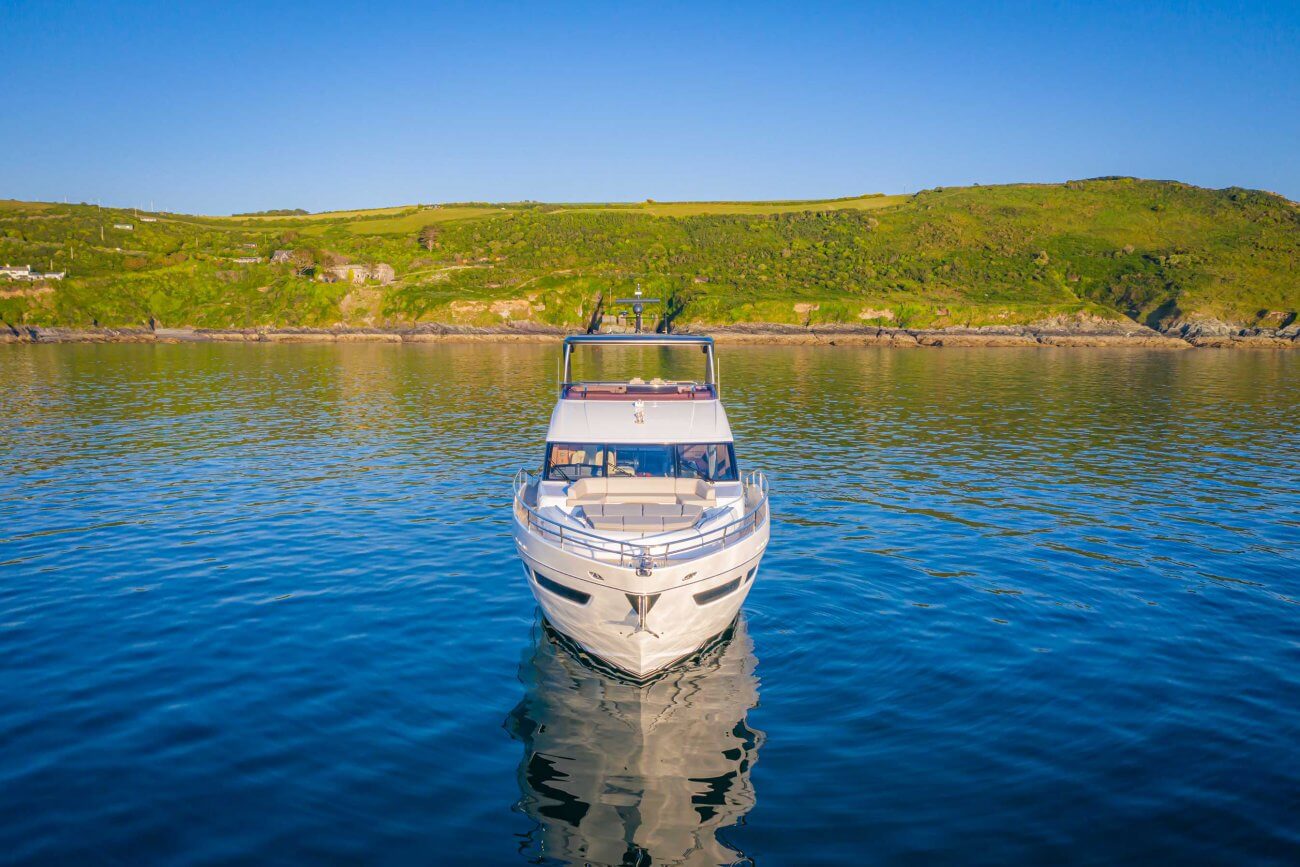

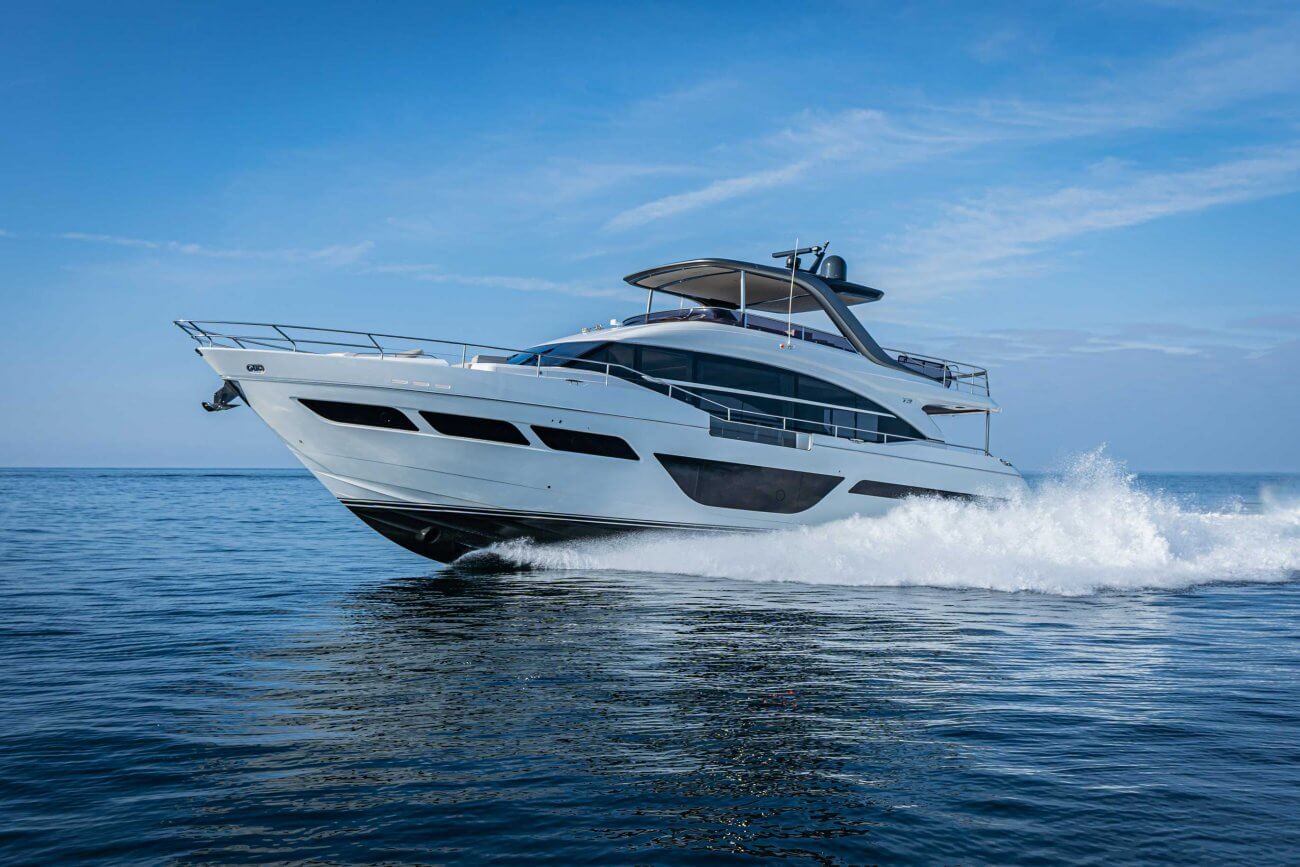

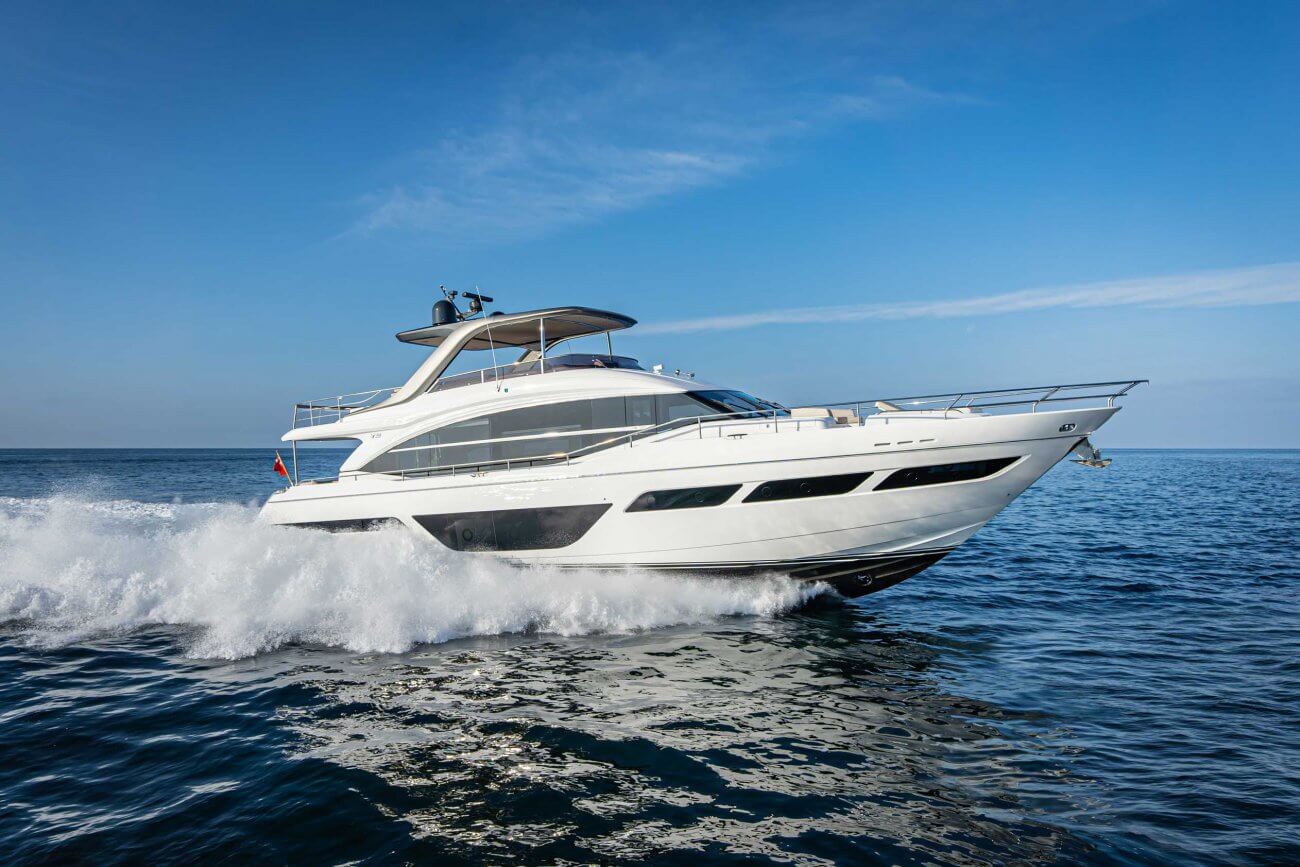

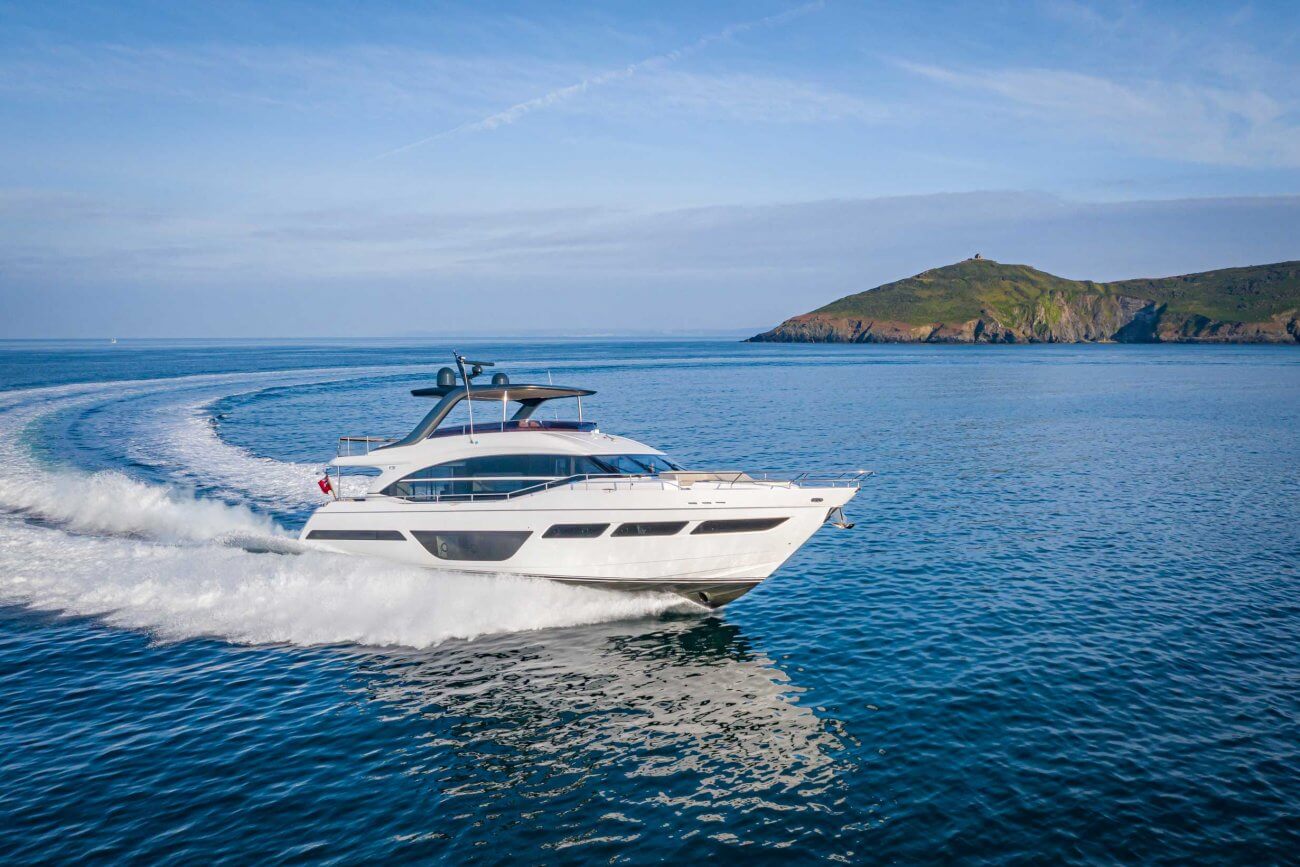

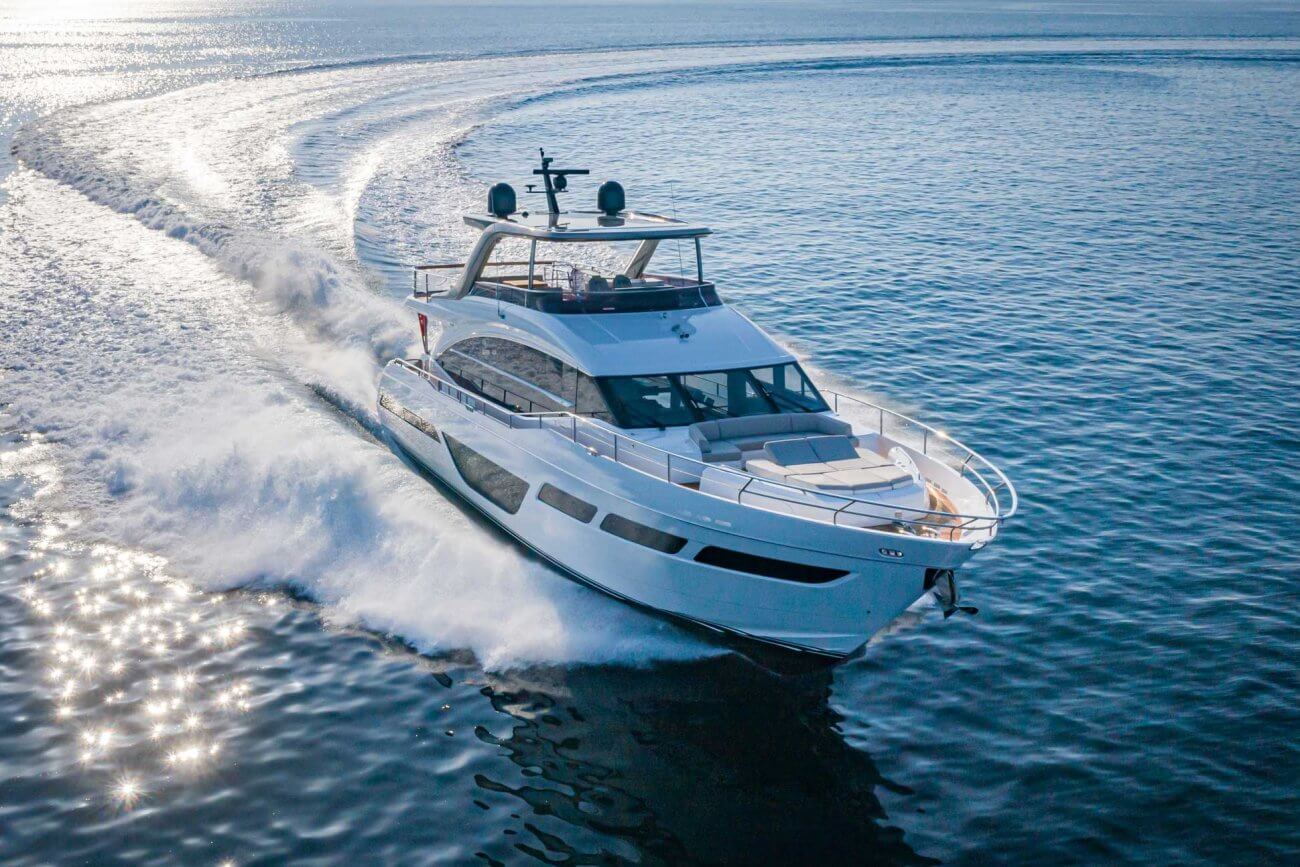

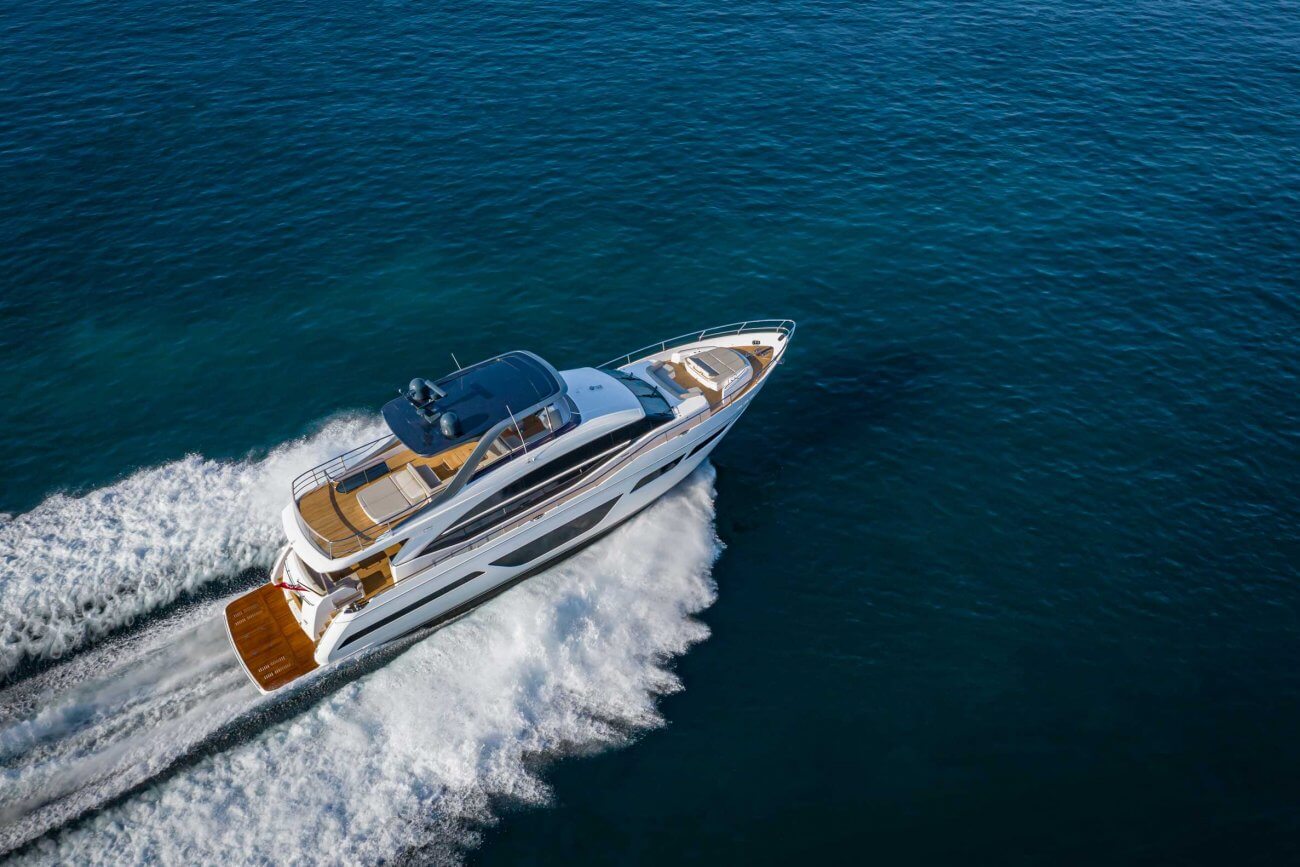

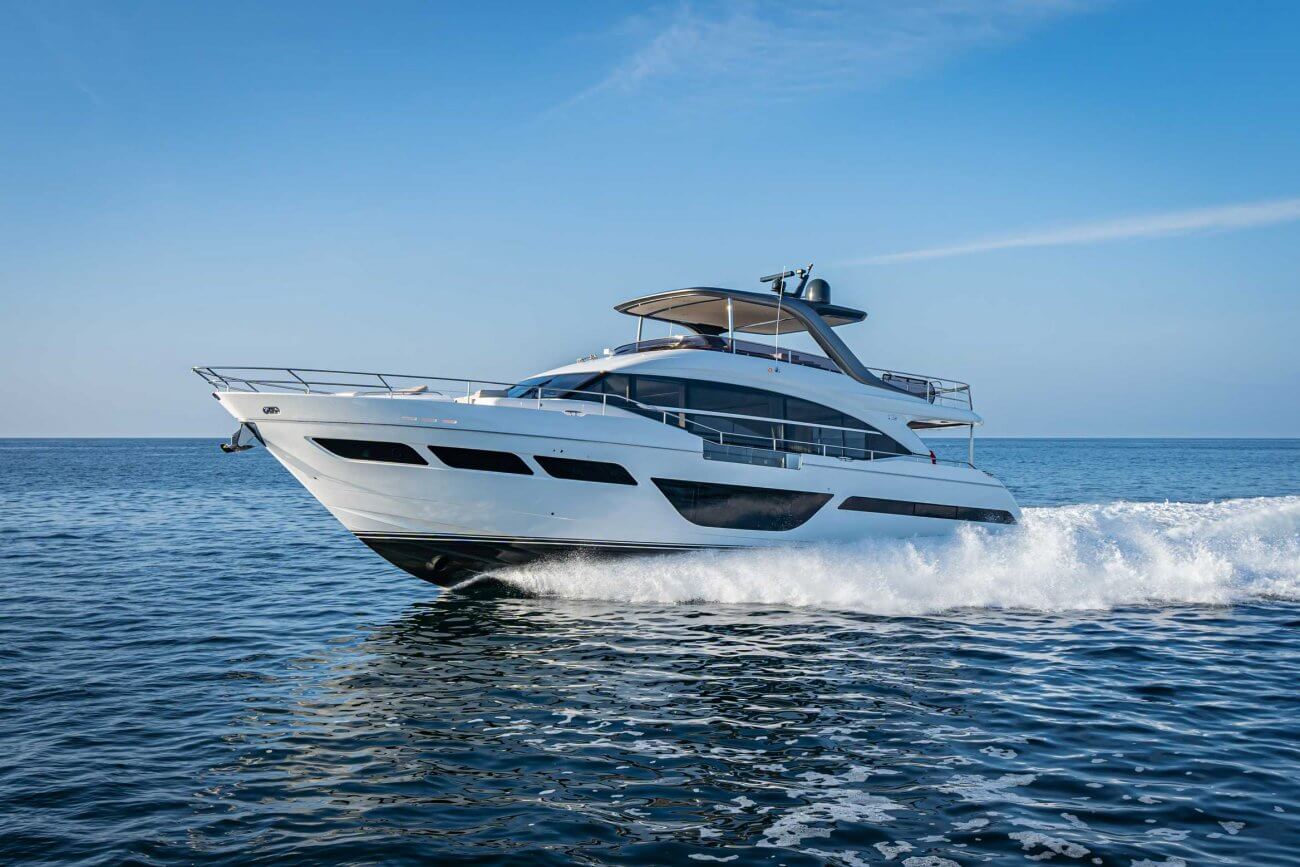

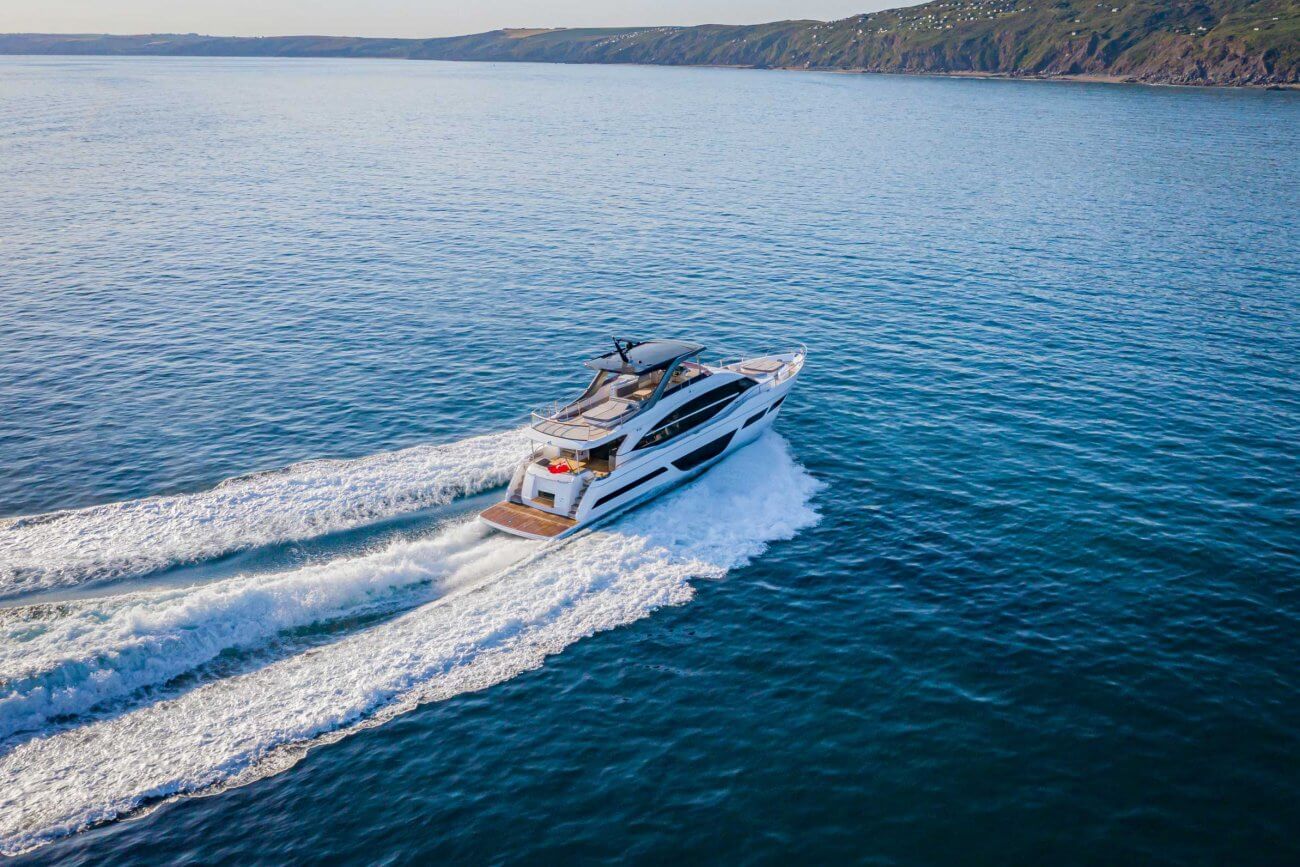

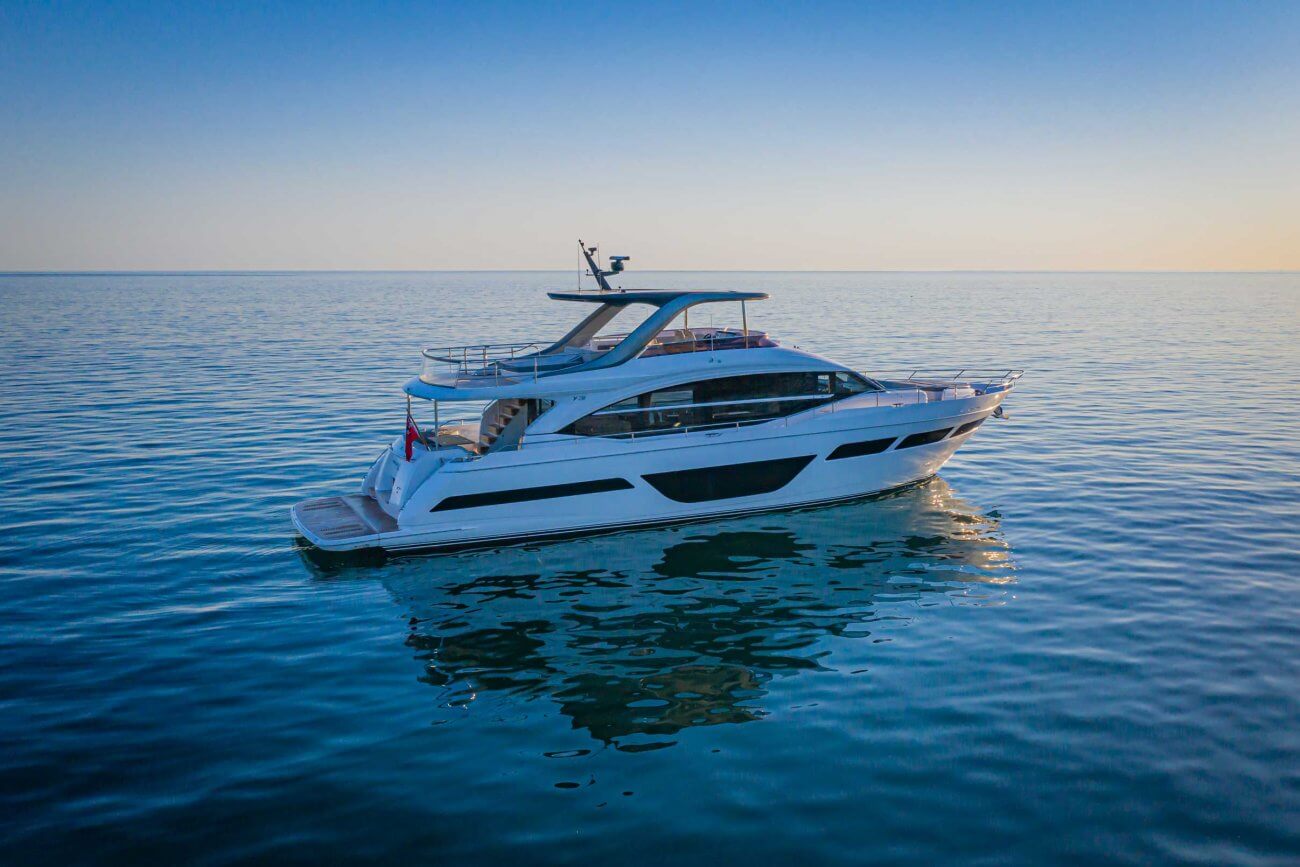

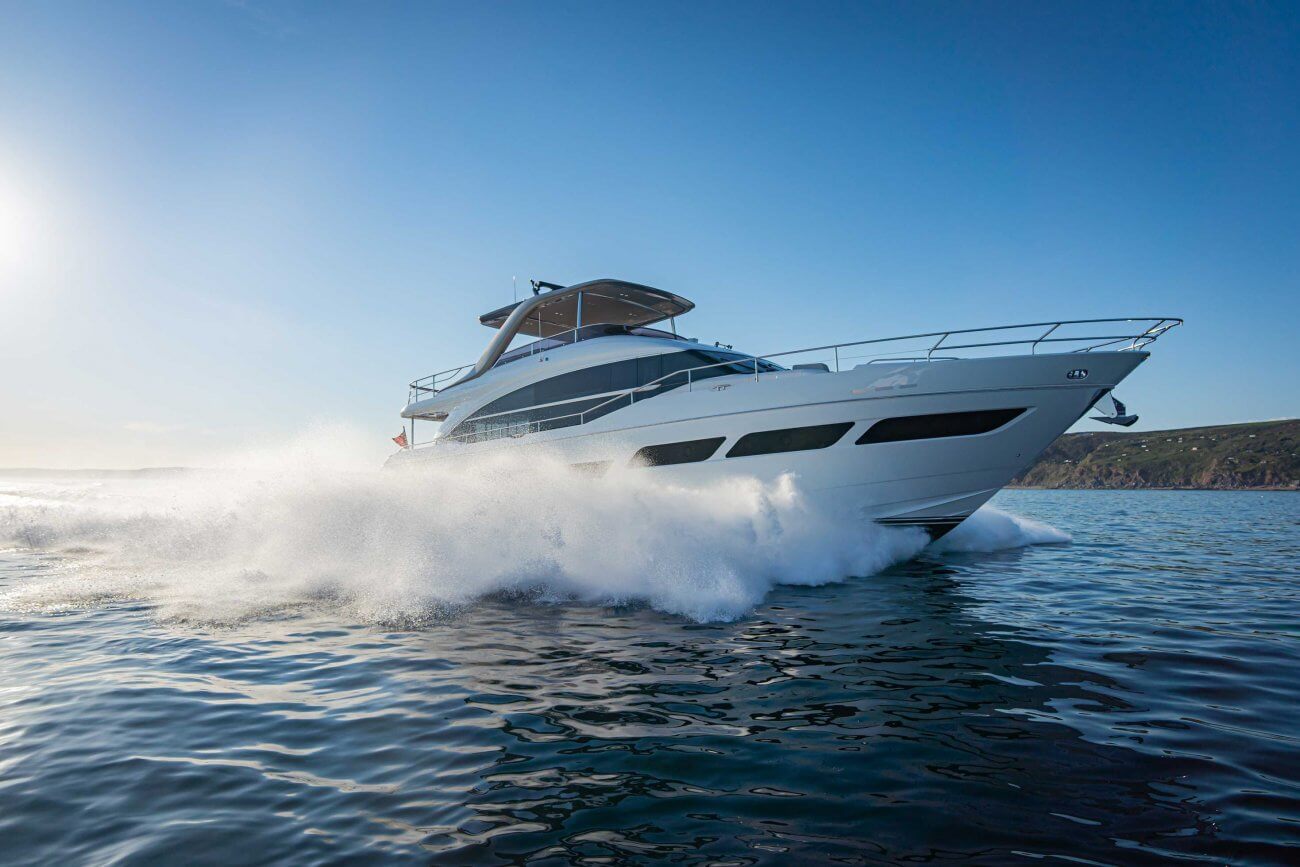

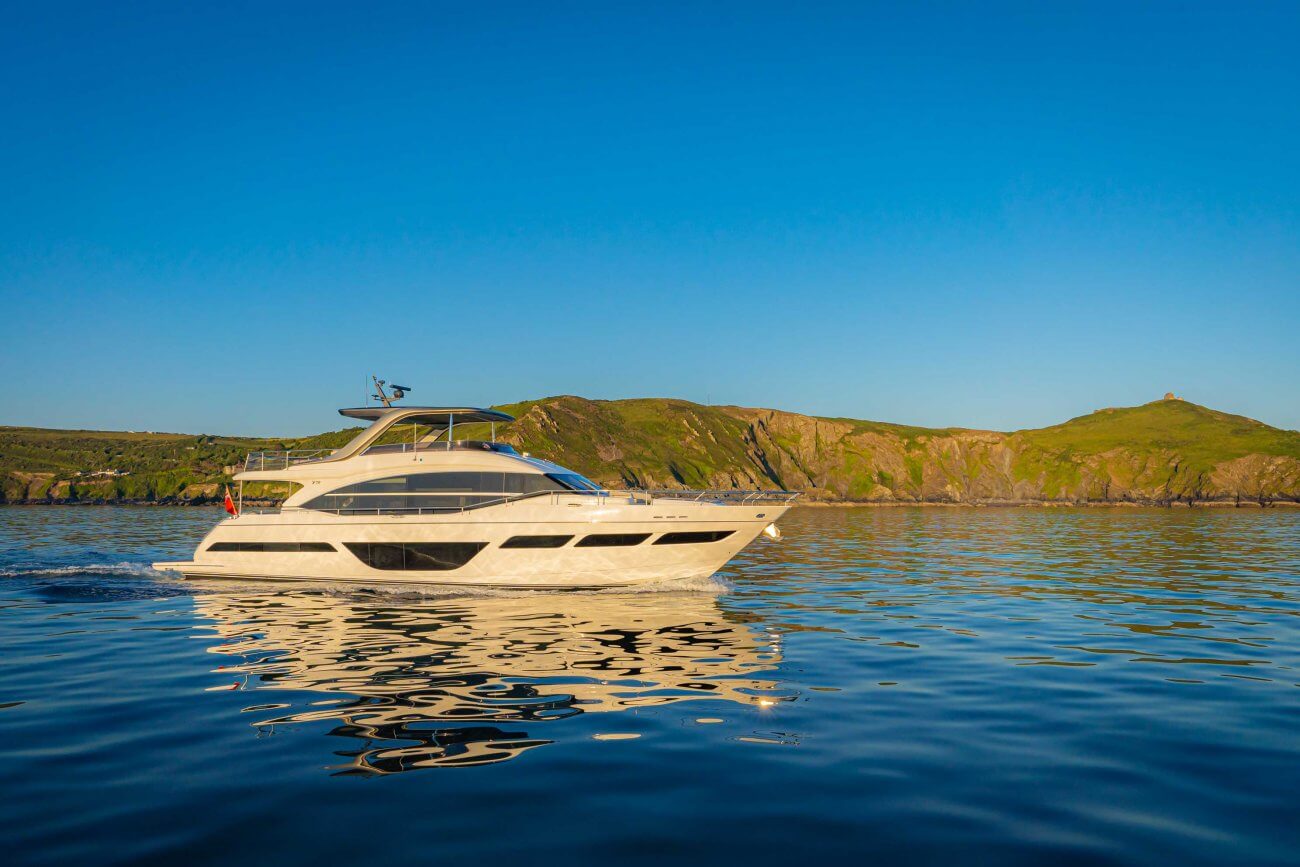

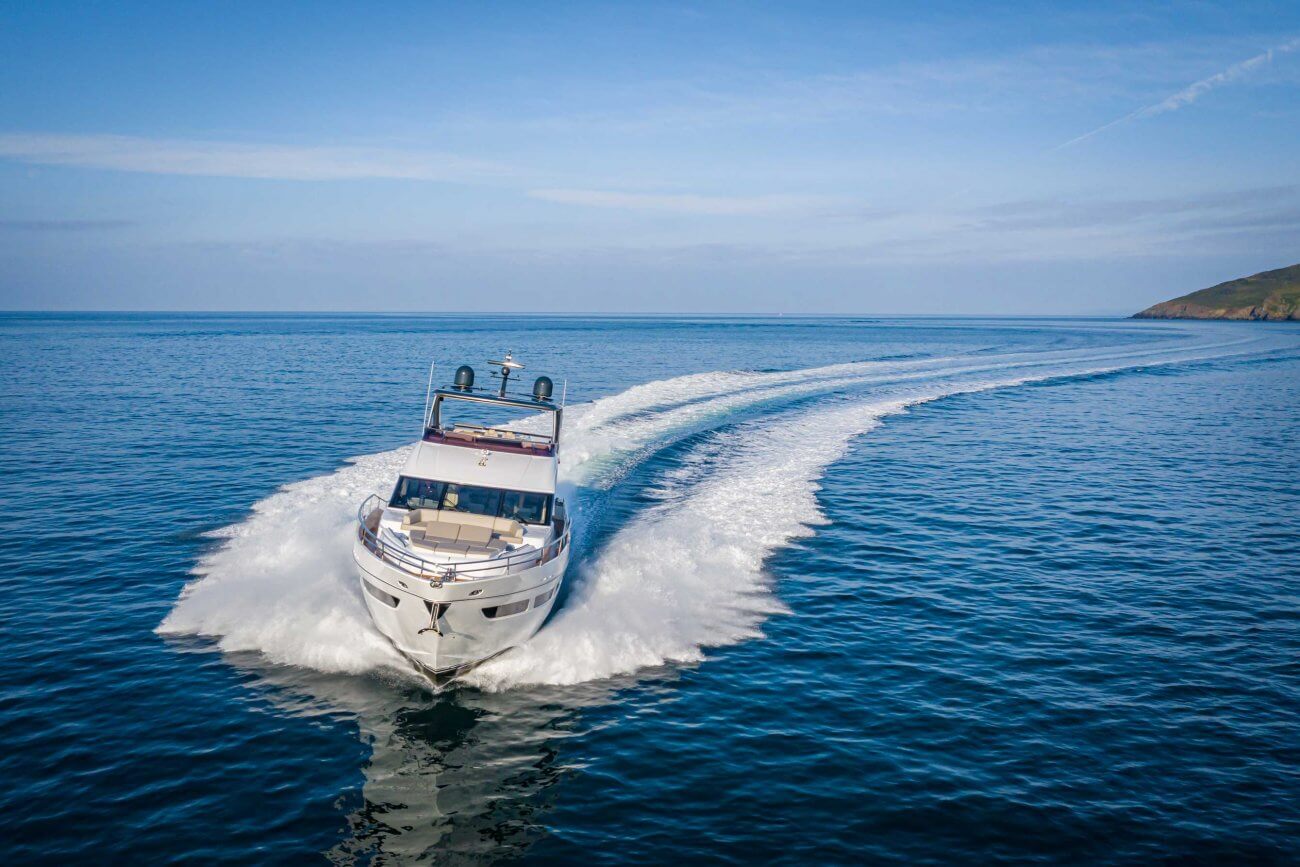

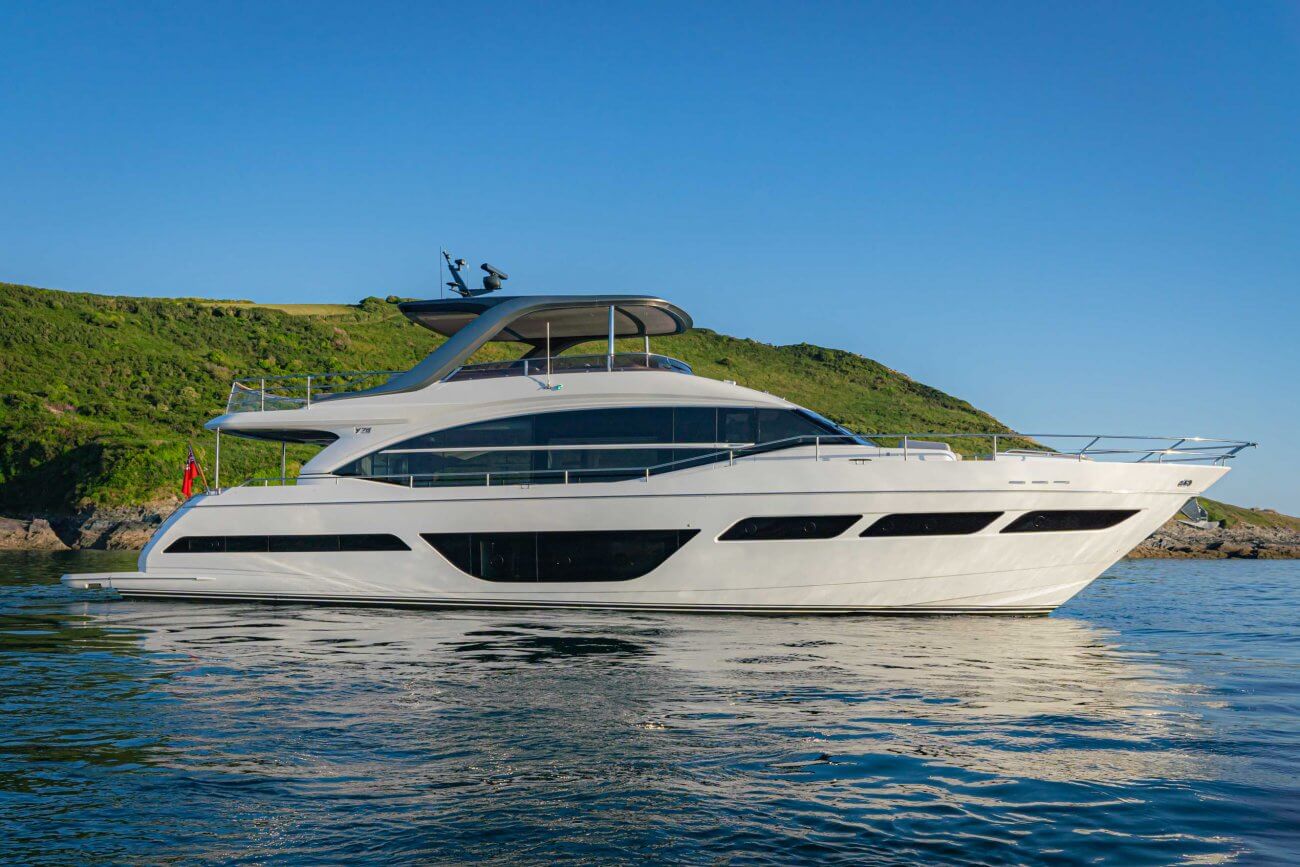

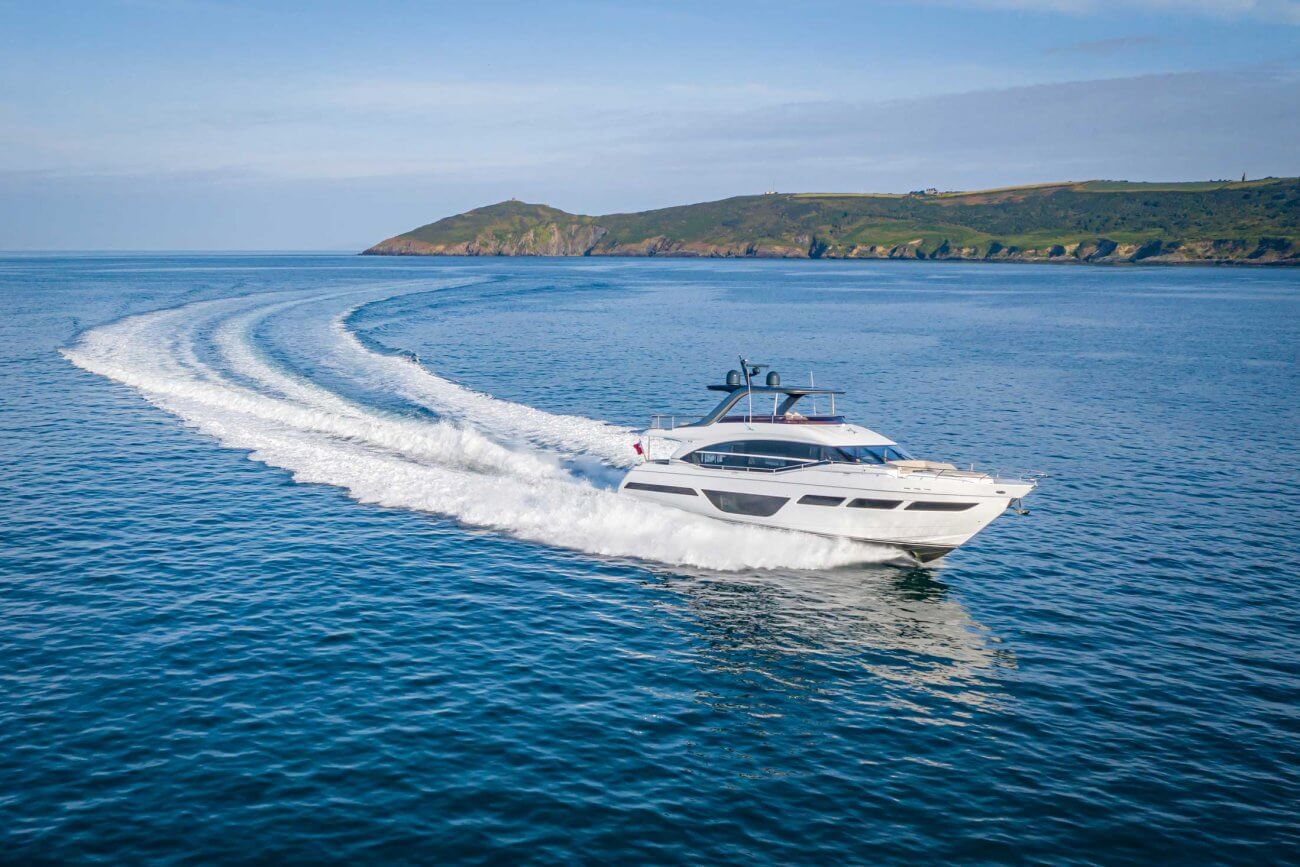

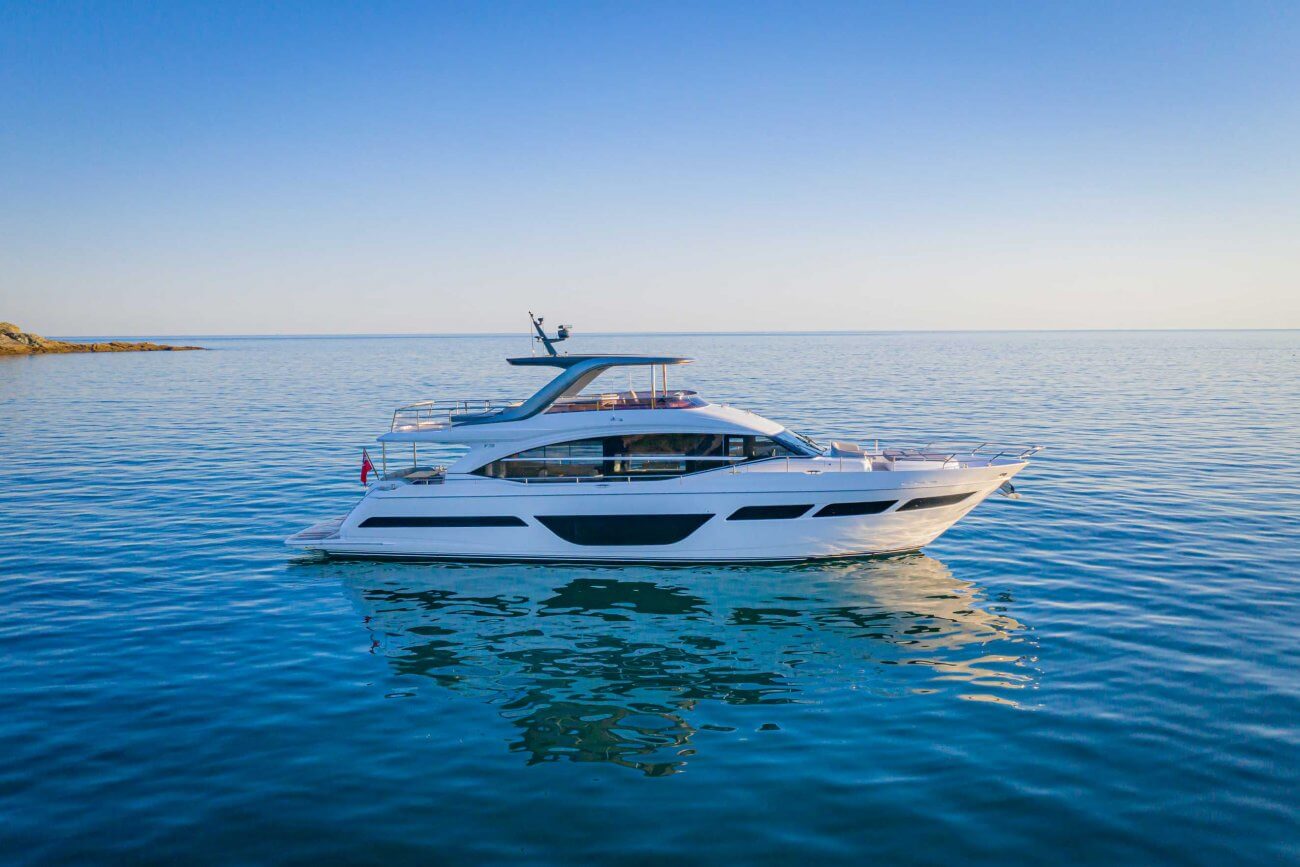

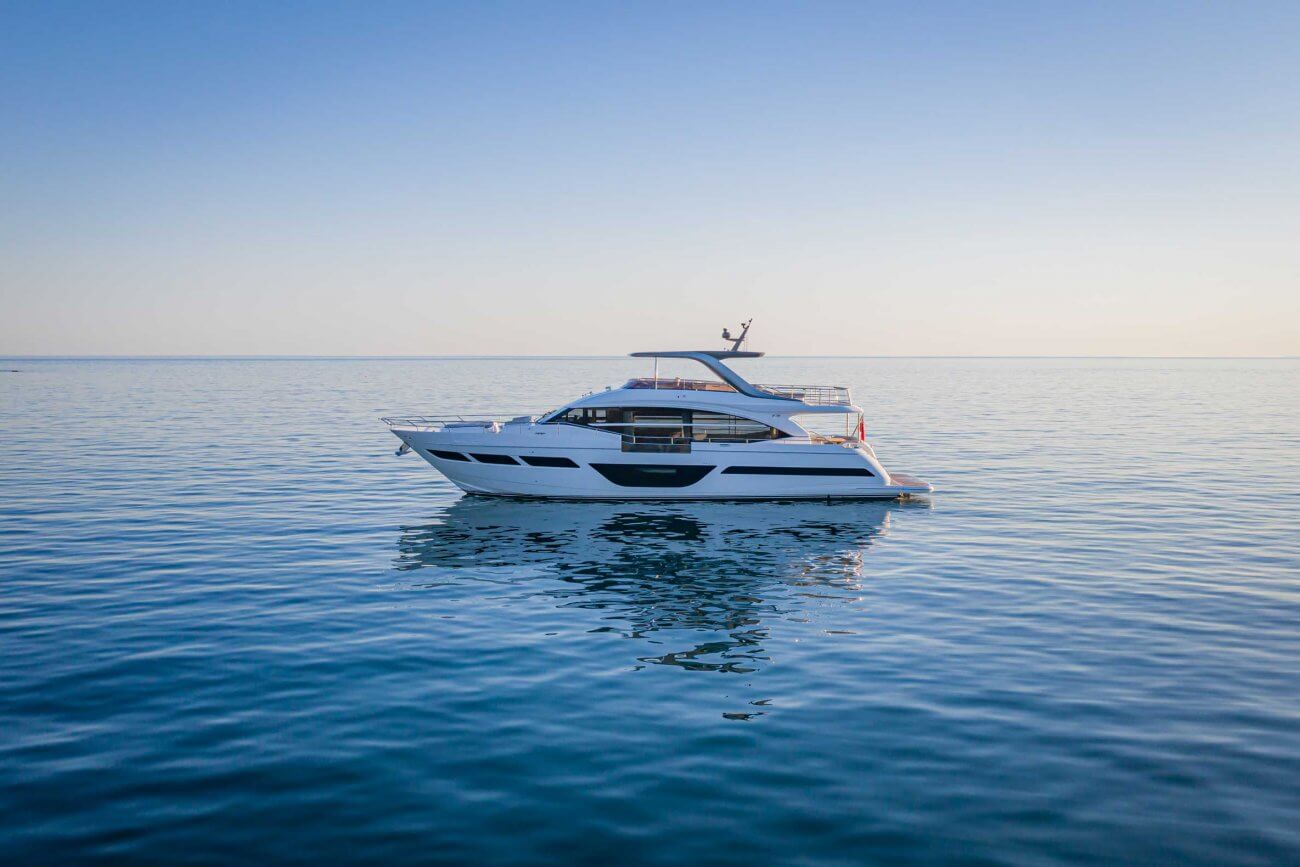

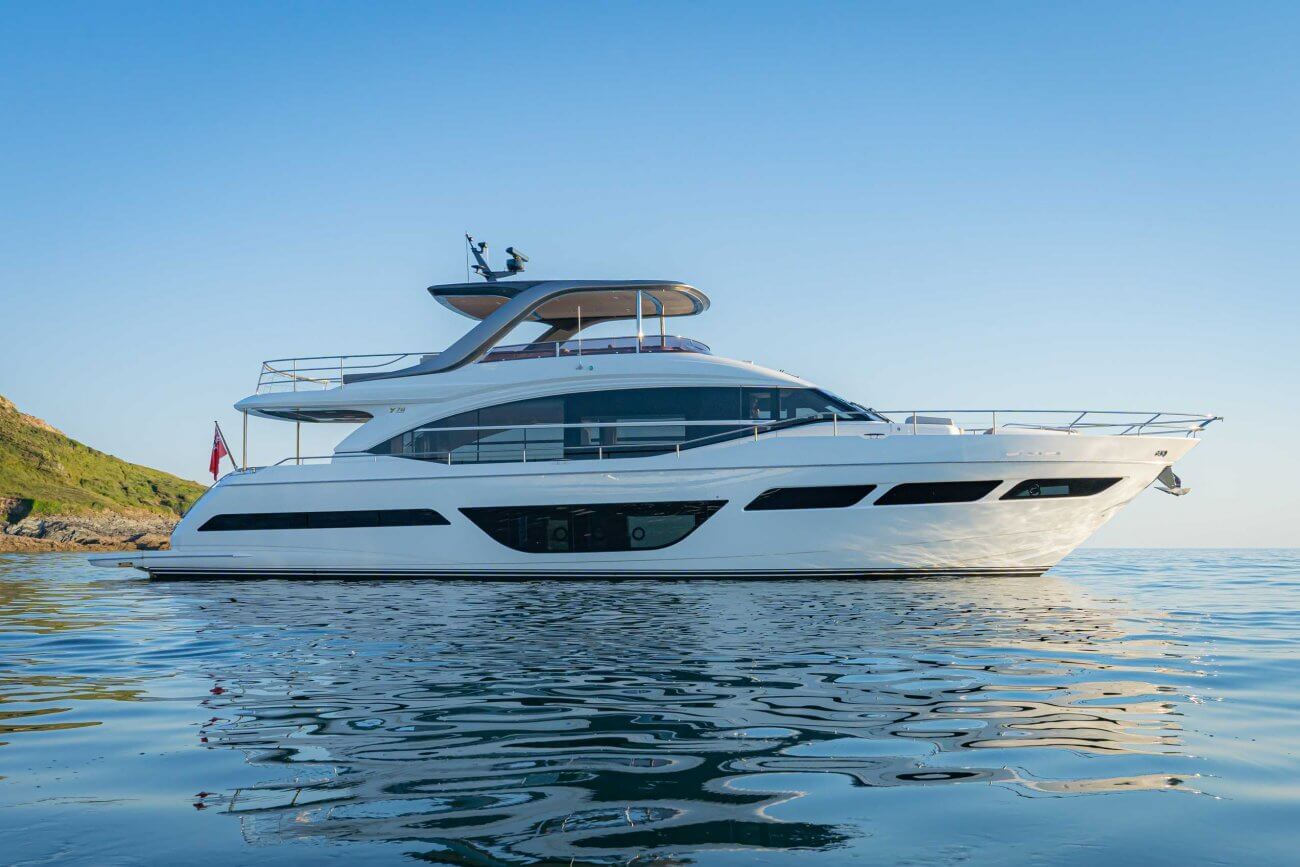

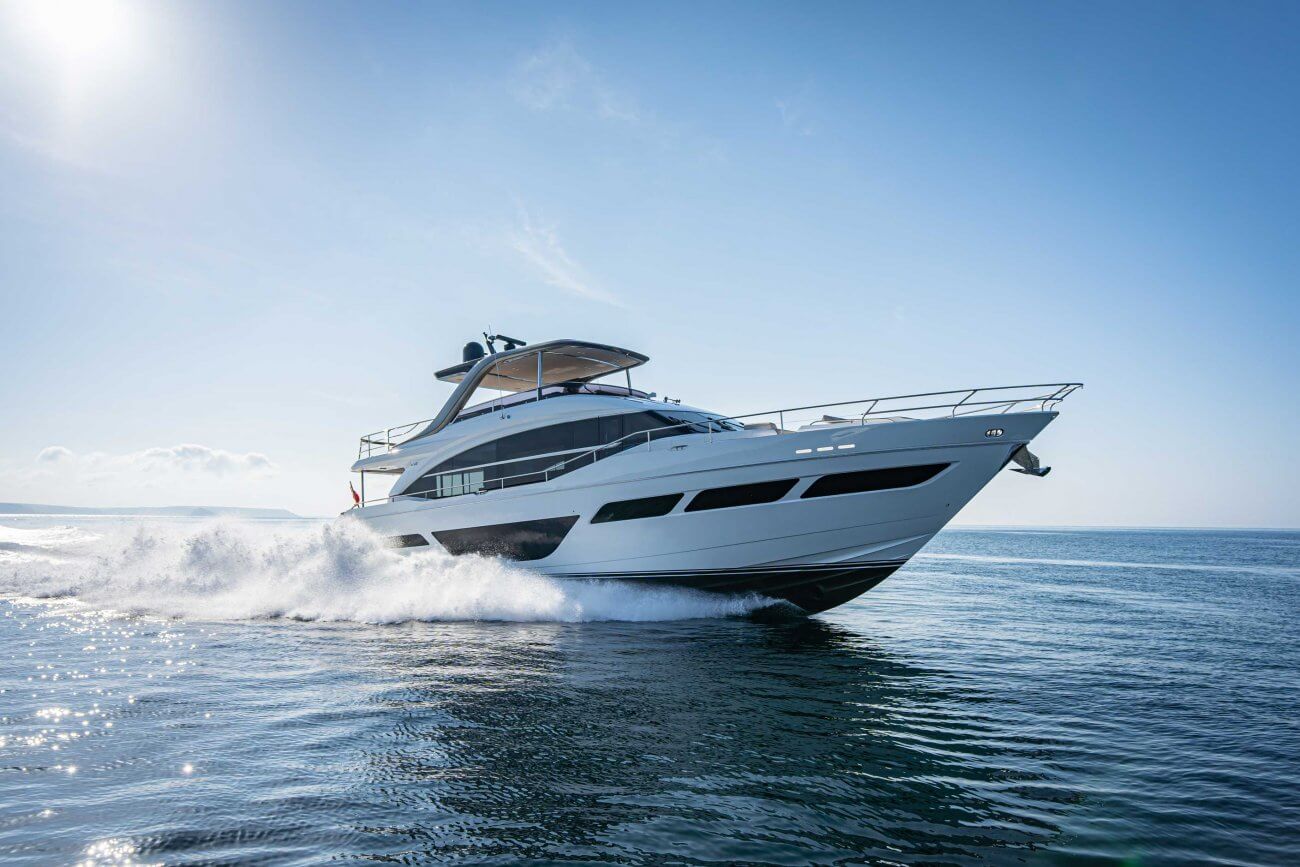

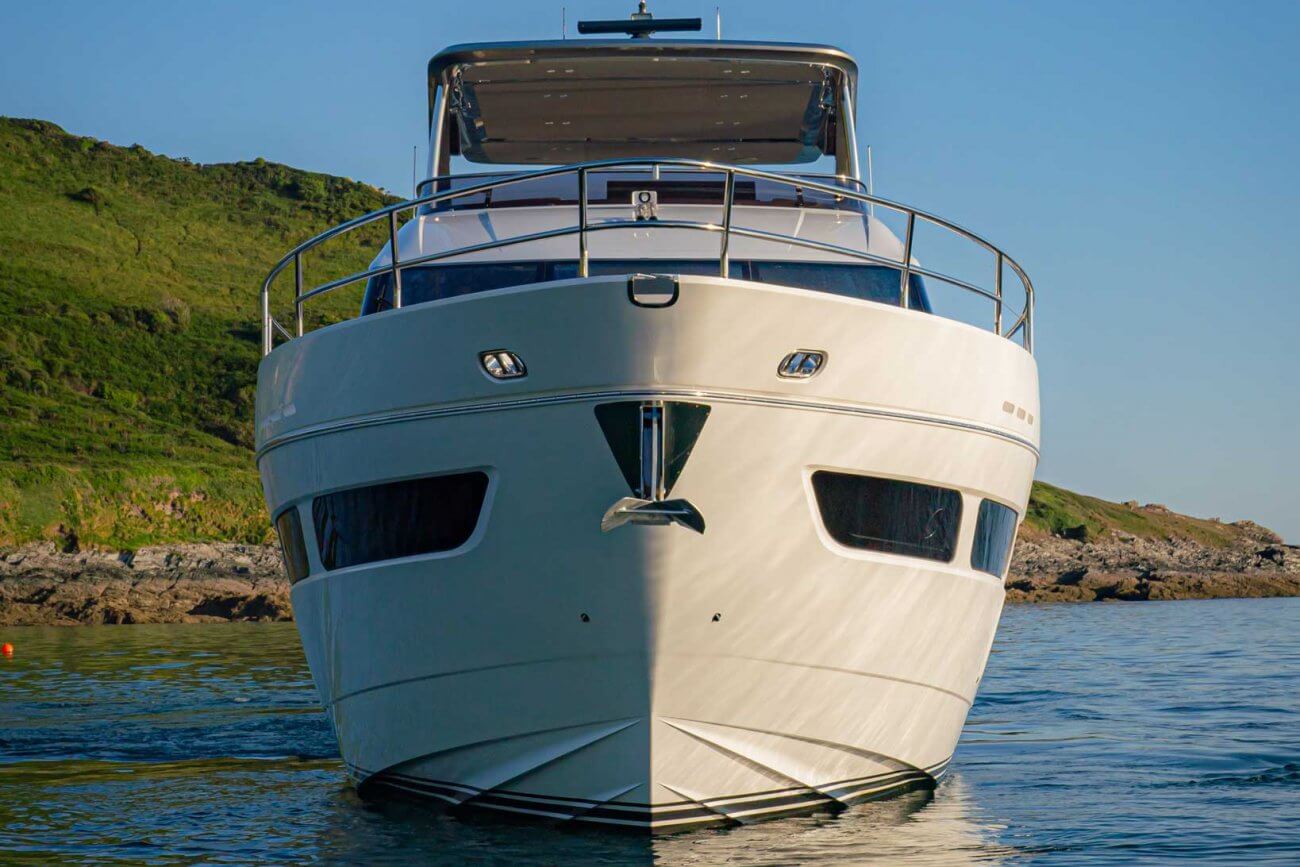

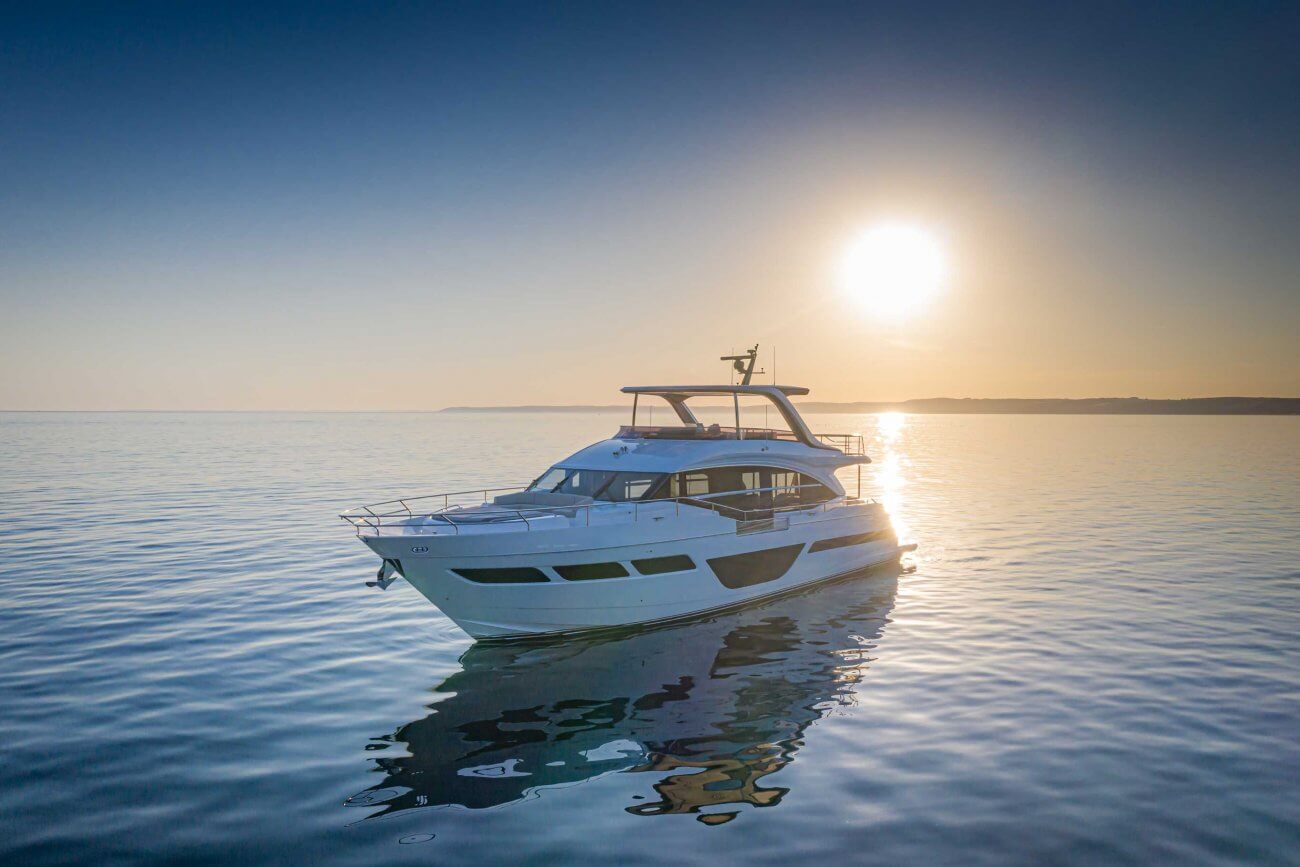

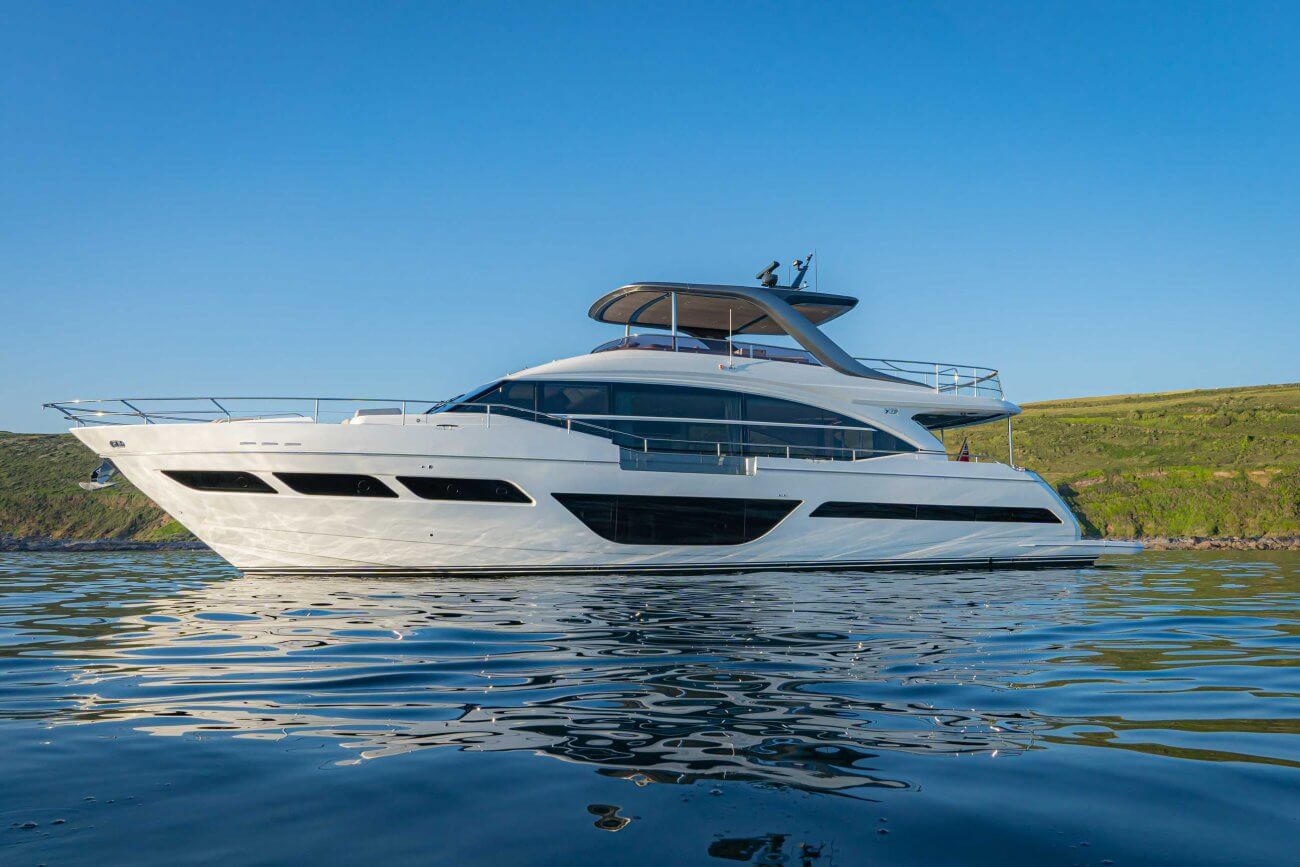

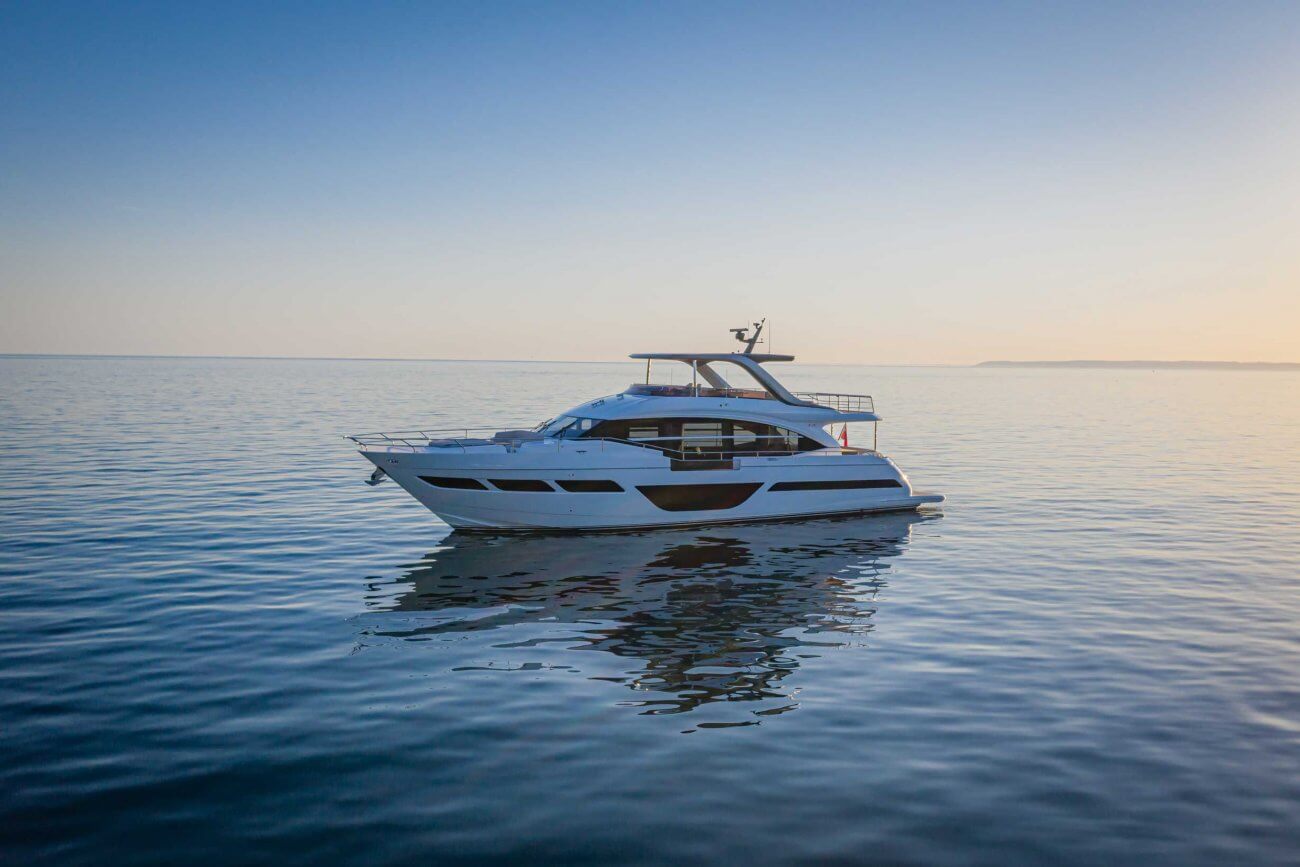

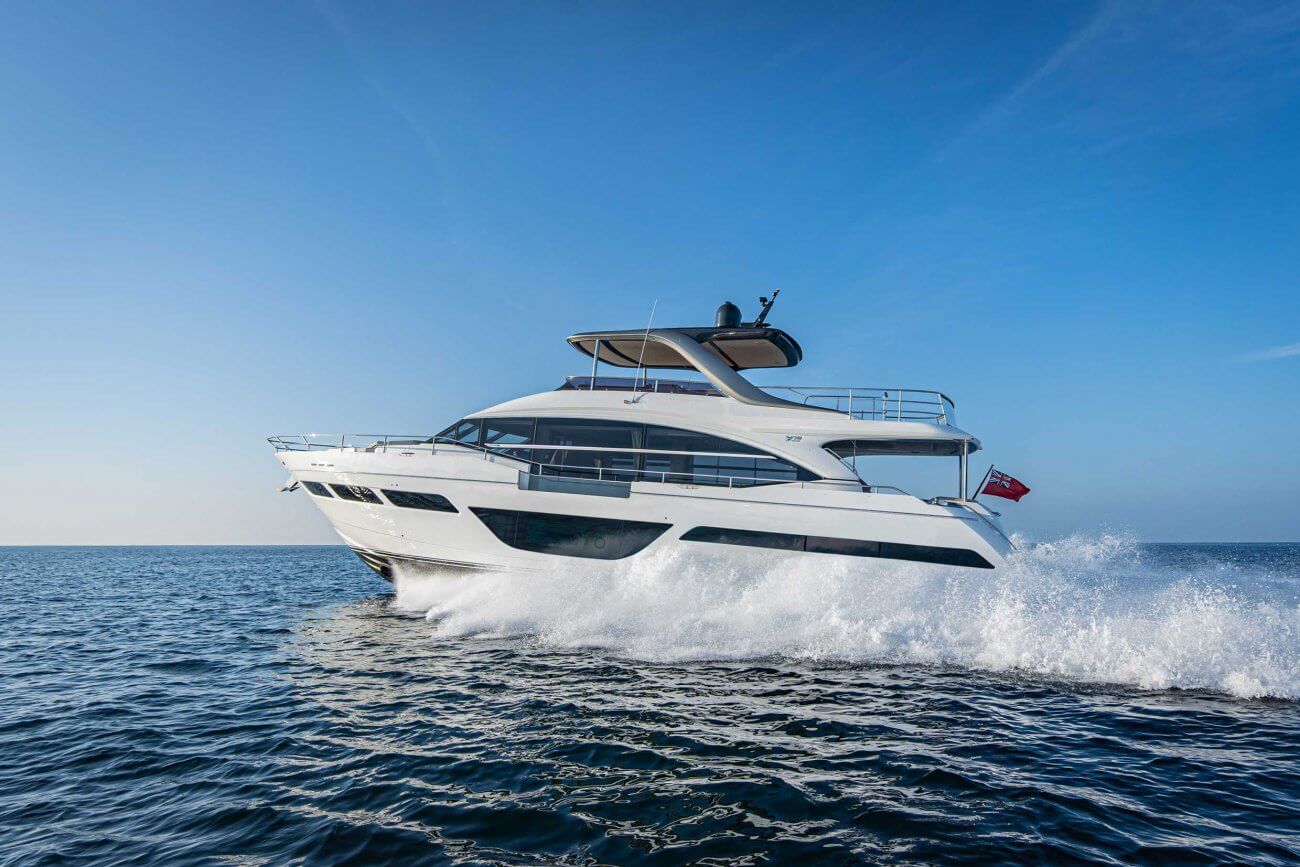

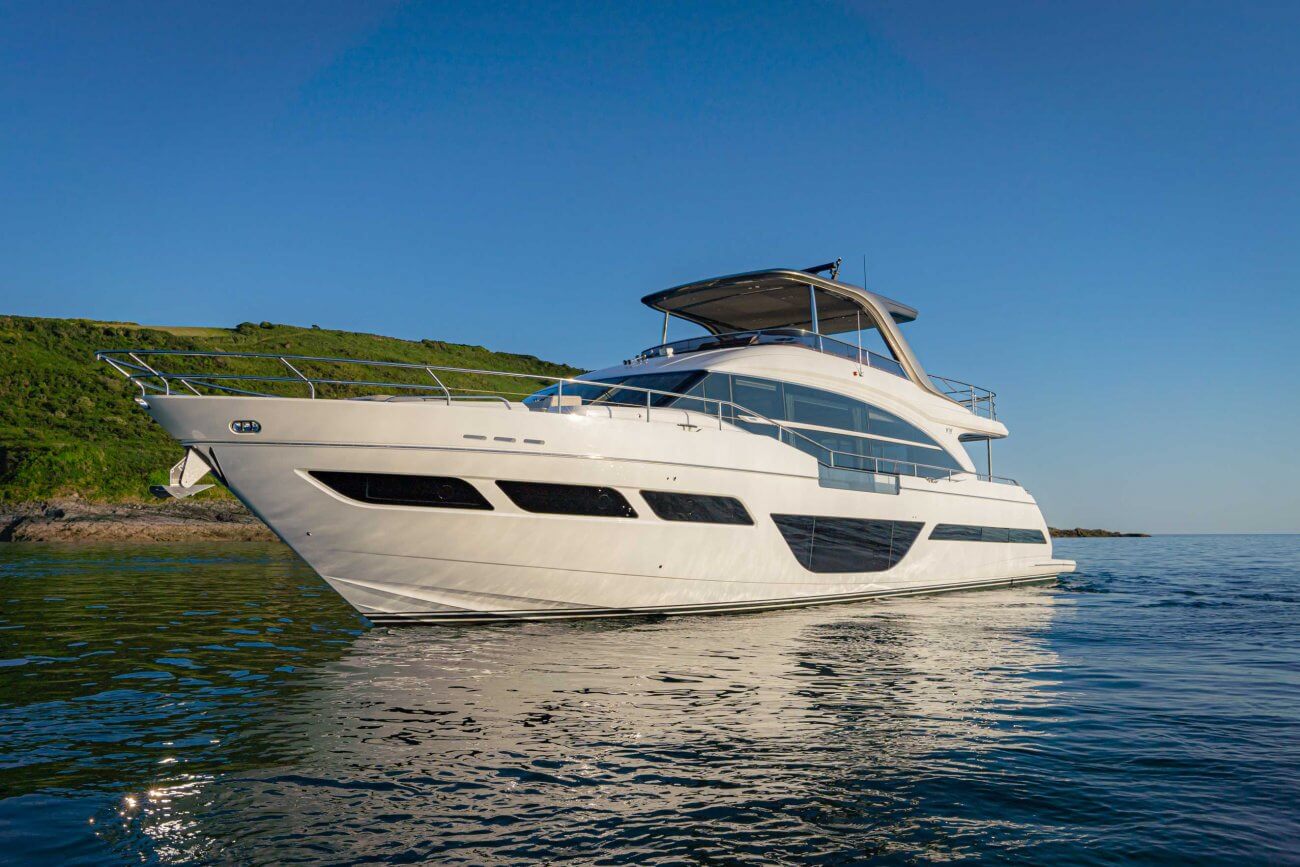

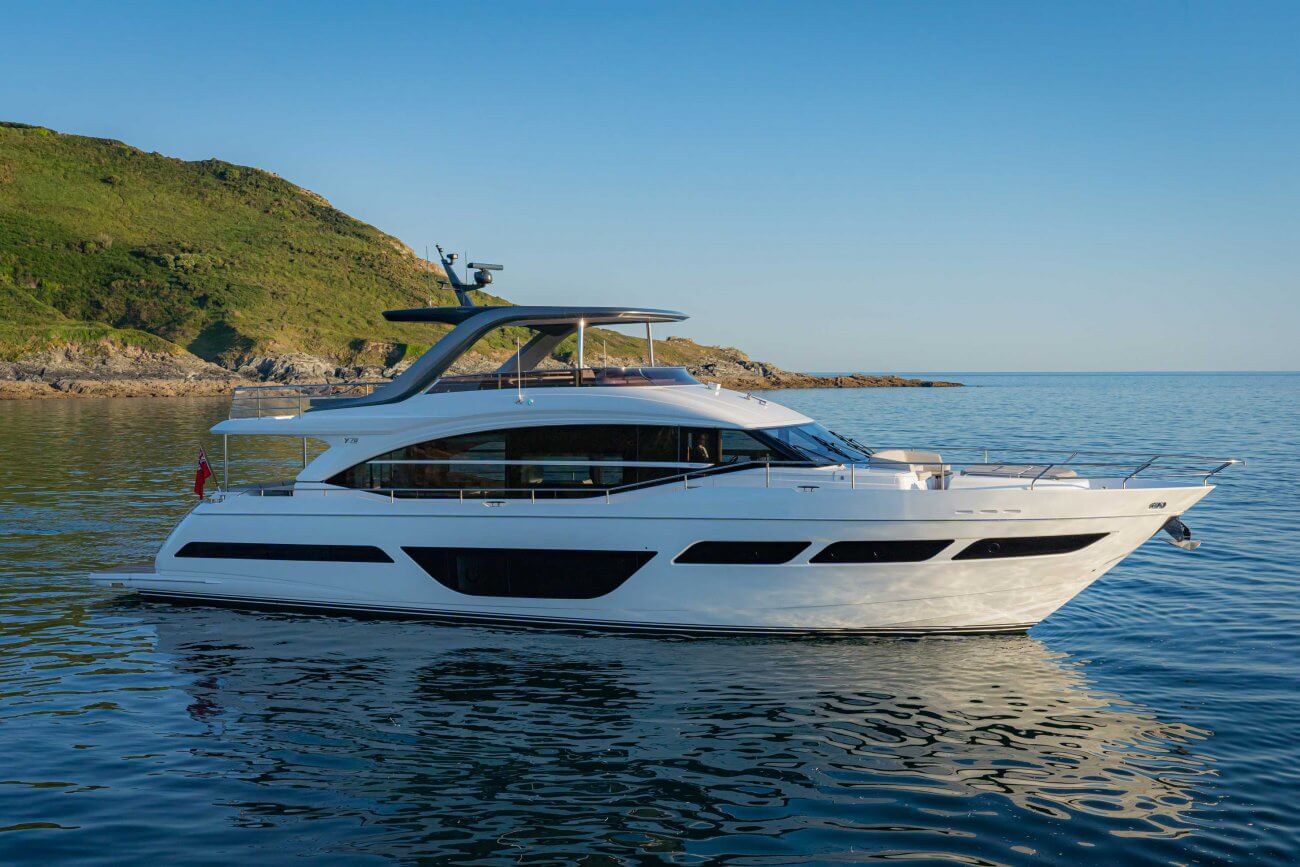

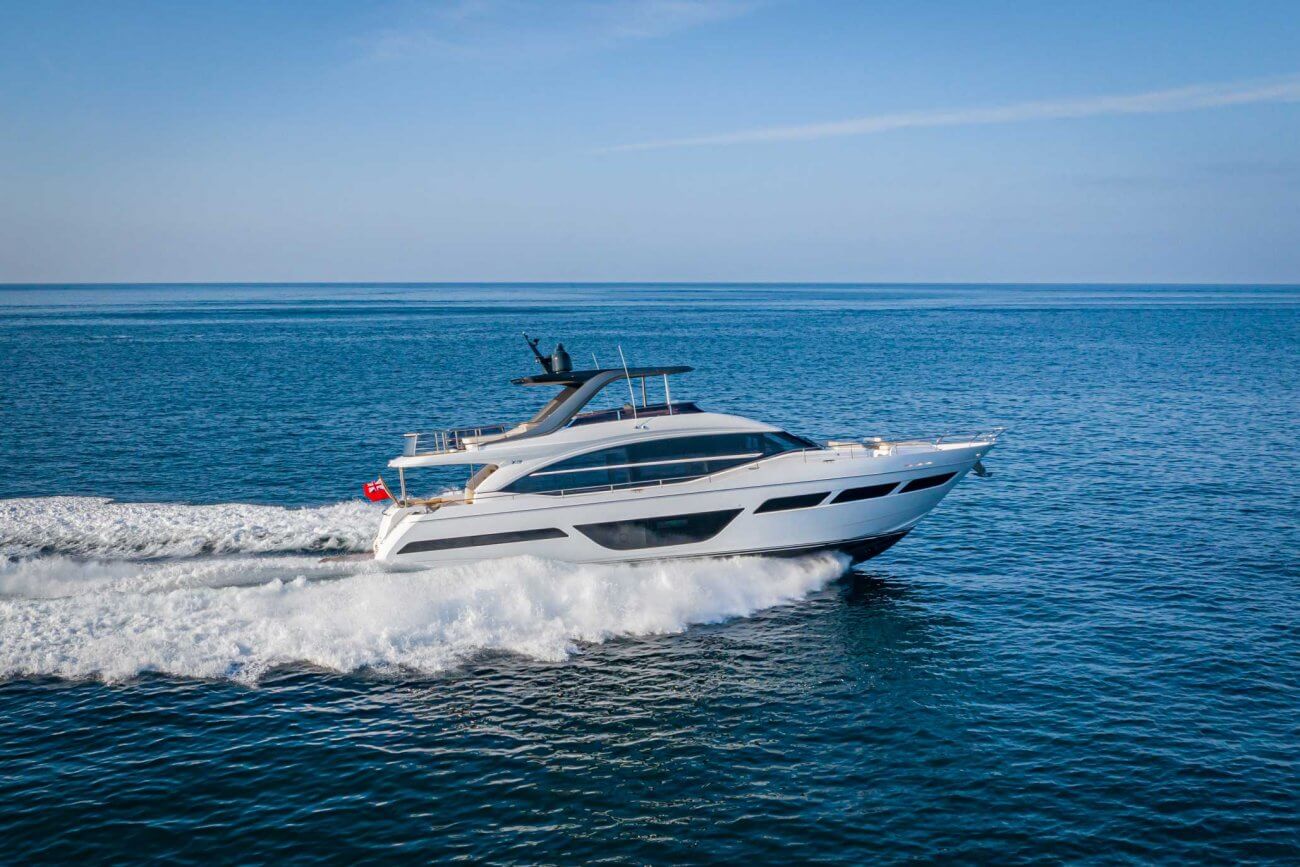

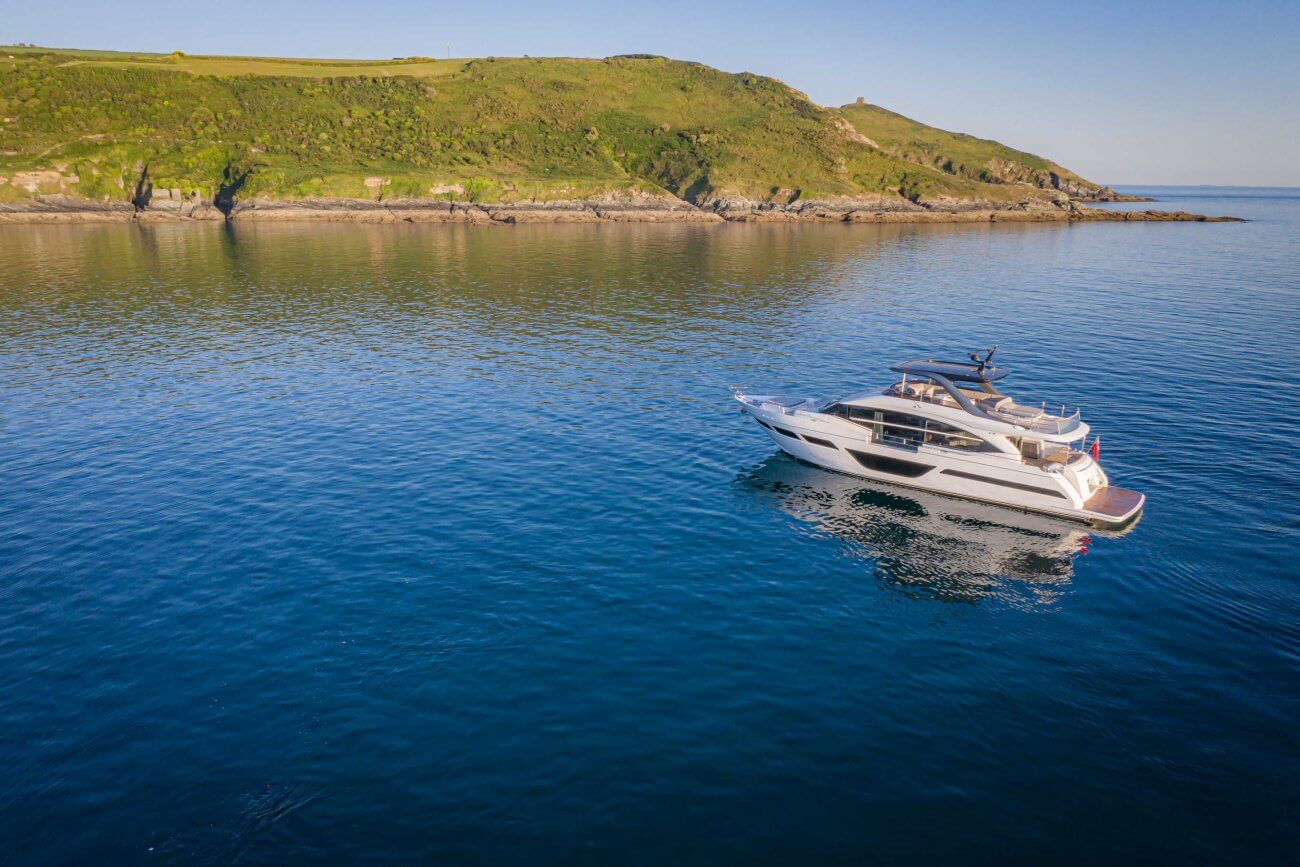

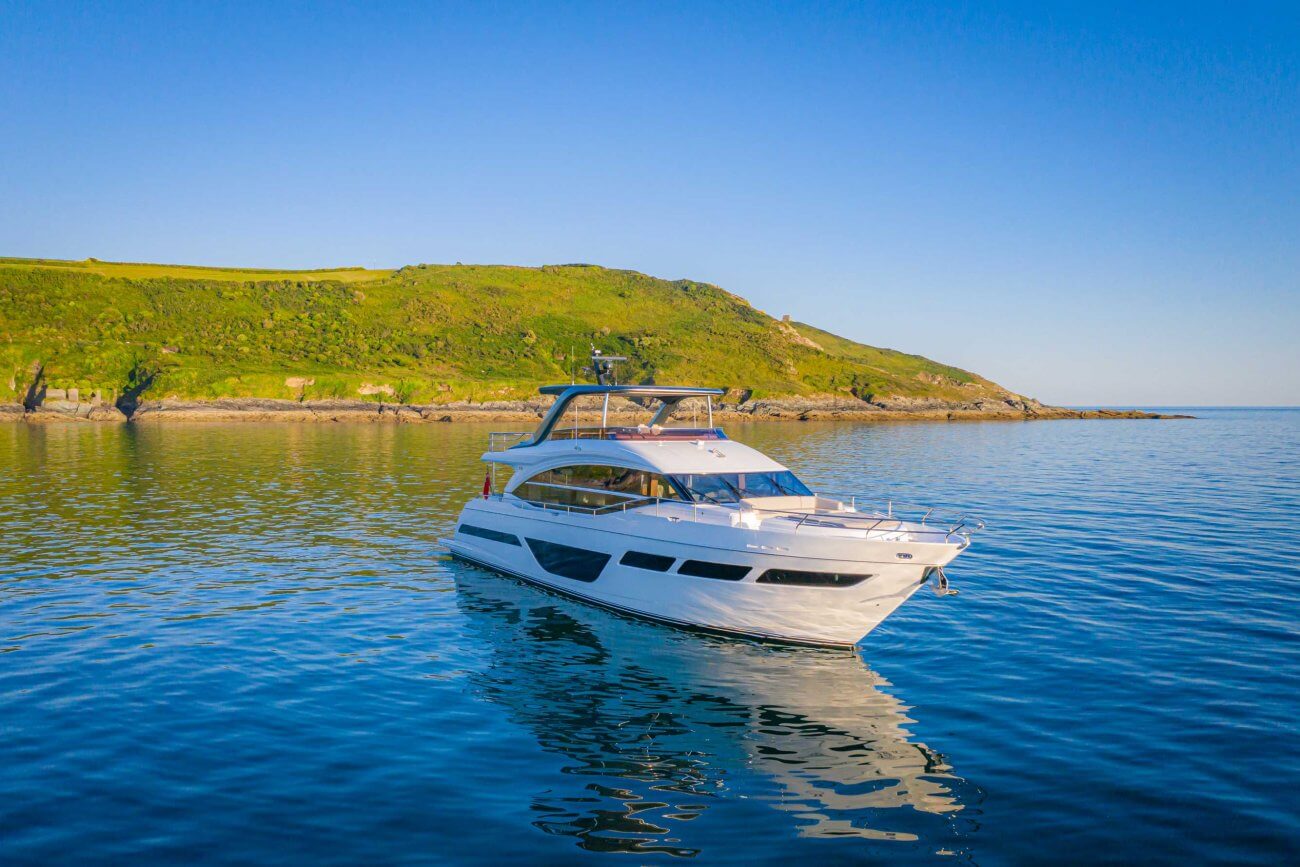

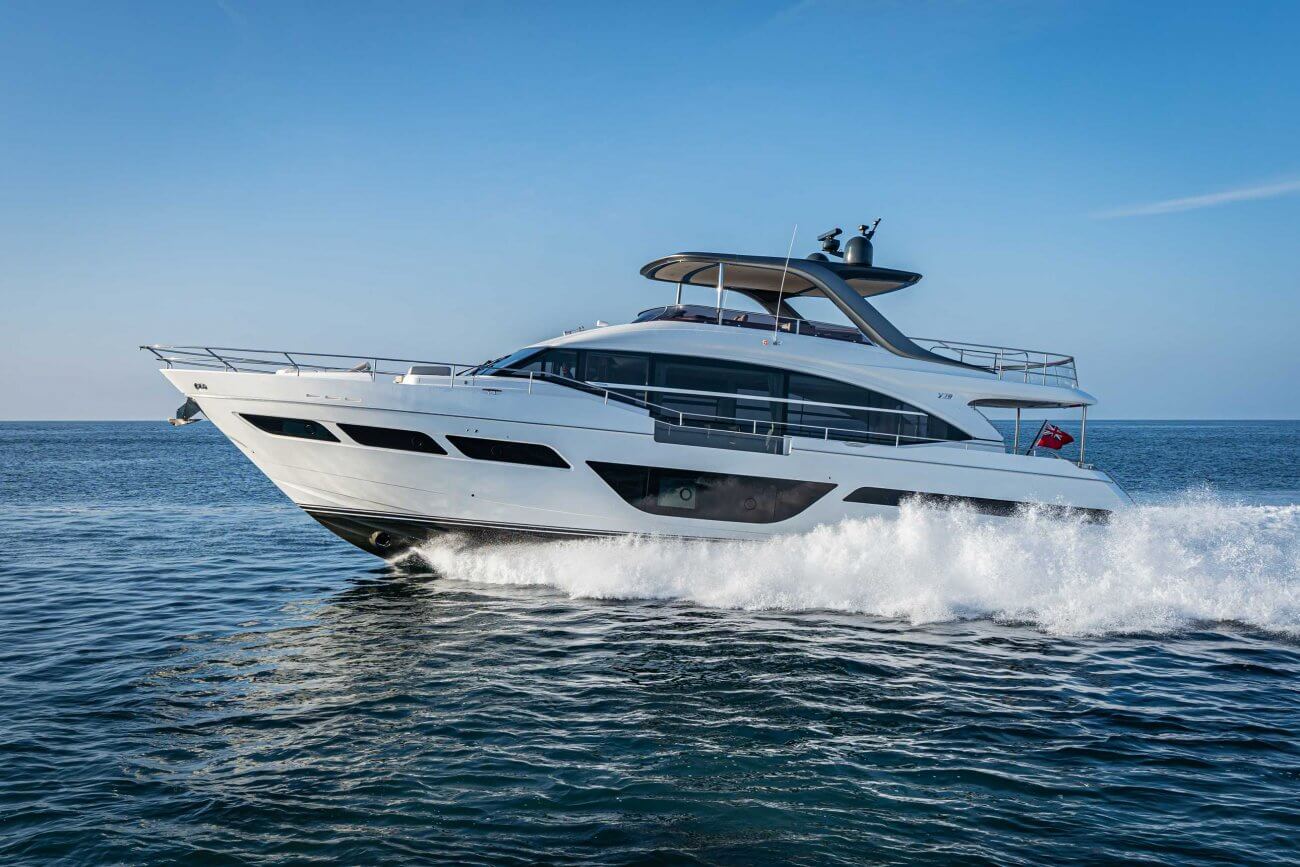

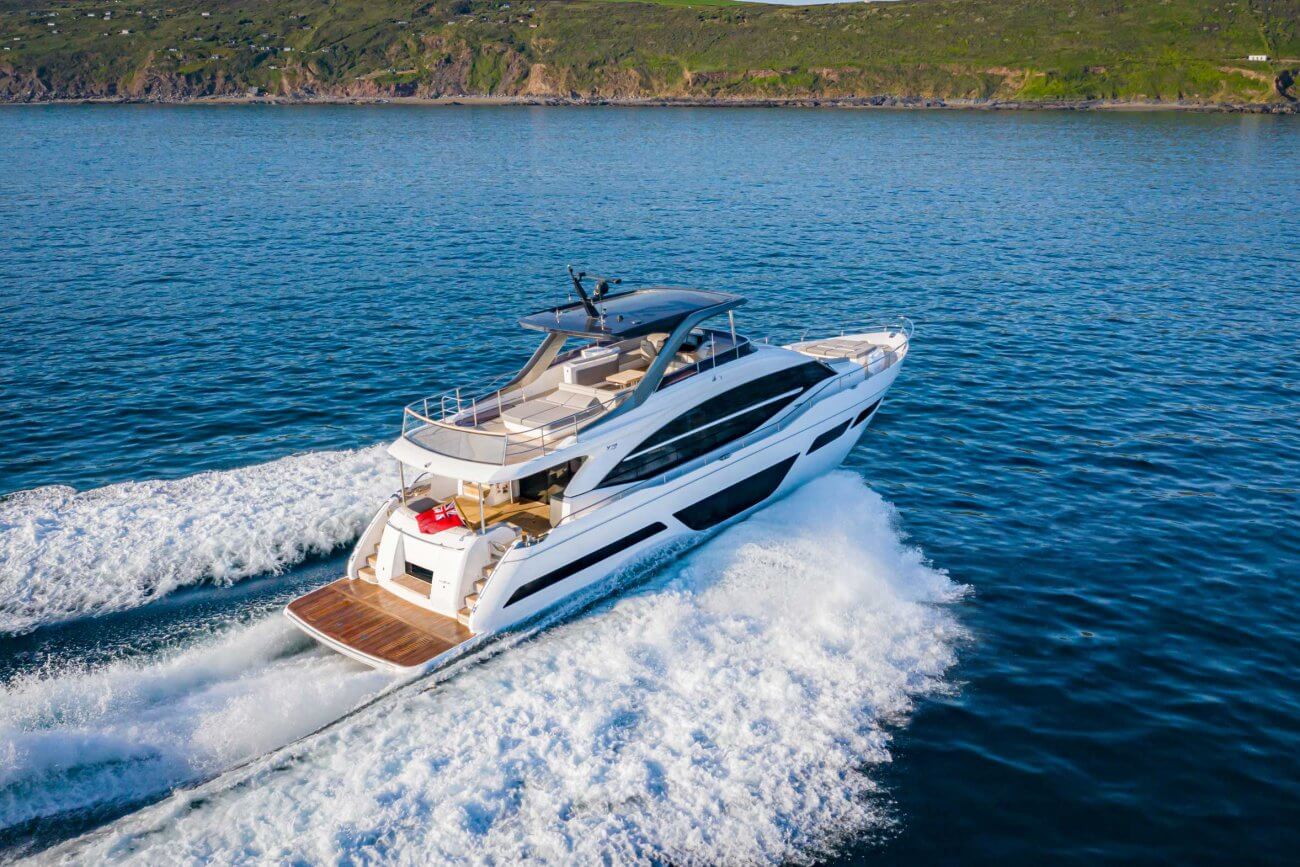

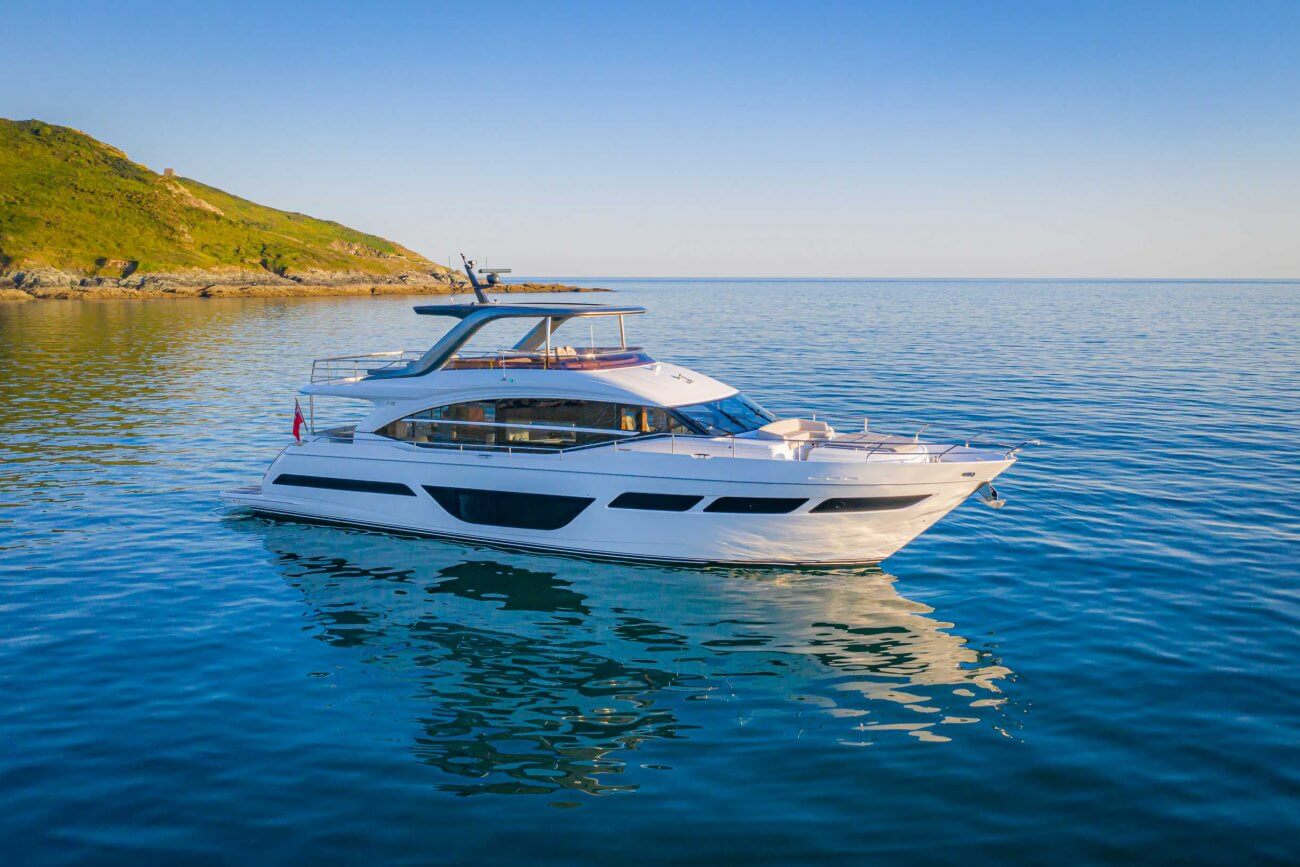

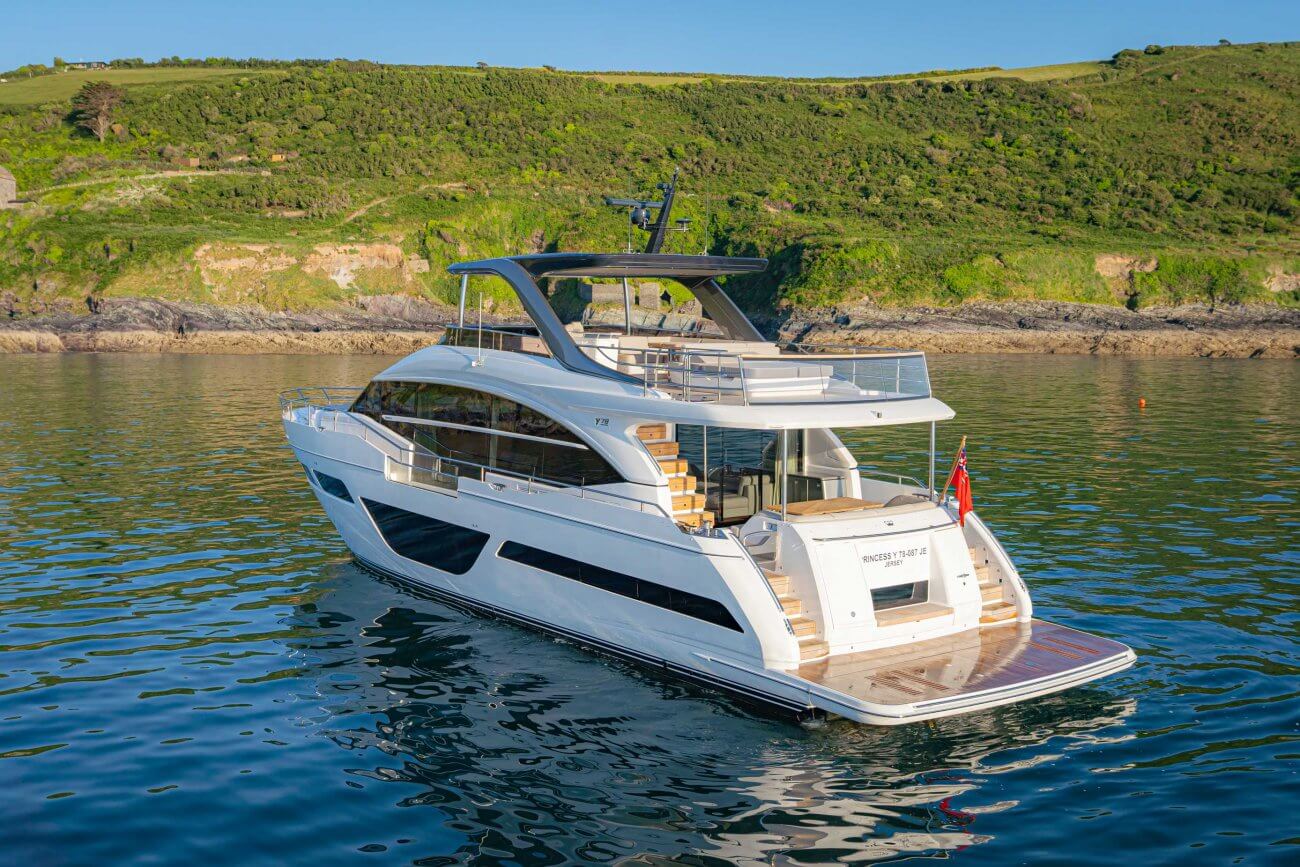

PRINCESS Y78

The new Y78 features the very latest in Princess exterior design and interior materials and finishes. Her flexible deck layout features a walkthrough foredeck with U-shaped seating and sunbathing area, whilst her flybridge aft has space for free standing furniture or can accommodate a crane and a tender. Natural light flows in to her main deck through extended window lines and a unique full-height window on the port side to make the free standing dining area a spectacular place to entertain. Forward on the lower deck, all three guest cabins are en suite whilst a dedicated staircase leads to the owner’s stateroom amidships via a private lobby area.

L.O.A. (incl pulpits) 24.67 m (80′ 9″)
L.O.A. (excl pulpits) 24.25 m (79′ 7″)
Beam 5.76 m (18′ 11″)
Depth 1.72 m (5′ 8″)
Displacement* 54,085 kg
Fuel capacity 6000 L
Water capacity
(incl calorifier)
1350 L
Holdingtank Yes

ACCOMMODATION

GUESTS
8 persons in 4 double cabins ensuit

CREW
3 x crew in 2 cabins aft

ENGINE OPTIONS

2x MAN V12 1800 (2 x 1800 hp)
† Maximum speed 34-36 kn

NOTES
* Displacements are calculated with half full fuel and water but with no optional equipment fitted or other gear or crew aboard.

† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of us or Princess Yachts International plc.

Crafts illustrated on this website may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability.

EQUIPMENT

DECK FITTINGS
• Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and stairs to side decks
• Self-stowing 50kg/110lbs Delta anchor with 100m chain
• Reversible electric anchor winch with foredeck, helm position and flybridge controls
• Stainless steel cleats, fairleads and handrails
• Twin electric-powered sternline mooring winches
• Freshwater deck/anchor wash
• Foredeck seating and sunbathing area
• Storage lockers for rope, fenders and foredeck sunbed cushions
• Telephone connection point
• Stern docking lights
• LED deck level lighting
• Transom doors giving direct access to crew cabin and utility area

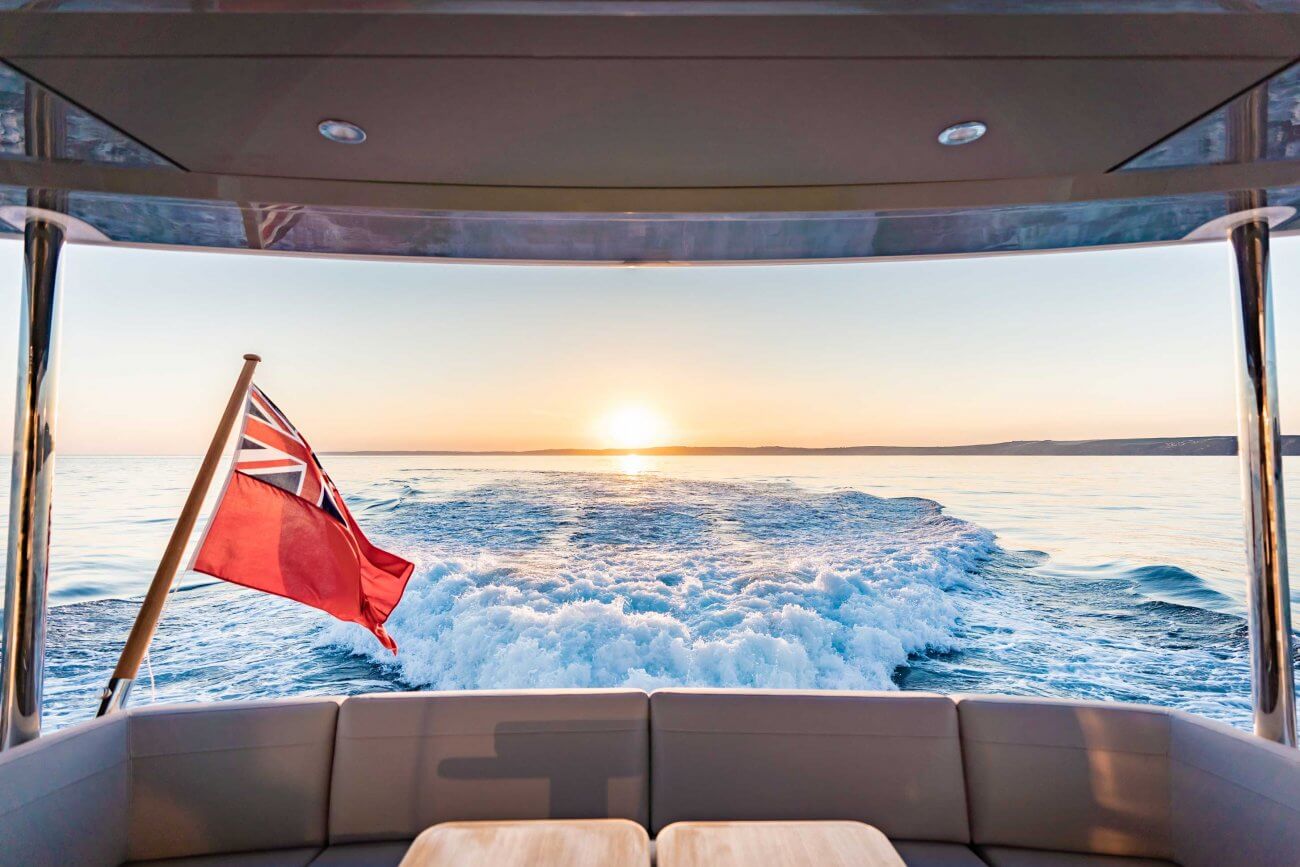

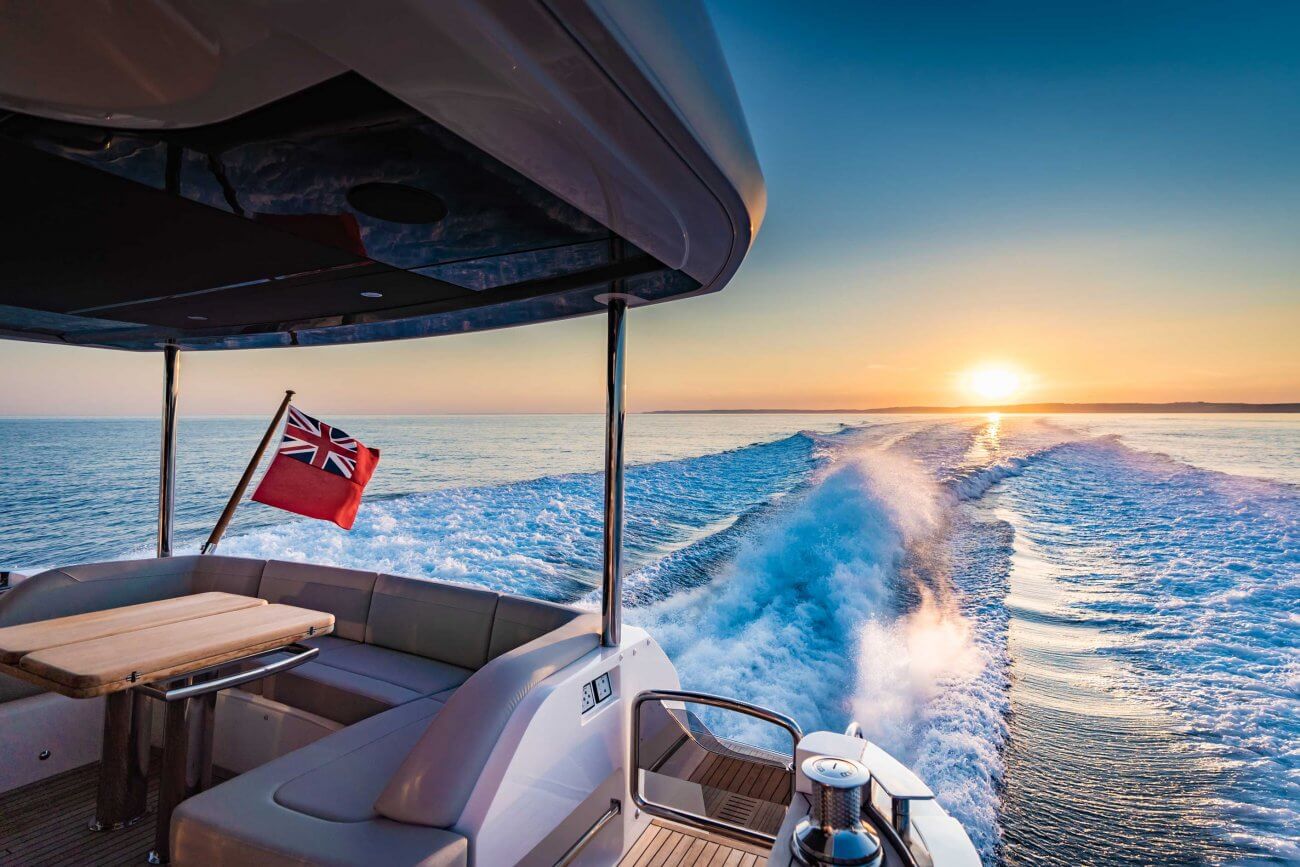

COCKPIT
• U-shaped seating and teak folding table
• Twin transom gates leading to bathing platform with electro-hydraulic raise/lower mechanism, foldaway swimming ladder, hot and cold shower
• Transom seat in teak with storage locker
• Lockable gas strut assisted hatch to engine room
• Wash handbasin
• Liferaft stowage locker
• Remote control 4m telescopic passerelle with folding handrail
• Cockpit cover

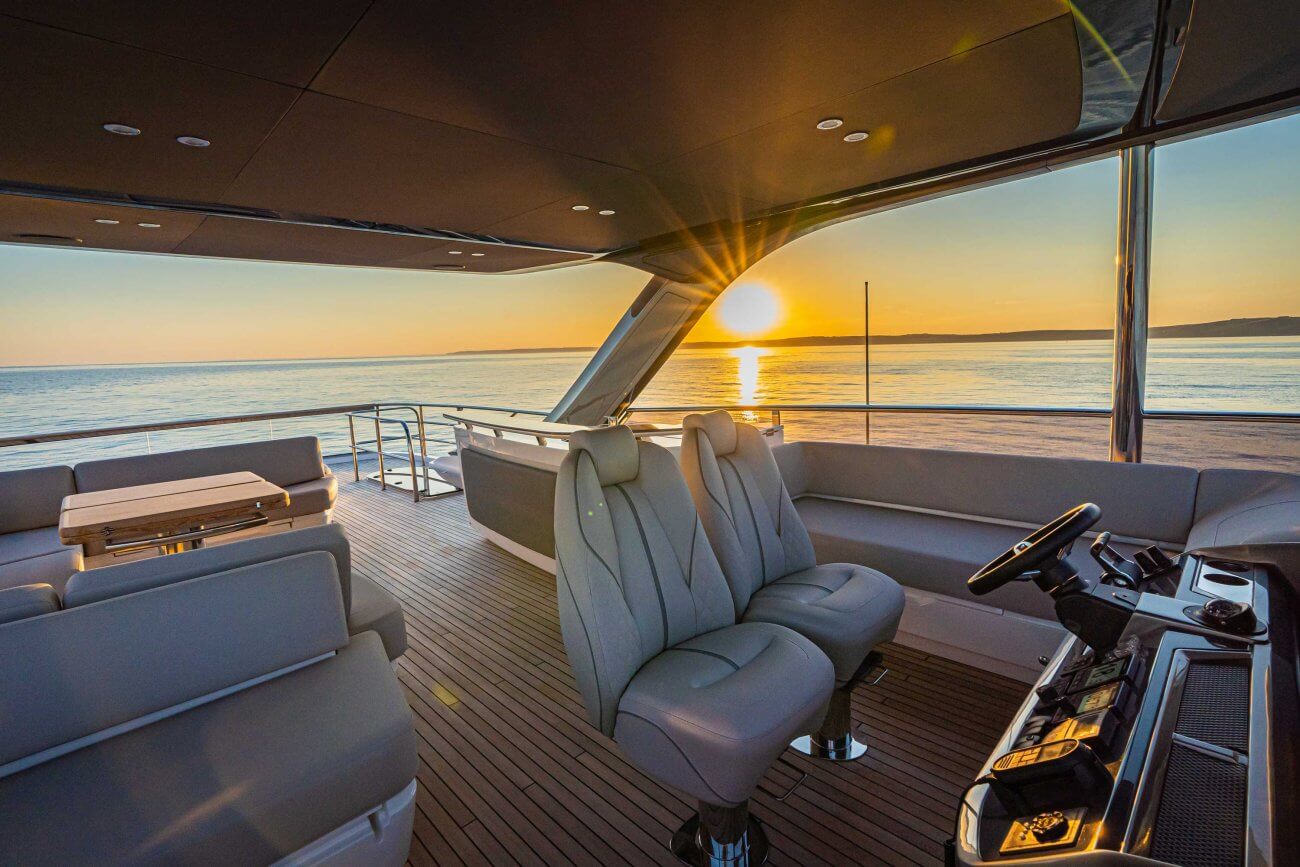

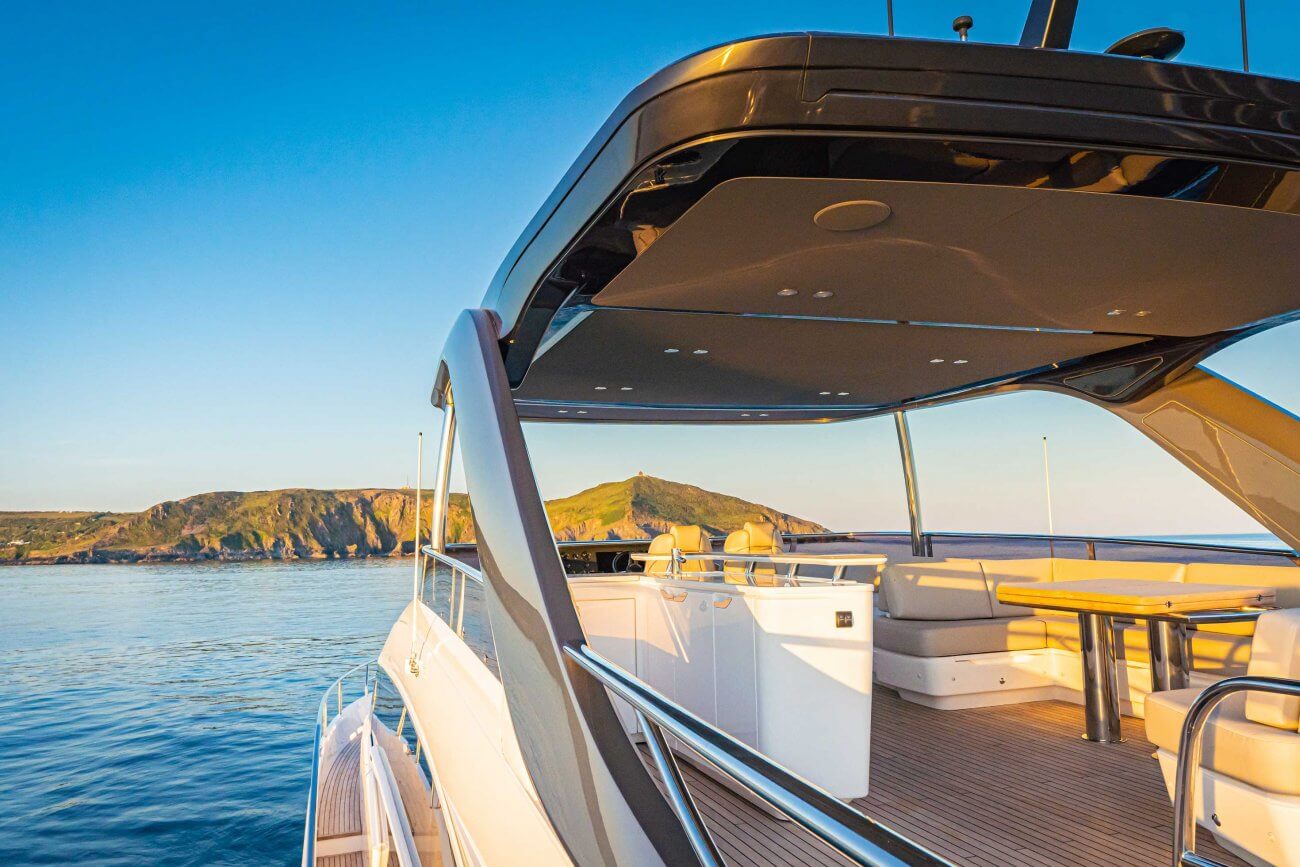

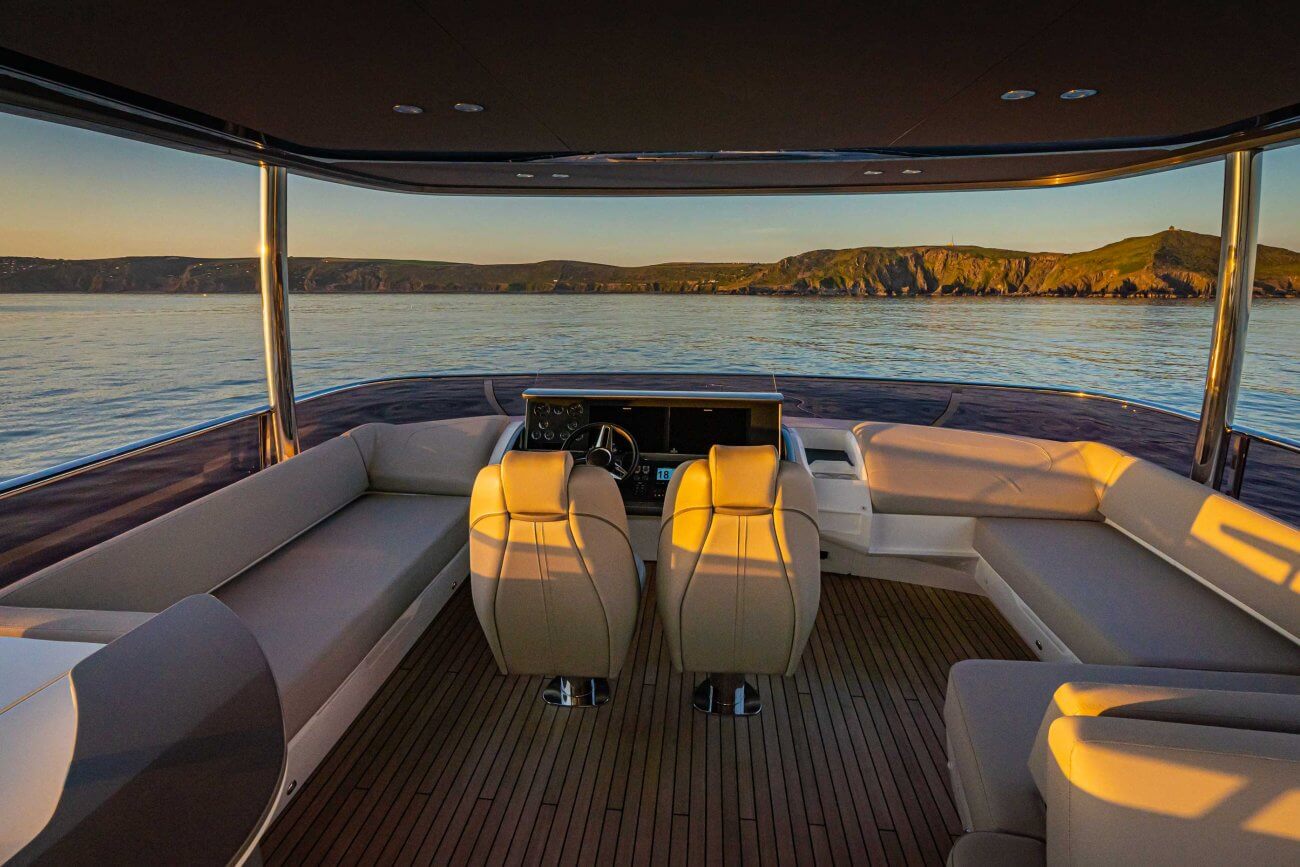

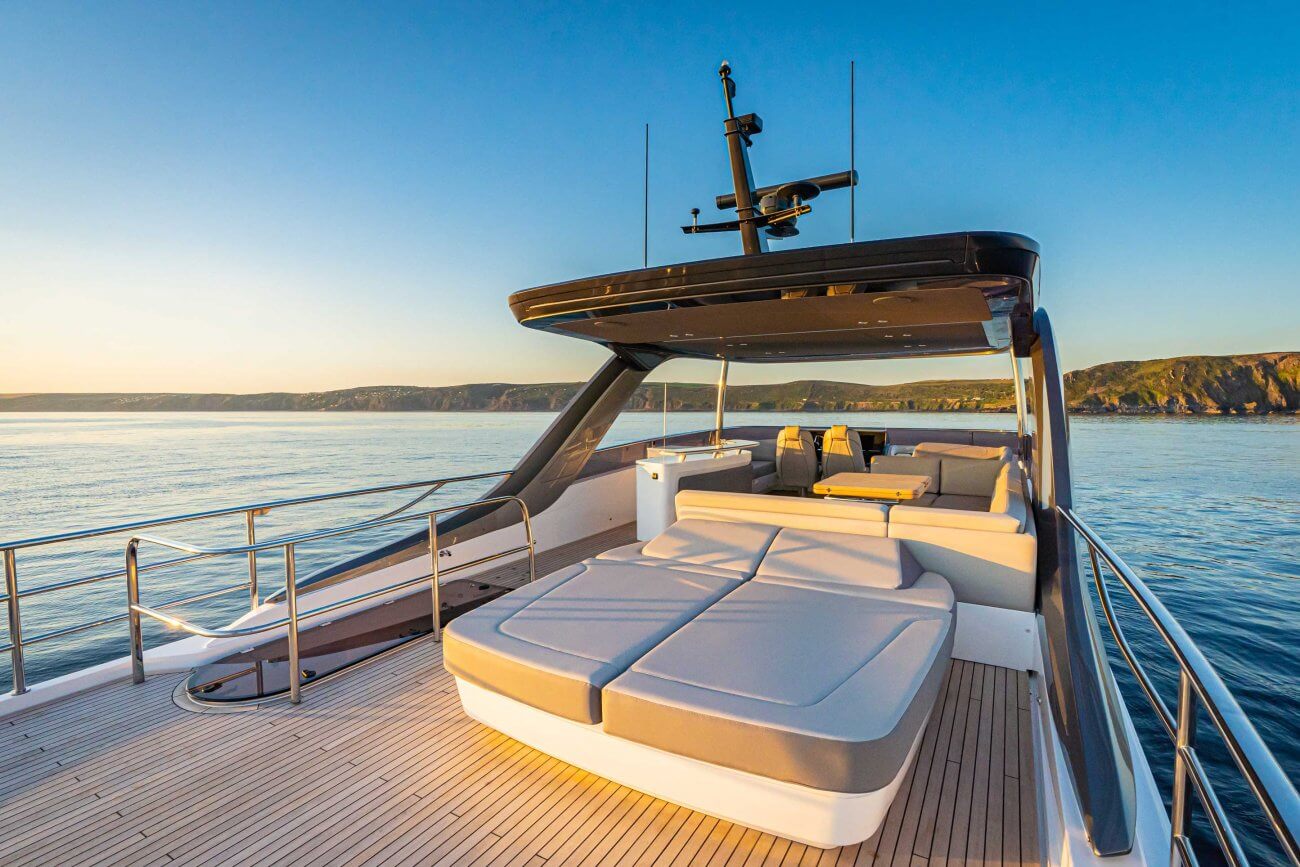

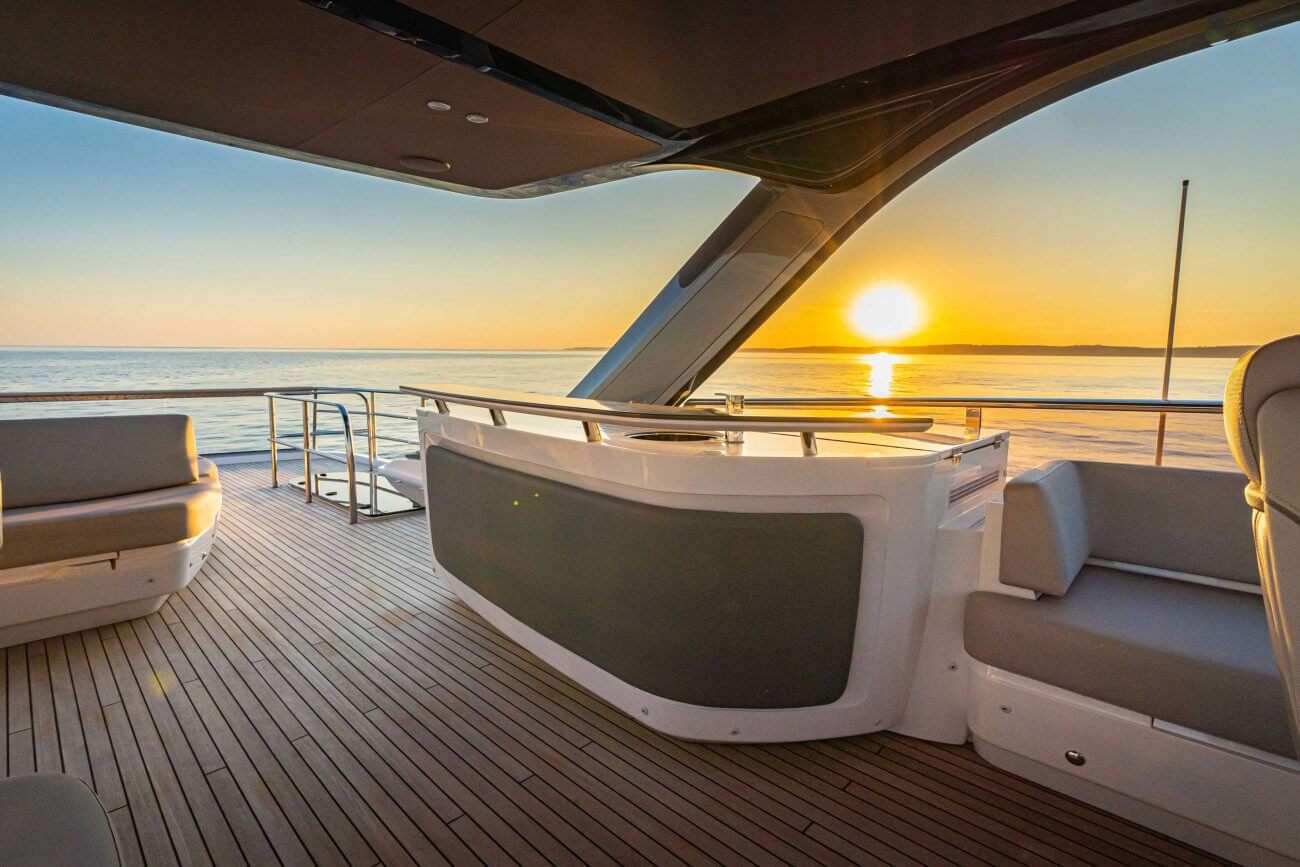

FLYBRIDGE
• Helm position with powered raise/lower console, repeat navigation equipment including radar/ chartplotter and engine instrumentation
• U-shaped seating area with folding teak table
• Twin forward J-shaped seating
• Sunpad aft with storage below (option for built-in spa bath)
• Radio/MP3 with waterproof speakers
• Wetbar including sink with electric barbecue and drawer refrigerator
• Optional electric crane (safe working load 450kg)

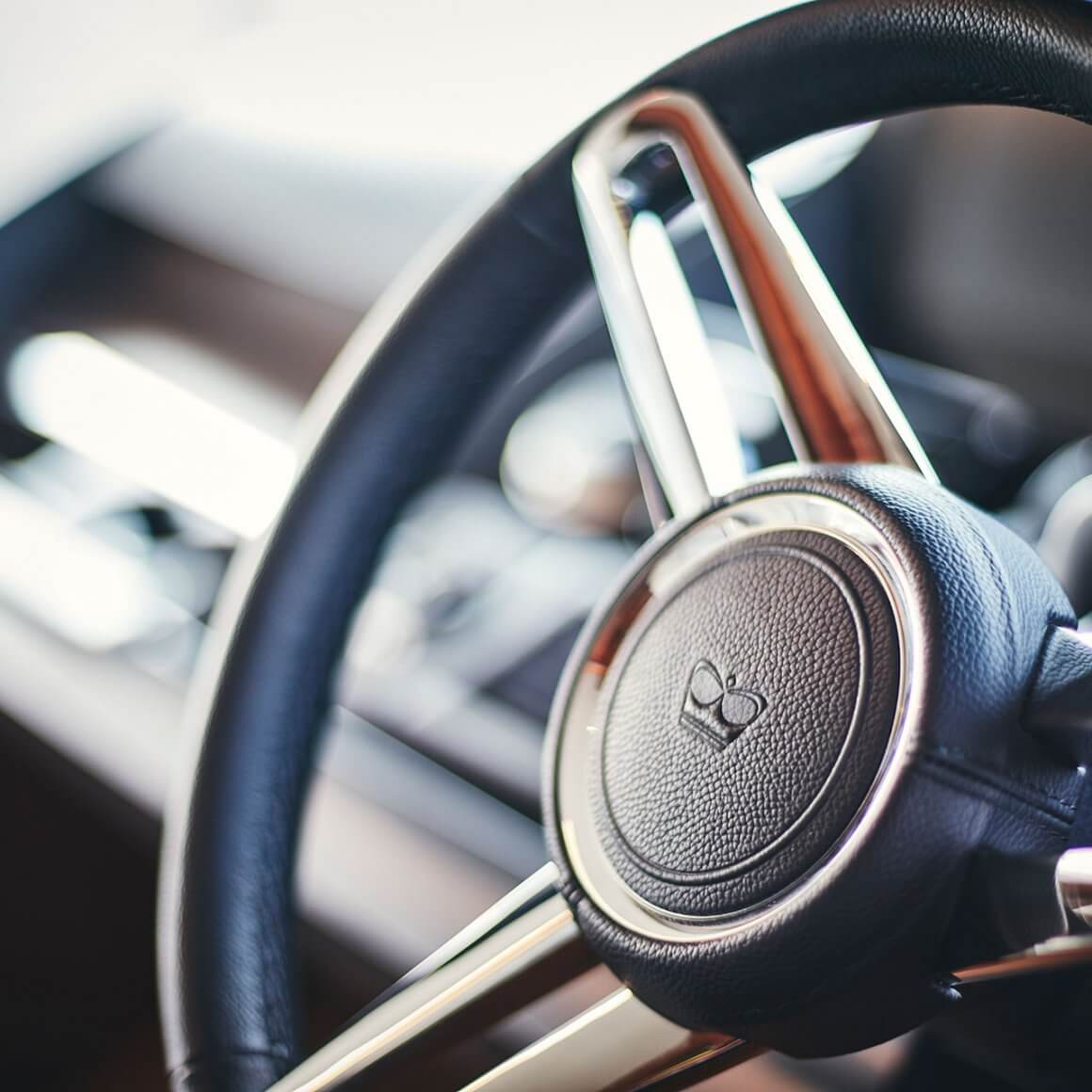

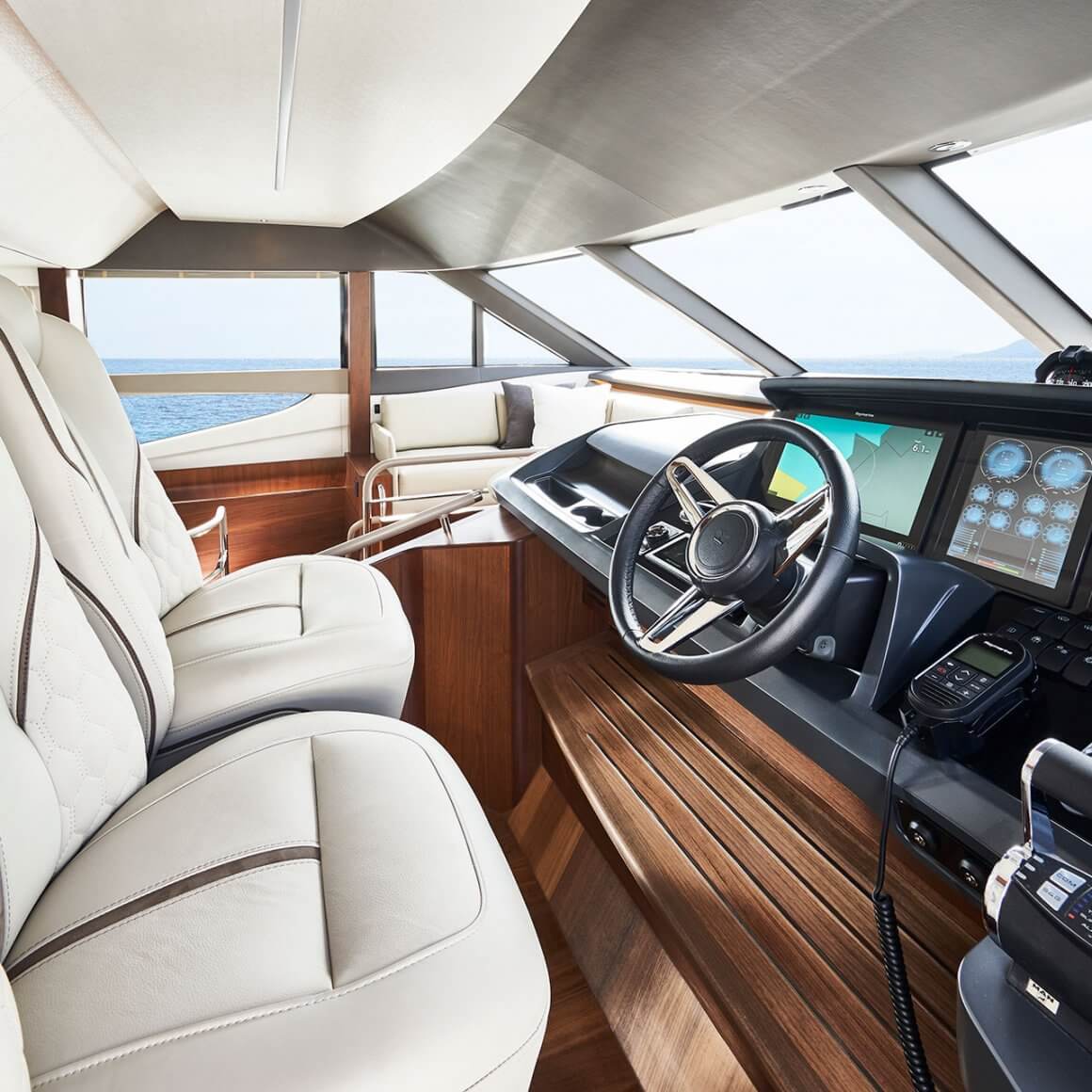

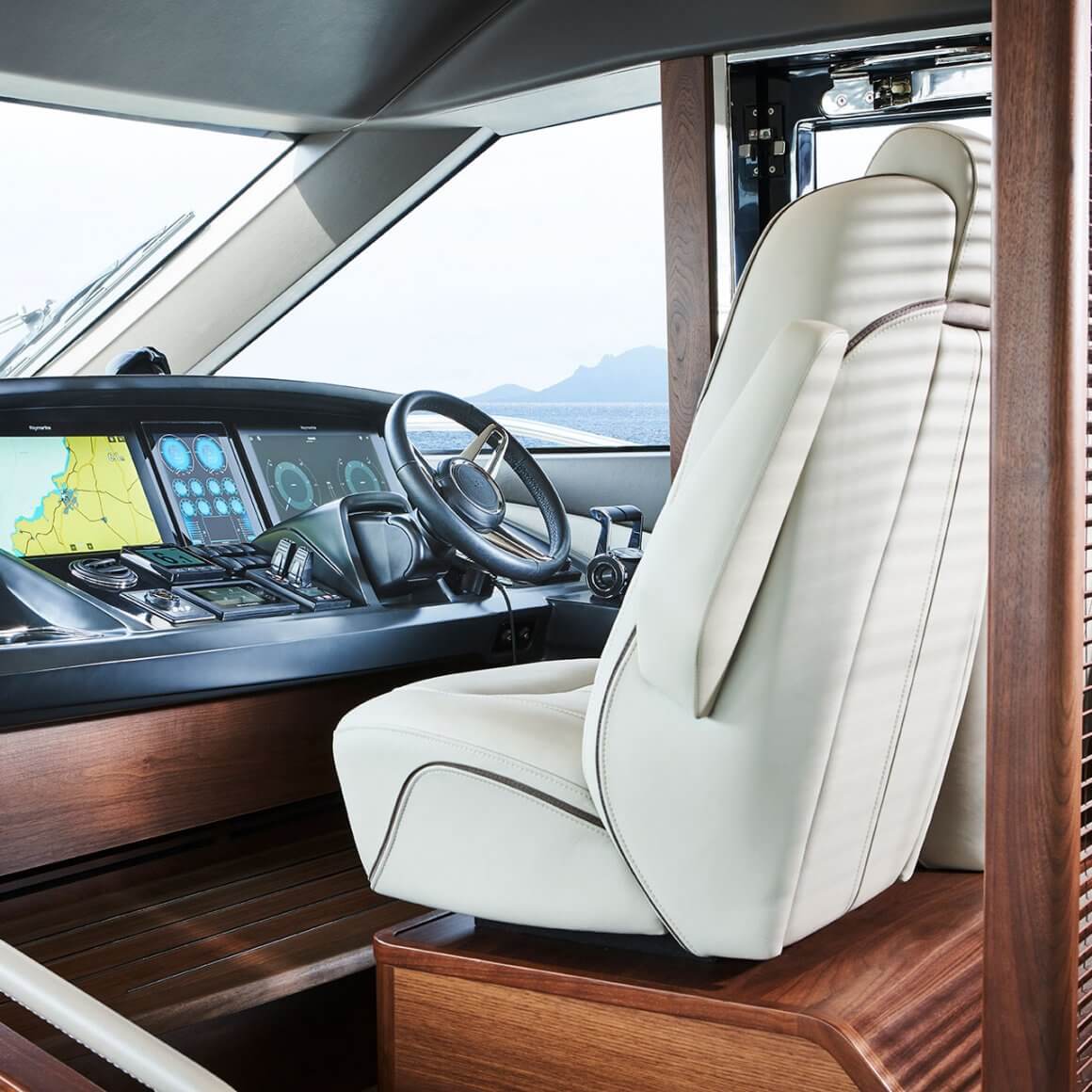

LOWER HELM POSITION
• Twin helm seats with electric fore and aft adjustment for helmsman

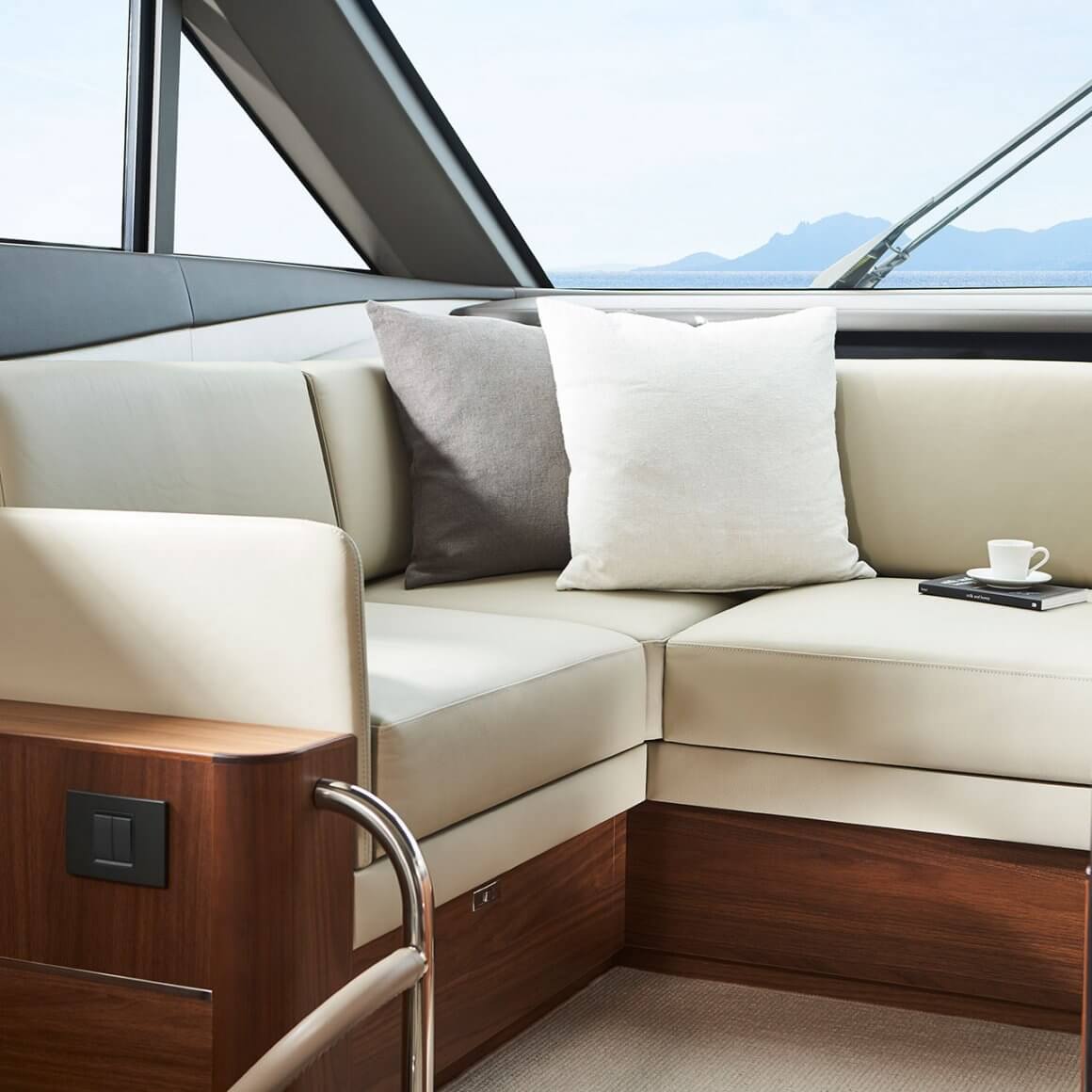

• L-shaped seat with electric drop window opposite helm area
• Helmsman’s door to side deck
• Full engine instrumentation including fuel gauges, exhaust temperature, fuel contamination alarms, rudder position indicator
• Navigation system including colour radar, GPS and chartplotter (2 displays), VHF/RT, speed and distance log, echo sounder with alarm, autopilot and high speed magnetic compass
• Controls for bow thruster, windscreen wipers, bilge pump and trim tabs (with indicator)
• Intercom to flybridge
• Automatic foghorn with loudhailer
• Chart table with light and chart stowage
• 24v and 240v control panel
• Red night lighting
• Toughened glass screen (clear for night vision)

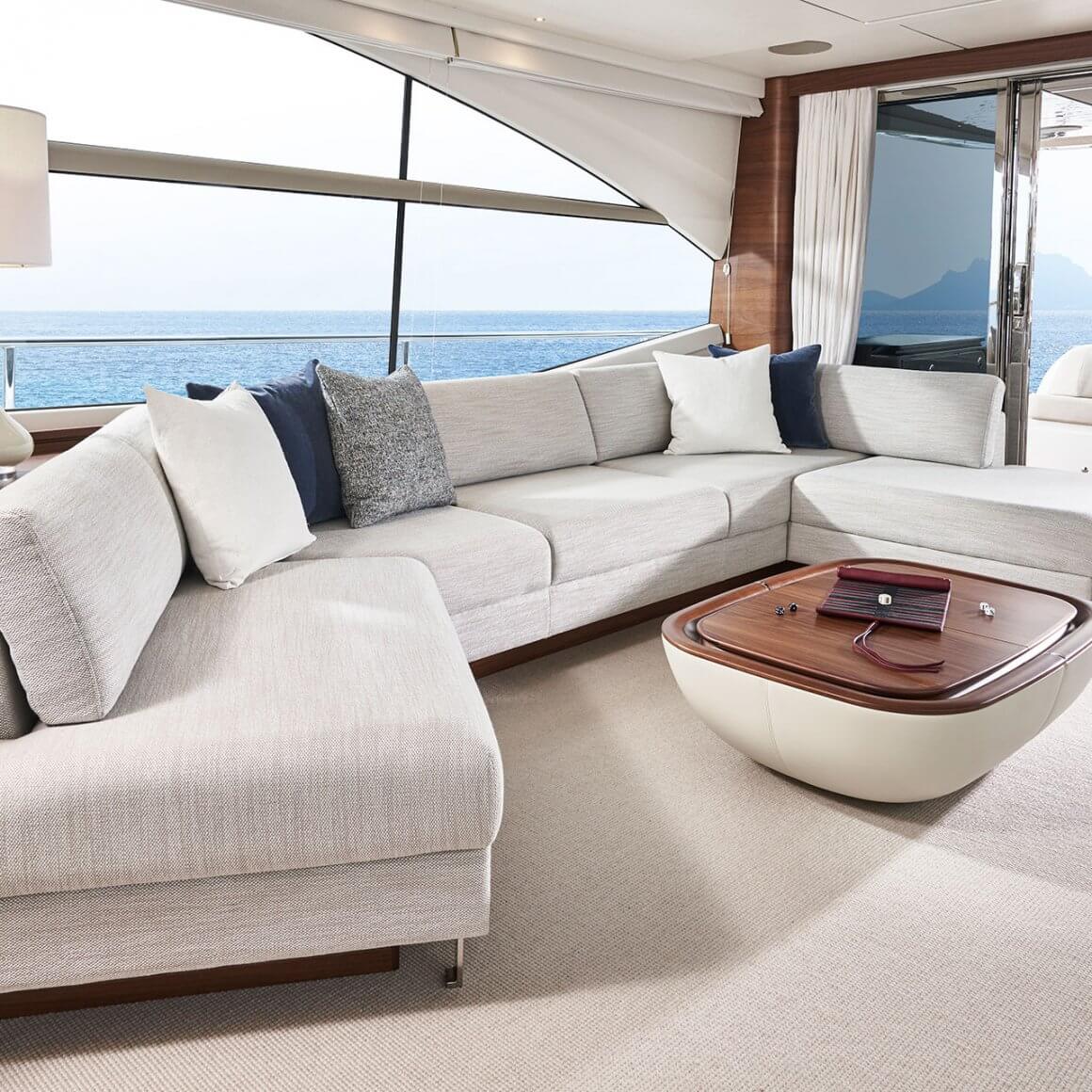

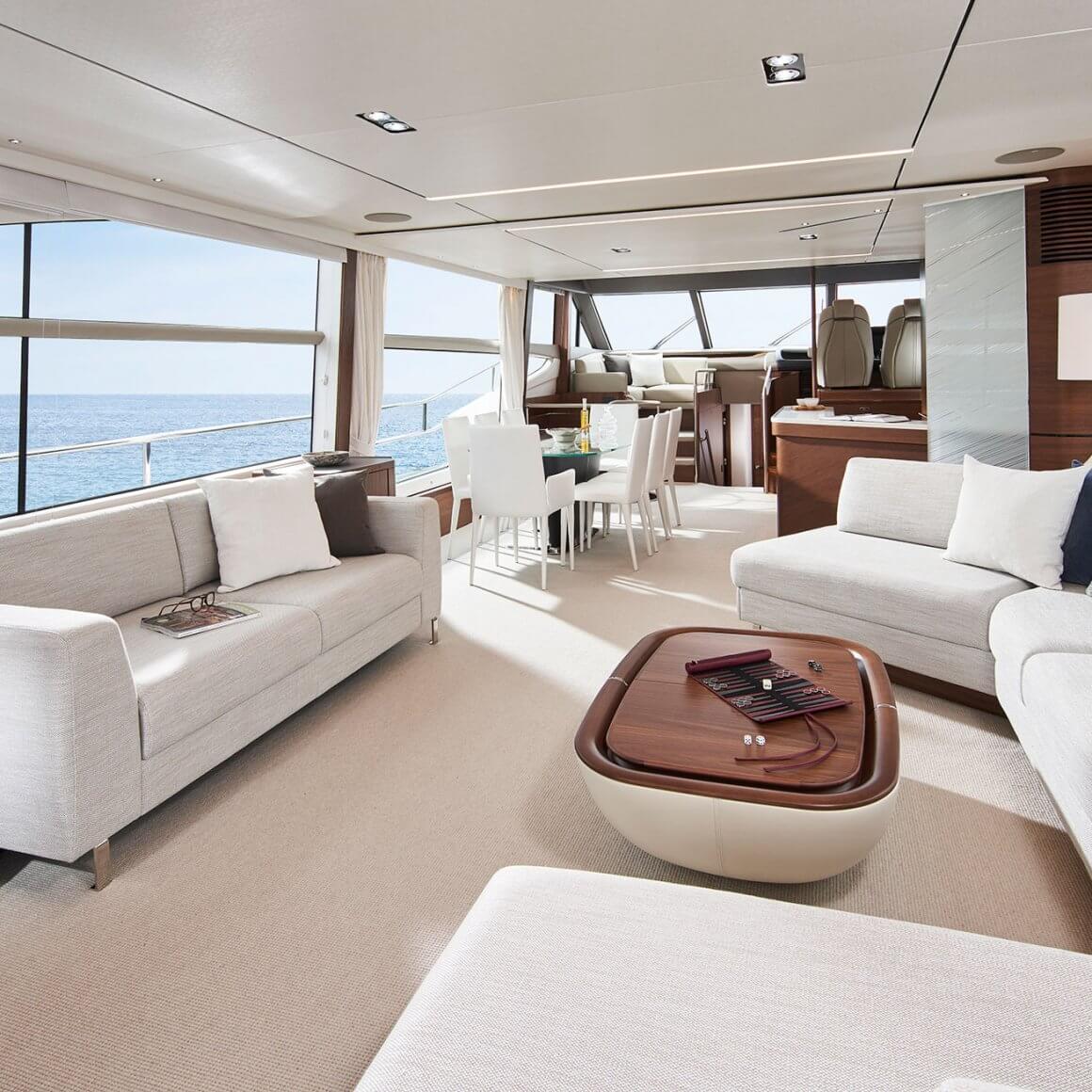

DECK SALOON
• U-shaped sofa and coffee table
• Two-seater sofa
• Entertainment centre incorporating 50” LED TV on electric raise/lower mechanism and DVD, radio/MP3 system with surround sound system
• Sideboard unit with bottle and glass storage and refrigerator
• Dining area (for 8 people) with full-height panoramic window

[/ut_one_third]

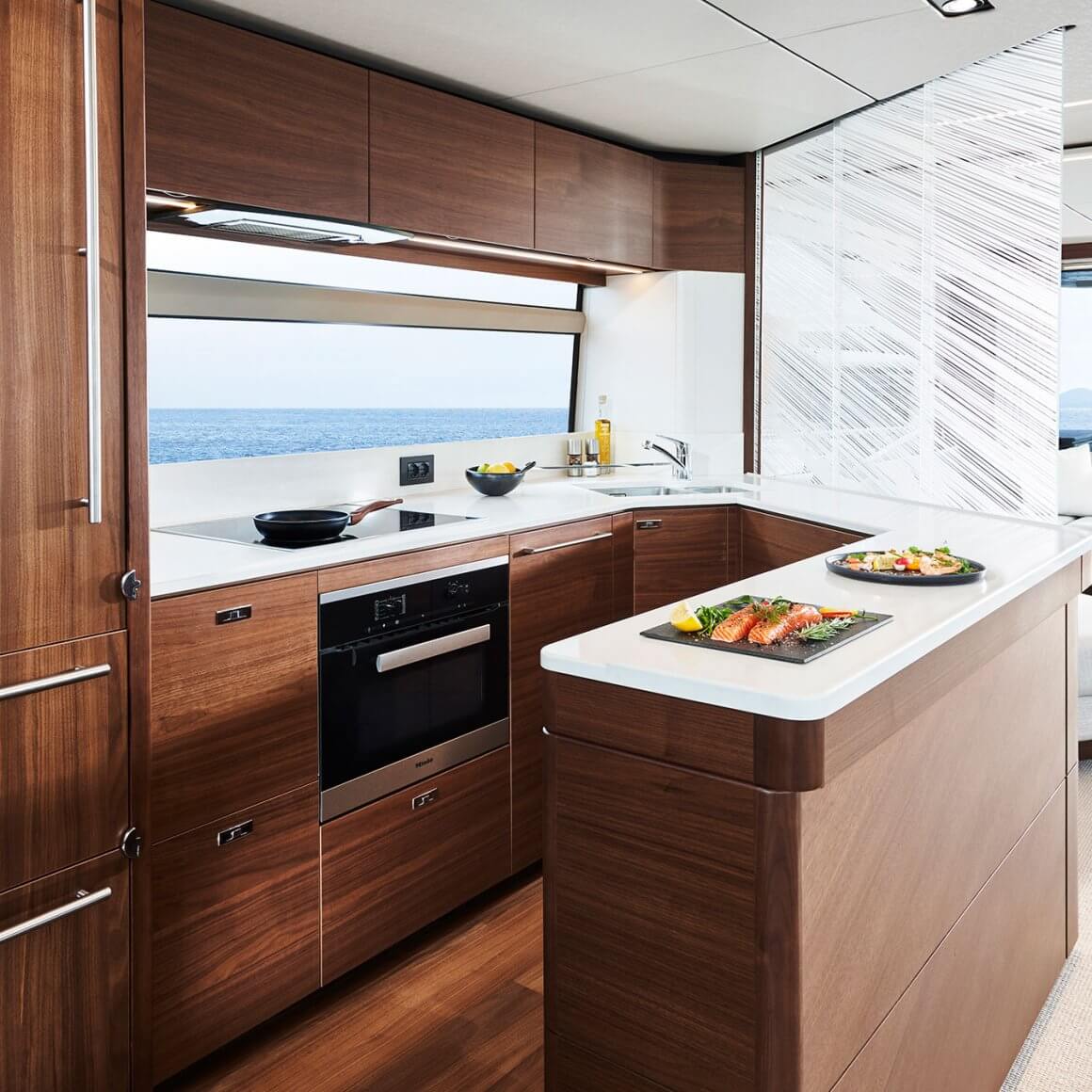

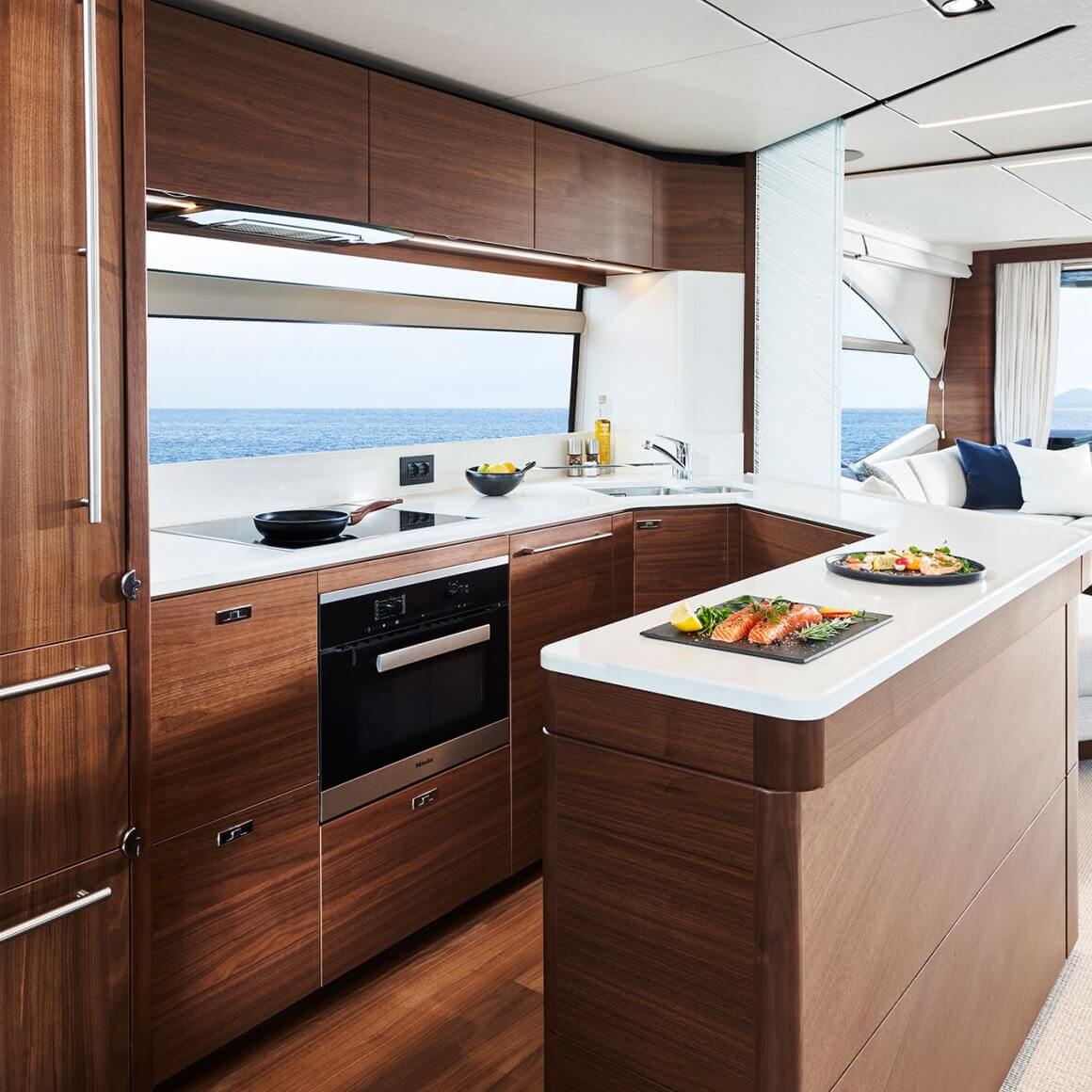

GALLEY
• 4-zone ceramic hob
• Combination microwave/conventional oven with grill
• Twin stainless steel sinks with mixer tap
• Full-height refrigerator/deep freeze
• Icemaker
• Dishwasher
• Storage lockers, cupboards and drawers

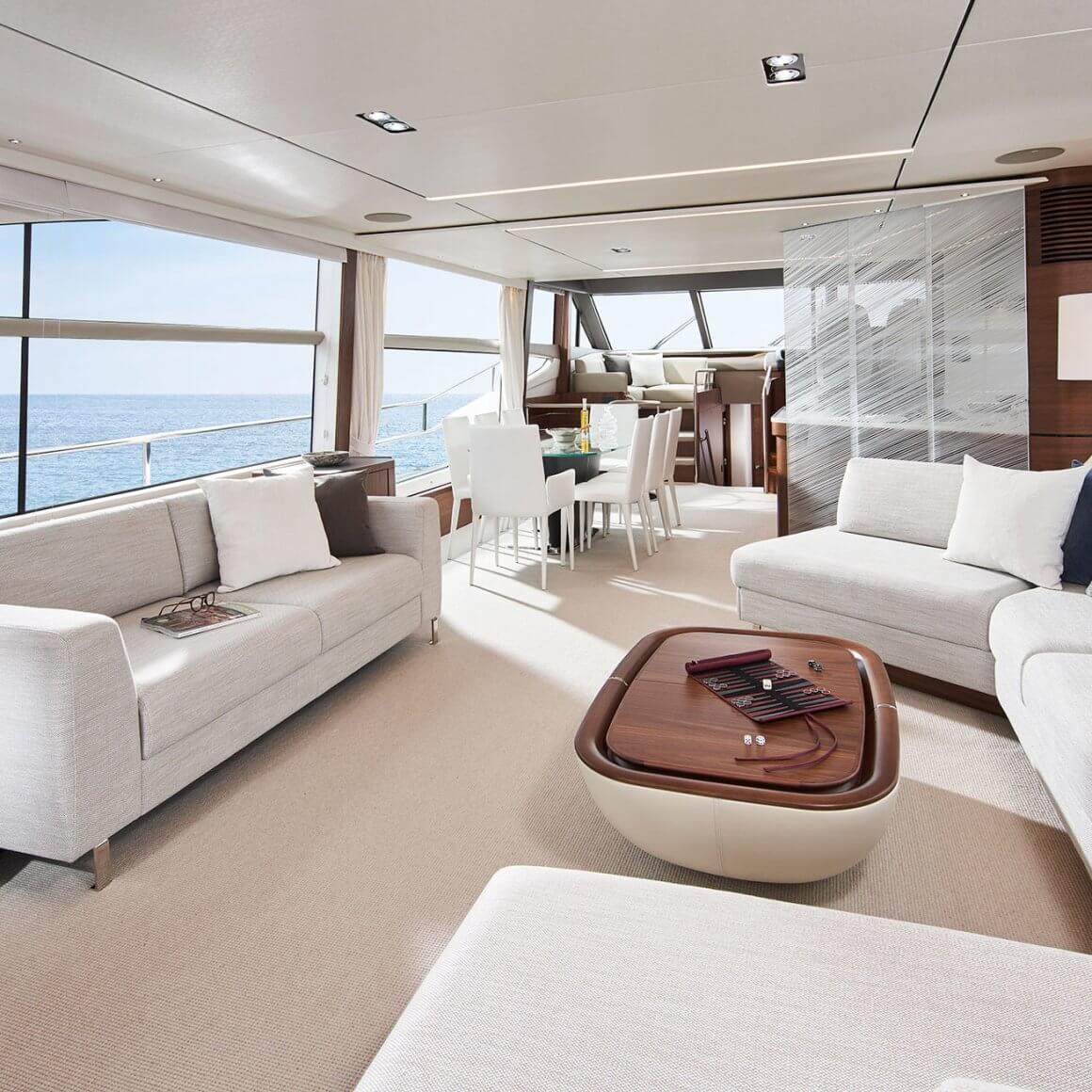

• Electrically operated sliding glass partition from aft saloon

ACCOMMODATION
• All cabins and bathrooms feature opening portholes and air conditioning outlets
• All cabins feature 220/240v power points
• All mattresses pocket sprung
• All bathrooms feature full shower stalls, electric freshwater toilets, extractor fan and 240v shaver points

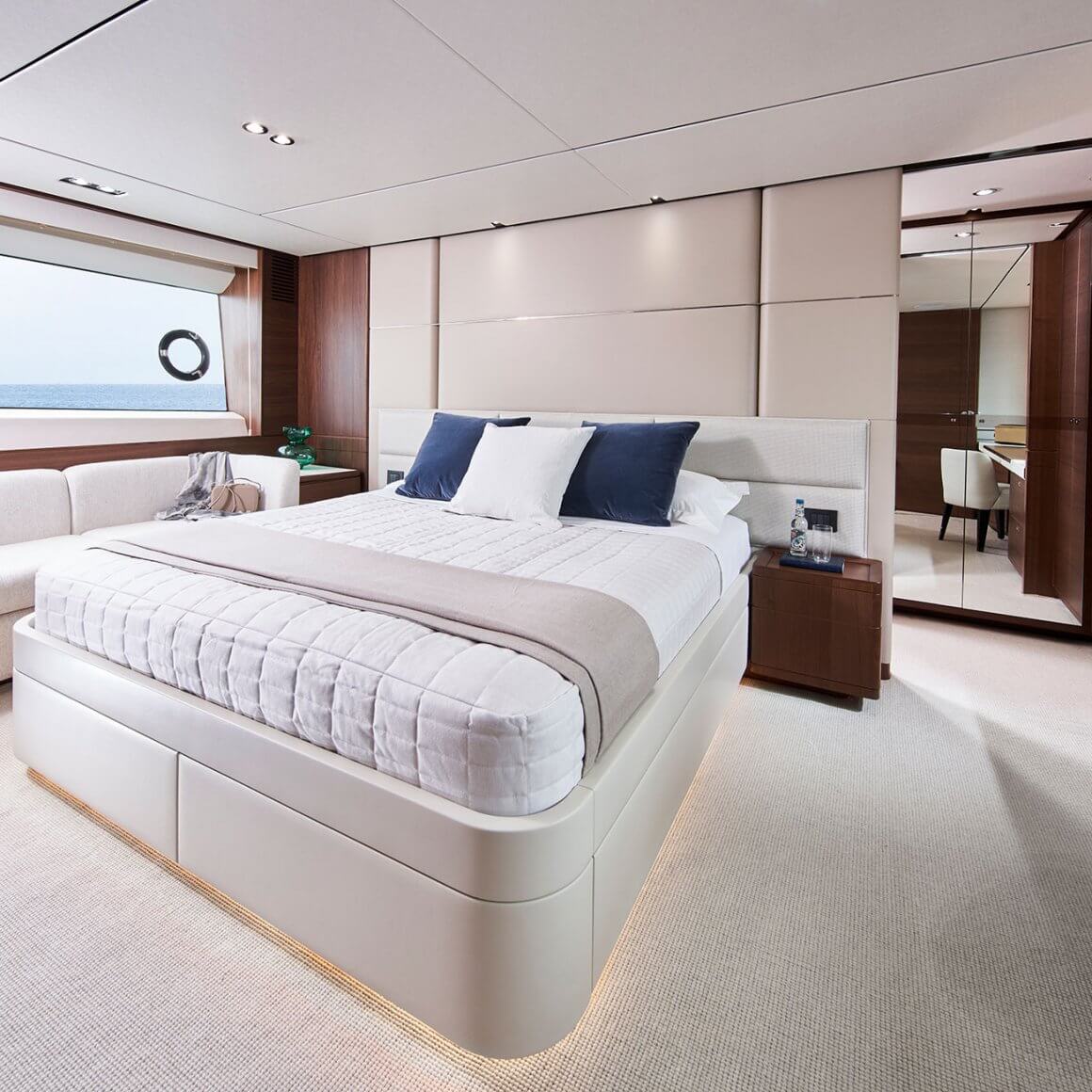

OWNER’S STATEROOM
• Large double bed with drawers below
• Dressing area with wardrobes with hanging and drawer storage

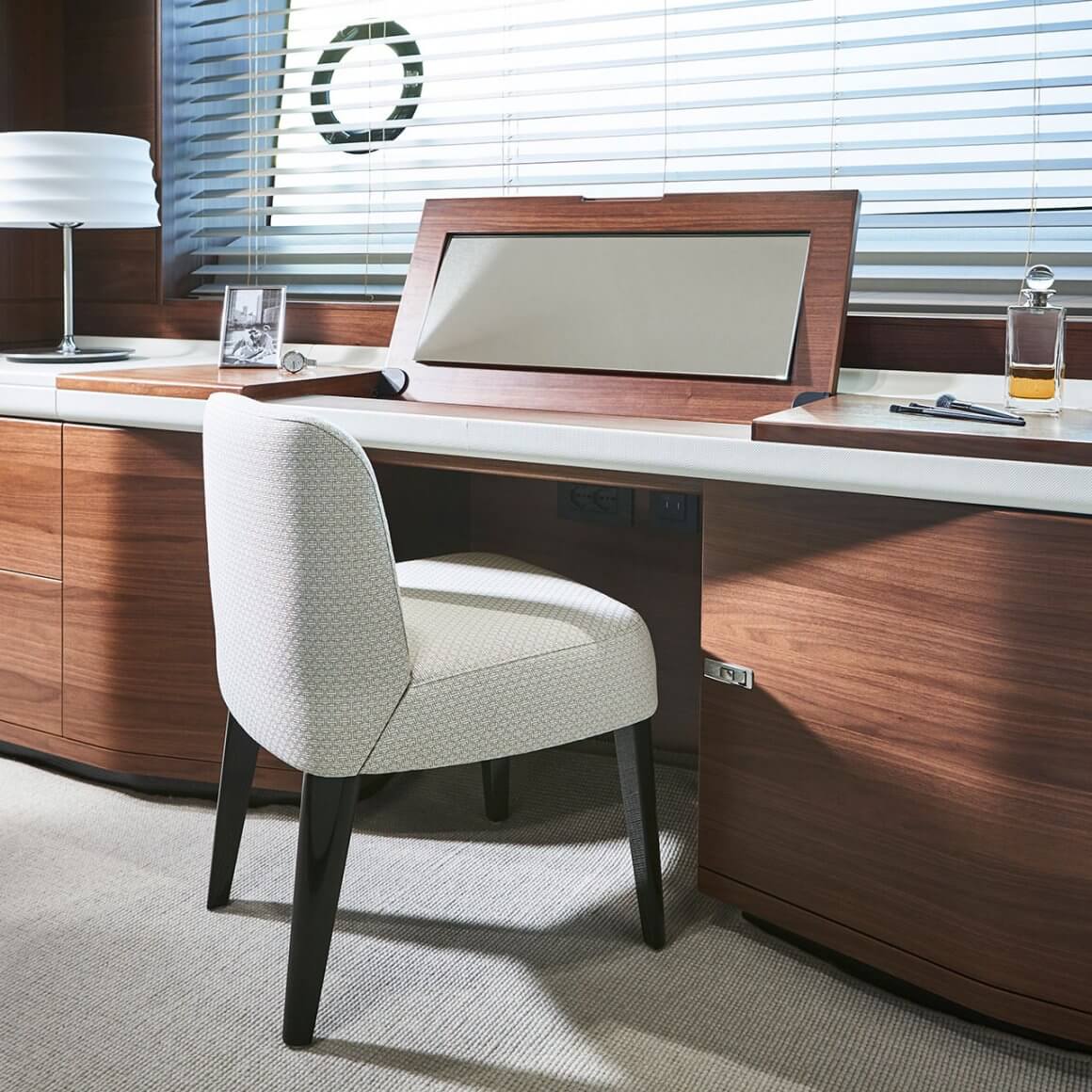

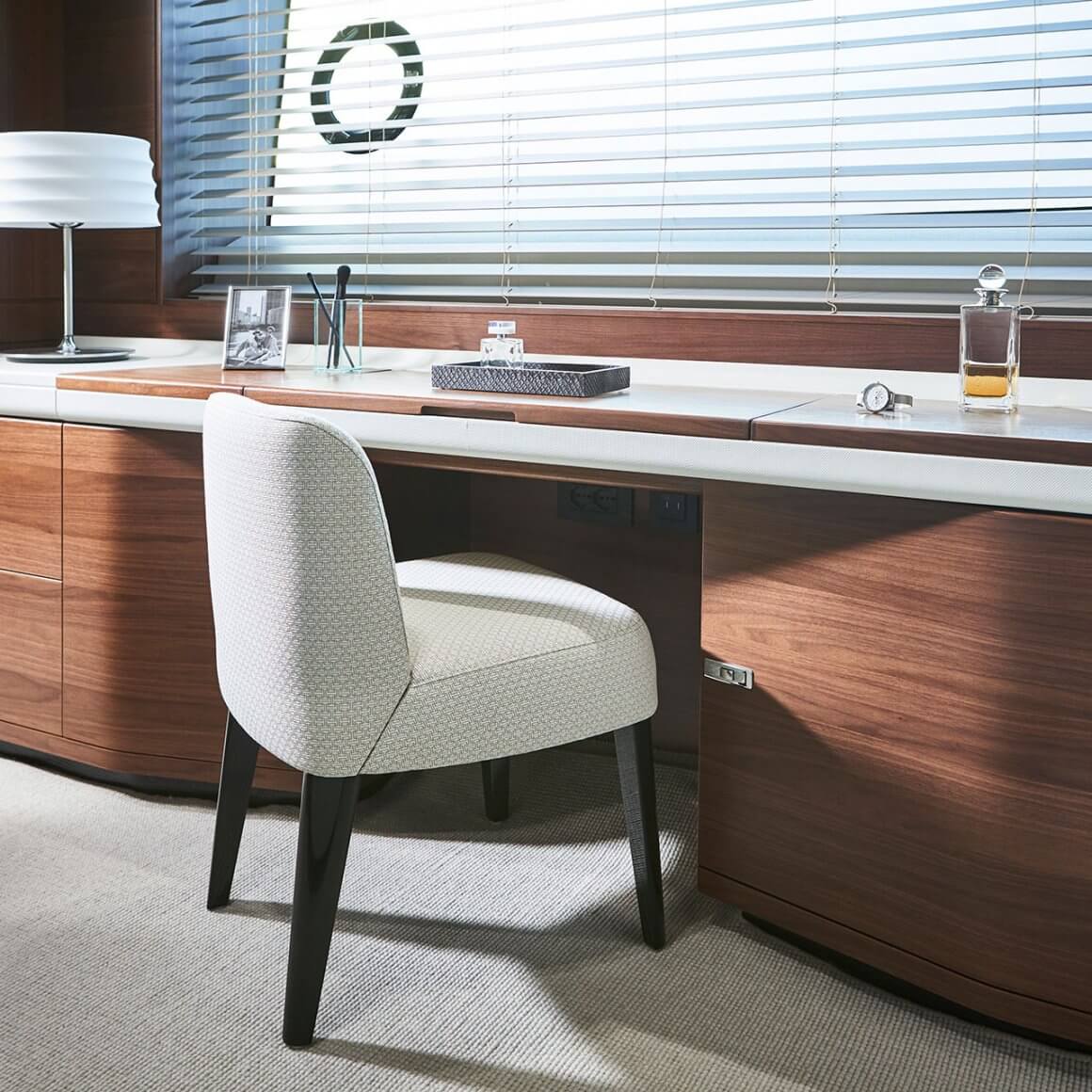

• Dressing table with chair

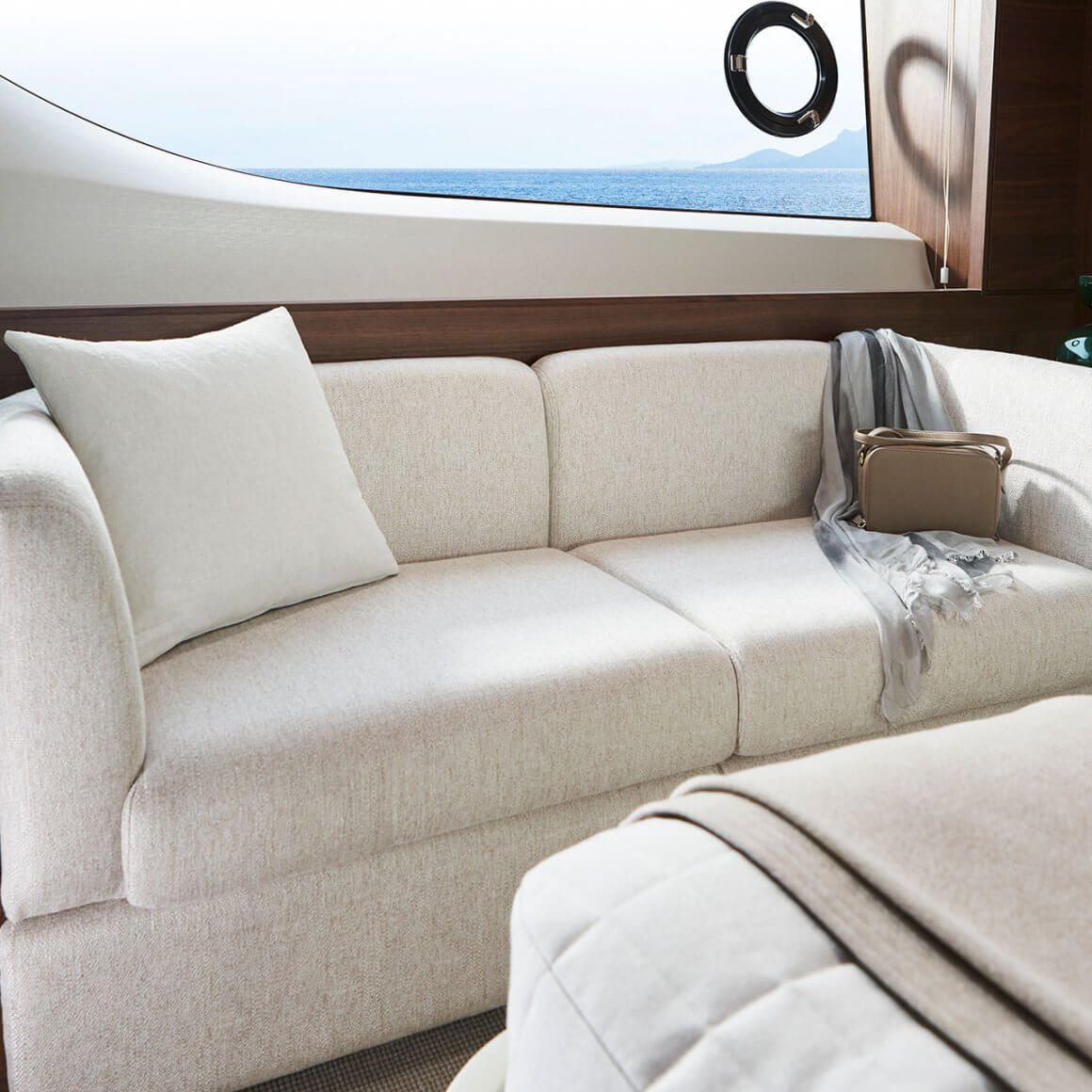

• Sofa
• Built-in safe
• 40” LED TV and DVD, radio/MP3 system with surround sound
• En suite bathroom
• Dedicated access with lobby area
• Combination washer/dryer fitted in lobby area

FORWARD GUEST CABIN
• Large double bed with drawers below
• Large wardrobe with shelves

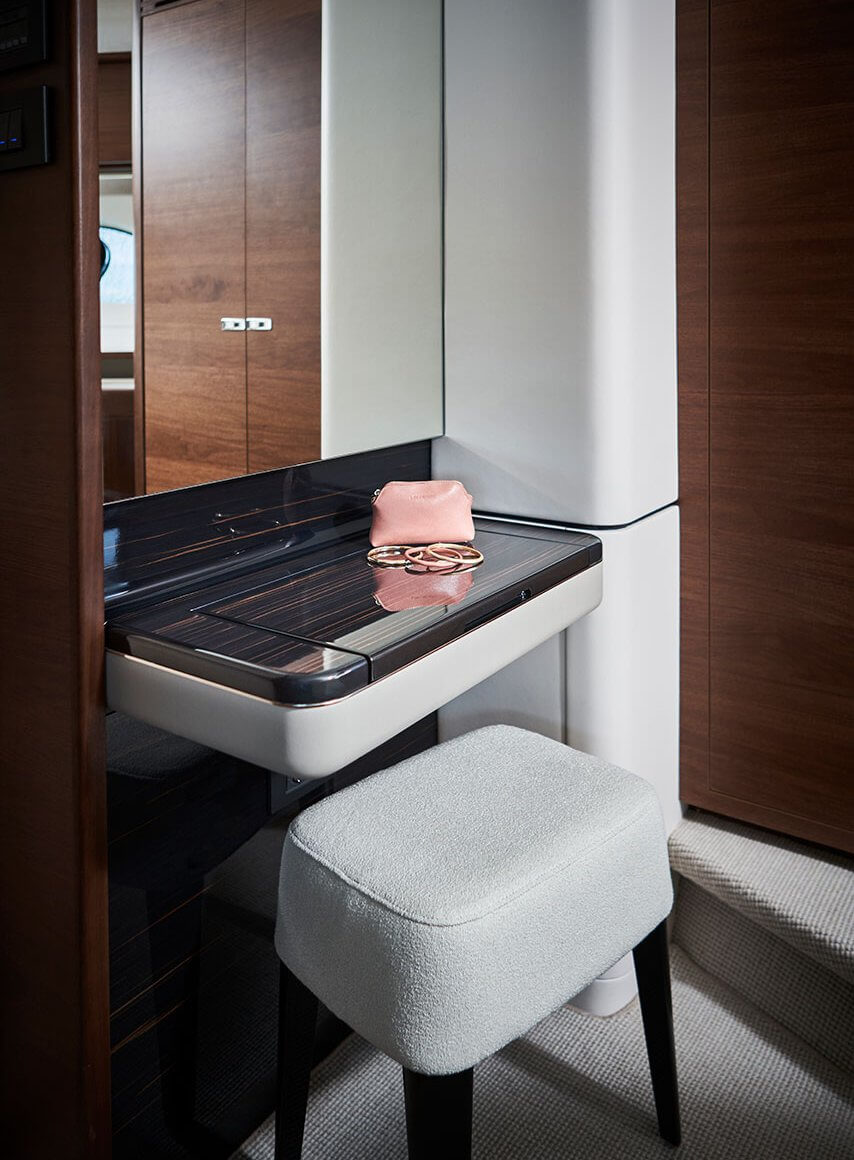

• Dressing table with stool
• Deck hatch
• Stereo radio/MP3
• En suite bathroom

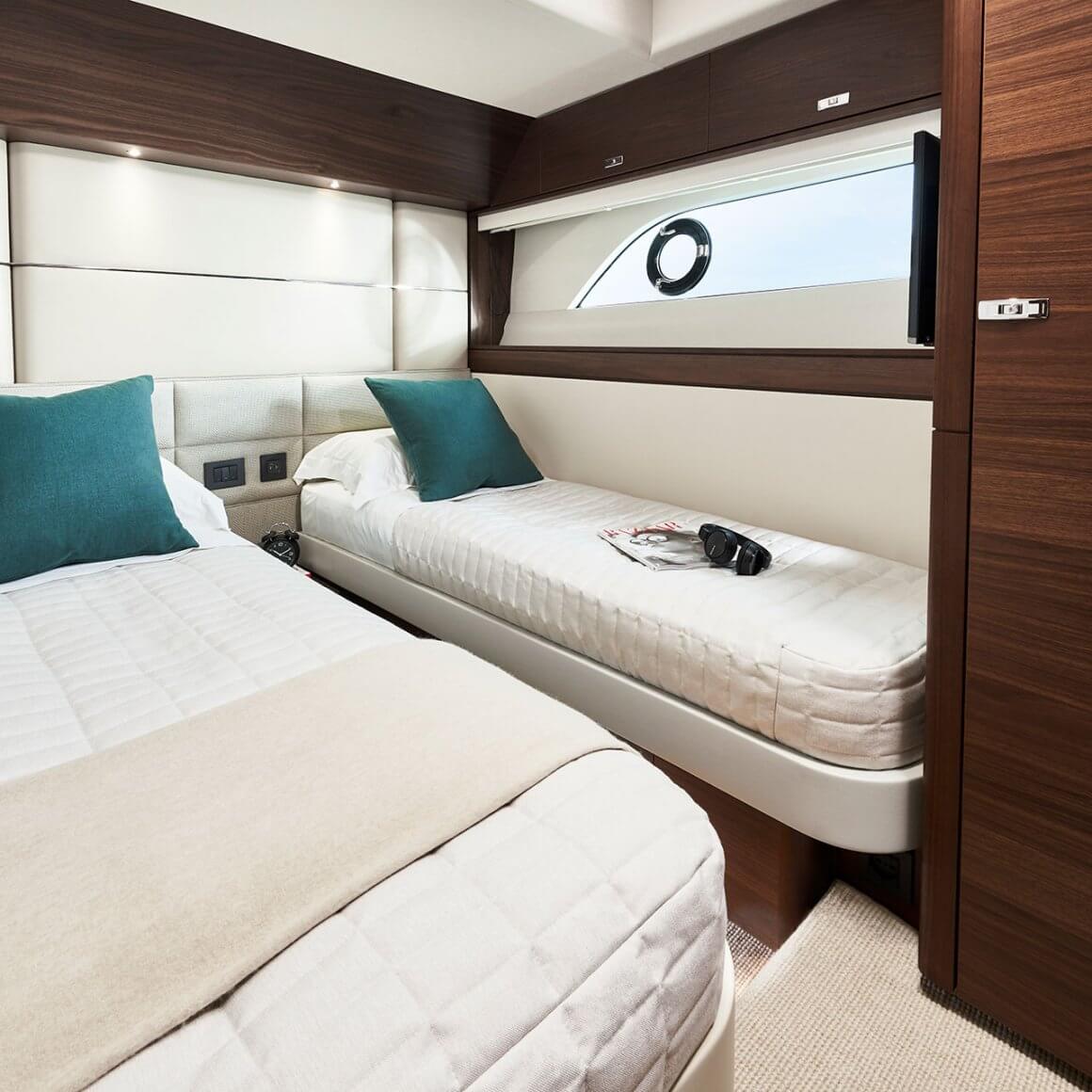

PORT GUEST CABIN
• Two single beds with drawers below (with the option of powered conversion to double)
• Wardrobe with shelves
• Bedside table with storage
• Storage lockers

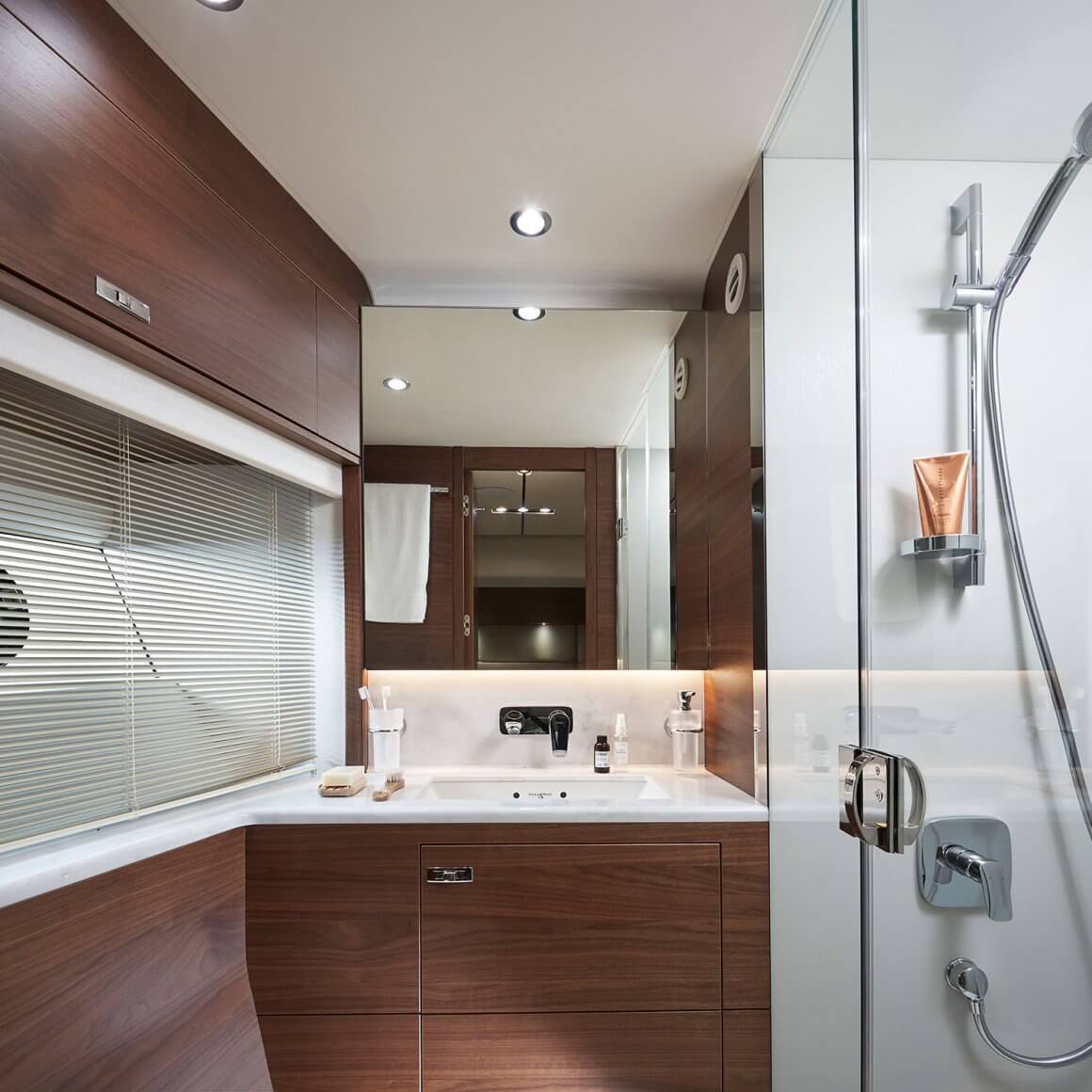

• En suite bathroom

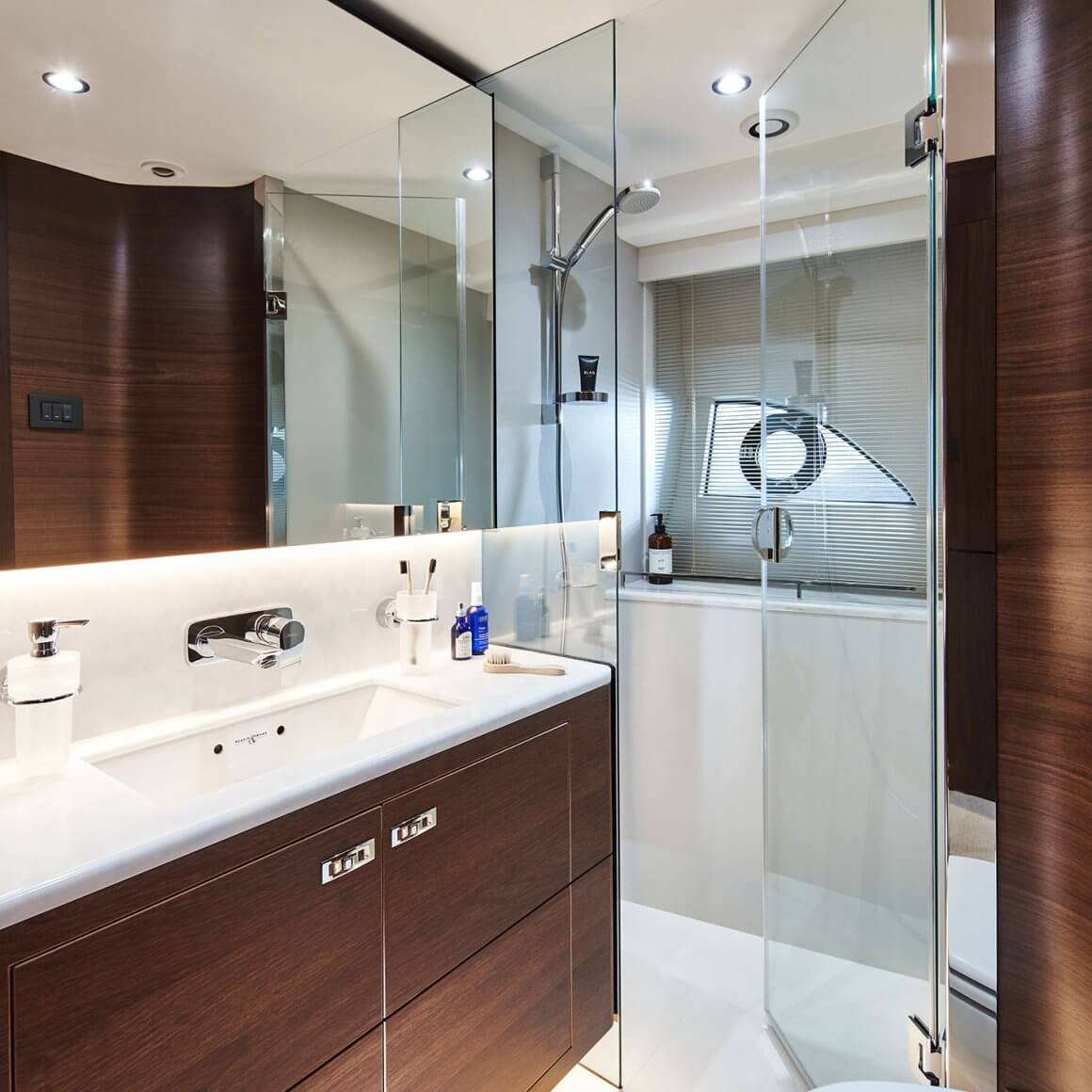

STARBOARD GUEST CABIN
• Large double bed with drawers below (with the option of powered sliding berths)
• Wardrobe with shelves
• Dressing table with stool
• Bedside tables with storage
• Storage lockers
• En suite bathroom with day access

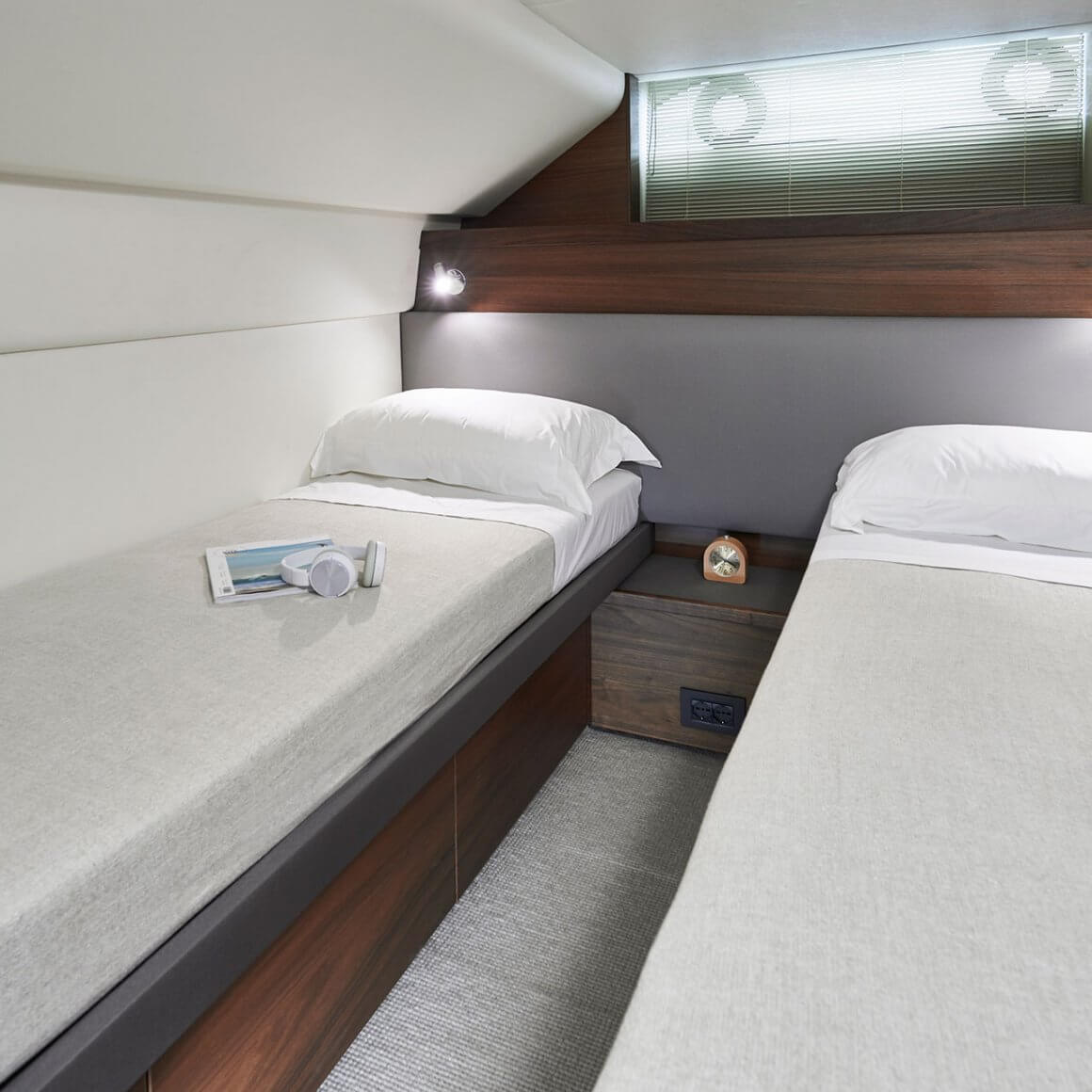

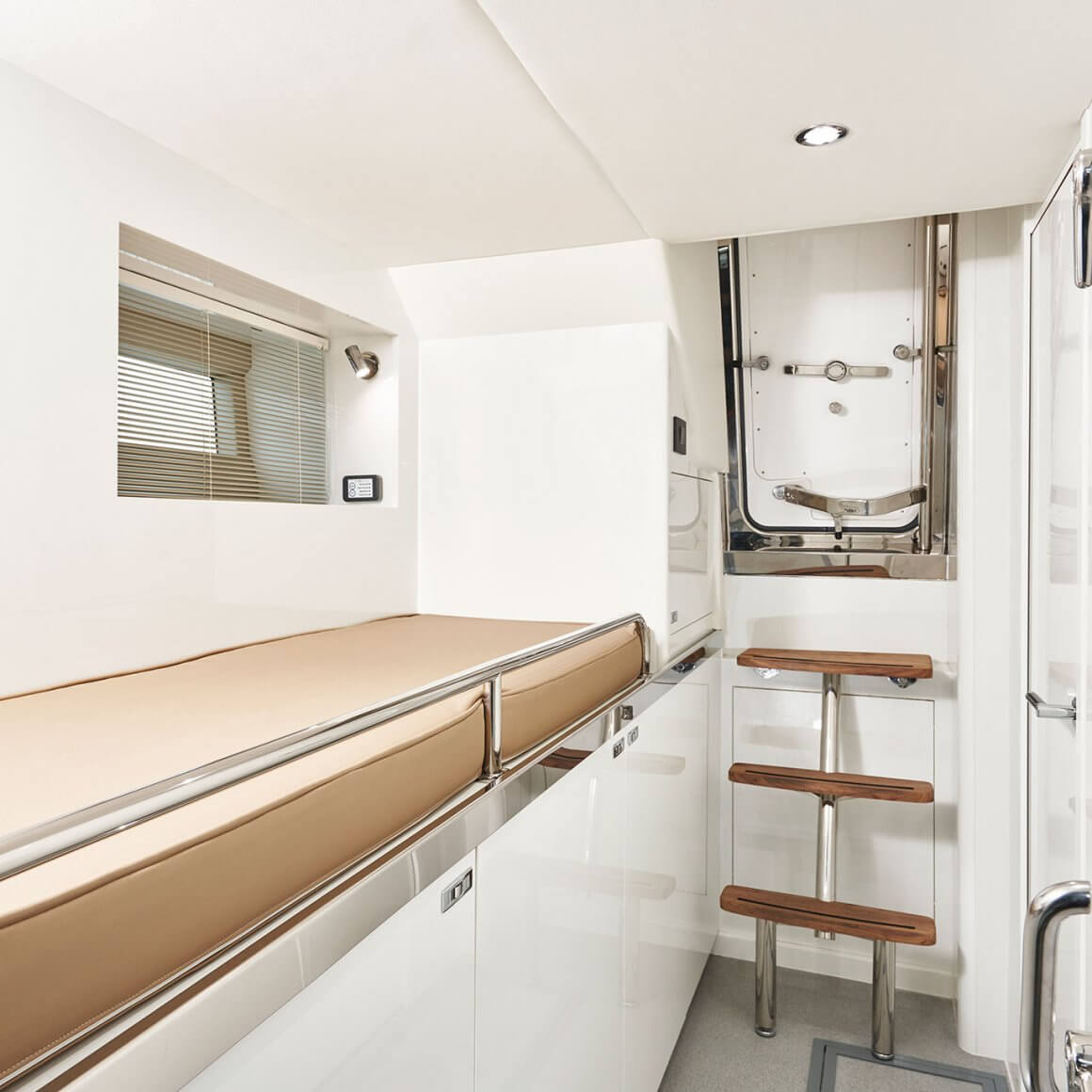

CREW CABIN
• Crew cabin with two single berths, wardrobe and storage lockers

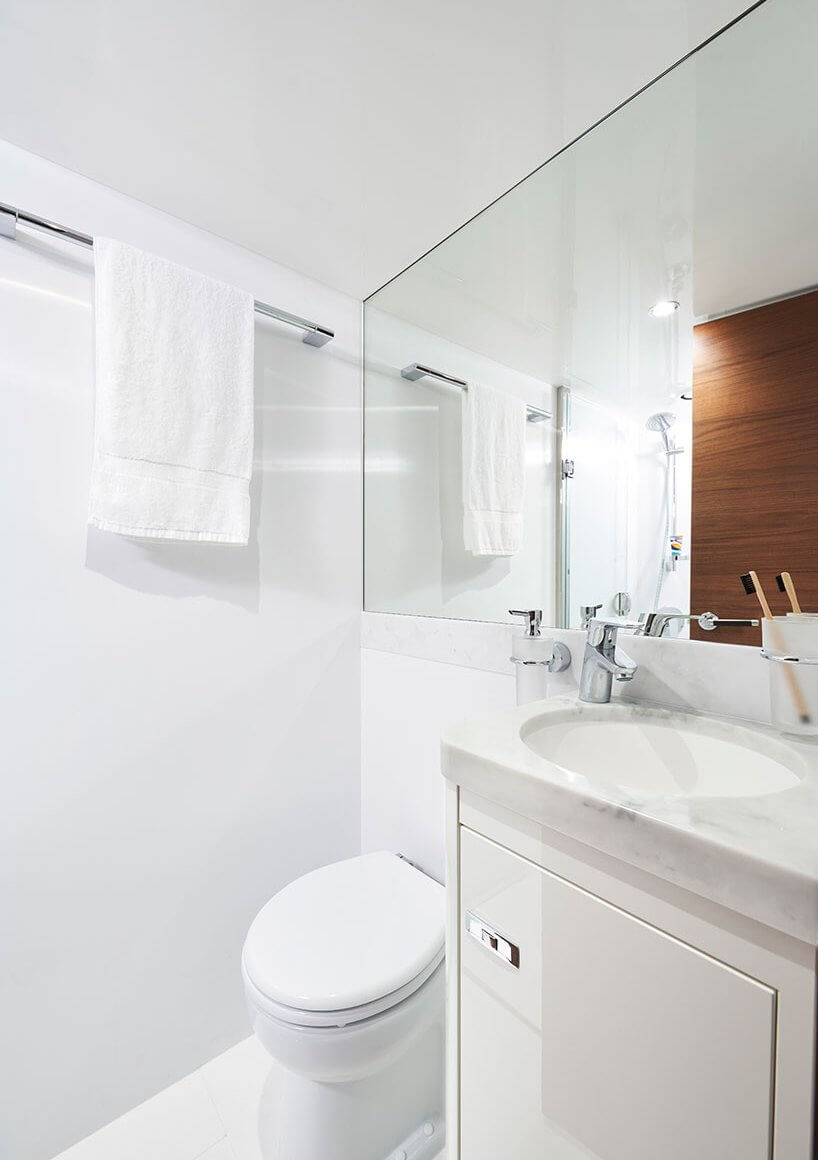

• Bathroom with separate stall shower, electric freshwater toilet and washbasin
• Storage/utility area (optional additional crew cabin)
• Access to engine room

INTERIOR FINISH
• Furniture in Rovere Oak with satin or high gloss finish. American Walnut or Alba Oak available as an option.
• Avonite worktops and tiled floors in all guest bathrooms
• Galley worktops in choice of granite or quartz
• Choice of high quality carpet and upholstery fabric from extensive range
• Curtains, blinds or sunscreens to all windows and portholes
• Timber-laid galley and helm floors

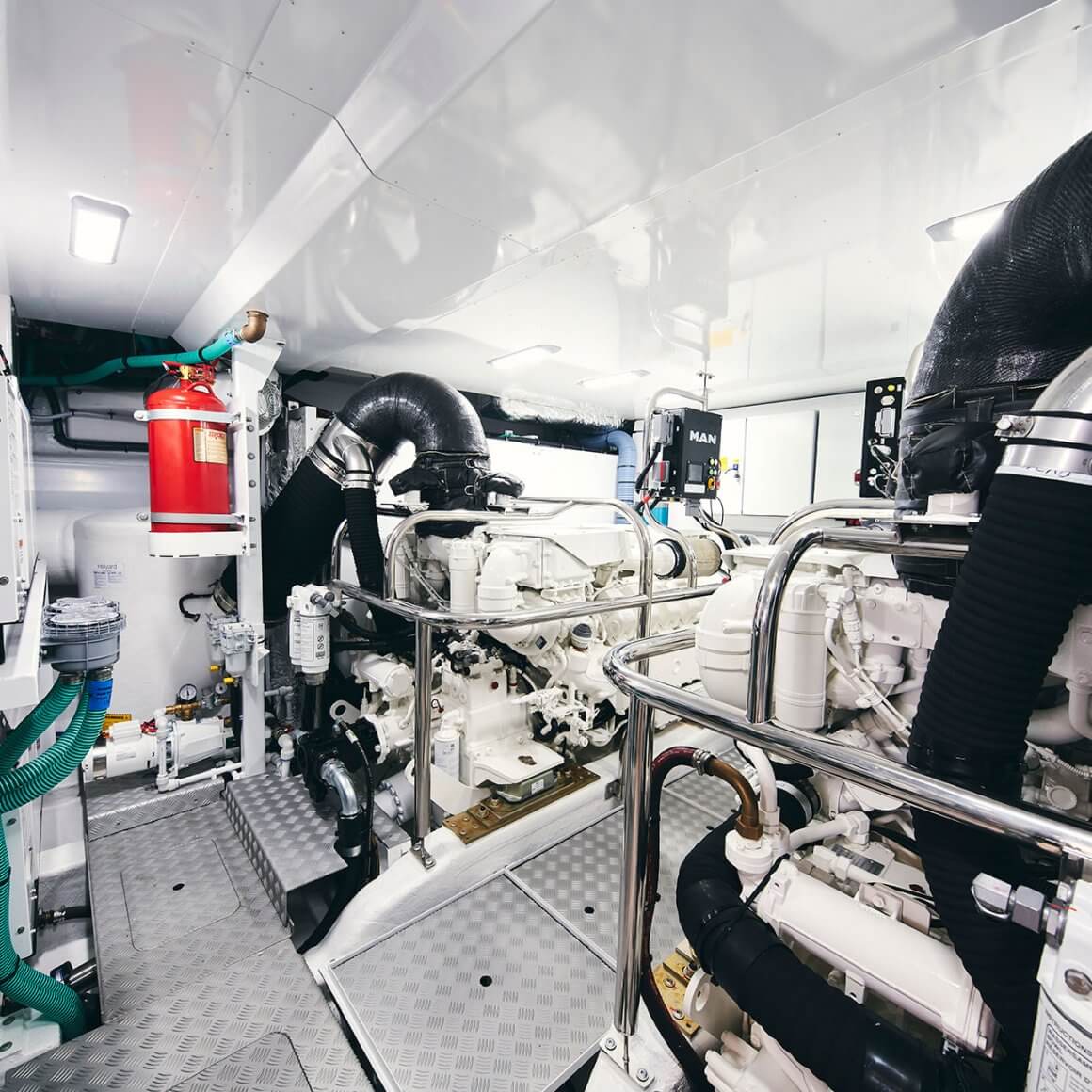

POWER AND DRIVE SYSTEMS
• 5 bladed propellers in nickel aluminium bronze
• Bow thruster (240kgf/529lbf)
• Power-assisted electro-hydraulic steering system with hydraulic back-up
• Electronic engine and gear shift control systems
• Dripless shaft seals
• Engine room extractor fan with electronic time delay

ELECTRICAL SYSTEMS
24 Volt:
• 4 x heavy duty batteries for engine starting
• 6 x heavy duty auxiliary batteries
• 2 x 60 amp battery charger charges both banks of batteries via an automatic switch charging system
• Remote battery master switches with control switch at main panel
• LED lighting throughout

220/240 Volt:
• 22.5kW diesel generator in own sound shield with water cooled specially silenced exhaust
• 2 x 63 amp shore support inlet
• Earth leakage safety trip, polarity check system, circuit breakers on all circuits
• Power points in all areas

FUEL SYSTEM
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1320 gal/1585 US gal/6000l capacity
• Fuel fillers on port and starboard side decks
• High capacity duplex fuel filters/water traps with audible and visual fuel contamination warning system
• Remote fuel cocks in cockpit locker
• Fuel gauges at lower and upper helm positions

WATER SYSTEM
• 253 gal/304 US gal/1150l plus 44 gal/52 US gal/200l hot water calorifier, heated by engines and 240v immersion heater
• Water level gauge
• Electric freshwater WC system with 99 gal/119 US gal/450l holding tank

AIR CONDITIONING
• 126,000Btu chilled water system with outlets in all accommodation areas and incorporating reverse cycle heating with linked windscreen demist system. Suitable for tropical conditions (40°C)

FIRE EXTINGUISHERS
• Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
• Hand-operated fire extinguishers in all cabins, galley, utility, crew and lower helm (8)
• Separate automatic extinguisher in electrical space

BILGE PUMPS
• Automatic electric bilge pumps (7)
• High capacity manual bilge pump with valve system and suction points in same areas

OTHER ITEMS SUPPLIED AS STANDARD
• Set of cutlery, crockery and glasses (8)
• Set of towels (8 large, 8 small)
• Ensign staff
• Fenders (8) and warps (4)
• First aid kit
• Set of manuals
