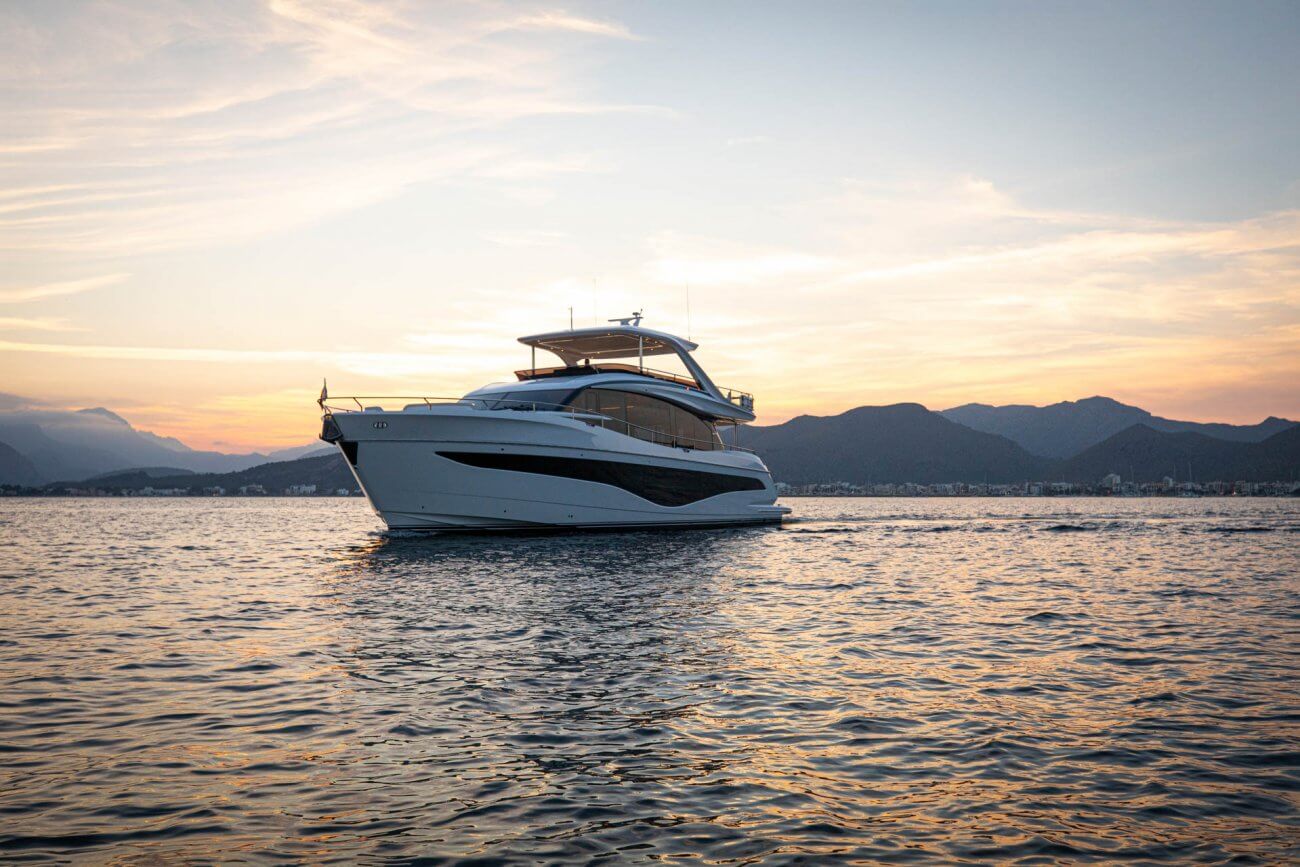

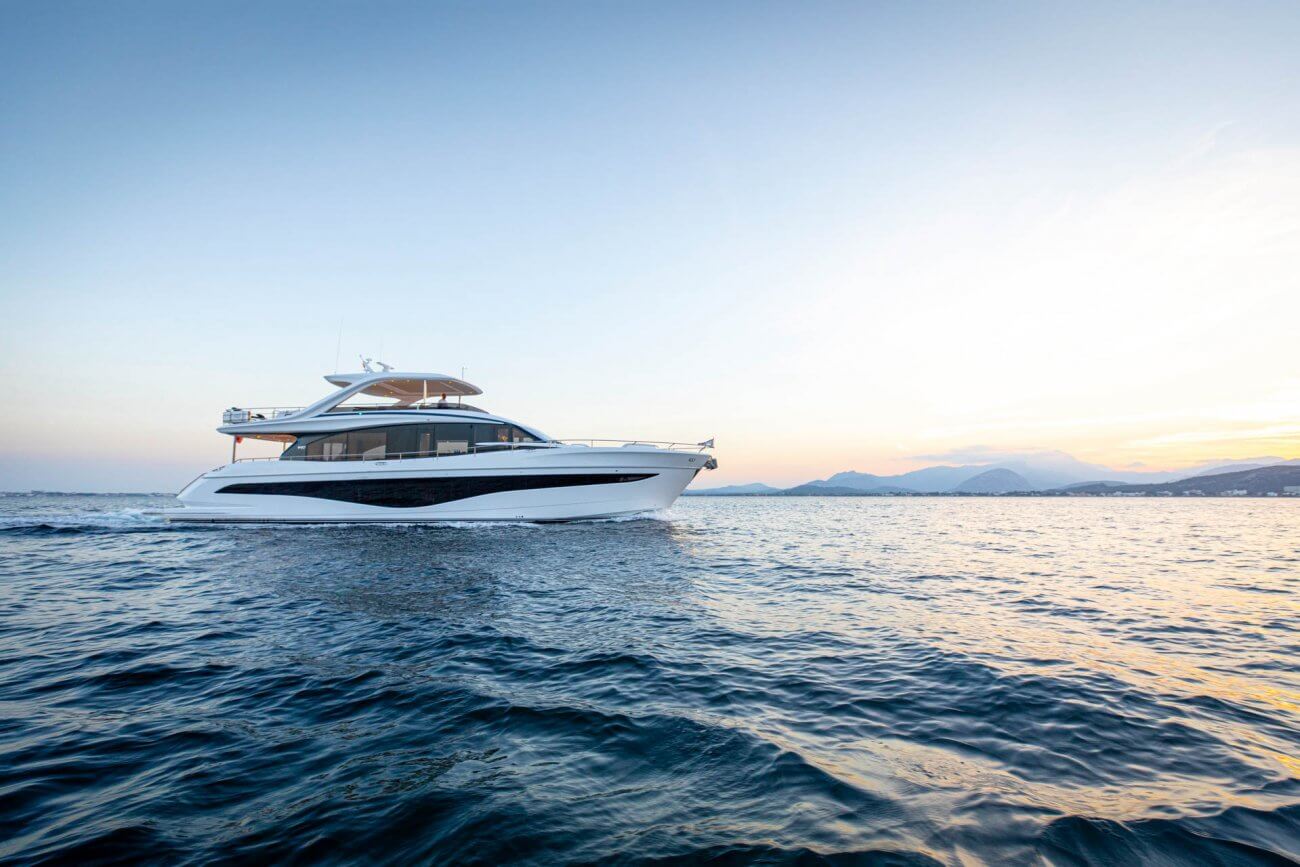

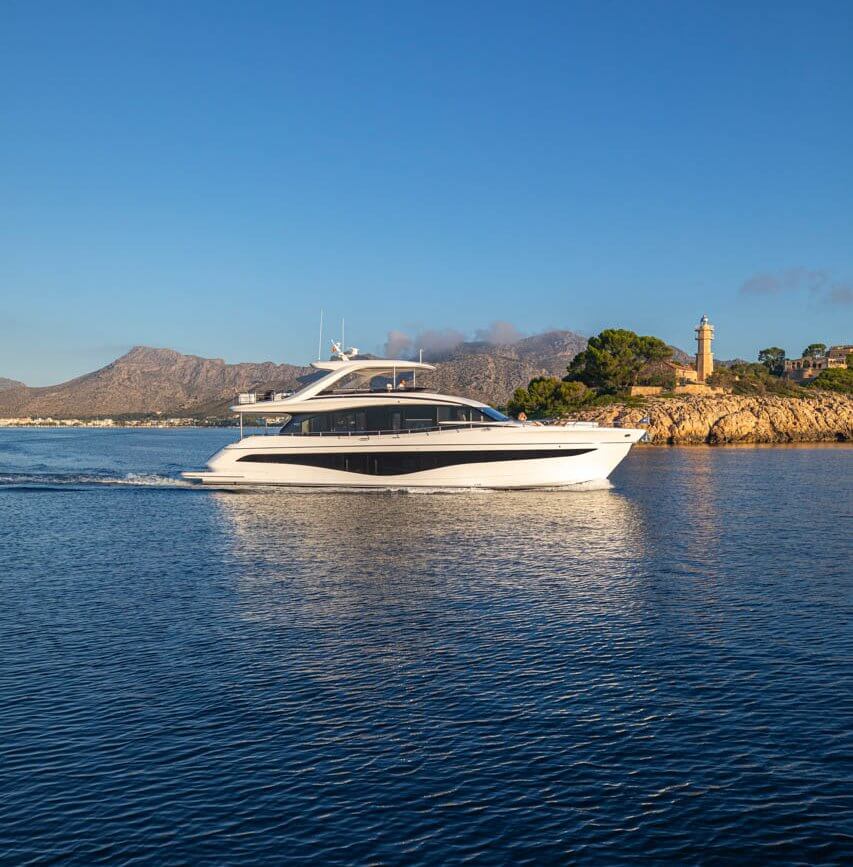

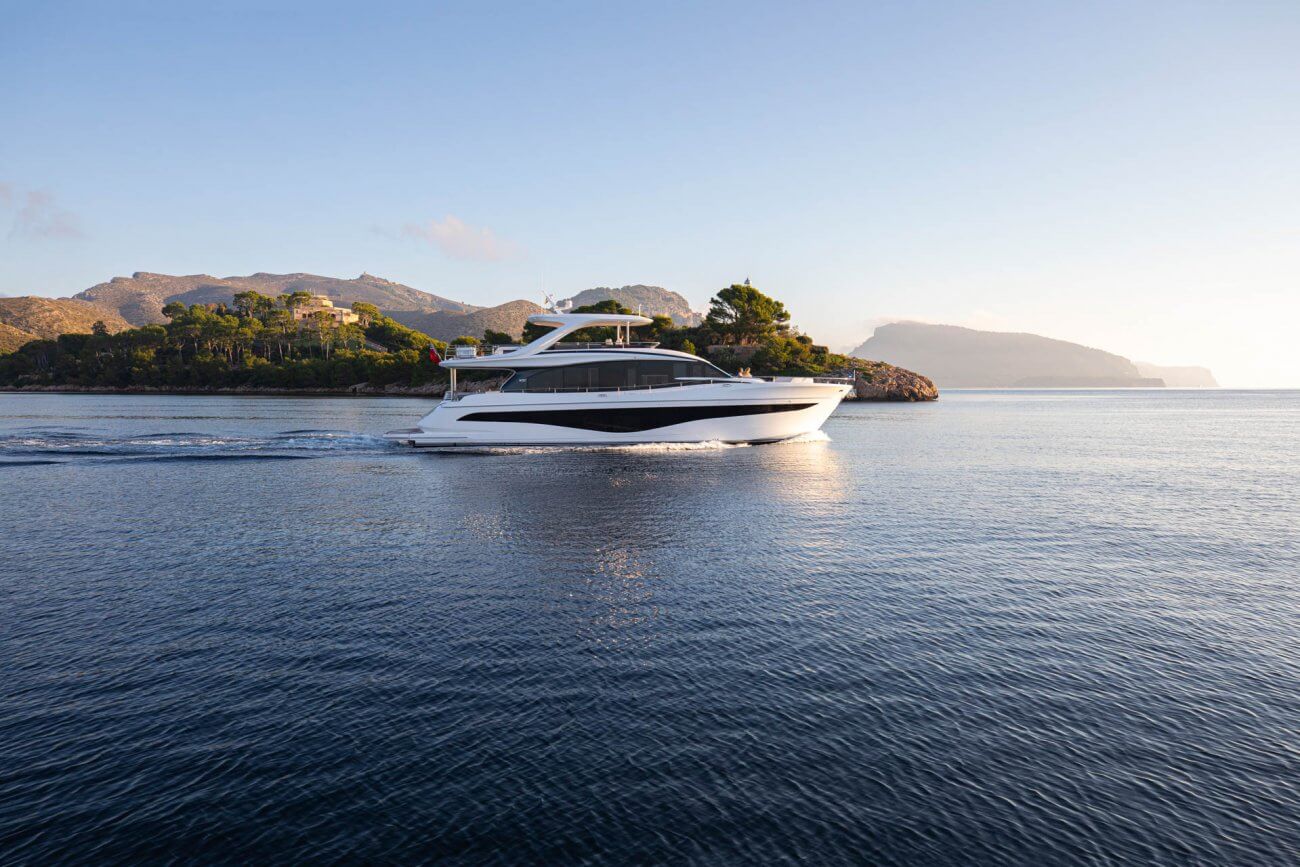

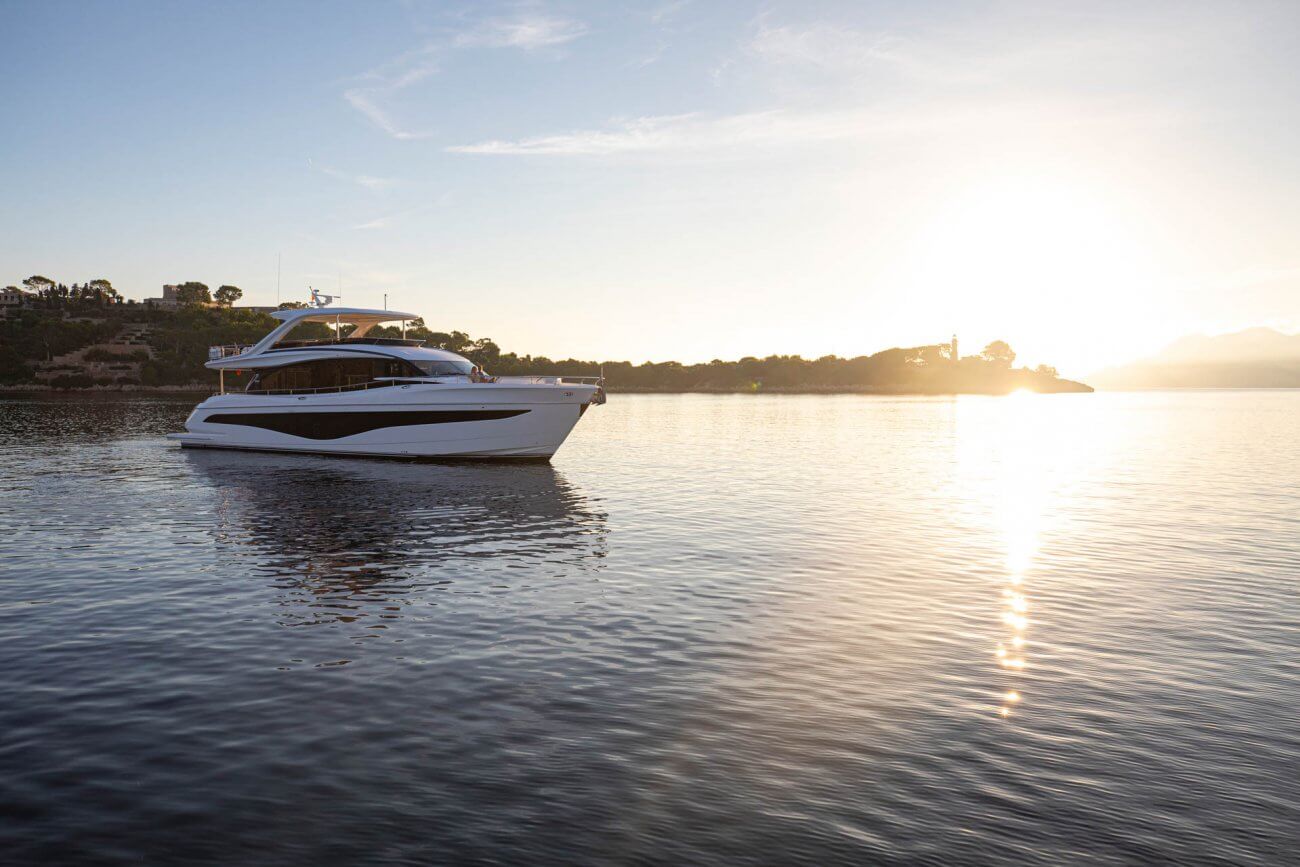

PRINCESS Y80

The all-new Y80 features elegant refined proportions and details with a clean, timeless aesthetic and exceptional standard and optional specifications that have become synonymous with the Y Class range. The versatility of the Y80 sets it apart from its contemporaries. Offering a generous beam, the Y80 provides significant volume for an 80-foot motor yacht whilst retaining elegant styling and design both inside and out.

Her flybridge offers relaxed seating and dining areas combined with a fully equipped wetbar. Owners’ can choose to specify the flybridge layout to their requirements with the option of a crane for a tender hidden within the large sunpad, free standing sun loungers or a spa bath.

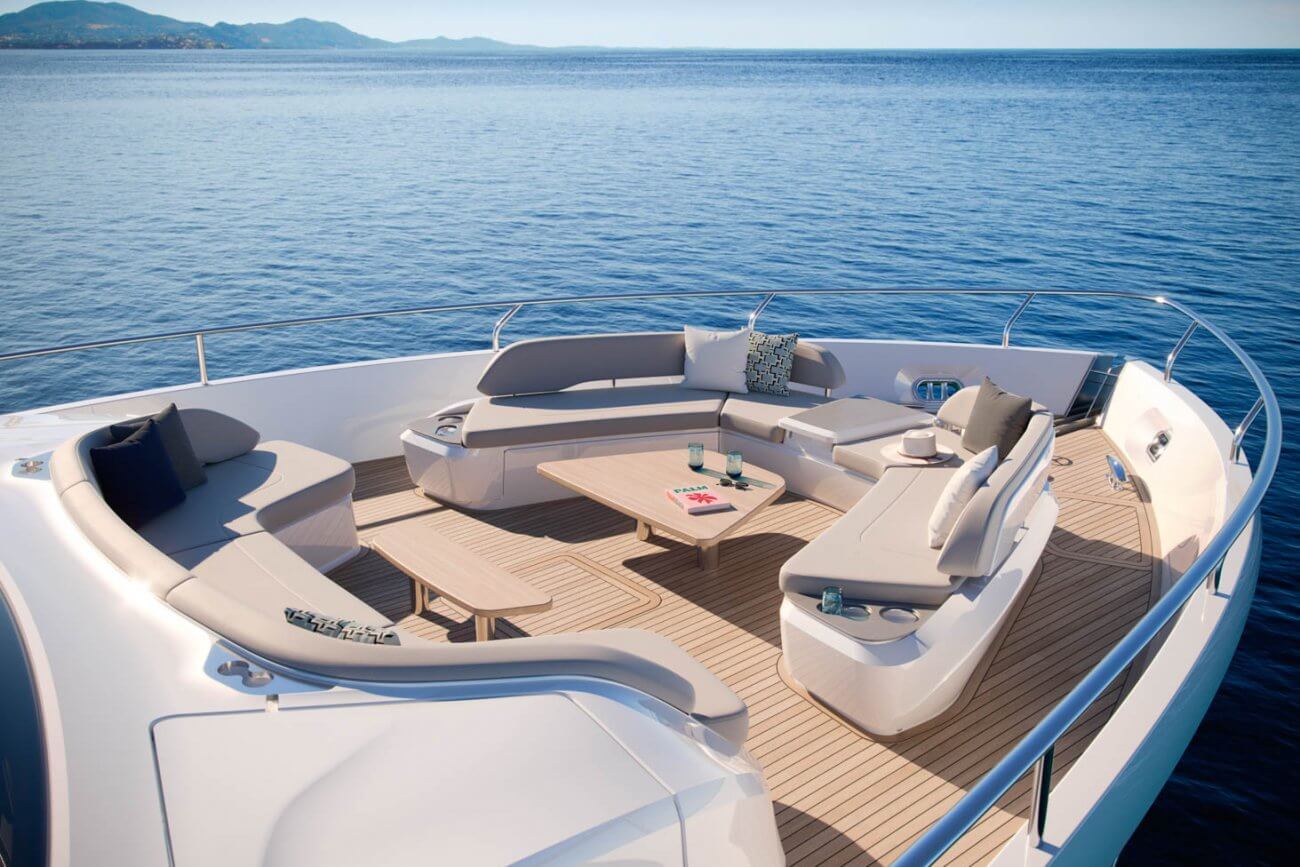

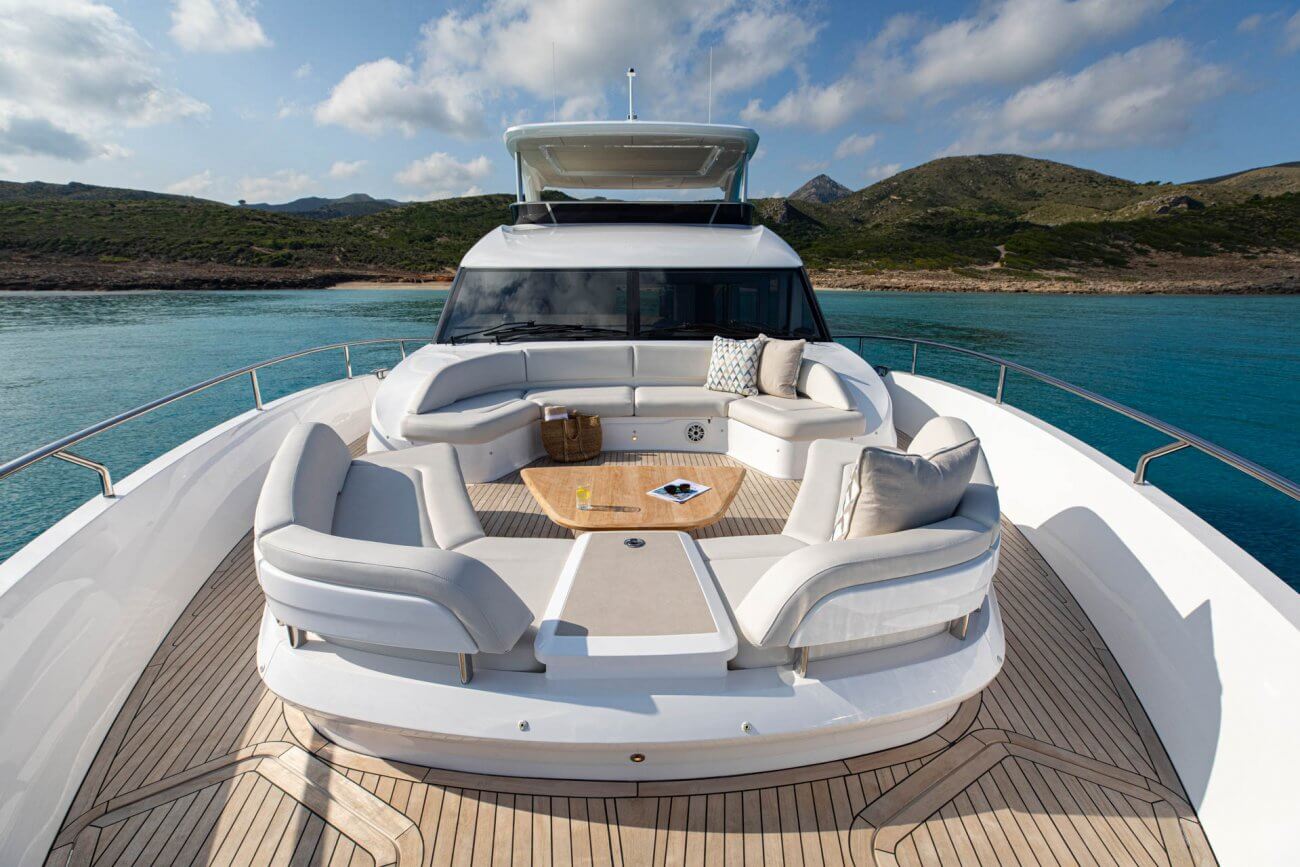

The foredeck has been designed to offer a secluded escape to while-away an afternoon or an elegant entertaining space to sip cocktails with guests. A conversationalist seating area can easily accommodate 10 people, with adaptable forward and aft facing U-shaped seating which can convert to offer a spacious sunpad. The main deck offers an uninterrupted flow through from the cockpit to the helm featuring vast windows along the saloon to experience the surrounding panoramic views. For owner’s who prefer a more private experience, optional partitions to the galley and wheelhouse are available. Below deck, four en-suite cabins sleep eight supported by crew quarters.

A sophisticated experience for
both owners’ and guests

Dimensioner

L.O.A. (inkl pulpits)	25.5 m (83′ 8″)
L.O.A. (exkl pulpits)	25.11 m (82′ 5″)
Beam	6.1 m (19′ 11″)
Depth	1.77 m (5′ 10″)
Deplacement*	68,7 T
Fuel capacity	7000 L
Water capacity (inkl calorifier)	1600 L
Holdingtank	Yes

Downloads

ACCOMMODATION
GUESTS
8 persons in 4 double cabins ensuite

CREW
2-4 crew in 1-2 cabins aft

ENGINE OPTIONS

2x MAN V12 1650 (2 x 1650hk)
† Toppfart 27-29kn

2x MAN V12 1900 (2 x 1900 hk)
† Toppfart 30-32 kn

NOTES
* Displacements are calculated with half full fuel and water but with no optional equipment fitted or other gear or crew aboard.

† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of us or Princess Yachts Limited.

Crafts illustrated on this website may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability.

EQUIPMENT

DECK FITTINGS

Teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, foredeck & flybridge areas
Reversible hydraulic anchor winches with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Twin anchor system incorporating a Primary anchor – 80kg Galvanised Claw anchor with 100m of 14mm galvanised chain and a Secondary anchor – 50kg Galvanised Claw anchor (both fitted with Lewmar swivel) with 70m of 14mm galvanised chain
Deck chain stoppers
Twin electric stern line mooring winches
Deck hatch access to chain locker, rope locker and engine room
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel nose and stern fairleads
Stainless-steel bow spring cleats (1 pair, port & starboard)
Stainless-steel stern spring cleats (1 pair, port & starboard)
Stainless-steel guard rails to foredecks
Stainless steel flybridge handrails with glazed panel
Stainless steel handrails to main deck side decks
Foredeck escape hatch

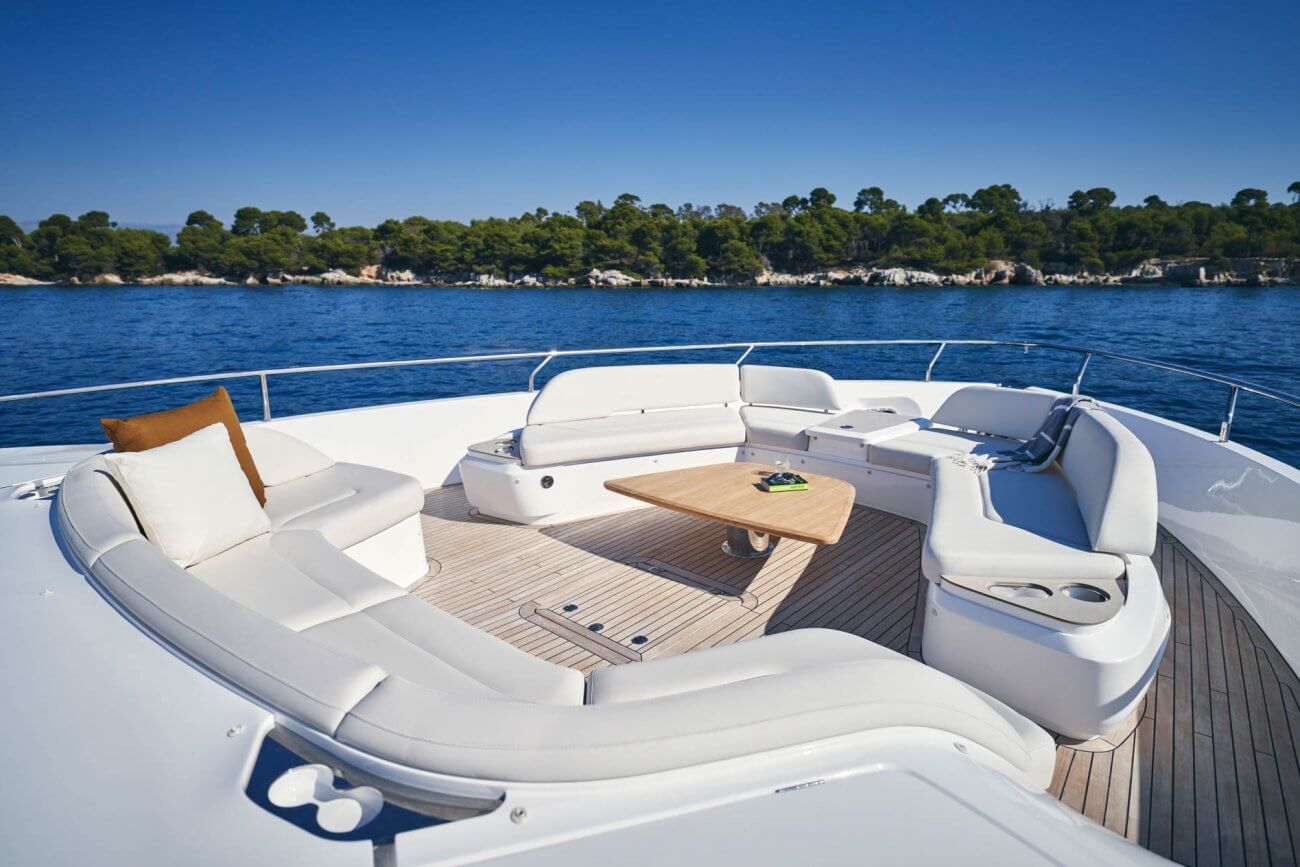

Foredeck forward-facing U-shaped seating area
Foredeck aft-facing U-shaped seating area with storage unit with twin coffee tables
Twin coach roof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers
Loudhailer
Ensign socket and pole
Holding tank dockside discharge connection

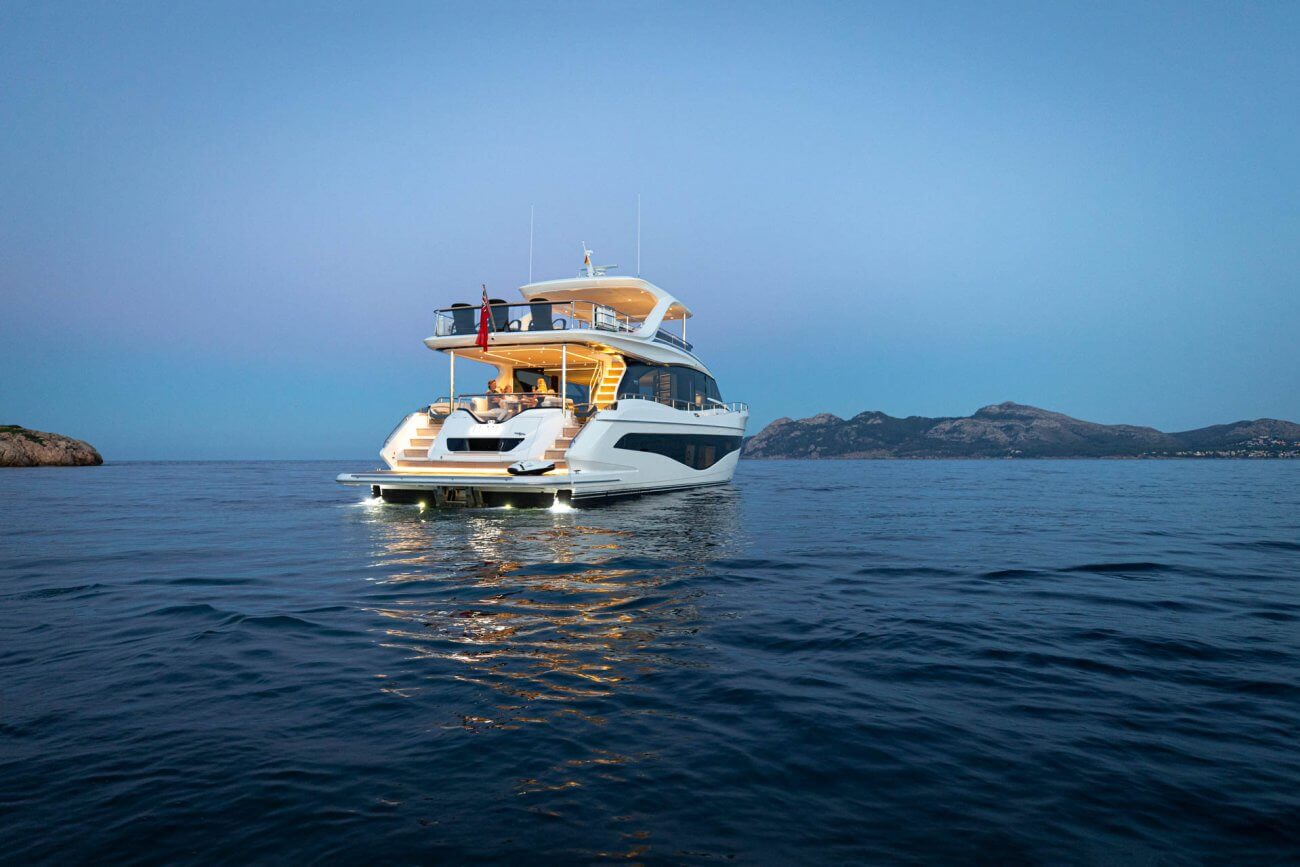

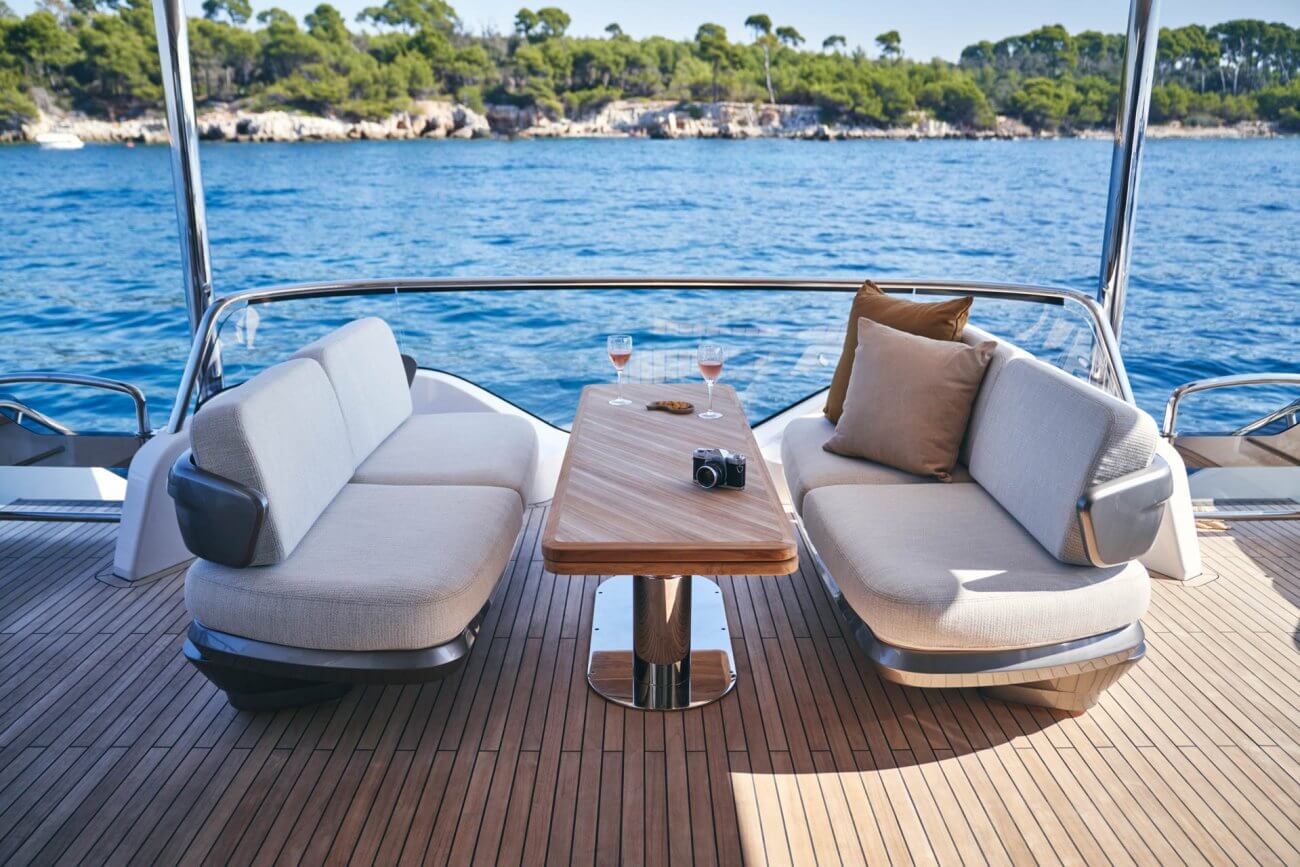

AFT COCKPIT AND BATHING PLATFORM

Self-draining
Upholstered U-shaped seating with storage below
Teak folding dining table with drink holders (4)
LED overhead and deck level lighting
Stainless-steel oval handrails
Remote control 4.5m telescopic passerelle with automatic folding handrails (1.2m overhang)
Watertight pantograph door giving access from bathing platform into crew area/engine room
Engine room to cockpit escape hatch
Stern lazarette
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic teak laid raise/lower bathing platform (550kg SWL)
Retractable bathing ladder (manual) inside of bathing platform
Hot and cold transom shower
220/240v shore support inlet
Canvas cockpit cover
Swim platform transom seat in teak
Dinghy chock system stainless steel keyway plates for later fitting of tender slider system on bathing platform
Illuminated crown logo on transom

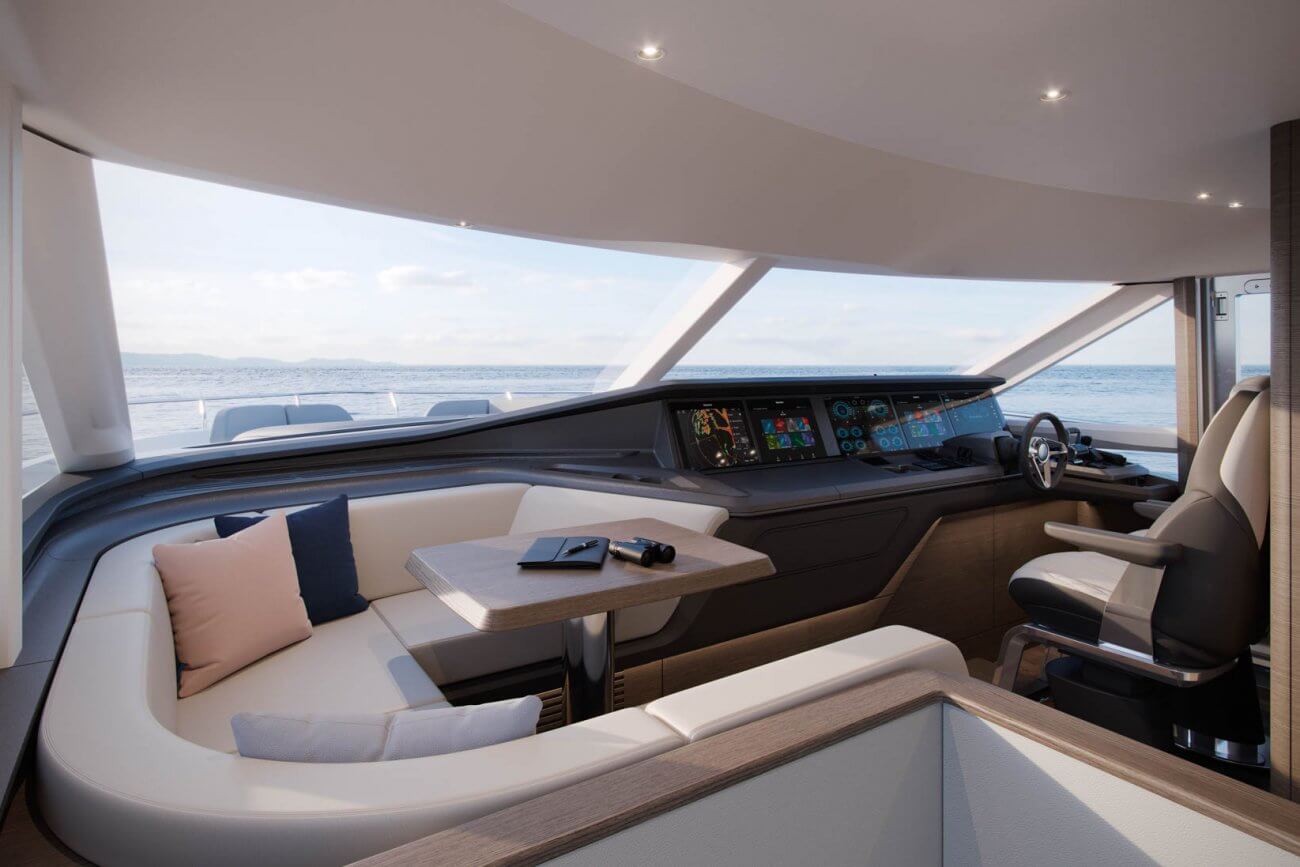

WHEELHOUSE

Pilot house with captain’s leather upholstered seat with manual fore and aft adjustment, fixed navigator seat
U-shaped companion seating to port with coffee table
Instrument console with display incorporating engine instruments, CCTV, fuel gauges, alarms and rudder position indicator
Dual station instrument and controls console at pilothouse/flybridge:

– power-assisted electro-hydraulic steering (SeaStar)

– adjustable steering wheel

– high-speed magnetic compass

– electronic engine controls

– bow thruster control

– Hydraulic anchor winch remote control

– colour radar (with scanner) and GPS/chart plotter (twin 19” displays)

– 1x 15” Böning display

– Audible and visual alarm engine warning system

– autopilot

– speed and distance log

– echo sounder with alarm

– VHF with DSC R/T with intercom

– remote control dual searchlight

– horn button (to operate twin electric horns)

– audible and visual alarm for bilge pumps

– engine room fire extinguisher warning system

Automatic fog horn with loudhailer
Chart storage
Drink holders (2)
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
On/Off & dimmable LED overhead/concealed lighting (24V) with night lighting & scene selection
‘V’ groove planked timber flooring
220/240v outlets (1)
USB connection points (2)
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port

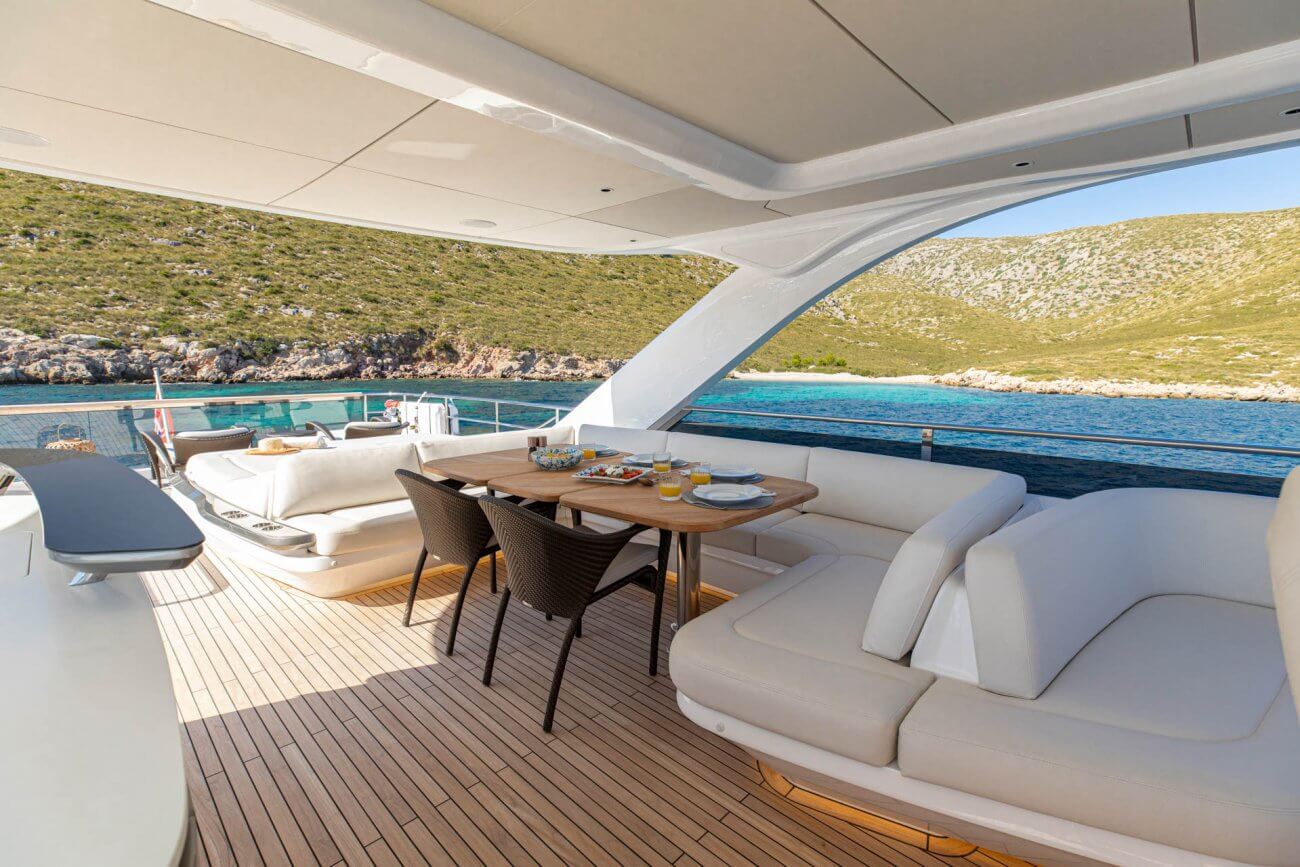

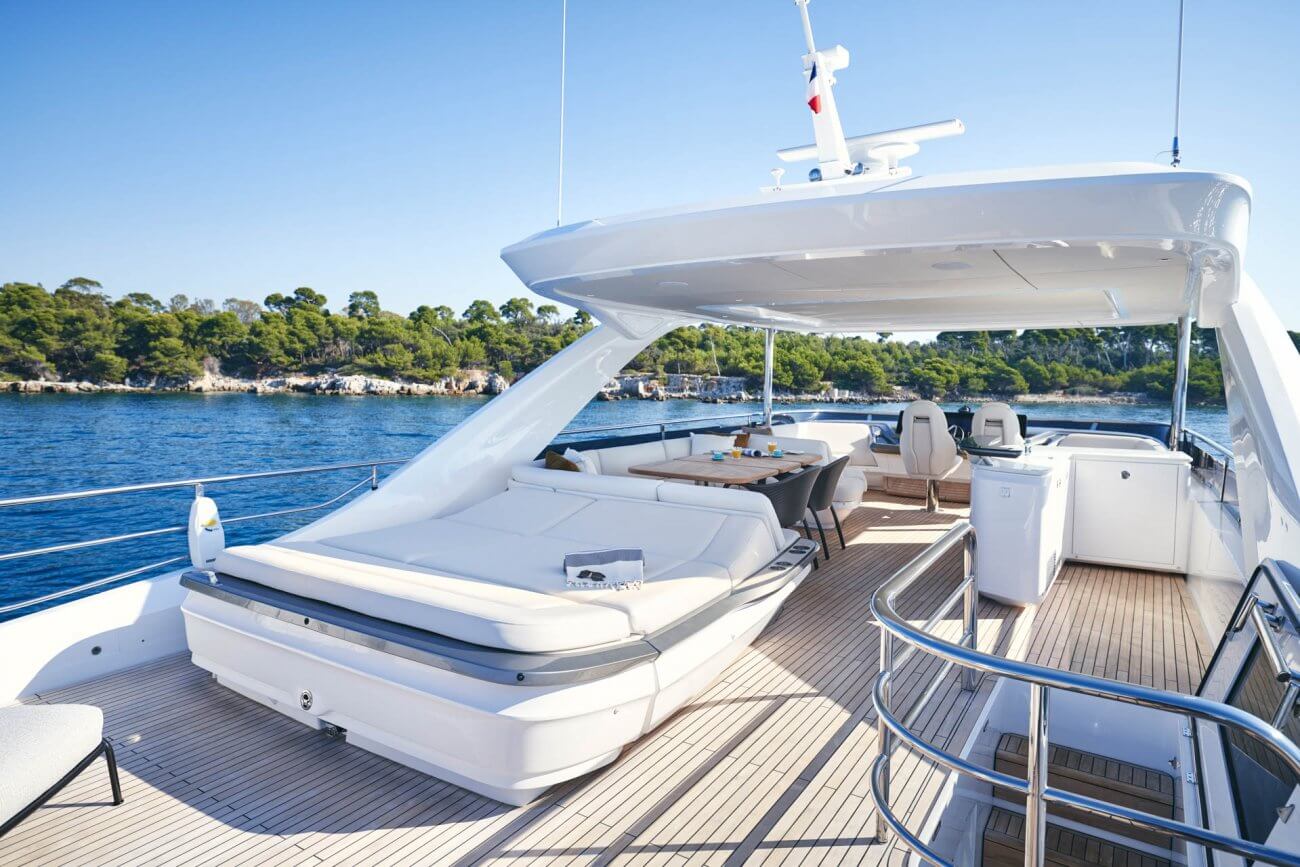

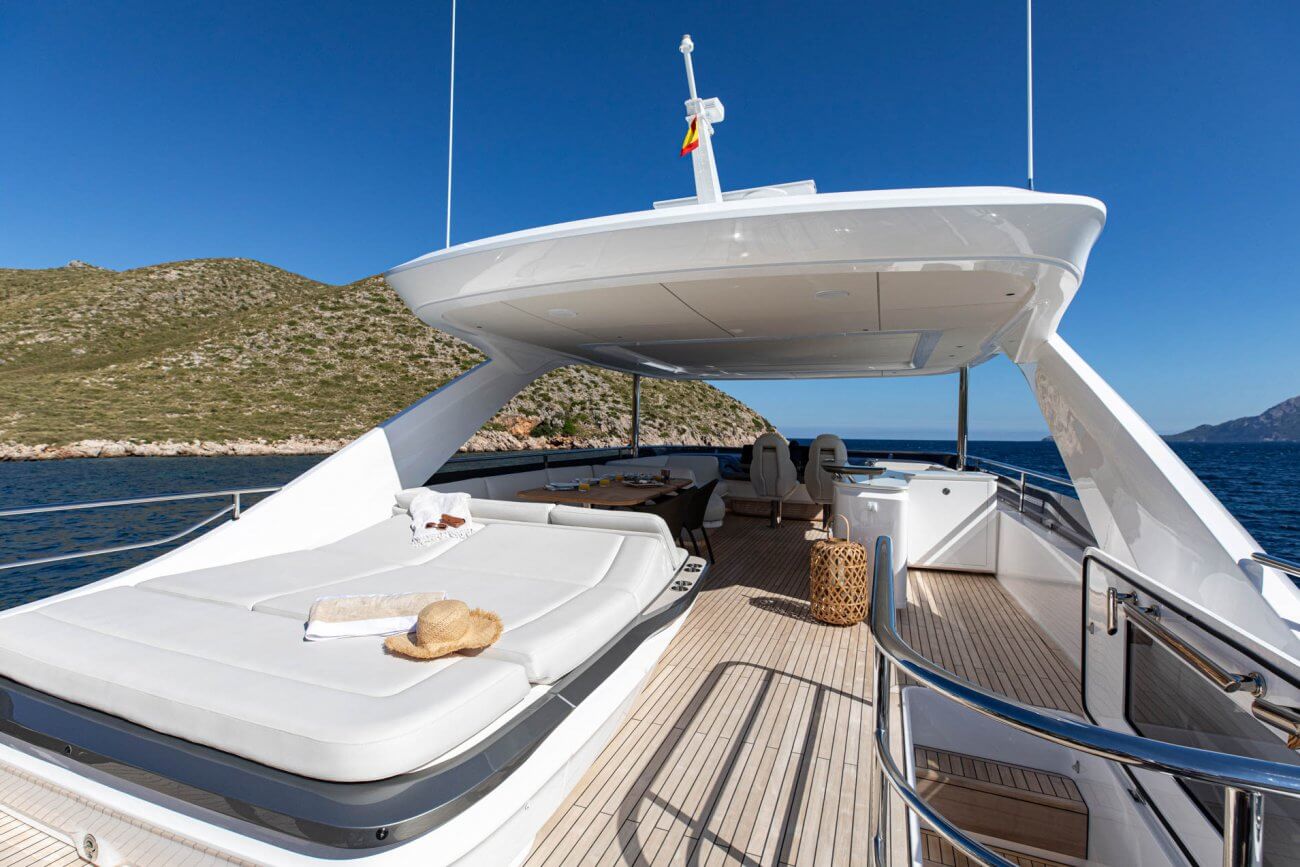

FLYBRIDGE

Dual station instruments and controls (see lower helm position)
Helm position
Twin upholstered seats with manual fore/aft/height adjustment for helmsman
Drinks holders (2)
Port L-shaped seating (with infill panel and cushion)
Starboard seating/individual sunpad
Aft sunpad with drinks holders (2)
Large U-shaped upholstered seating
Dining table (teak, triple panel with removable central section)
Wetbar with single barbecue/100 litre refrigerator/sink/storage
Naim Uniti Atom audio system with JL Audio M6-650X-L waterproof speakers (2)
Clear view hatch to aft cockpit (in-house)
Wind deflector screens
Access stairway to aft cockpit
Stainless-steel oval handrails with glass balustrade & teak capping to aft of flybridge deck
Life raft stowage in baskets on flybridge aft rails
LED overhead and deck level lighting
Wireless waterproof phone charger
GRP forward facing radar arch
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to console/exterior furniture
Optional crane (500kg SWL) – space to accommodate Williams Sportjet 395
Optional GRP hardtop with additional option of either electrically opening louvered section or glass panel

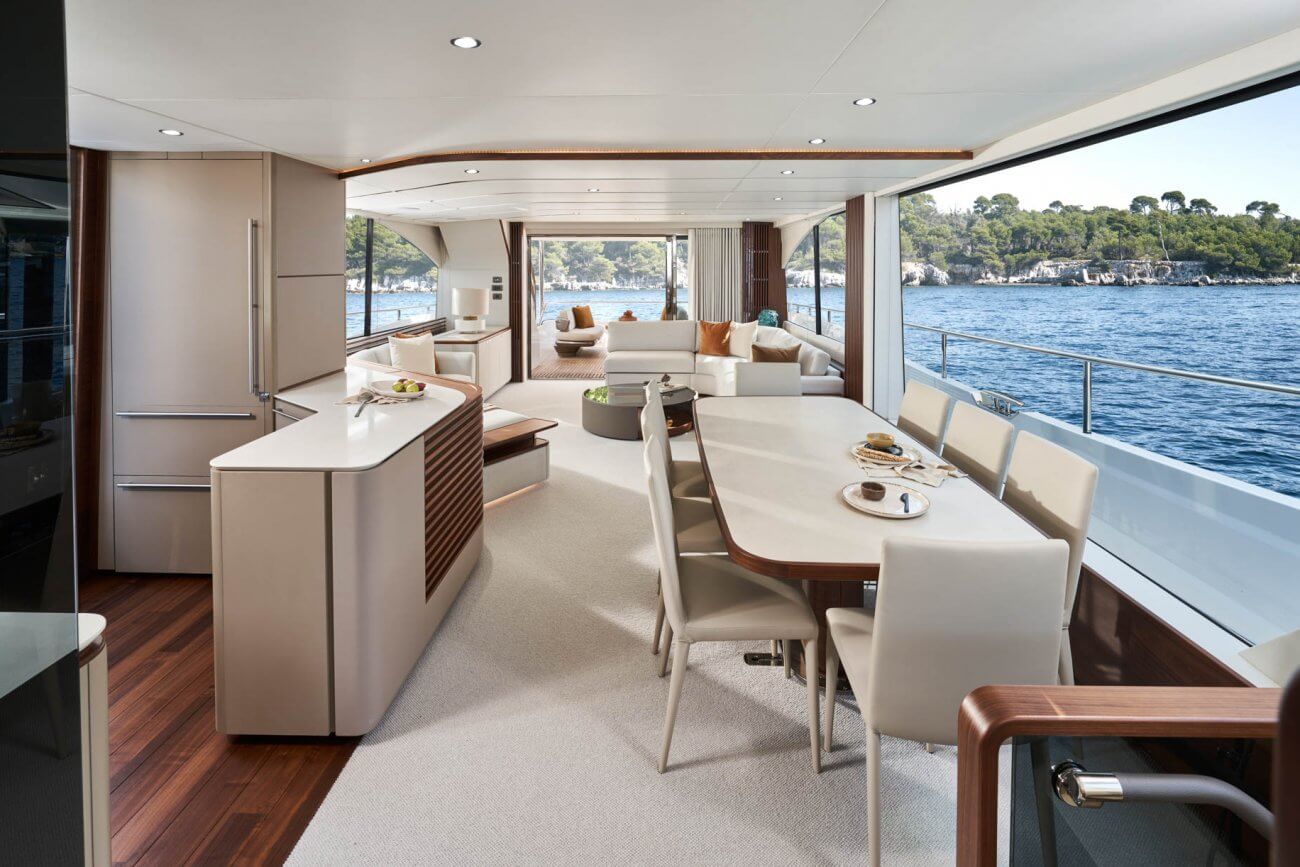

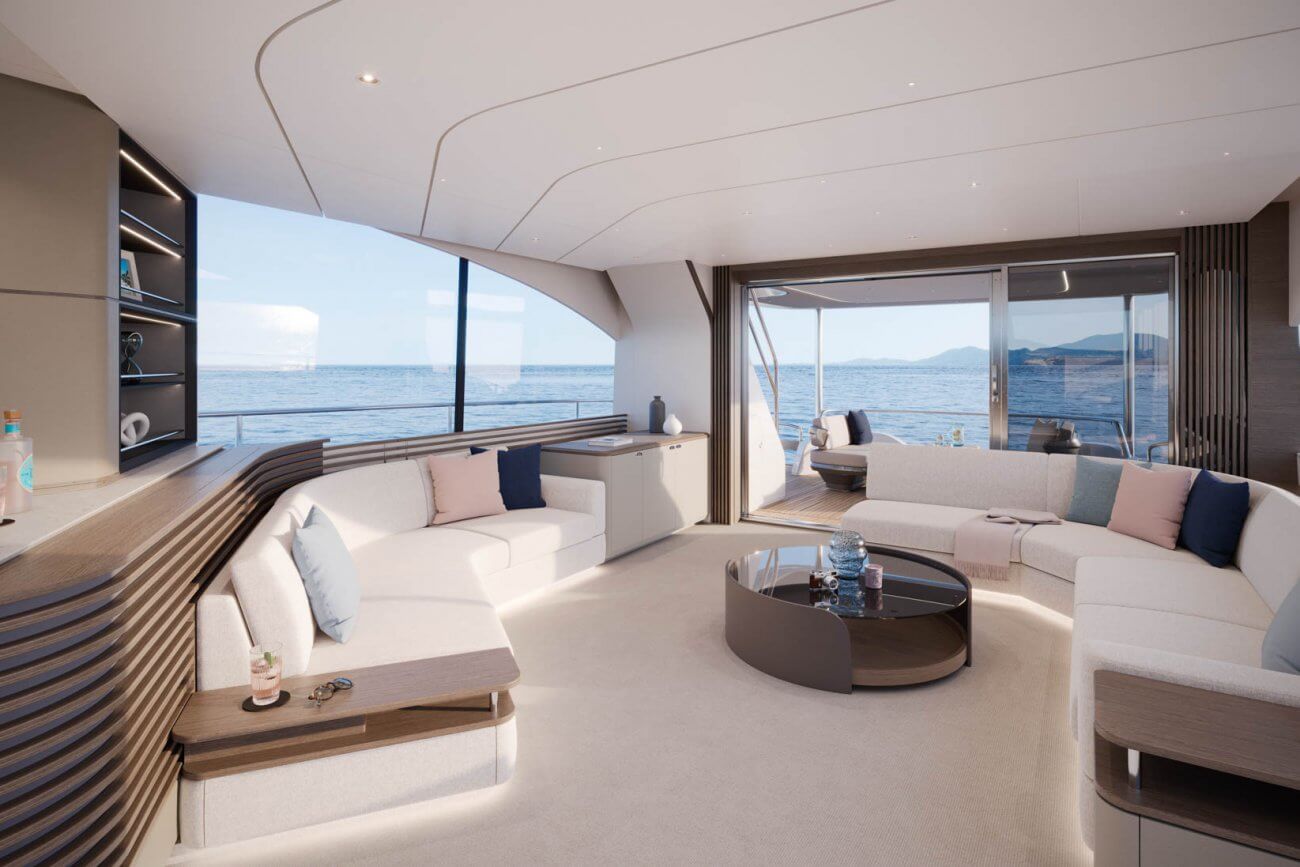

DECK SALOON

Large L-shaped sofa to port with storage below
Sofa to starboard with storage below
Coffee table
55” LED TV on rise and fall.
Blu-ray system and Naim Uniti Atom audio system with speakers (2)
Panoramic tinted toughened glass windows port and starboard
Triple stainless-steel framed cockpit doors
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)
USB connection points (4)
Manual roller blinds to all outboard windows
Manual curtains on wave track to aft patio doors, stowed to port
Fitted carpet
Onboard ethernet router & 4G/5G internet modem
Servery unit with integrated drinks refrigerator, icemaker, glasses storage & top down bottle storage
Crockery storage (beneath starboard sofa)

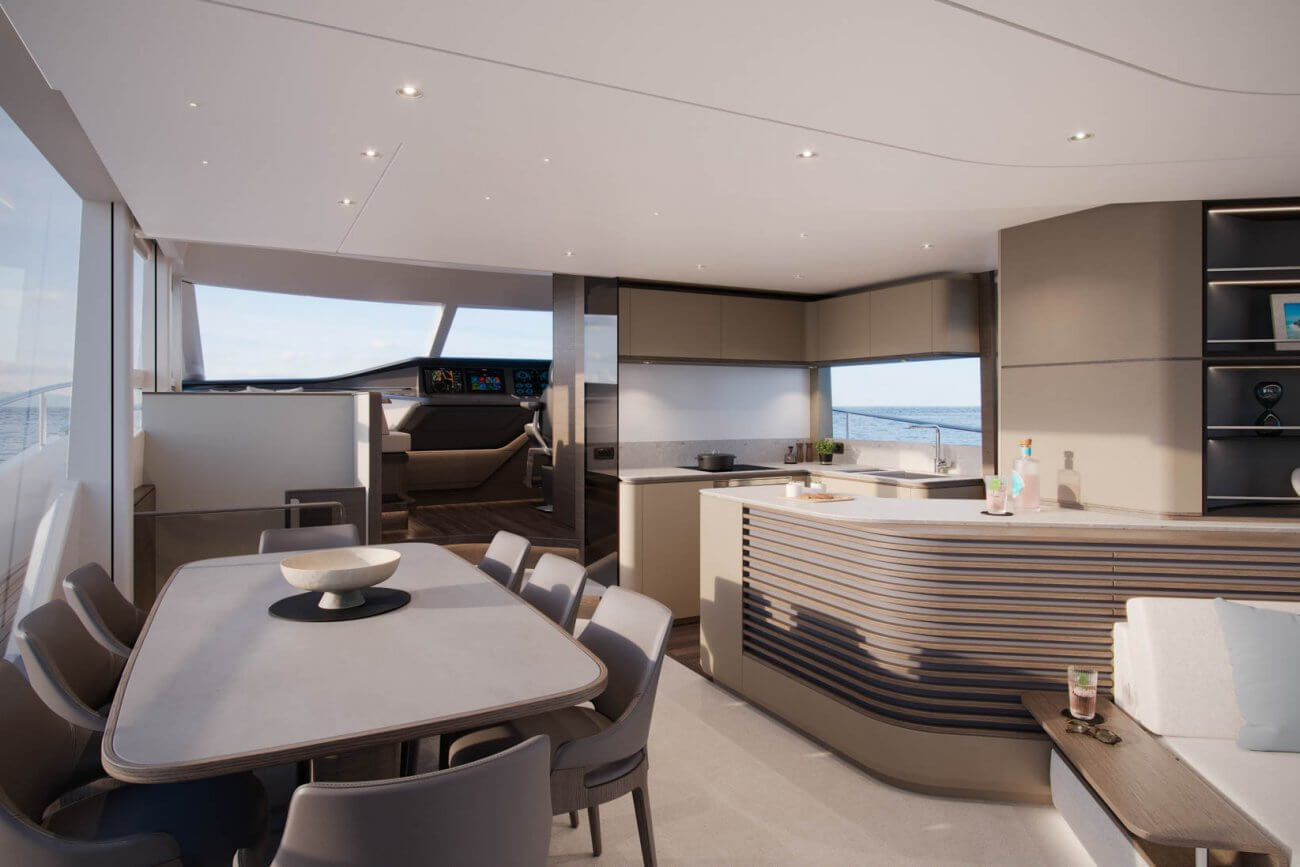

DINING AREA

Dining table with 8 dining chairs
Full-height window to port
On/Off & dimmable LED overhead/concealed (24V) with scene selection
Manual curtains on wave track to panoramic window
Access stairway to lower accommodation
Fitted carpet

GALLEY

Granite/quartz worktop
Miele 4-zone induction hob
Hob extractor fan
Miele combination convection oven with grill/microwave
Single full height refrigeration units with deep freeze drawers
Slimline dishwasher
1.5 bowl stainless-steel sink with mixer tap
Chopping board & storage
Waste bin
High and low-level storage cupboards and drawers
Cutlery storage
Access to dining area
Watertight pantograph access door to starboard side deck
220/240v power outlets (4)
LED overhead & task lighting (24V)
Manual roller blinds to windows
V groove planked timber laid flooring
Optional internal sliding door and up/down bulkhead mechanism

DAY HEAD

Electric freshwater toilet
Wash hand basin and worktop in thermoformed solid surface
Storage cupboard
Manual tension venetian blind
Solid surface flooring

ACCOMMODATION

All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All en-suites feature 240v shaver points

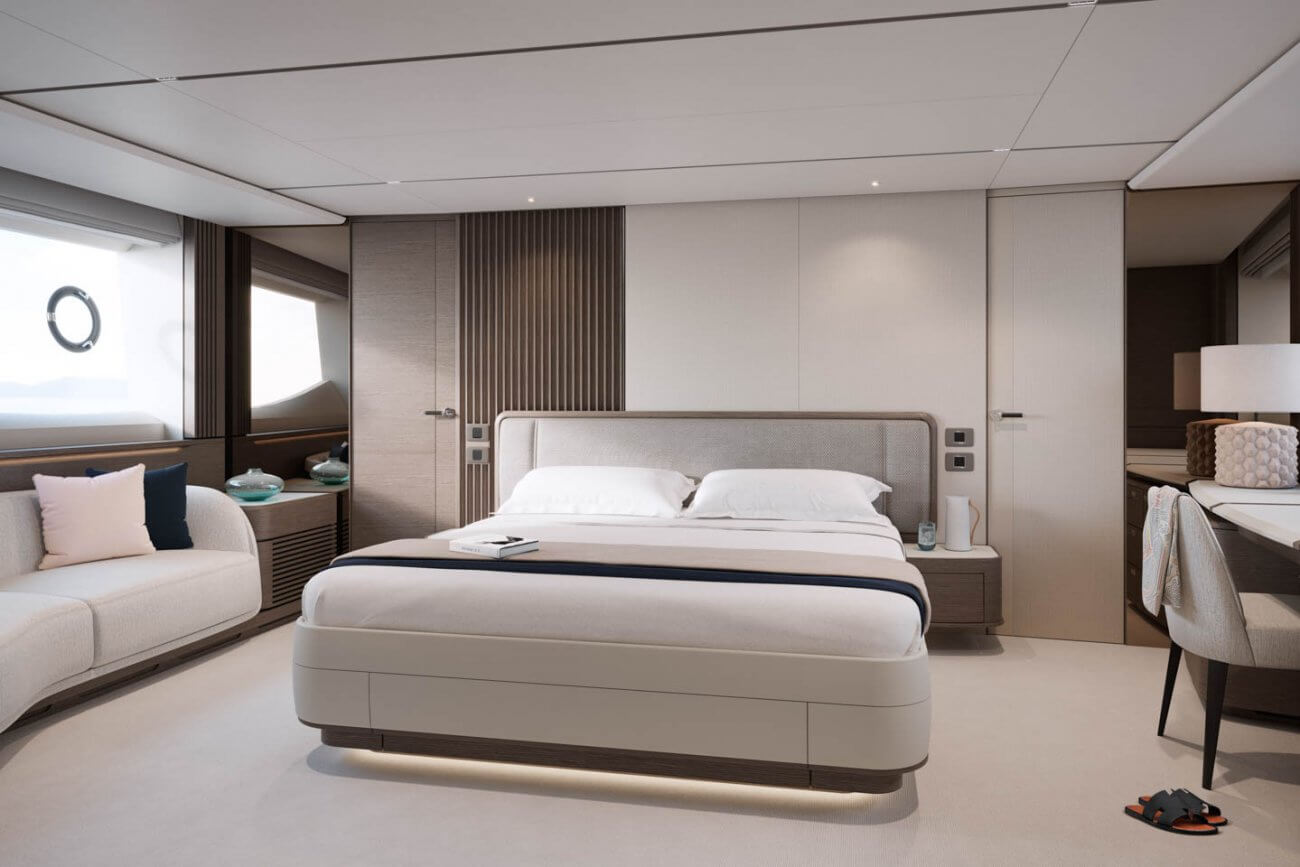

MASTER STATEROOM

Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe
Port side dressing table with integrated mirror, chair, storage drawers and cupboards

Starboard side sofa with storage units
55” 4K UHD LED TV
Blu-ray system connected to Naim Uniti Atom audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Roman blinds and manual sheer roller blinds to hull windows
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)
USB connection points (4) Fitted carpet

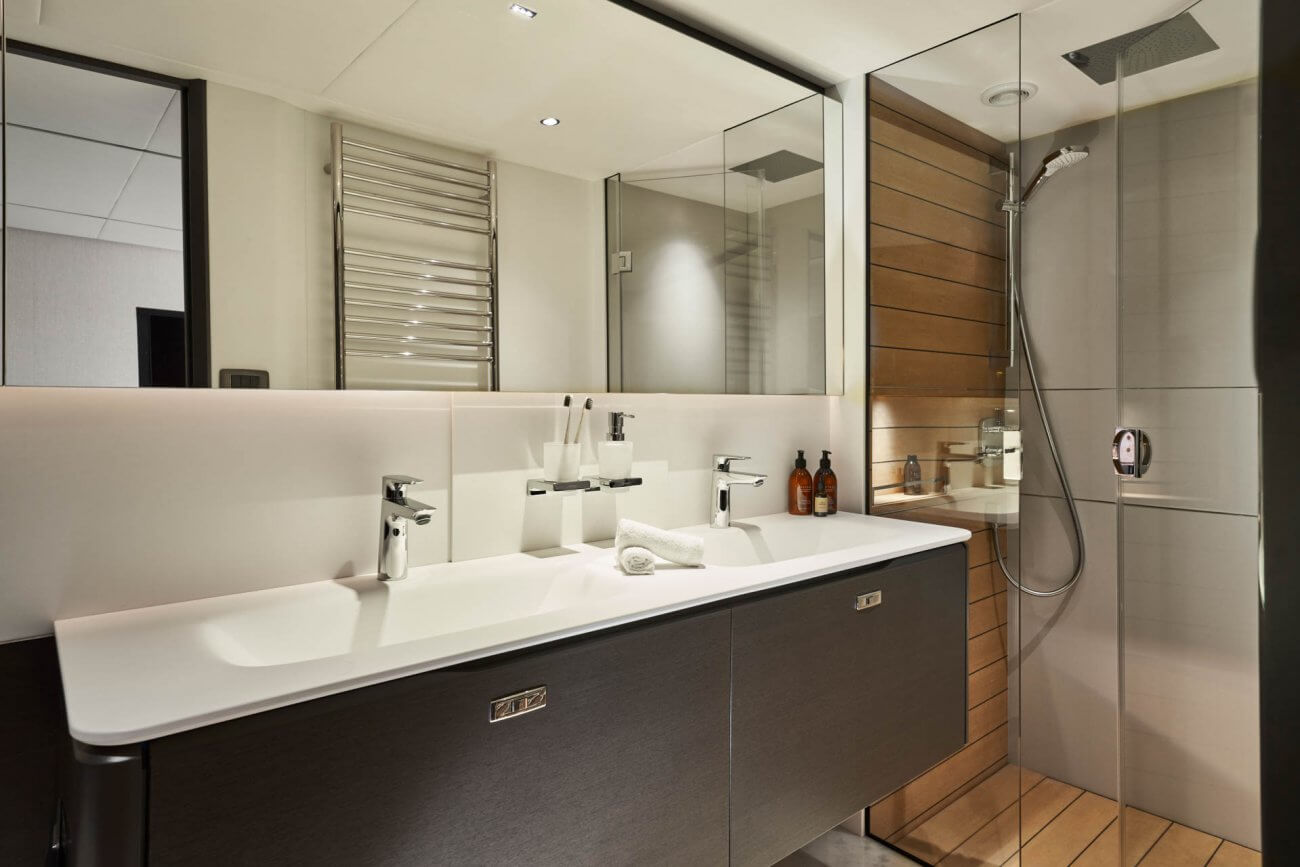

EN-SUITE BATHROOM

Twin washbasins and worktop in thermoformed Solid Surface
Mirror
Storage lockers
Electric freshwater Toilet and option of separate bidet
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid surface flooring, with synthetic teak applied to shower area

FORWARD STATEROOM

Large double bed with bedside tables and drawers below
Built-in safe
Twin double wardrobes
Port side dressing table with integrated mirror, stool & storage drawers
43” 4K UHD LED TV
Blu-ray system connected to Naim Uniti Atom audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Roman blinds and manual sheer roller blinds to hull windows
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)
USB connection points (4)
Fitted carpet

EN-SUITE BATHROOM

Washbasin and worktop in thermoformed Solid Surface
Mirror
Storage lockers
Electric freshwater Toilet
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid surface flooring, with Synthetic teak applied to shower area

STARBOARD GUEST CABIN

Double bed with drawers below
Bedside table
Dressing table with stool
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Roman blinds
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

Individual berth lights
220/240v outlets (1)
USB connection point (2)
Fitted carpet

EN-SUITE BATHROOM

Electric freshwater toilet
Washbasin and worktop in thermoformed Solid Surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid surface flooring, with Synthetic teak applied to shower area

PORT GUEST CABIN

Two single beds with drawers below
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Roman blinds
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

Individual berth lights
220/240v outlets (1)
USB connection point (2)
Fitted carpet

EN-SUITE BATHROOM

Electric freshwater toilet
Washbasin and worktop in thermoformed Solid Surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid surface flooring, with Synthetic teak applied to shower area

LOWER LOBBY / PASSAGEWAY AREA

Linen cupboard below companionway stairs
Top-loading storage unity outboard in window side liner
Space for optional combination washer/dryer below companionway stairs
On/Off & dimmable LED overhead/concealed lighting (24V) with scene selection

Fitted carpet
Manual roller blind to window

CREW QUARTERS

N.B. All lower crew furniture is in gloss white

laminate, with Koko White Solid Surface

(satin finish) bathroom vanity unit tops

and Koko White Solid Surface (satin finish)

bathroom floors

CREW CABIN PORT

Twin single beds with storage below
Wardrobe with shelf
Mirror
Storage lockers
Opening porthole (2, port and aft) and venetian blinds
LED overhead lighting (24V)
Individual berth light
220/240v outlets (1)
USB Connection points (2)
Non-slip safety flooring

CREW CABIN STARBOARD

Single bed with storage below
Wardrobe
Mirror
Storage locker
Opening porthole and venetian blind
LED overhead lighting (24V)
Individual berth light
220/240v outlets (1)
USB Connection points (2)
Non-slip safety flooring

CREW BATHROOM

Electric freshwater toilet
Washbasin with Koko White (satin finish) solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24V)
Bathroom accessories
Solid Surface flooring in Koko white (satin finish)

CREW AREA

Access from transom door
Access to engine room
Washing machine and separate tumble dryer (stacked). for all option scenarios including when Glendinning equipment is specified
LED overhead lighting (24V)
Non-slip safety flooring

POWER AND DRIVE SYSTEMS

Forward & aft engine room bulkheads and engine room deck head to be insulated.
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Forward and aft engine room bulkheads integrally bonded including acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for stern gear
Stern gear, engines, fuel tank fillers, etc all electrically bonded
LED Engine room lighting
Engine room access from transom (via crew area) and cockpit deck hatch
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals

ELECTRICAL SYSTEMS

24 Volt:

4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
1x heavy duty battery for standard generator
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 100A charger, 1x 100A-3500W charger/inverter & 1x 6A charger (for generator battery)
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
24v to 240v/50Hz inverter for saloon a/v, galley fridge and optional telephone system
Galvanic isolation system 220/240 Volt:
European specification: Up to 2 x 27kW

@ 50Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel (single generator as standard)

USA specification: Up to 2 x 29kW @ 60Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel (single generator as standard)
220/240v shore power inlet
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW immersion heater for fresh water
CCTV system with camera in aft cockpit and two fixed cameras in engine room, displayed on helm MFDs

FUEL SYSTEMS

Main fuel tank with a total of 7000 litres fuel capacity
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position

AIR CONDITIONING SYSTEM

Air Conditioning/heating reverse cycle (chilled water)
186,000 BTU fan capacity with 144,000 BTU chiller capacity
suitable for temperatures to 40°C (tropical)
incorporating a windscreen demist facility.
The standard generator is suitable.
Outlets in all areas and any concentrations of AV equipment (if required)

WATER SYSTEM

Fresh water tanks giving 1400 litres capacity plus 200 litres hot water calorifier
Automatic water pump with filter (80l/min)
Water level gauge
Deck filler
Pump circuit breaker at main switch panel
Electric freshwater toilet system linked to 500 litres holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Optional grey water tank to take waste water from sinks/showers, washing machine(s) and dishwasher

BILGE PUMPS

Automatic/manual override electric bilge pumps in engine room, rudder area and forward accommodation
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position

EXTINGUISHERS / FIRE CONTROL SYSTEMS

Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge

OTHER STANDARD EQUIPMENT

Ensign staff
Fenders (8)
Mooring warps (4)
First Aid kit
Set of towels (8 large, 8 hand),
Bed cover supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup & saucer)
Set of stainless-steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case

FINISHES

Teak-laid decks to all external deck areas (including flybridge)
V grooved planked timber floor to galley and wheelhouse
Furniture in choice of Alba oak, Rovere oak in satin finish as standard. Silver Oak or walnut with satin or gloss finishes available as an option.
Solid Surface in all bathroom suites in guest accommodation (including day head)
Thermoformed Solid Surface wash hand basin counter tops in all bathroom suites and day head
Galley worktop in granite or quartz
Choice of high-quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes
Crew cabins have fitted carpet, Crew bathrooms have Solid Surface floors and countertops
Non-slip safety flooring to crew mess and passageway
